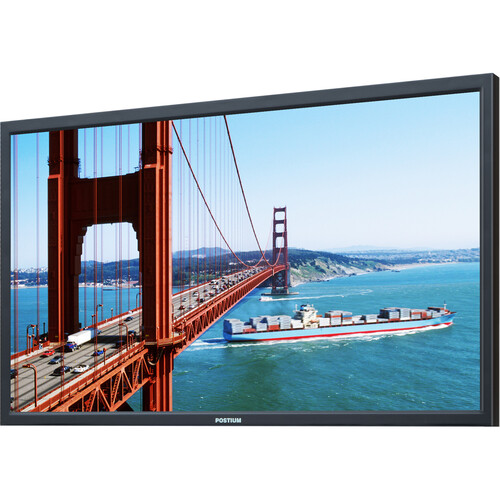

Postium 3G-SDI 32 inch Monitor

Overview
The OBM series offers a range of advanced functions for high quality display. With its High Dynamic Range (HDR) function, users can view both highlights and shadow detail of scenes simultaneously, resulting in more natural and realistic images. The series also supports various HDR formats such as PQ EOTF, Hybrid Log Gamma, and S-Log3, and allows for easy comparison between HDR and SDR images.

The OBM series also offers helpful features for camera operation, such as the Focus Assist function which sharpens edges on screen to aid in focusing, and the Fast Mode for reducing processing time delay. Other useful functions include False Colour mode for evaluating image levels, adjustable Gamma for monitoring in dark areas, and remote control via Ethernet connection. The series also offers customizable markers for accurate framing and composition.

Summary
Screen Size: 32 Inch
Resolution: 1920 x 1080
Inputs:
3G-SDI
BNC
DVI-D
HDMI
Outputs:
3G-SDI
BNC
Power Supply: AC
Recording: No
Included in box
1x Postium OBM-N310 Professional 3G-SDI Monitor – 24 inch
1x Power Cable

About the Postium 3G-SDI 32 inch Monitor
The OBM series provides the function to display the High Dynamic Range footage. Postium HDR function allows users to view both highlights and shadow detail of scenes at the same time, thus resulting in more natural and realistic images. The OBM series supports PQ EOTF, Hybrid Log Gamma and S-Log3. OBM-HDR provides the funciton of comparing HDR and SDR on the displayed image on the OBM series simultaneously.

The Focus Assist function controls the aperture level of a video signal, and displays images on screen with sharpened edges to help camera focus operation. Whilst the fast mode minimises the interlaced video processing time delay. This mode is also useful when displaying fast-motion interlaced video content and when reducing the delay between video and audio.

The False Colour mode evaluates the Luma (Y) level of the input image. If the certain Y level is set, the pixels with the designated Luma (Y) level are displayed with the zebra pattern or the colour pattern. There are three modes in OBM false colour.

Adjustable Gamma – Gamma value is adjustable from 1.0 to 3.0 as users preferance to monitor in the dark area of the picture. Any pictures taken in either light or dark environment can be easily watched or analysed.

It can also be connected via Ethernet connection and controlled remotely on the network.

The OBM series can display various markers, including aspect marker, area marker, and centre marker. In addition, the detailed display settings of each marker are allowed for example, the colour, brightness, horizontal/vertical position and thickness of aspect markers can all be adjusted.

Input
2 X BNC 3G / HD / SD-SDI-1/2
1 X HDMI HDMI 1.3a
3 x BNC (YPbPr) Analog(YPbPr)
1 x BNC (CVBS) Composite
1 x DVI DVI-D
Output
2 x BNC 3G / HD / SD-SDI-1/2
Input Signal Format
SMPTE ST 425-AB 1080p(60/59.94/50/30/29.97/25/24/23.98/30sF29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50)
SMPTE 274 1080i (60/59.94/50) / 1080p(30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE 296 720p(60/59.94/50)
SMPTE 260 1035i(60/59.94)
SMPTE ST 2048 2048 x 1080p(24/24sF/23.98/23.98sF)
SMPTE ST 125 480i(59.94)
ITU R-BT.656 576i(50)
HDMI ~ 1080p(60)
DVI-D VESA / IBM Modes
Audio In/Out
1 x Phone Jack In Line In(Stereo)
1 x Phone Jack OUT H/P Out(Front, Stereo)
2 x Speaker Out Stereo
Display
Size 32 inch
Resolution 1920 x 1080 (16:9)
Pixel Pitch 0.363mm
Colour 1.064B Colours (8bit+2bit FRC)
Viewing Angle 178(H), 178(V)
Luminance of White 500cd/m²
Contrast 3000:1
Display Area 698.4 x 392.85 (mm)
General
1 x Ethernet Control/Update, RJ-45P Input / Output
1 x GPIO GPI-7 Port, RJ-45P Jack
2 x Serial RS-422 Jack, RJ-45P Input / Output
1 x USB For Firmware Update, Colour Calibration
Power Requirements AC(100V~230V,50/60Hz) / DC 24V
Power Consumption MAX 100W
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Operating Humidity 20% ~ 80% RH
Weight 22kg / 48.50lbs
Dimension with stand (W x H x D) 749 x 507 x 176mm / 29.48 x 19.96 x 6.92inch
Accessories Power Cable
Option Wall Mount Kit / Carrying Case

High Dynamic Range HDR Display Function
Focus Assist
Fast Mode
False Colour Mode
Adjustable Gamma
Camera Log
Remote Control via Ethernet
Picture-by-Picture Function
HDR Waveform
Dual Waveform Monitor and Vector Scope
