PortKeys PT6 Monitor

Overview

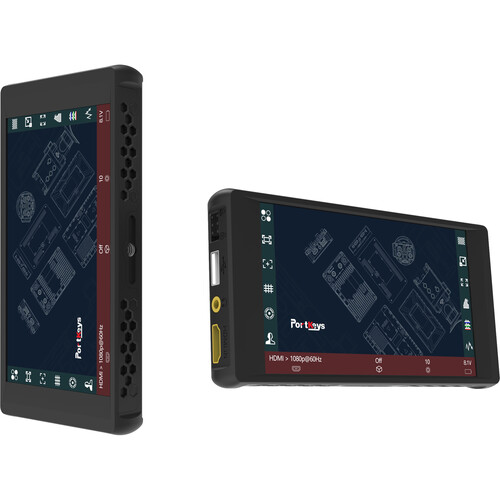

The Portkeys PT6 is a compact and lightweight 5.2-inch on-camera touchscreen monitor that offers a budget-friendly option with impressive features. It has a maximum brightness of 600nits and a 10-bit panel with a resolution of 1920 x 1080 and 100% DCI-P3 color coverage. The monitor also includes professional tools such as waveform, vectorscope, and false color, as well as 3D LUT monitoring and HDMI output capabilities. It is powered by Sony NP-F or Canon LP-E6 batteries and has low power consumption of only 6W.

The PT6 is made with a lightweight and durable ABS and PC housing, weighing only 170g/6oz without a battery. It has various exposure tools, customizable image crop, framing guides, and audio monitoring options. The monitor also supports anamorphic de-squeeze and has multiple power input options, including a USB-A port and a 5.5mm barrel connector. With its compact form factor and professional features, the Portkeys PT6 is a versatile and convenient on-camera monitor for video production.

Summary
Screen Size: 5.2inch
Resolution: 1920 x 1080
Inputs: HDMI
Included in box
1 x PT6 Monitor
1 x PT6 Sunshade
1 x HDMI to HDMI Cable
1 x Micro HDMI to HDMI Cable
1 x Pair of Rubber Covers
1 x MH-2 Mount
1 x Safety Box

About the PortKeys PT6 Monitor
The Portkeys PT6 is a lightweight 5.2-inch on-camera touchscreen monitor with an impressive budget/feature ratio, all in a very compact form factor.

The housing of the PT6 is made of robust polycarbonate and ABS that helps keeps the weight down to only 170g/6oz (without battery).

This monitor has a maximum brightness of 600nits, perfect for shooting indoors or in a controlled studio environment. The 10-bit (8+2 FRC) panel covers 100% of the DCI-P3 color space, which means no color banding, accuracy, and true-to-life color reproduction. This 5.2-inch monitor has a FullHD 1920 x 1080 resolution, a large 178° viewing angle, and a 1500:1 contrast ratio.

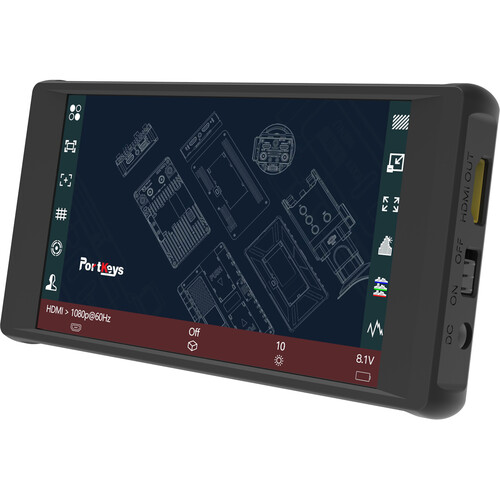

On the left side of the monitor, you’ll find an HDMI input port that can take resolutions up to 4K DCI at 24fps or 4K UHD at up to 30fps. On the right end side, an HDMI output port with a maximum resolution of 1080p60 allows you to output a clean video feed. Furthermore, the HDMI output can also display a video signal with a 3D LUT, anamorphic de-squeeze, and image adjustments such as contrast, brightness, and tone modifications.

But don’t let the compact form factor of the PT6 fool you, as it is packed with many professional monitoring tools, including:

Exposure tools: Luma and RGB Waveform, Histogram, and Zebra to accurately expose the image.
3D LUT monitoring and 3D LUT HDMI output. You can load custom LUTs via the USB port on the left side of the monitor.
False Color and ARRI False Color mode.
A new Peaking algorithm with a Peaking Frame feature so your camera’s UI can stay clear.
Customized image crop to zoom in anywhere in the image.
Framing guides, grids, aspects.
Audio meters, and you can also monitor your audio signal via the 3.5mm headphone jack on the left side of the PT6.
Anamorphic image de-squeeze with all the standard ratios (1.33x, 1.5x, 2.0x) and the possibility to enter a custom aspect ratio from 0.25 to 4.0x.
Stretch leg tool: when shooting vertically, you can stretch the bottom part of the image.
Sharpness, chroma, brightness, backlight, tint, and color temperature adjustments.

In terms of power, you’ll find a dual built-in battery plate at the back of the monitor that accepts either Sony NP-F or Canon LP-E6 batteries. With an extremely low power draw of only 6W, a single Canon LP-E6N battery pack can give you up to three hours of battery life!

Also, the 5V USB-A port on the left side and the 5.5mm barrel connector on the right side of the PT6 provide additional power inputs.

Screen SHARP 5.2 inch Anti-Fingerprint Coating IPS
Dimensions 150.7 x 77.8 x 18.5mm
Viewing Angle 178 degrees H / 178 degrees V
Brightness 600 nit
Resolution 1920 x 1080
Contrast Ratio 1500:1
Weight 170g
Colour Depth 10 bit (8+2FRC)
Colour Gamut 100% P3
Material PC+ABS
Power Input 7-24V
Maximum Power 6W

5.2-inch, 10-bit panel with a resolution of 1920 x 1080 and a 1500:1 contrast ratio.
Maximum brightness of 600nits, 100% DCI-P3 coverage.
1 x 4K HDMI input, 1 x HDMI input.
Professional monitoring tools: Waveform, Vectorscope, Peaking, ARRI False Color.
3D LUT monitoring and 3D LUT HDMI output capabilities.
Built-in Sony NP-F and Canon LP-E6 style battery plate.
5.5mm barrel connector 7.4V-24V power input. 5V USB-A power input.
Low power draw: only 6W.
Lightweight and rugged ABS + PC housing: only 170g/6.0oz.
