PortKeys OEYE – RED EVF

Overview
The OEYE RED Professional Tools include a variety of features such as 3D LUT, audiometers, pixel-to-pixel, brightness, contrast, chroma, backlight, zoom, OSD flip, grids, peaking, false-color, waveform, sharpness, tint, color temperature, aspect, check field, H/V delay, guides, crosshairs, zebra, and underscan. These tools are designed to provide precise control and monitoring capabilities for RED camera users. The MONSTER 8K VV, HELIUM 8K S35, GEMINI 5K S35, DRAGON-X 6K S35, and Scarlet-W 5k are all compatible with this EVF, but it cannot control the Komodo camera.

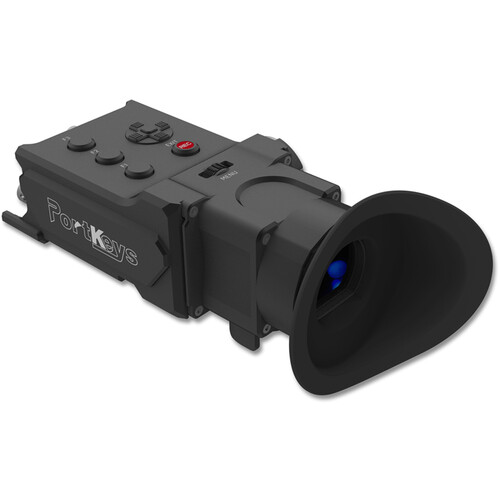

The EVF features a 0.71″ micro-OLED display with a resolution of 1920 x 1080 and a comfortable eyecup. It has a brightness of 200 cd/m², a contrast ratio of 100,000:1, and 8-bit color support. It also has HDMI and 3G-SDI inputs and outputs, a 5-pin LEMO-type remote control output port, adjustable diopter, fan synchronization mute when working with RED cameras, a rosette mount, and a durable aluminum construction.

Included in box
1 x Power Cable (4-pin Aviation Connector – D-TAP)
1 x Camera Connection Cable (5-pin Aviation Connector – 5-pin Aviation Connector)
1 x Control Cable(4-pin LEMO – 3-pin Aviation Connector)
1 x OLED-RED Hub
1 x L-type Inner Allen Key Diameter 4.7mm
1 x 7-inch Safety Plastic Box
1 x SDI Cable
1 x Pipe Clamp
1 x Warm Prompt
1 x U Disk (Manual, 3D LUTs, Firmware Inside)

About the PortKeys OEYE – RED EVF
PLEASE NOTE: This EVF cannot control the Komodo camera, you can just monitor via the Proprietary control cable that is included in the box.

0.71″, 1920 x 1080 micro-OLED EVF display with comfortable eyecup
200 cd/m² brightness, 100,000:1 contrast ratio, 8-bit color
HDMI input and output support resolutions up to DCI 4K24
3G-SDI input and output support resolutions up to 1080p60
5-pin LEMO-type remote control output port
Built-in adjustable +8 to -3 diopter
Fan Synchronization Mute in Rec mode when work with RED camera

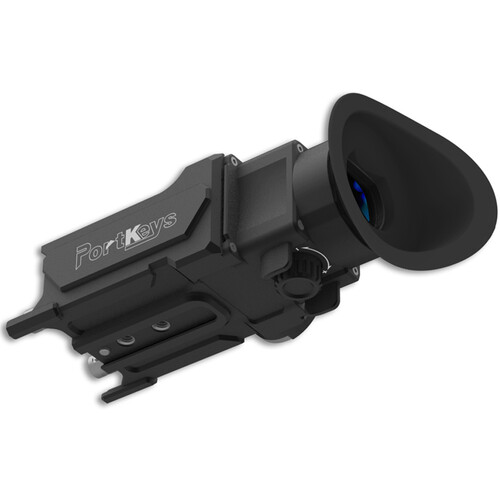

Rosette mount on the side
Durable aluminum construction

Display
Colour/Monochrome Colour
Display Size 0.71″ / 1.8 cm
Screen Resolution 1920 x 1080
Aspect Ratio 16:09
Touchscreen No
Maximum Brightness 200nit
Contrast Ratio 100,000:1
Bit Depth / Colour Support 8-Bit (16.7 Million Colours)
Pixels Per Inch (ppi) 3102 ppi
Image Controls Colour Temperature Selection, Customizable Aspect Ratios, False Colour, Focus Peaking, H/V Delay, Image Flip, Image Rotate, OSD Flip, Pixel Zoom, Pixel-to-Pixel Zoom, Screen Markers, Underscan, Waveform, Zebra

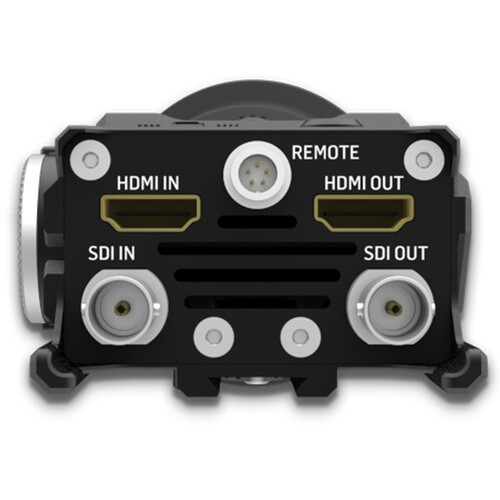

I / O
Video 1 x BNC (3G-SDI) Input
1 x BNC (3G-SDI) Loop Output
1 x HDMI Type A Input
1 x HDMI Type A Loop Output
Video Format
HDMI
DCI 4K: 24
UHD 4K: 30 / 29.97 / 25/24 / 23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 60 / 59.94
SDI (8-Bit 4:2:2 YUV)
1080p: 60/59.94/50
SDI (8-Bit 4:4:4/4:2:2 RGB, YUV)
1080p: 60/59.94/50/30/29.97/25/24/23.98
720p: 60/59.94/50
Camera Connection 5-pin Aviation Connector
Power Cable 1 x D-TAP to 4-pin Aviation Connector
Optics
Diopter Correction -3.0 to +8.0
Power
DC Input Power 7 to 24 VDC
Power Consumption 10 W
General
Mounting 1 x Rosette
Material of Construction Aluminium
Dimensions 7.1 x 2.9 x 2.7″ / 180 x 72.4 x 69.7 mm, Including
Weight 14.1 oz / 385g

Professional Tools of OEYE RED
3D LUT
Audiometers
Pixel-to-pixel
Brightness
Contrast
Chroma
Backlight
Zoom
OSD flip
Grids
Peaking
False-color
Waveform
Sharpness
Tint
Color temperature
Aspect
Check field
H/V delay
Guides
Crosshairs
Zebra
Underscan

Control RED Camera Native Navigation Menu:

MONSTER 8K VV
HELIUM 8K S35
GEMINI 5K S35
DRAGON-X 6K S35
Scarlet-W 5k
