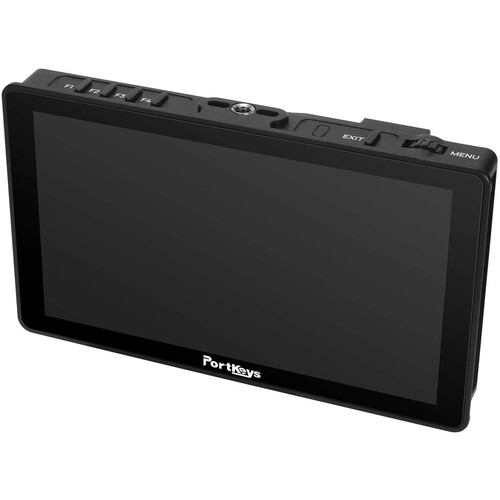

Portkeys BM7 II-DS Monitor – 7inch

Overview
The PortKeys BM7ⅡDS 2200nit Wide Colour Gamut Wireless Camera Control Monitor offers a variety of advanced features for professional filmmakers. With wireless camera control, it is compatible with cameras such as KOMODO, V-RAPTOR, BMPCC4K, and more. It also has a custom JPG picture freeze frame function, split screen monitoring, and 3D LUT HDMI output. The monitor is built with a CNC aluminium alloy all-metal shell for durability and has wired control capabilities for RED cinema cameras. It also has anamorphic lens calibration and HDMI to SDI output.

In addition, the PortKeys BM7ⅡDS 2200nit monitor has false colour and ARRI false colour options for better picture quality and more intuitive monitoring. It can be operated through both button scroll wheel and touch screen, and has multiple interfaces for video input and output. Other features include customized peaking range, custom rectangular image crop, and factory colour calibration with X-Rite 1D hardware. This monitor is a versatile and reliable tool for professional filmmakers.

Summary
Screen Size: 7 Inch
Resolution: 1920 x 1080
Inputs:
3G-SDI
HDMI
Outputs:
3G-SDI
HDMI
Included in box
1x BM7 II DS Monitor
1x safety Box
1x Scre-in DC Power Cable
1x Micro USB Flash Drive

About the Portkeys BM7 II-DS Monitor – 7inch
PortKeys BM7ⅡDS 2200nit Wide Colour Gamut Wireless Camera Control Monitor

Wireless Camera Control

Wireless Camera Control: KOMODO | V-RAPTOR | BMPCC4K | BMPCC6K | BMPCC 6K Pro SONY: A7MⅢ | RX0 | A1 | A9Ⅱ | A7C | FX3 | FX30 | RX10 | A7SⅢ | A7M Ⅳ

* Wireless control does not mean wireless video transmission, a video signal cable still needs to be connected during video transmission

Custom JPG Picture Freeze Frame

After capturing an image, it can be compared with real-time video by semi-transparent image superposition
Note: Must be a 16:9 1920×1080 jpg image

Split Screen Monitoring

Two screens can load the same 3D LUT file, support dual horizontal/dual vertical/left horizontal and right vertical/left vertical and right horizontal/ left horizontal and right vertical cropping of the same source
Note: Left and right screens can be flipped individually and mirrored

3D LUT HDMI Output

HDMI、3G-SDI can output video after loading 3D LUT

Wired Control Tilta Nucleus-N/M Motors

Compatible with Tilta Nucleus-N/M Motors and display the wireless follow the focus scale

CNC Aluminium Alloy All-metal Shell

With fast heat dissipation and high durability

Wired control of RED cinema camera

DSMC3 EXT control line (optional) to control DSMC3
DSMC2 CTRL control line (optional) to control DSMC2

Anamorphic Lens Calibration

Supported Ratio: 1.00X/1.33X/1.42X/1.50X/1.60X/1.66X/1.85X/2.00X/2.35X
User-defined adjustment range: 0.25X-4.00X

HDMI to SDI Output

Built-in signal conversion, no external signal conversion box required

False colour and ARRI False colour

Customisable overexposure and underexposure IRE scales

Brightness and RGB Signal Detection Before/After Loading 3D LUT

Loading 3D LUTs for better picture quality and more intuitive monitoring

Multiple Ways of Operating

Both button scroll wheel and touch screen, more flexibility in operation

Various Interfaces

Video input 3G-SDI×2/HDMI×1, video output 3G-SDI×1/HDMI×1, 3.5mm headphone jack×1

Customized Peaking Range(Peaking Frame)

Peaking perfectly avoids rendering camera parameters

Custom Rectangular Image Crop

Easily and clearly monitor the details of your images

Factory Colour Calibration-709 colour gamut with X-Rite 1D hardware

More accurate colour calibration and more intuitive image monitoring

Basic Parameters
Screen Size 7″
Weight 460g
Maximum Power 15W
Antenna 2.4G
Fan Yes
Colour Gamut 85% Р3
Resolution 1920×1080
Brightness 2200nit
Contrast Ratio 1000:1
Dimension 179.3×106.8×31mm
Viewing Angle 85/85 /85 /85
Material Aluminium Alloy
Video Signal Input 3G SDIX 2. HDMI
Video Signal Output 3G SDI. HDMI
Signal Conversion HDMI to SDI HD Output
Camera Control Port Focus Puller / CAMERA REMOTE
Input Voltage 7-24V
USB-A Upgrade Firmware /Load LUT
Support Battery Model SONY NP-F970/F960/F750/F550
Power Input /Output 2 Pin LEMO/ DC 5.5*2.1
Audio Output 3.5mm Headphone Jack
Software Function Peaking
Zebra
False Colour
Waveform(All)
Vector Scop
Luma Histogram
RGB Histogram
Luma Waveform
RGB Waveform
Audio Meters
HDR(HLG)
3D LUT
Time Code
Rectangle Crop
Image Capture
Image Overlay
Check Field
Guides
Cross Hair
Grids
Camera Recording
Dual Screen
Brightness
Contrast
Chroma
Sharpness
Tint
3D LUT SDI Output
Battery (Level) Display
Display Flip
Hardware Colour Correction
Colour Temperature
Custom RGB
Anamorphic
3D LUT HDMI Output
Custom Peak Area
Wireless Camera Control
ARRI False Colour
HDMI to SDI Output
Fan Adjustable
Control Tilta Motor and Cursor Display
1080p Refresh Rate Reduced to 1080i
Waveform optional detection of 3D LUT data before and after loading
* Monitor does not have 3D LUT storage, 3D LUT must be stored and loaded via USB stick
HDMI Signal 1920×1080p@23.97Hz,24HZ,25Hz,29.97Hz,30HZ,50Hz,59.94HZ,60HZ
1920×1080psf@23.97Hz,24Hz,25Hz,29.97Hz,30HZ
1920×1080@50Hz,59.94Hz,60HZ
1280×720p@50Hz,59.94Hz,60Hz
720×576p&720×576@50Hz
720×480p&720×480@50Hz,59.94Hz,60Hz
SDI Signal 1920×1080p@50fps,59.94fps,60fps
1920×1080p@50Hz,59.94Hz,60Hz,YUV422
1920×1080p@23.98Hz,24Hz,25Hz,29.94HZ,30HZ YUV444/YUV422
1920×1080psf@23.98Hz,24HZ,25Hz,29.97Hz,30HZ YUV444/YUV422
1920×1080@50Hz,59.94Hz, 60HZ YUV444/YUV422
1280×720p @50Hz,59.94Hz,60Hz YUV444/YUV422

Wireless Camera Control.
Custom JPG Picture Freeze Frame.
Split Screen Monitoring.
3D LUT HDMI Output.
Wired Control Tilta Nucleus-N/M Motors.
CNC Aluminium Alloy All-metal Shell.
Wired control of RED cinema camera.
Anamorphic Lens Calibration.
HDMI to SDI Output.
False colour and ARRI False colour.
