Overview
The LIVE AIR series introduces a revolutionary wireless follow focus system that is compatible with Live Pro Controllers. With a removable Li-42B battery and the ability to control all functions with just one button, this system offers convenience and ease of use. The compact yet powerful motor can handle both subtle and rapid focus pulls, and the 0.8 pitch gearing is compatible with most common cinema lenses. The controller can be easily attached to most square or round handles and has a 0.5Nm torque for low latency, fast response, and accurate focus control.
The controller also offers multi-degree installation options, allowing it to be clamped on a 15-32mm tube for different equipment. It also has a one-button function that automatically calibrates to the mapping of your lens and can switch between lens control mode and electric slide/turntable mode. Additionally, the system has a Remote Air App that supports Bluetooth and allows for multi-axis control of up to 6 motors simultaneously. With the ability to control zoom, focus, focal length, aperture, and camera movement, the LIVE AIR series offers a new and improved experience in wireless focus control.
Included in box
1 x Small wheel Controller(PDL-TC-AFX)
1 x Motor MINI(PD-BTMP-N)
1 x LIR2477 Battery(3.7V 200mAh)
2 x LI42Bx2 Batteries(3.7V 600mAh 2.2Wh *2)
2 x Micro Usb power cable
1 x Li42B charger
1 x 15MM Hot Shoe Clip
1 x 15MM rod L15CM
1 x Lens gear ring (for DIA42-84MM)
1 x Multifunctional Fixture
1 x Manual
1 x Portable Zipper Bag
About the PDMovie Live Air 3 Kit
The new LIVE AIR series brings a new experience of wireless focus control.PDMOVIE has been deeply involved in the field of focus for many years. Strictly control the quality and details, develop unique integrated chip technology, connect multiple modules, and achieve finer focus and more extreme operating experience.
Arbitrary installation, unlimited
The controller comes with a 1/4 screw, it can be installed as long as there is a 1/4 screw hole. Such as kits, handles, monitors and other equipment.
High Torque Strong Power
– 0.5Nm torque
– low latency, fast response, quiet, accurate in place
– 0.8Mod gear is standard, 0.4/0.5/0.6mod can be purchased to easily control conventional movie lenses and SLR lenses
Removeable Battery
The controller uses LIR2477 electronics as a replace power supply. The motor uses 2 of Li-42B battery as a replaceable power supply. support quick battery replacement.
Wireless Thumbwheel Controller
The smallest control handwheel to date. Between one finger to control the focus. which can be used flexibly with s variety of accessories, has a long battery life, an independent power supply system and a stable transmission distance.
Multi-degree Installation
The controller can be clamped on a 15-32mm tube for different equipment, such as stabilisers, steadicam, shoulder frame, rocker arm, tripod equipment etc.
One key to set all functions
– Automatic/manual detection of lens stroke
– Motor clears the calibrated stroke
– The motor is powered off to restore the calibrated stroke
– Switch between lens control mode and electric slide/turntable mode
Remote Air App
Multi-axis control at your fingertips
-REMOTE AIR APP supports Bluetooth that connects 6 motors at the same time.
– When controlling the zoom lens, you can use the hand wheel to control the focus, and the APP to control the focal length and aperture.
– When combined with LIVE CAR and LIVE WHELL, you can also control the camera pan, left and right rotation, and up and down tilt at the same time to achieve multi-axis synchronous operation.

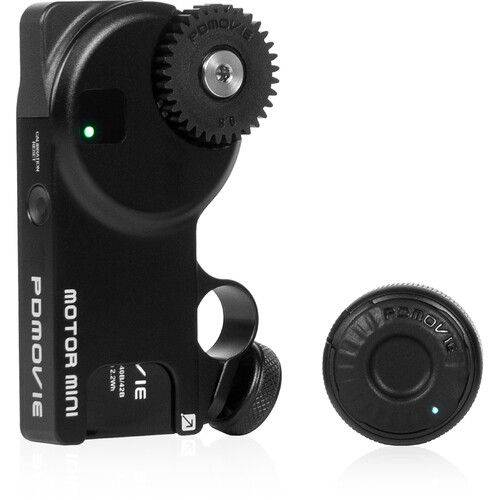

Motor MINI (PD-BTMP-N)
Weight 132g
Size 93*50*20mm
Torque 0.5Nm
Bluetooth 5.3
Battery LI-42B*2
Working time 6-8 hours
Voltage 7.2-8.4V
Operating temperature +60°C、-20°C
Small Wheel Controller (PDL-TC-AFX)
Weight 28g
Size 31*31*31mm
Rotation 300°C
Bluetooth 5.3
Battery LIR2477
Working time 8-10 hours
Voltage 3.4-4.2V
Operating temperature +60°C、-20°C
Completely wireless follow focus system
Compatible with Live Pro Controllers
Removable Li-42B Battery
Control All Functions with One Button
Automatically calibrates to the mapping of your lens
Simple, single-button system settings control
Compact yet powerful motor can handle both subtle and rapid focus pulls with ease
Focus control attaches to most square/round handles less than 1″ in diameter
0.8 pitch gearing is compatible with most common cinema lenses
