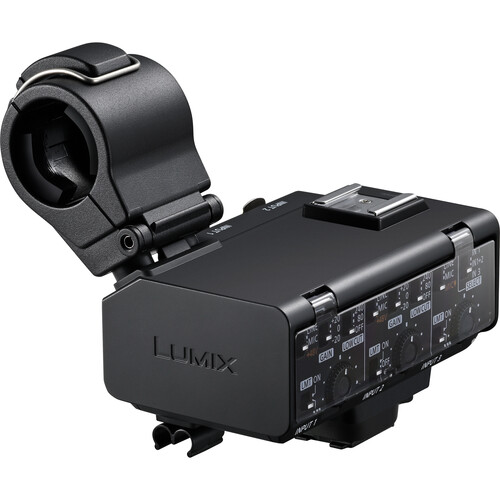

Panasonic XLR Microphone Adapter

Overview
The LUMIX XLR microphone adaptor enables 32-bit float recording, improving the quality and efficiency of the entire workflow. This feature is currently compatible with the LUMIX GH7 (DC-GH7) model as of June 2024. With 32-bit float recording, the camera can capture a wide dynamic range of sounds, from quiet to loud, without the need for tedious sound level adjustments during recording.

This not only saves time and effort during filming, but also streamlines the post-production process as video and music can be managed in a single file. This makes the LUMIX XLR microphone adaptor a valuable tool for professional videographers and filmmakers looking to enhance the audio quality of their projects.

Included in box
1x XLR Microphone Adapter
1x Cable Holder
1x Microphone Holder
1x Pouch

About the Panasonic XLR Microphone Adapter
LUMIX XLR microphone adaptor allows the camera* to deliver 32-bit float recording, improving the quality and efficiency of the entire workflow. With its wide dynamic range, the 32-bit float format records more information, from quiet to loud sounds. As a result, there is no need for tedious sound level adjustments during audio recording. Video and music can be managed in a single file, making post-production much more efficient.

INPUT1
INPUT2
Input Terminal XLR 3-pin (female)
Standard Input Level “LINE: 0 dBu
MIC, +48V: -40 dBu
(0 dBu=0.775 Vrms)”
Standard Recording Level -12 dBFS (at the standard input)
Frequency Characteristic 20Hz to 40kHz, +1/-1 dB (during Fs=96kHz, during LINE)
Phantom Power Source 48V
INPUT3
Input Terminal φ3.5mm stereo mini jack
Standard Input Level “LINE: -10 dBV
MIC, MIC (plug-in power): -40 dBV
(0 dBV=1 Vrms)
Standard Recording Level -12 dBFS (at the standard input)
Frequency Characteristic 20Hz to 40kHz, +1/-1 dB (during Fs=96kHz, during LINE)
Plug-in Power 2.5V
“Sampling Frequency
Bit Length
Number of Recording Channels”
Linear Recording “48kHz/24-bit/2ch, 96kHz/24-bit/2ch
(Select one of INPUT1, INPUT1+2, or INPUT3)
48kHz/24-bit/4ch”
Float Recording “48kHz/32-bit/2ch, 96kHz/32-bit/2ch (Select one of INPUT1, INPUT1+2, or INPUT3)
48kHz/32-bit/4ch”
Dimensions (W x H x D) “Approx. 61.2 x 60.9 x 92 mm / 2.41 x 2.40 x 3.63 inch
(without microphone holder)
Approx. 94.6 x 106.2 x 92 mm / 3.73 x 4.19 x 3.63 inch (with microphone holder)
(excluding the projecting parts)”
Weight “Approx. 158 g / 0.35 lb (without microphone holder)
Approx. 192 g / 0.43 lb (with microphone holder)”
Operating Temperature -10℃ to 40℃ (14℉ to 104℉)
Operating Humidity 10 – 80 %RH
Standard Accessories Cable Holder, Microphone Holder, Pouch

Enables 32-bit Float Recording
LUMIX XLR microphone adaptor allows the camera* to deliver 32-bit float recording, improving the quality and efficiency of the entire workflow
There is no need for tedious sound level adjustments during audio recording.
Video and music can be managed in a single file, making post-production much more efficient.
*Compatible model as of June 2024: LUMIX GH7 (DC-GH7)
