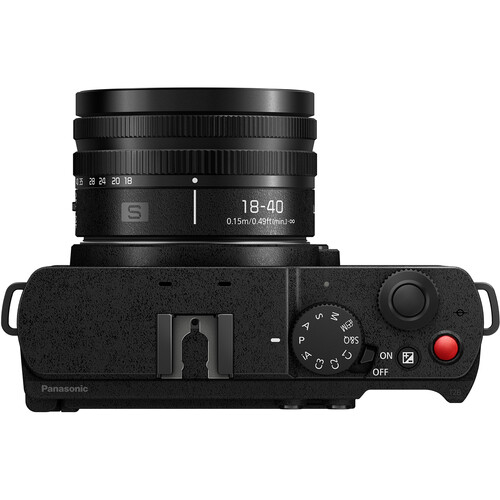

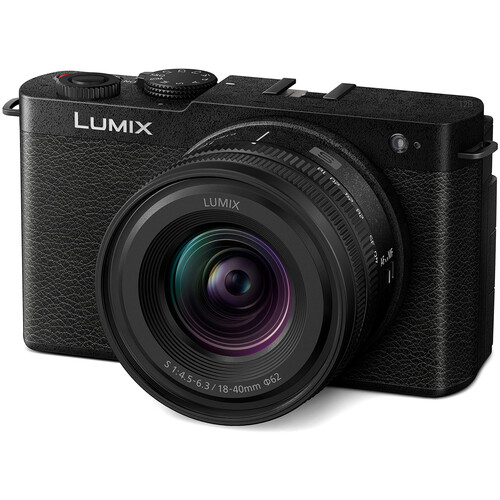

Panasonic LUMIX S9 W/ 18-40mm Lens – Jet Black

Overview
LUMIX S 18-40mm Lens: The Worlds Smallest and Lightest* Zoom Lens. Designed to be compact and portable with dimensions of φ67.9 x 40.9 mm** and a light weight of 155g. A perfect partner to the compact full frame LUMIX S9 camera. Robust and reliable dust, splash and freeze-resistant design with fluorine coating. Unique 18-40mm Focal Length. 18mm ultra-wide angle allows for capture of expansive landscapes, while the standard 40mm is perfect for shots with a natural perspective. Capable of 18-120mm with the Hybrid Zoom function on the LUMIX S9. Ideal for Both Videography and Photography. Excellent performance in both photo and video, capturing in high-resolution with beautiful bokeh. Effectively suppresses focus breathing, in which the angle of view changes caused by movements in the focus position.

Panasonic Announces New LUMIX S9 Compact Full-Frame Mirrorless Camera. Smallest and lightest LUMIX S Series camera*1 with stylish compact design in multiple colour variations. Outstanding imaging performance with approx. 24.2MP full-frame sensor. Shoot and share to social media in 30 seconds*2 with the new LUMIX Lab app. Panasonic is proud to announce the LUMIX S9, the smallest and lightest full-frame mirrorless camera in the LUMIXS Series. The approx. 24.2-megapixel full-frame CMOS sensor, equivalent to that of the LUMIX S5II, and the latest engine capture content in rich detail with natural tones. In addition, the camera is equipped with PDAF (Phase Detection Auto-Focus), which provides excellent subject tracking, and Active I.S., which significantly reduces blurring from camera shake even when shooting handheld, allowing users to shoot confidently, whatever the situation.

Summary
Native ISO: ISO 100
Lens Mount: L Mount
Battery Mount / Type: Panasonic DMW
Media Type: SD
Photo Resolution: 24.2 megapixels
Resolution and Frame Rate: 4K
Sensor: CMOS
Weight: 0-2kg
Wi-Fi: Yes
Included in box
1x LUMIX S9 Camera – Jet Black
1x LUMIX S 18-40mm F4.5-6.3 Lens
1x Body Cap
1x Shoe Cover
1x Shoulder Strap
1x Battery Pack
1x Lens Front Cap
1x Lens Rear Cap

About the Panasonic LUMIX S9 W/ 18-40mm Lens – Jet Black
Panasonic Announces New LUMIX S9 Compact Full-Frame Mirrorless Camera

Smallest and lightest LUMIX S Series camera*1 with stylish compact design in multiple colour variations
Outstanding imaging performance with approx. 24.2MP full-frame sensor
Shoot and share to social media in 30 seconds*2 with the new LUMIX Lab app

Panasonic is proud to announce the LUMIX S9, the smallest and lightest full-frame mirrorless camera in the LUMIXS Series.

The approx. 24.2-megapixel full-frame CMOS sensor, equivalent to that of the LUMIX S5II, and the latest engine capture content in rich detail with natural tones. In addition, the camera is equipped with PDAF (Phase Detection Auto-Focus), which provides excellent subject tracking, and Active I.S., which significantly reduces blurring from camera shake even when shooting handheld, allowing users to shoot confidently, whatever the situation.

The LUMIX S9 also allows creators to easily enjoy a range of popular, classic or bespoke colour styles in-camera with the popular REAL TIME LUT function via a new dedicated ‘LUT’ button on the camera body.

In addition, the new LUMIX Lab app enables creators to develop their own unique LUT colour files on their smartphone. This means users can effortlessly generate original and shareable stills and videos without the need of post-production editing on a computer, expanding the scope of creative possibilities. The speed of transferring data from camera to smartphone has also been improved with the new app.

The LUMIX S9 introduces a new recording format; MP4 Lite. Shooting Open Gate in 4:2:0 10 bit in 30p/25p, creators can capture high quality videos in the optimum format for smartphone, and easily resize aspect ratios to suit social media with the LUMIX Lab app. With this new streamlined editing workflow, content creators can easily shoot and share while on the go.

Panasonic aims to offer a new enjoyable shooting experience to creators with the LUMIX S9, making the journey from capturing the moment to sharing with the world seamless and intuitive.

The first compact design in the LUMIX S Series, combining a small and lightweight body with high image quality

Compact and lightweight body weighing approximately 403g/0.89 lb*3
Approx. 24.2-megapixel full-frame CMOS sensor and the latest engine deliver powerful imaging performance.
Improved real-time recognition AF with PDAF (Phase Detection Auto-Focus) for more precise subject tracking performance.
Industry leading image stabilization technology with 5-axis Dual I.S.2: 6.5 stops*4/ Body I.S.: 5 stops*5 and Active I.S. compensate for camera shake when shooting while walking. With perspective distortion correction and High mode in the E-Stabilization (Video) function, it is now possible to achieve even more stable footage when shooting on the move.
Equipped with MP4 Lite, a new smartphone-optimized Open Gate video mode
Free-angle rear screen for flexible shooting at all angles

New LUMIX Lab app for effortless connection

Allows high-speed transfer of photos and videos from the camera to a smartphone.
Enables users to easily create original LUT files and transfer them from a smartphone to the camera, allowing them to enjoy their own preferred colour expressions.
LUTs from popular creators are also available to download and use from the app
Quick and easy editing of MP4 Lite video files optimized for social media sharing

REAL TIME LUT for a wider range of creative expression

Fully customizable LUT colour files can be loaded in-camera for creative shooting
Dedicated LUT button on the camera body for direct access to LUT settings
Added opacity control and grain effect to further enhance creativity
Up to 2 LUT files can be applied at the same time

*1 Within LUMIX S series line up, as of May 22nd, 2024.

*2 The total time it takes to transfer a JPEG photo or a 5-second short video shot in MP4 (Lite) mode to an iOS-supported smartphone using the LUMIX LAB app, including cropping in case of video, and posting to social media. Study conducted under Panasonic standards. Results may vary depending on network environment.

*3 Body and shoe cover. Excluding the body cap. The combined weight of the body, shoe cover, battery, and SD memory card is approximately 486g/1.08 lb.

*4 Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm] when S-E70200 is used.

*5 Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm] when S-R2060 is used.

LUMIX S 18-40mm Lens:

Panasonic is pleased to announce the new LUMIX S 18-40mm F4.5-6.3 lens based on the L-Mount system standard.

The new LUMIX S 18-40mm is the world’s smallest and lightest* zoom lens, weighing approximately 155g/0.34lb, and is designed to be a compact and lightweight addition to the LUMIX S Series full frame lens line up. This lens covers focal lengths from an ultra-wide angle of 18mm to a standard 40mm, with a closest shooting distance of 0.15m/0.49ft, allowing for the flexibility to capture expansive landscapes and buildings or portrait shots in a natural perspective.

In addition, the lens incorporates the high-quality video performance expected from LUMIX with effective focus breathing suppression.

TYPE
Type Digital Single Lens Mirrorless camera
Lens mount L-Mount
IMAGE SENSOR
Type 35mm full-frame (35.6mm x 23.8mm) CMOS sensor
Camera effective pixels / Total pixels Approx. 24.20 megapixels / Approx. 25.30 megapixels
AR (Anti Reflection) coating Yes
Aspect ratio / Color filter 3:2 / Primary color filter
Dust reduction system Image sensor shift type
LATITUDE 14+ stops (V-Log)
STILL IMAGE
Recording file format JPEG (DCF, Exif 3.0), RAW
Aspect ratio 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1
File size (Pixels)
When using full-frame lenses 3:2 6000×4000(L) / 4272×2848(M) / 3024×2016(S) / 1920×1280(XS) / 12000×8000(XL)* / 8496×5664(LL)*
*High Resolution mode 4:3 5328×4000(L) / 3792×2848(M) / 2688×2016(S) / 1712×1280(XS) / 10656×8000(XL)* / 7552×5664(LL)* *High
Resolution mode.
16:9 6000×3368(L) / 4272×2400(M) / 3024×1704(S) / 1920×1080(XS) / 12000×6736(XL)* / 8496×4784(LL)* *High Resolution mode.
1:1 4000×4000(L) / 2848×2848(M) / 2016×2016(S) / 1280×1280(XS) / 8000×8000(XL)* / 5664×5664(LL)* *High Resolution mode.
65:24 6000×2208(L) 2:1 6000×3000(L)
When using APS-C lenses 3:2 3984×2656(L) / 2880×1920(M) / 2064×1376(S) / 1920×1280(XS)
4:3 3536×2656(L) / 2560×1920(M) / 1840×1376(S) / 1712×1280(XS)
16:9 3984×2240(L) / 2880×1624(M) / 2064×1160(S) / 1920×1080(XS)
1:1 2656×2656(L) / 1920×1920(M) / 1376×1376(S) / 1280×1280(XS)
Image quality RAW / RAW+Fine / RAW+Standard / Fine / Standard
(High Resolution mode: Combined / RAW / RAW+Fine / Fine)
Color space sRGB, AdobeRGB
MOTION PICTURE
Recording file format MOV: H.264/MPEG-4 AVC, H.265/HEVC
MP4: H.264/MPEG-4 AVC, H.265/HEVC
MP4(Lite): H.265/HEVC
Audio format MOV: LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*)
MP4: AAC (2ch 48kHz/16-bit)
MP4(Lite): AAC (2ch 48kHz/16-bit)
*When attaching Φ3.5mm microphone.
System frequency 59.94Hz / 50.00Hz / 24.00Hz
Image area of video Full / APS-C / PIXEL/PIXEL
VIEWFINDER –
REAR MONITOR
Type TFT LCD monitor with static touch control
Monitor size Free-angle, 3.0-inch (7.6cm), 3:2 aspect
Pixels Approx. 1.84 million dots
Field of view Approx. 100%
STATUS LCD –
FOCUS (*2)
Type Phase Detection AF system / Contrast AF system
DFD technology Yes
Focus mode AFS (Single) / AFC (Continuous) / MF
AF mode Tracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint
*Automatic Detection can be turned ON to switch between Human / Animal / Car / Motorcycle / Train (*4)
/ Airplane (*4). Except when Pinpoint is set.
AF detective range EV -6 – 18 (F1.4, ISO100 equivalent, AFS)
AF custom setting AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
AF assist light Yes
AF lock Set the Fn button in custom menu to AF lock
Focus ring control Nonlinear / Linear (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum)
Others AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, 1-Area AF Moving Speed, AF Micro Adjustment,
Continuous AF (during motion picture recording), Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF,
MF Assist, MF Guide, Focus Ring Lock, AF-Point Scope, Shutter AF, Half Press Shutter, Quick AF, Loop Focus Frame,
Enlarged Live Display (Video), Touch Shutter, Touch AF/AE Function, Lens Focus Resume
EXPOSURE CONTROL
Light metering system 1,728-zone multi-pattern sensing system
Light metering mode Multiple / Center Weighted / Spot / Highlight Weighted
Metering range EV0-18 (F2.0 lens, ISO100 equivalent)
Mode dial Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) /
Creative Video (P/A/S/M)* / Slow&Quick / Custom 1, 2, 3 / Intelligent Auto
*The same exposure operations as P/A/S/M mode is available.
Exposure compensation 1/3 EV step ±5EV (±3EV for motion picture)
ISO sensitivity (Standard output sensitivity) [Normal]
Auto / 50* / 100-51200 / 102400* / 204800* (1/3 or 1 EV step) *Extended ISO
[V-Log]
Auto / 320* / 640-51200 (1/3 or 1 EV step) *Extended ISO
[HLG] (Video)
Auto / 400-51200 / 102400* / 204800* (1/3 or 1 EV step) *Extended ISO
Dual Native ISO [Normal]
Auto (Base ISO 100 / 640): Auto / 50* / 100-51200 / 102400* / 204800* *Extended ISO
Low (Base ISO 100): Auto / 50* / 100-800 *Extended ISO
High (Base ISO 640): Auto / 320* / 640-51200 / 102400* / 204800* *Extended ISO
[V-Log]
Auto (Base ISO 640 / 4000): Auto / 320* / 640-51200 *Extended ISO
Low (Base ISO 640): Auto / 320* / 640-5000 *Extended ISO
High (Base 4000): Auto / 2000* / 4000-51200 *Extended ISO
[HLG]
Auto (Base ISO 400 / 2500): Auto / 400-51200 / 102400* / 204800* *Extended ISO
Low (Base ISO 400): Auto / 400-3200
High (Base ISO 2500): Auto / 2500-51200 / 102400* / 204800* *Extended ISO
[Cinelike D2 / Cinelike V2]
Auto (Base ISO 200 / 1250): Auto / 100* / 200-51200 / 102400* / 204800* *Extended ISO
Low (Base ISO 200): Auto /100* / 200-1600 *Extended ISO
High (Base ISO 1250): Auto / 640* / 1250-51200 / 102400* / 204800* *Extended ISO
Synchro scan Still image / Motion picture
AE lock Set the Fn button in custom menu to AE lock
IMAGE STABILIZATION SYSTEM B.I.S. (5-axis / 5-stop*) *Based on the CIPA standard
[Yaw/Pitch direction: focusing distance f=60mm when S-R2060 is used.]
Dual I.S. 2 (6.5-stop*) *Based on the CIPA standard [Yaw/Pitch direction:
focusing distance f=200mm when S-E70200 is used.]
WHITE BALANCE
White balance AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent /
White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
White balance adjustment Blue/Amber bias, Magenta/Green bias
Color temperature setting 2500-10000K in 100K
SHUTTER
Type Electronic shutter
Shutter speed Still image: Time* (Max. 60 sec**), 1/8,000 – 60**
Motion picture: 1/16,000 – 1/25
Creative Video M mode / MF mode: 1/16,000 – 1/2
*Bulb recording is available when using a Bluetooth remote control.
**When the ISO setting exceeds 1600, the shutter speed will be reduced to less than 60 seconds.
Self timer 10sec, 3 images / 2sec / 10sec / Custom Time
Silent mode Yes
BRACKET
AE bracket 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
Aperture bracket 3, 5 or all positions
Focus bracket Yes
White balance bracket 3 images in blue/amber axis or in magenta/green axis, color temperature setting
BURST SHOOTING
Burst speed SH30: 30 frames/sec (AFS/AFC/MF)
SH30 PRE: 30 frames/sec (AFS/AFC/MF)
H: 9 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View)
M: 5 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
L: 2 frames/sec (AFS/AFC/MF) (with Live View)
Number of recordable images H*: RAW+JPEG: More than 35 images, RAW: More than 55 images, JPEG: More than 120 images
M*: RAW+JPEG: More than 50 images, RAW: More than 200 images, JPEG: More than 200 images
L*: RAW+JPEG: More than 200 images, RAW: More than 200 images, JPEG: More than 200 images
SH: RAW / RAW+JPEG / JPEG: 36 images
*Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.
*When using a card with SD Speed Class with “UHS-II UHS Speed Class 3 (U3)”.
FLASH –
COLOR SETTINGS
Photo Style
Photo Style Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome /
L. Monochrome D / L. Monochrome S / LEICA Monochrome / Cinelike D2 / Cinelike V2 / Like709 / V-Log / REAL TIME LUT /
Like2100 (HLG) / Like2100 (HLG) Full Range* / My Photo Style 1-4 (5-10)*
*Set to ON from Show/Hide Photo Style to select.
Picture adjustment Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect /
Color Noise / Sharpness / Noise Reduction / ISO / WB / LUT
*Adjustable settings vary depending on the Photo Style mode.
Filter Expressive / Retro / Old Days / High Key / Low Key / Sepia / Cross Process / Bleach Bypass
LUT Library Supported file types: .vlt, .cube
Vlog_709 / Set 1-39 (Set 1-3: Sample LUT)
*REAL TIME LUT in Photo Style, Apply LUT in Fn button, Apply LUT in RAW Processing,
LUT View Assist in Log View Assist, LUT can be applied from these settings.
ZOOM FUNCTION
Hybrid zoom Still image / Motion picture
Crop zoom Still image / Motion picture
MOTION PICTURE FUNCTION
Time lapse shot Yes
Stop motion animation Yes
Live cropping Yes (Supports cropping from 5.9K (FULL) 30p/25p/24p video to 4K/FHD sizes)
SS/Gain operation Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
Luminance level 8-bit: 0-255 / 16-235 / 16-255
10-bit: 0‒1023 / 64‒940 / 64‒1023
Master pedestal level 31 steps
Color bars / 1kHz test tone Yes (SMPTE / EBU / ARIB) / Yes
LUT view assist Monitor / HDMI
HLG view assist Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)
Anamorphic desqueeze display 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
Wave form monitor / Vectorscope Selectable
Knee control Yes (in Like709 mode)
Red REC frame indicator ON / OFF
VERTICAL POSITION INFORMATION Still image / Motion picture (ON/OFF)
LEVEL GAUGE Yes
FUNCTION BUTTON
REC Exposure Comp. / Dual Native ISO Setting / Sensitivity / White Balance / Photo Style / Apply LUT /
REAL TIME LUT / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering /
Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Color Shading Compensation / Filter Effect /
One Push AE / Touch AE / AWB Lock / Exposure Mode / Synchro Scan (Photo) / Synchro Scan (Video) /
Focus Mode / AF Mode / AF Detection Setting / Detecting Subject / AF Custom Setting (Photo) /
AF Custom Setting (Video) / Focus Limiter / Focus Limiter Range Set / Focus Peaking / Focus Peaking Sensitivity /
Focus Frame Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift /
AF-ON: Far Shift / AF-Point Scope / Focus Area Set / Enlarged Live Display (Video) / Drive Mode/ Drive Mode Setting /
Bracketing / Silent Mode / Image Stabilizer / Hybrid Zoom (Photo) / Crop Zoom / Rec. File Format / Rec Quality /
Rec Quality (My List) / Slow & Quick Setting / Time Code Display / Sound Rec Level Disp. / Mute Sound Input /
Sound Rec Level Adj. / Sound Rec Quality / Sound Rec Level Limiter / Image Stabilizer / E-Stabilization (Video) /
Boost I.S. (Video) / Image Area of Video / Hybrid Zoom (Video) / Crop Zoom / Focus Transition / Live Cropping /
Live Cropping Settings / Q.MENU / Rec/Playback Switch / Video Record / Video Record (Creative Video) /
Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview /
Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost /
Monochrome Live View / Night Mode / Monitor Disp. Set / Video-Priority Display / Zebra Pattern /
LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select (LUT View Assist) /
HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope /
WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control /
AF Micro Adjustment / Lens Information / Wi-Fi / Save to Custom Mode / No Setting /
Off (Disable Press and Hold) / Restore to Default
PLAY Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic
Desqueeze Display / RAW Processing / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Rec/Playback Switch /
Video Record / Video Record (Creative Video) / Night Mode / Wi-Fi / Send Image (Smartphone) /
LUT View Assist (HDMI) / HLG View Assist (HDMI) / No Setting / Off (Disable Press and Hold) / Restore to Default
INTERFACE
USB USB Type-C® (USB 10Gbps)
HDMI (*3)
HDMI HDMI TypeD
Audio: ON / OFF, MP4: 2ch, MOV: 2ch
Monitor-through 4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
Playback 59.94Hz: C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p* / 480p*
50.00Hz: C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p* / 576p*
24.00Hz: C4K/24p / 4K/24p / 1080p
*Only for playback.
Remote input –
Audio
Build-in microphone Stereo
Wind Noise Canceller: OFF / Standard / High
External microphone / External audio device input φ3.5mm for external microphone / external audio device
MIC (Plug-in Power) / MIC / LINE
Wind Cut: OFF / Low / Standard / High *When attaching 3.5mm microphone (sold separately).
Special Mic: Stereo / Shotgun *When attaching DMW-MS2 (sold separately).
Speaker Monaural
Headphone output –
SD card slot SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
*Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and
UHS-II Video Speed Class 90 standard SDXC Memory Cards.
TC IN/OUT
Count up Rec Run / Free Run
Time code mode Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.)
HDMI time code output ON / OFF
WIRELESS
Wi-Fi 2.4GHz bands (STA/AP) (IEEE802.11b/g/n)
5GHz bands (STA/AP) (IEEE 802.11a/n/ac)
Security: WPA/WPA2/WPA3
Please refer to “Wi-Fi” Sheet
Bluetooth Bluetooth® v5.0 (Bluetooth Low Energy (BLE))
POWER
Battery Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
USB power supply, USB power charging
Battery life (CIPA standard) Approx. 470 images with S-R2060
Approx. 430 images with S-R28200
Approx. 450 images with S-R1840
*Under the test conditions specified by Panasonic based on CIPA standard.
Continuous recordable time (Motion picture) (*1) MP4 [4K/60p]: Approx. 100 min (APS-C), MP4 [FHD/30p]: Approx. 120 min (FULL)
*When using S-R2060 / S-R28200 / S-R1840. When the battery is fully charged.
Actual recordable time (Motion picture) (*1) MP4 [4K/60p]: Approx. 50 min (APS-C), MP4 [FHD/30p]: Approx. 60 min (FULL)
*When using S-R2060 / S-R28200 / S-R1840. When the battery is fully charged.
DIMENSIONS / WEIGHT
Dimensions (W x H x D) Approx. 126 x 73.9 x 46.7 mm / 4.96 x 2.91 x 1.84 inch (Body only, excluding protrusions)
Approx. 126 x 73.9 x 133.9 mm / 4.96 x 2.91 x 5.28 inch (with S-R2060, excluding protrusions)
Approx. 126 x 73.9 x 140.1 mm / 4.96 x 2.91 x 5.52 inch (with S-R28200, excluding protrusions)
Approx. 126 x 73.9 x 87.6 mm / 4.96 x 2.91 x 3.45 inch (with S-R1840, excluding protrusions)
Weight Approx. 486g / 1.08 lb (Body, Shoe Cover, Battery, SD Memory Card) (excluding body cap)
Approx. 403g / 0.89 lb (Body, Shoe Cover) (excluding body cap)
OPERATING ENVIRONMENT
Operating temperature 0℃ to 40℃ (32℉ to 104℉)
Operating humidity 10%RH to 80％RH
STANDARD ACCESSORIES
Software LUMIX Lab / LUMIX Sync
･This software is used to control a Panasonic digital camera from a smartphone. Check the site below to download and install the software.
https://panasonic.jp/support/global/cs/dsc/ (For Android™ / iOS)
LUMIX Tether
･This software is used to control a Panasonic digital camera from a computer. It allows you to change various settings of the camera,
perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)
･The software to process RAW file on computer is not bundled with this camera. To do this,
SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory’s website using computer connected to the Internet.
http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
Standard accessories – DC-S9 Kit Body Cap, Shoe Cover, Shoulder Strap, Battery Pack
(*1) About motion picture recording
– The cards that can be used for recording vary depending on the motion pictures bit rate and format type.
Motion pictures with 72Mbps or less: SD memory card with SD Speed Class with Class 10 or Video Speed Class 10 or higher
Motion pictures with 200Mbps or less: SD memory card with UHS-I / UHS-II UHS Speed Class 3 (U3) or Video Speed Class 30 or higher
– Recording stops when the continuous recording time exceeds 10 minutes in [6K] [5.9K]
when the Video Record Limit mode is set to ON.
– Recording stops when the continuous recording time exceeds 15 minutes in [C4K] [4K] [3.8K] [3.3K]
when the Video Record Limit mode is set to ON.
– Recording stops when the continuous recording time exceeds 20 minutes in [FHD] when the Video Record Limit mode is set to ON.
– When the Video Record Limit mode is set to OFF, you can record continuously without a time limit.
However, if the camera’s internal temperature becomes too high, recording may stop to protect the camera.
While you can record for longer periods, the camera body may become hot. Use a tripod when enabling this
mode, as recording with a handheld camera for extended periods may cause low-temperature burns.
*The firmware must be updated to version 1.1 to use the Video Record Limit mode.
– A new file will be created to continue recording if the file size exceeds the following conditions.
[MP4] in [FHD]: 4GB
[MP4] in [4K]: 96GB
[MOV]: 192GB
(*2) About AF
– Automatic Detection is not available for High Frame Rate video shooting above 60p (100p or 120p).
– Tracking and Automatic Detection are not available when using HDMI cable or USB connection cable
for High Frame Rate video shooting (100p or 120p) above 60p.
(*3) To output motion pictures with 4K or higher, use a Premium High Speed HDMI cable (Type A – Type A plug).A419
(*4) Firmware must be updated to version 1.1.
LUMIX S 18-40mm F4.5-6.3
Lens Construction 8 elements in 7 groups (3 aspherical lenses, 2 ED lenses, 1 UHR lens) (excluding 1 protection element)
Mount L-Mount
Optical Image Stabilizer –
Focal Length f=18-40mm
Aperture Type 7 diaphragm blades / Circular aperture diaphragm
Maximum Aperture F4.5 (Wide) – F6.3 (Tele)
Minimum Aperture F22 (Wide) – F32 (Tele)
Closest Focusing Distance 0.15m/0.49ft (at focal length 18-21mm) / 0.35m/1.15ft (at focal length 40mm)
Maximum Magnification 0.28x (at focal length 21mm)
Diagonal Angle of View 100°(Wide) – 57°(Tele)
Dust and Splash Resistant Yes*
Recommended Operating Temperature -10℃ to 40℃ (14℉ to 104℉)
Filter Size φ62mm
Max. Diameter φ67.9mm / 2.67inch
Overall Length Approx. 40.9mm / 1.61inch (from the tip of the lens to the base side of the lens mount)
Weight Approx. 155g / 0.34lb (excluding lens cap and lens rear cap)B22
Standard Accessories Lens cap, Lens rear cap

Panasonic LUMIX S9:

Compact appearance, large sensor
The LUMIX S9 is small and compact but packed with professional-grade features. With its full-frame sensor, this camera delivers stunning results even in low-light conditions, allowing you to capture high-resolution videos and impressive photos with ease.

High-resolution 4K/6K videos
This camera is also ideal for creating videos. Record breathtakingly beautiful scenery and memorable moments you want to treasure in high quality in 4K/6K.

Flexible framing (Open Gate)
Capture what you need and crop what you don’t. Get all the aspect ratios from one shot. If you want to edit it later, the new MP4(Lite) mode 4K video is perfect for transferring to your smartphone. Just use the LUMIX Lab app to crop it to your desired aspect ratio.

Focus on fast subjects
The Phase Hybrid autofocus ensures sharp images with both still and moving subjects. For video it guaranties your subject is always in focus, wherever in the frame.

Clear night view photos and handheld videos
Shoot handheld and get a steady shot in any situation. Powerful image stabilisation keeps your footage smooth, no matter the situation.

Signature presets
The REAL TIME LUT function revolutionises your content. You can apply cinematic looks directly in-camera, without time-consuming editing. Choose from a wide range of LUTs (signature presets) in the LUMIX Lab app or create your own personal style, to use in camera.

LUMIX Lab app
Pair the camera with your smartphone in three steps and you can transfer content to your smartphone seamlessly with ultra-fast Wi-Fi connection. You can also crop, adjust brightness, apply LUT (signature preset), etc.*From shooting to posting in 30 seconds: The total time it takes to transfer a JPEG photo or a 5-second short video shot in MP4(Lite) mode to an iOS-supported smartphone using the LUMIX LAB app, including cropping in case of video, and posting to social media. Study conducted under Panasonic standards. Results may vary depending on network environment.

Extended Battery Life
The camera comes with battery pack DMW-BLK22. You can also use the camera while powering it with a commercially available mobile battery and USB Type-C cable, ensuring it is always ready for use wherever you are.**Battery must be installed in camera and retain some charge for feature to work.

Extended zoom range
Crop Zoom / Hybrid Zoom extends the zoom range of both photos and videos. Hybrid Zoom is a combination of Optical Zoom and Crop Zoom. This function allows you to expand your range of expressions even if you only carry around minimal equipment.

Create emotional videos
Explore your creativity with slow and quick-motion modes to share captivating time-lapse videos.

LUMIX S 18-40mm Lens:

The World’s Smallest and Lightest* Zoom Lens

Designed to be compact and portable with dimensions of φ67.9 x 40.9 mm** and a light weight of 155g
A perfect partner to the compact full frame LUMIX S9 camera
Robust and reliable dust, splash and freeze-resistant design with fluorine coating

Unique 18-40mm Focal Length
18mm ultra-wide angle allows for capture of expansive landscapes, while the standard 40mm is perfect for shots with a natural perspective
Capable of 18-120mm with the Hybrid Zoom function on the LUMIX S9

Ideal for Both Videography and Photography
Excellent performance in both photo and video, capturing in high-resolution with beautiful bokeh
Effectively suppresses focus breathing, in which the angle of view changes caused by movements inthe focus position
