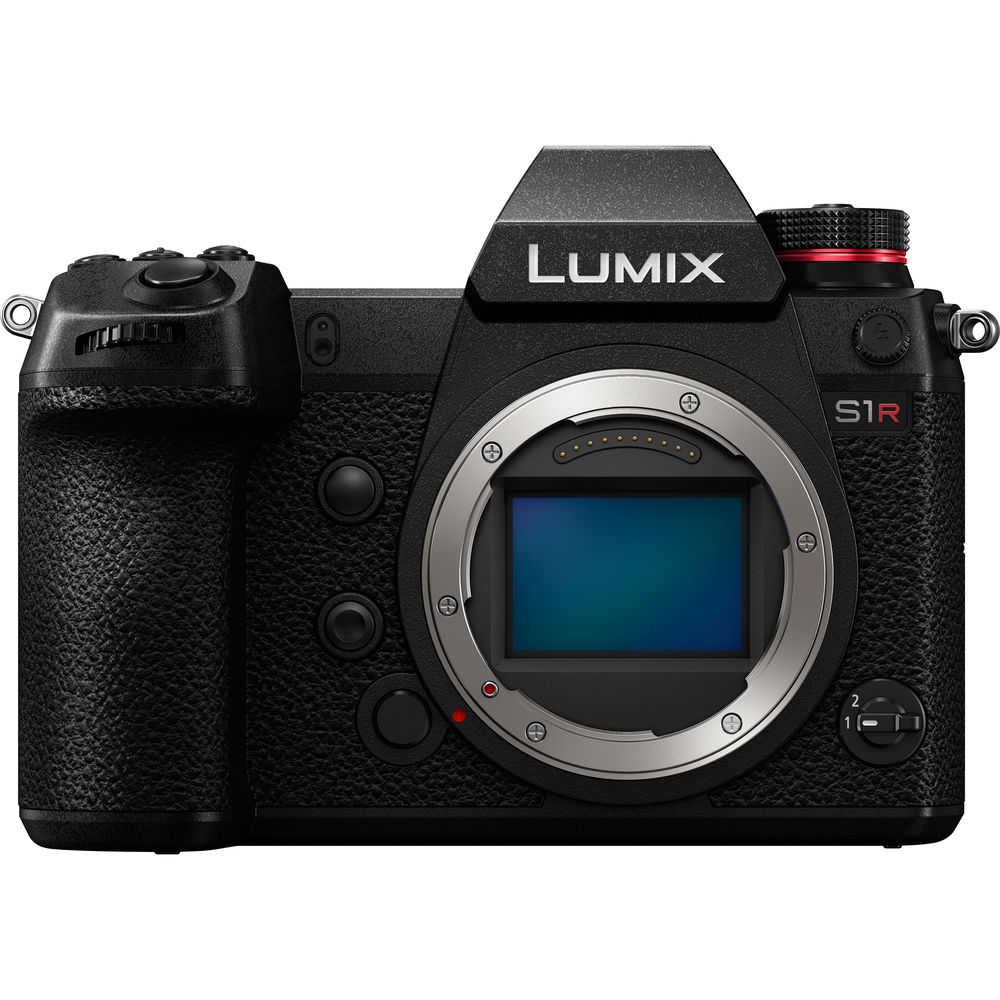

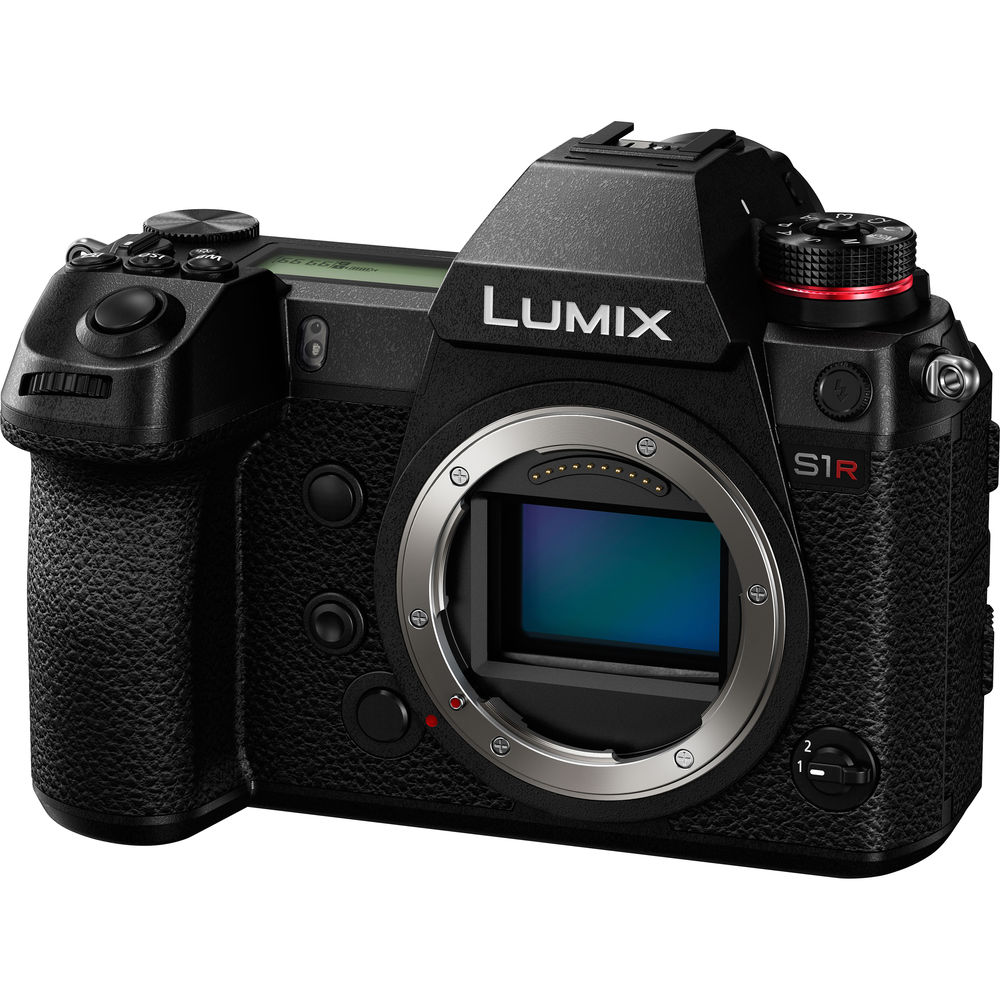

Panasonic Lumix S1R Body Only

OVERVIEW
The Panasonic Lumix S1R Body Only is a top-of-the-line full-frame mirrorless camera that offers the highest level of image quality. With a 47.3MP sensor and an ISO range of 100-25600, this camera captures stunningly detailed photos in any lighting condition.

But the Lumix S1R is not just for still photography. It also boasts impressive video capabilities, with 4K 60p/50p and FHD 180fps options. Plus, the addition of a 3.5mm mic/headphone input allows for professional-level audio recording.

One of the standout features of this camera is its fast and accurate autofocus system, which is enhanced by AI technology. With a lightning-fast 0.08-second focus acquisition time and the ability to focus in as little as -6 EV, the Lumix S1R ensures you never miss a shot.

The intuitive interfaces on this camera make it easy to use, with a 5760k real viewfinder and a triaxial LCD screen with 2100k resolution. And for even faster shooting, the Lumix S1R offers a joystick with 8 directions and a burst shooting speed of 9 frames per second.

In addition to its impressive performance, the Lumix S1R is also built to last. Its magnesium alloy body is splash, dust, and freeze resistant when 100% sealed, and its heat dispersing design ensures it can handle even the most demanding shooting situations. Plus, with dual XQD/SD card slots and USB-PD power supply, this camera offers both reliability and convenience.

In summary, the Panasonic Lumix S1R Body Only is a compact, system camera that delivers the highest level of image quality, advanced video capabilities, fast and accurate autofocus, intuitive interfaces, and durability. With the L-Mount, this camera provides uncompromising image quality and control, making it a top choice for professionals and enthusiasts alike.

SUMMARY
Dynamic Range: 12 Stops
Native ISO: ISO 400
Lens Mount: L Mount
Audio Inputs: 1 x 3.5mm Mic Input
Image Stabilisation: Yes
Battery Mount / Type: Panasonic DMW
Media Type: SD
Photo Resolution: 47 megapixels
Resolution and Frame Rate: 4k 60p
Sensor: Full Frame
Video Outputs: 1x HDMI
Weight: 0-2kg
Wi-Fi: Yes
INCLUDED IN BOX
1x Lumix S1R Body
1x Body Cap
1x Hot Shoe Cover
1x Eye Cup
1x Flash Synchro Socket Cap
1x Cover for the Battery Grip Connector
1x Shoulder Strap
1x Battery Pack
1x Battery Charger
1x AC Adaptor
1x AC Mains Lead
1x USB Connection Cable (C-C)
1x USB Connection Cable (A-C)
1x Cable Holder
1x 2 year Warranty

About The Panasonic Lumix S1R Body Only
PLEASE NOTE: New firmware update to be released on the 13th July 2021 at 2am BST please clicke HERE

LUMIX S1R Firmware Version 1.9 will include:

1. Added functions-

[L.ClassicNeo] and [L.Monochrome S] have been added in [Photo Style].

Panasonic LUMIX S1R – Highest Resolution Full-Frame Mirrorless:

Powered by a new Venus Engine, the LUMIX S1R incorporates a high-speed, high-precision AF system ensuring the camera meets the exacting demands of professional photographers in all shooting situations. To capture the decisive moment, the photographer frames the image using the world’s highest resolution electronic viewfinder with unrivalled clarity via a 5.76-million-dot OLED display. Built around the wide diameter L-Mount the LUMIX S1R is designed to provide uncompromising image quality by combining best-in-class detail resolution and photographic control, with outstanding image stabilisation and advanced video recording.

Ground Breaking Image Detail:

The detail gathering ability of the full-frame 47.3-million-pixel CMOS-sensor (36 x 24 mm) is boosted by absence of a low pass filter, ensuring the finest textures in any scene will be captured accurately.

New micro lens design to ensure best efficiency
Low noise even at high ISO
High resolution mode for 187-Megapixel images
New aspherical micro lenses over each pixel improve the light-gathering abilities of the sensor so low noise levels are maintained at high ISO settings. The LUMIX S1R offers an ISO range of up to ISO 25.600, making it ideal for working in low light conditions. For situations demanding greater resolution than 47.3-million-pixels, photographers can create incredible 187-million-pixel images using the camera’s High Resolution Mode. This feature combines information recorded in eight exposures that are taken as the Body I.S. system makes adjustments to the sensor position. The result is a 16.736 x 11.168-pixel RAW-file bursting with information. A feature of the High Resolution Mode is the option to supress motion blur.

Advanced Image Stabilisation:

The 5-axis Body I.S. (Image Stabiliser) system compensates for the effects of camera shake to make shutter speeds of up to 5.5-stop slower than usual safe to use. Combined with the 2-axis O.I.S. (Optical Image Stabiliser) in the LUMIX S Series lenses the Dual I.S. 2 system increases the level of compensation to 6-stop, and works to eliminate the effects of a wide variety of camera movement types in both still and video photography. Making use of more sophisticated technology, vibration measurements are taken not only from a gyrosensor but also using information from the image sensor itself and from an accelerometer sensor in the camera. To help photographers remove sources of camera shaking, an I.S. Status Scope has been added that displays a graphic interpretation of vibration.

High-Speed Precision Focusing:

Combining contrast detection and Panasonic’s unique DFD technology with ultra-fast processing creates a focusing system that provides both speed and precision. To achieve extremely fast and accurate focusing, the Venus Engine, CMOS sensor and the new LUMIX S lenses communicate at up to 480 fps allowing the system to react in 0.08 seconds. The autofocus works with as little light as remarkable -6 EV.

Artificial intelligence adds to autofocus performance
Eye-AF and animal recognition added to face detection
Nine frames per second burst shooting with full resolution

Focus acquisition and tracking is enhanced with Advanced Artificial Intelligence Technology that detects humans, cats, dogs and birds. Determining what the subject is helps to anticipate its movement patterns and allows the autofocus to keep tracking the subject even when its back is turned. Face, eye and pupil detection ensure portraits are focused correctly. For fast moving situations the LUMIX S1R is capable of shooting at a rate of 9 fps in AFS or 6 fps with continuous focusing. The 6K Photo mode allows bursts of 18-million-pixel JPEG images at 30 fps, while 4K Photo offers sequences at 30 or 60 fps with 8-megapixel resolution.

High Resolution Viewfinder and High Quality Displays:

The world’s highest resolution electronic viewfinder provides photographers with unrivalled clarity via a 5.76-million-dot OLED display. The Real View Finder offers refresh rates of up to 120 fps and a lag of just 0.005 seconds for smooth and realistic tracking of motion while panning with moving subjects. The display resolution, matched with a 10.000:1 contrast ratio, makes for a very clear and detailed view. The finder magnification can be adjusted from 0.78x to 0.74x or 0.7x for the comfort of the photographer.

The camera’s 3.2-inch touchscreen features 2.1-million-dot resolution and is mounted on a triaxial tilt rear monitor that allows it to flip out for low or high angled viewing in both portrait and landscape orientation. Night Mode, Live View Boost and illuminated buttons help those working in dark conditions, and the camera’s top plate offers a largest-in-class back-lit status LCD to keep the photographer informed of important shooting settings at a glance.

Class Leading Video:

While developed primarily for outstanding photography the LUMIX S1R is capable of advanced video recording in 4K resolution at up to 60/50p. High Speed Video allows 2x slow motion at 60 fps in 4K, and settings down to 6x slow motion in Full HD with frame rates of up to 180 fps. The signal can be recorded in camera on SD or XQD or externally via the HDMI Type A port. Line-input is supported by a 3.5 mm microphone socket while audio can be monitored using the 3.5 mm headphone port. Advanced audio quality can be achieved using the DMW-XLR1 microphone adapter in the hot shoe with professional microphones and XLR input sources.

Designed to Meet Professional Expectations:

Developed for professional photographers, the LUMIX S1R has been built to withstand heavy use with magnesium alloy die-cast front and rear panels and sealing at every joint, dial and button. The camera is resistant to dust, splashes and operates at temperatures as low as -10°C. The shutter unit is designed to endure 400,000 actuations. It allows mechanically driven exposure times as short as 1/8000 sec to ensure the capture of fast moving subjects even using open aperture settings of fast lenses in the bright sunshine. The external flash can be synchronized with the industry’s fastest shutter speed of 1/320 second. The control buttons and dials are located based on an ergonomic study to enable the user to concentrate on shooting. The adoption of an 8-directional joystick and refined UI (User Interface) also supports quick operation during shooting. A lock lever prevents unintentional operation, and the user can choose which functions to lock.

Photographers can also protect their work by having the camera automatically add their personal details and copyright to Exif data as pictures are recorded. Double memory card slots are provided for SD (UHS-II) and XQD media, and compatibility with CFexpress is due in the near future.

Creative Control Made Easy:

For the individual look, in-camera controls provide the photographer with great flexibility in the way the JPEGs are recorded. Each photo style can be adjusted and new ones can be created and saved. A Flat option produces JPEGs with flat contrast and saturation as a flexible starting point for post-processing. New photo styles include HLG Photo Modes (Hybrid Log Gamma) for vibrant high dynamic range pictures that retain extreme highlight detail suitable for display on the latest Panasonic HLG-compliant 4KTV via HDMI cable connection or other HLG-compliant devices. Images taken with the HLG modes can be saved as HSP files in stunning 8K resolution, as well as in JPEG and RAW formats.

When shooting portraits the new AWBw white balance setting creates an attractive moderate red tint, and a new Highlight Weighted Light Metering Mode prioritises the retention of detail in the brightest areas of the picture. New panoramic aspect ratios add extra creative possibilities, with 65:24 Film Panorama and 2:1 wide frame formats offering exciting dimensions at the shooting stage.

Connectivity and Remote Shooting:

The LUMIX S1R is compatible with LUMIX Tether software that allows remote control of the camera over USB from a PC, as well as live view streaming and direct transfer of pictures to the PC as they are recorded. LUMIX Sync is a new smartphone app for iOS/Android devices that enables remote control of the camera and photo transfer from the camera to the phone/tablet.

Compatibility with Bluetooth 4.2 enables a constant connection with a smartphone or tablet with minimum power consumption, as well as allowing camera settings to be shared between multiple LUMIX S1R bodies. Wi-Fi 5GHz (IEEE802.11ac) in addition to 2.4GHz (IEEE802.11b/g/n) provides a secure and faster connection to smartphones/tablets for remote control and image/video transfer.

L-Mount:

The L-Mount was developed by Leica Camera to provide customers with a future-proof, flexible, robust and precise bayonet that will meet even the most demanding photographic requirements. After its initial launch in 2014 in the Leica T, the L-Mount has been continuously developed by Leica Camera and its partners, resulting in improved and quasi-new L-Mount technology.

For the widest possible variety of products, the diameter of the L-mount was a dimension of 51.6 millimeters, making it suitable not only for full-frame cameras but also for APS-C sensors. The small footprint of only 20 millimeters allows for a small distance between optics and sensor, making lenses much more compact – particularly useful for wide angle development. To withstand even the heaviest loads and to guarantee maximum safety for customers over many years of intensive use, camera bayonets become wear resistant Stainless steel and with four flange segments, which prevents tilting and ensures a particularly firm and flat fit of the lens. The standardised L-Mount contact strip ensures smooth communication between the electronic components in the lens and the camera, including the possibility of firmware updates for lenses, in order to react to technical developments and thus ensure full performance in the future.

Currently, the Leica SL system in full format and the APS system with camera models Leica CL, TL2 and TLde use the lens mount. All the optics of the different systems can be operated without restrictions and without adapters on all cameras – here is already one of the many advantages that customers have through the unified bayonet.In the near future, both the Leica CameraAG, as well as Panasonic and Sigma announce other products using the same standard.

TYPE:
Type Digital Single Lens Mirrorless camera
Recording media XQD Memory Card, SD Memory Card / SDHC Memory Card* / SDXC Memory Card*, CFexpress Card (CFexpress Ver2.0 Type B) ******
*Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
Lens mount L-Mount
IMAGE SENSOR:
Type 35mm full-frame (36.0 x 24.0mm) CMOS sensor
Camera effective pixels / Total pixels 47.30 megapixels / 50.44 megapixels
Aspect ratio / Colour filter 3:2 / Primary colour filter
Dust reduction system Supersonic wave filter
STILL IMAGE:
Aspect ratio 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1
Image quality RAW / RAW+Fine / RAW+Standard / Fine / Standard
Colour Space sRGB, AdobeRGB
Recording file format:
Still image JPEG (DCF, Exif 2.31), RAW, HLG Photo (CTA-2072)
6K PHOTO(*2) / 4K PHOTO(*2) 6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch))
4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
Extracted still images: JPEG (DCF, Exif 2.31)
File size(Pixels):
When using full-frame lenses / 3:2 8368×5584(L) / 5952×3968(M) / 4272×2848(S) / 16736×11168(XL)* *High Resolution Mode. RAW file.
5184×3456(6K PHOTO) / 3504×2336(4K PHOTO) / 6464×4320(HLG PHOTO, 8K-Res.) / 3232×2160(HLG PHOTO, 4K-Res.)
When using full-frame lenses / 4:3 7440×5584(L) / 5296×3968(M) / 3792×2848(S) / 14880×11168(XL)* *High Resolution Mode. RAW file.
4992×3744(6K PHOTO) / 3328×2496(4K PHOTO) / 5760×4320(HLG PHOTO, 8K-Res.) / 2880×2160(HLG PHOTO, 4K-Res.)
When using full-frame lenses / 16:9 8368×4712(L) / 5952×3352(M) / 4272×2400(S) / 16736×9424(XL)* *High Resolution Mode. RAW file.
3840×2160(4K PHOTO) / 7680×4320(HLG PHOTO, 8K-Res.) / 3840×2160(HLG PHOTO, 4K-Res.)
When using full-frame lenses / 1:1 5584×5584(L) / 3968×3968(M) / 2848×2848(S) / 11168×11168(XL)* *High Resolution Mode. RAW file.
2880×2880(4K PHOTO) / 4320×4320(HLG PHOTO, 8K-Res.) / 2144×2144(HLG PHOTO, 4K-Res.)
When using full-frame lenses / 65:24 8368×3088(L)
When using full-frame lenses / 2:1 8368×4184(L)
When using APS-C lenses / 3:2 5504×3664(L) / 3920×2608(M) / 2784×1856(S)
When using APS-C lenses / 4:3 4880×3664(L) / 3472×2608(M) / 2480×1856(S)
When using APS-C lenses / 16:9 5504×3096(L) / 3840×2160(M) / 1920×1080(S)
When using APS-C lenses / 1:1 3664×3664(L) / 2608×2608(M) / 1856×1856(S)
MOTION PICTURE:
Recording file format MOV: H.265/HEVC (Audio format: LPCM (2ch 48kHz/24-bit*, 96kHz/24-bit*))******** *When attaching DMW-XLR1 (sold separately).
MP4: H.264/MPEG-4 AVC (Audio format: LPCM (2ch 48kHz/16-bit), AAC (2ch))
AVCHD Progressive (Audio format: Dolby Audio (2ch)), AVCHD (Audio format: Dolby Audio (2ch))
Switch NTSC / PAL(*8) Yes (NTSC (59.94Hz) / PAL(50.00Hz))
MOV******** [5K] 4992×3744 High-res audio is selectable only when using the DMW-XLR1 (sold separately). 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High- Res Audio) (PIXEL/PIXEL) *HLG is selectable.
25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (PIXEL/PIXEL) *HLG is selectable.
23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (PIXEL/PIXEL) *HLG is selectable.
MP4(*2)High speed video *When Creative Video Mode is selected. [4K] 3840×2160. 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
MP4(*2) High speed video *When Creative Video Mode is selected.[FHD] 1920×1080. 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
AVCHD Progressive(*2) AVCHD(*2) [FHD] 1920×1080 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (Dolby Audio)
50.00i, 24Mbps (4:2:0 8-bit LongGOP) (Dolby Audio) (Sensor output is 25.00fps)
50.00i, 17Mbps (4:2:0 8-bit LongGOP) (Dolby Audio) (Sensor output is 50.00fps)
23.98p, 24Mbps (4:2:0 8-bit LongGOP) (Dolby Audio)
MP4(*2) High speed video *When Creative Video Mode is selected. [4K] 3840×2160. 29.97p (Sensor output is 60fps)
25.00p (Sensor output is 50fps)
23.98p (Sensor output is 48fps)
MP4(*2) High speed video *When Creative Video Mode is selected. [FHD] 1920×1080. 29.97p (Sensor output is 180fps / 120fps)
25.00p (Sensor output is 150fps / 100fps)
Continuous recordable time (Motion picture)(*2) Approx. 150 min (rear monitor), 140 min (LVF) in [AVCHD/FHD/60p] *When using S-R24105 and SD Memory Card.
Actual recordable time (Motion picture)(*2) Approx. 75 min (rear monitor), 70 min (LVF) in [AVCHD/FHD/60p] *When using S-R24105 and SD Memory Card.
VIEWFINDER:
Type OLED Live View Finder
Pixels Approx. 5,760k dots
Field of view / Magnification Approx. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m-1
Eye point / Diopter adjustment Approx. 21 mm at infinity; -1.0 m-1 / -4.0 – +2.0 (dpt)
Eye sensor Yes
Display speed 120fps / 60fps
Display time lag Approx. 0.005sec
REAR MONITOR:
Type TFT LCD monitor with static touch control
Monitor size Triaxial tilt, 3.2-inch (8.0cm), 3:2 aspect
Pixels Approx. 2,100k dots
Field of view Approx. 100%
STATUS LCD:
STATUS LCD Yes
FOCUS:
Type Contrast AF system
DFD technology Yes
Focus mode AFS (Single) / AFC (Continuous) / MF
AF mode Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Vertical/Horizontal) / Zone (Square) / Zone (Oval) / 1-Area+* / 1-Area* / Pinpoint / Custom 1, 2, 3
(Full area touch is available) (Scalable AF frame size and flexible AF position) *Human/Animal Detection AF can be set ON or OFF.********
AF detective range EV -6 – 18 (F1.4, ISO100 equivalent, AFS)
AF custom setting AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
AF assist lamp Yes
AF lock Set the Fn button in custom menu to AF lock
Post Focus / Focus Stacking Yes / Yes
Others AF-ON, Shutter AF, Half Press Release, Focus/Shutter Priority, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF-Point Scope Setting, AF+MF, MF Guide, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter, Focus Switching for Vert/Hor, Focus Ring Lock, Show/Hide AF Mode
EXPOSURE CONTROL:
Light metering system 1,728-zone multi- pattern sensing system
Light metering mode Multiple / Center Weighted / Spot / Highlight Weighted
Metering range EV0-18 (F2.0 lens, ISO100 equivalent)
Exposure mode Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure
ISO sensitivity (Standard Output Sensitivity) Auto / 50* / 100 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200* (Changeable to 1/3 EV step) *Extended ISO
Exposure compensation 1/3 EV step ±5EV (±3EV for motion picture)
AE lock Set the Fn button in custom menu to AE lock
IMAGE STABILIZATION SYSTEM:
IMAGE STABILIZATION SYSTEM Image sensor shift type (5-axis)
6.0-stop* * Firmware must be updated to version 1.2 or later. Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=50mm when S-X50 is used.]
Dual I.S. (Dual I.S. 2 compatible)
6.5-stop* * Firmware must be updated to version 1.2 or later. Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=105mm, when S-R24105 is used.] Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm, when S-R70200 is used.]
7.0-stop* * Firmware must be updated to version 1.3 or later. Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm, when S-E70200 is used.]
WHITE BALANCE:
White balance AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Colour temperature setting 1, 2, 3, 4
White balance adjustment Blue/Amber bias, Magenta/Green bias
Colour temperature setting 2500-10000K in 100K
SHUTTER:
Type Focal-plane shutter
Shutter speed Still image: Bulb (Max. 30 minutes), 1/8,000 – 60
Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 – 60
Electronic shutter: Bulb (Max. 60 sec), 1/16,000 – 60
Motion picture: 1/16,000 – 1/25
Shutter life Approx. 400,000 images
Self timer 10sec, 3 images / 2sec / 10sec
Remote control Remote control by DMW- RS2 (sold separately)
Silent mode / Shutter type Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)
BRACKET:
AE bracket 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
Aperture Bracket 3, 5 or all positions in 1 EV step
Focus Bracket 1 to 999 images, focus steps can be set in 10 levels
White balance bracket 3 images in blue/amber axis or in magenta/green axis, colour temperature setting
BURST SHOOTING:
Burst speed -Mechanical shutter / Electronic front curtain shutter AFS/MF: H: 9 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
AFC: H: 6 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
Burst speed -Electronic shutter AFS/MF: H: 9 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
AFC: H: 5 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
Number of recordable images – When using CFexpress Card(*7) RAW: More than 40 images
RAW+JPEG: More than 35 images
JPEG: More than 50 images
*Using a Panasonic Corporation CFexpress Type B 256GB (RP-CFEX256) Memory Card or a SanDisk Corporation CFexpress Type B Extreme PRO 256GB (SDCFE-256G) Memory Card. Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.
Number of recordable images – When using XQD memory card RAW: More than 40 images
RAW+JPEG: More than 35 images
JPEG: More than 50 images
*Using a Sony Corporation XQD G Series Memory Card. Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.
6K PHOTO(*2) / 4K PHOTO(*2):
Burst speed 6K PHOTO: 30 frames/sec
4K PHOTO: 60 frames/sec, 30 frames/sec
Exif information Yes (Each JPEG image cropped out of the 6K/4K burst file complies with EXIF.)
FLASH:
Flash type TTL External Flash (sold separately)
Flash Mode Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced
Off *For iA only.
Flash synchronization 1st Curtain Sync, 2nd Curtain Sync.
Flash output adjustment 1/3EV step ±3EV
Synchronization speed Less than 1/320 second
Wireless control Yes (When using DMW- FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
Flash sync socket Yes
EXTRA TELE CONVERSION:
EXTRA TELE CONVERSION 2.0x (EX S), 1.4x (EX M) *Only for still image recording.
PHOTO STYLE:
Photo Style Standard / Vivid / Natural / L. Classic Neo (Firmware version 1.9)* / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S (Firmware version 1.9)* / Cinelike D / Cinelike V / Like709 / Like2100 (HLG) (Firmware version 1.6 or later)* / Standard (HLG) / Monochrome (HLG) / My Photo Style 1-10 *Firmware must be updated.
Picture adjustment Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise* / Sharpness / Noise Reduction / ISO / WB (Adjustable settings vary depending on the Photo Style mode.) *Firmware must be updated to version 1.9.
FILTER:
FILTER Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine*
*For photos only.
MOTION PICTURE FUNCTION:
Vertical Position Information* ON / Off *Firmware must be updated to version 1.8 or later.
Luminance level 8-bit: 0-255 / 16- 235******** / 16-255
10-bit********: 0‒1023 / 64‒940 / 64‒ 1023
SS/Gain operation(*8) Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
SS/Gain operation (*9) Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
FUNCTION BUTTON:
REC Exposure Comp. / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / HLG Photo / High Resolution Mode / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Filter Effect / One Push AE / Touch AE / Exposure Mode / AF Mode/MF / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift***** / AF-ON: Far Shift***** / AF Point Scope / Focus Area Set / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode / 1 Shot “6K/4K PHOTO” / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Flicker Decrease (Photo) / Post-Focus / Motion Pic. Rec Format / Motion Pic. Rec Quality / Sound Rec Level Disp. / Sound Rec Level Adj. / Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Q.MENU / Rec / Playback Switch / Video Record / LVF/Monitor Switch / LVF Magnification / Dial Operation Switch / Preview / Preview Aperture Effect****** / Constant Preview / Level Gauge / Histogram / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Style / Photo/Video Preview / Zebra Pattern / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / Focus Ring Control/ Zoom Control / Destination Card Slot / Wi-Fi / No Setting / Off (Disable Press and Hold)****** / Restore to Default
PLAY Magnify from AF Point / HLG View Assist(Monitor) / RAW Processing / 6K/4K PHOTO Bulk Saving / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Night Mode / Card Slot Change / Wi-Fi / Send Image (Smartphone) / HLG View Assist (HDMI) / 6K/4K Photo Play / No Setting / Off (Disable Press and Hold)****** / Restore to Default
Fn LEVER:
Fn LEVER AF Mode / Photo Style / Picture Quality / Long Exposure NR / Focus Peaking / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / 6K/4K PHOTO (Pre-Burst) / Focus Ring Lock / Touch Screen / Touch Pad AF / Auto Review (Photo) / Live View Boost / Night Mode / Sheer Overlay / Front/Rear/Control Dial Lock / No Setting / Restore to Default
LEVEL GAUGE:
LEVEL GAUGE Yes
OSD LANGUAGE:
OSD LANGUAGE Japanese, English, German, French, Italian, Spanish, Polish, Czech, Hungarian, Romanian, Netherlandic, Turkish, Portuguese, Finnish, Danish, Swedish, Greek, Russian
PRINT:
PRINT PictBridge compatible
INTERFACE:
USB SuperSpeed USB 3.1 Gen1 Type-C
HDMI*** Monitor-through 4:2:2 8bit (Except for [4K/60p]/[4K/50p]*******) / 4:2:0 8bit
4:2:2 10bit******** (When [4K/60p]/[4K/50p] mode is selected in [Rec Quality], it is not possible to record motion picture or still picture on the memory card in the camera unit.)
HDMI*** Playback HDMI TypeA / VIERA Link
Video: Auto / 4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p
Audio: Stereo
Audio video output No
Remote input φ2.5mm
External microphone / external audio device input φ3.5mm for external microphone / external audio device
MIC (Plug-in Power) / MIC / LINE is selectable.
Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately).
Headphone output φ3.5mm
Microphone Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).
Speaker Monaural
Card slot Slot 1: XQD Memory Card, CFexpress Card (CFexpress Ver2.0 Type B)******
Slot 2: SD Memory Card, SDHC Memory Card*, SDXC Memory Card*
*Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
WIRELESS:
Wi-Fi 2.4GHz bands (STA/AP) (IEEE802.11b/g/n)
5GHz bands (STA) (IEEE 802.11a/n/ac) *5GHz Wi-Fi is not available in some countries.
1-13, 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140 ch
Bluetooth Bluetooth v4.2 (Bluetooth Low Energy (BLE))
DUST AND SPLASH RESISTANT:
DUST AND SPLASH RESISTANT* Yes.
*Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.
POWER:
Battery Li-ion Battery Pack (7.4V, 3050mAh, 23Wh) (bundled)
USB power supply, USB power charging
Battery life (CIPA standard)/ When using CFexpress Card Approx. 360 images (rear monitor), 340 images (LVF), 1,100 images (Power Save LVF mode*) with S-R24105
*Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
Battery life (CIPA standard)/ When using XQD memory card Approx. 360 images (rear monitor), 340 images (LVF), 1,100 images (Power Save LVF mode*) with S-R24105
*Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
Battery life (CIPA standard)/ When using SD memory card Approx. 380 images (rear monitor), 360 images (LVF), 1,150 images (Power Save LVF mode*) with S-R24105
*Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
Battery grip DMW-BGS1 (sold separately)
DIMENSIONS / WEIGHT:
Dimensions (W x H x D) Approx. 148.9 x 110.0 x 96.7 mm / 5.86 x 4.33 x 3.81 inch (excluding protrusions)
Weight Approx. 1,020g / 2.25 lb (XQD Memory Card x 1, Battery, Body)
Approx. 1,016g / 2.24 lb (SD Memory Card x 1, Battery, Body)
Approx. 898g / 1.98 lb (Body only)
OPERATING ENVIRONMENT:
Operating temperature**** -10oC to 40oC (14oF to 104oF)
Operating humidity 10%RH to 80％RH
STANDARD ACCESSORIES:
Software- Recording LUMIX Tether
・ This software is used to control a Panasonic digital camera from a PC. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)
Software- Playback / Editing ・ The software to edit and playback images on computer is not bundled with this camera. To do this, PHOTOfunSTUDIO 10.1PE is available for download at Panasonic website using computer connected to the Internet.
https://panasonic.jp/support/global/cs/soft/download/d_pfs1001pe.html(For Windows)
・ The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory’s website using computer connected to the Internet.
http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
Standard accessories DC-S1R Kit
Body Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, AC Mains Lead, USB Connection Cable (C-C), USB Connection Cable (A-C), Cable Holder
・ The DC-S1R Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.
NOTE:
NOTE ** About motion picture recording / 6K PHOTO/4K PHOTO recording
– 6K PHOTO is a high speed burst shooting function that cuts a still image out of a 4:3 or 3:2 video footage with approx. 18-megapixel (approx. 6000 x 3000 effective pixel count) that the 6K image manages.
– Use an SD memory card with SD Speed Class with “”Class 4″” or higher when recording motion pictures in [AVCHD].
– Use an XQD or SD memory card with SD Speed Class with “”Class 4″” or higher when recording motion pictures in [MP4(under 28Mbps)].
– Use an XQD or SD memory card with SD Speed Class with “”UHS-I / UHS-II UHS Speed Class 3 (U3)”” when recording motion pictures with [MP4] in [4K] [High Speed Video] [6K PHOTO/4K PHOTO] or [MOV].
(SD speed class is the speed standard regarding continuous writing.)
– Recording stops when the continuous recording time exceeds 10 minutes with [MP4] in [High Speed Video] [6K PHOTO].
– Recording stops when the continuous recording time exceeds 15 minutes with [MP4] in [4K] [4K PHOTO] or [MOV].
– Motion pictures with [MP4] in [4K] or [MOV]:
– When using an XQD memory card of 32 GB or less, or an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
– When using an XQD memory card over 32 GB, or an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.
– Motion pictures with [MP4] in [FHD]:
– You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately.
– When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.
– XQD is a registered trademark of Sony Corporation.
*** For [5K] [4K/60p] [4K/50p] video output, use an HDMI2.0 cable that has the HDMI logo on it, and that is described as””4K compatible””.
**** The camera may stop recording when used in lower or higher than recommended operating temperature: -10 to 40 degrees.
***** Firmware must be updated to version 1.2 or later.
****** Firmware must be updated to version 1.3 or later.
******* Firmware must be updated to version 1.6 or later.

The Top Level Image Quality in Full-frame Mirrorless Cameras:
47.3MP (ISO100-25600)
6 Stop 5 Axis Dual IS
Precise 1/8000s 400k Shutter
187MP High Res Model

Video Function For Professionals:
4k 60p / 50p
FHD 180fps
3.5mm Mic/ Headphone Input

Fast, Accurate AF Together with Recognition Technology by AI:
0.08Sec
-6EV Lowlight AF
-3EV Low Contrast AF
Deep Learning Technology
AFS 9fps / AFC 6fps

Intuitive Interfaces for Instant Shooting:
5760k Real View Finder (0.005sec lag)
2100k Triaxial LCD
Status LCD
Joystick with 8 Directions

Durability / Reliability:
Splash/Dust / Freeze Resistant (when 100% Sealed)
Magnesium Alloy Body
Heat Dispersing Design
XQD / SD Double Slot
USB=PD Power Supply
