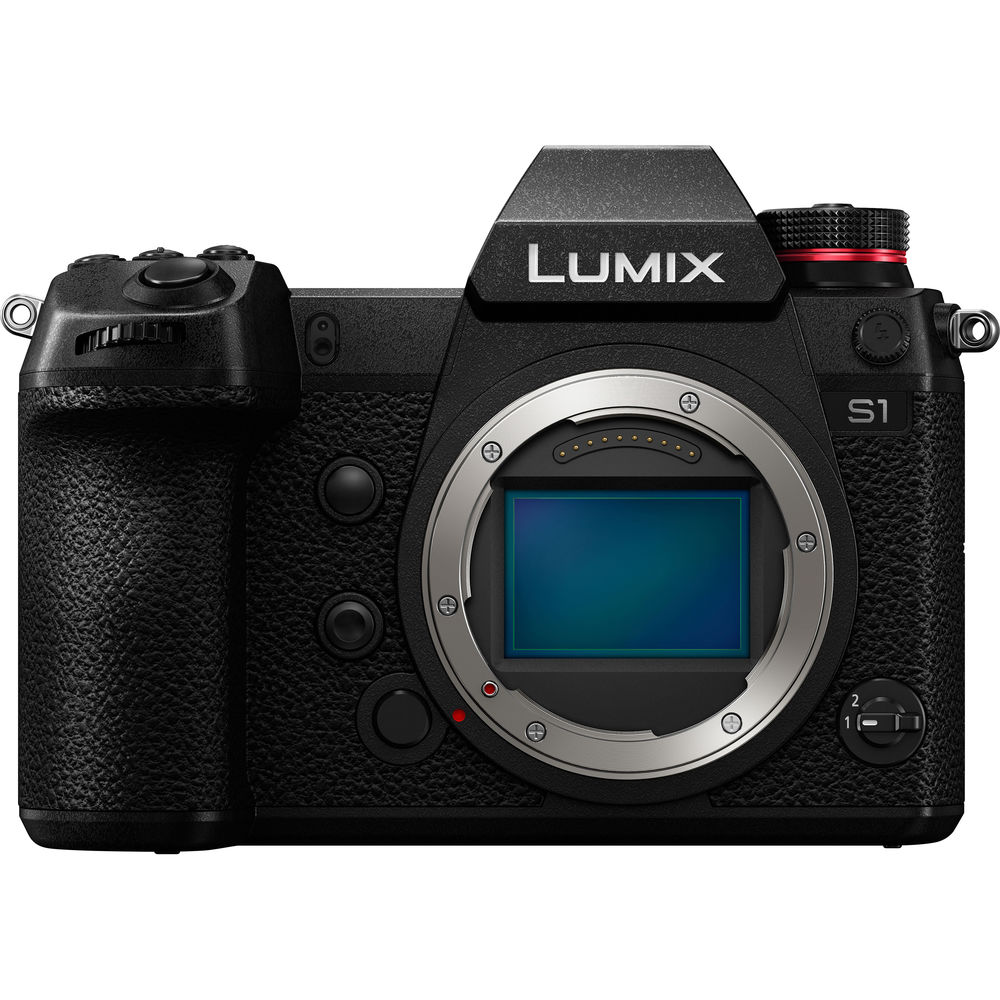

Panasonic Lumix S1 Body Only

OVERVIEW
The Panasonic Lumix S1 Body Only is a top-of-the-line full-frame mirrorless camera that offers unparalleled image quality. With its 24.2MP sensor and ISO range of 100-51200, this camera delivers stunning results in any lighting condition.

One of the standout features of the Lumix S1 is its 6-stop 5-axis Dual IS, which allows for handheld shots in low light or at far distances without the need for additional equipment. The precise 1/8000s-400k shutter also ensures that you never miss a moment.

For professional videographers, the Lumix S1 offers 4K 60p/50p video recording, as well as the option for 422 10-bit internal recording or HDMI output. It also boasts FHD 180fps and HDR video capabilities, making it a versatile choice for any project.

Thanks to its fast and accurate autofocus system, the Lumix S1 is able to lock onto subjects in just 0.08 seconds. It also features AI recognition technology, allowing for -6EV lowlight AF and -3EV low contrast AF. With AFS 9fps and AFC 6fps shooting modes, you can capture even the most action-packed moments with ease.

The Lumix S1 is designed for intuitive and instant shooting, with a 5760k real viewfinder with minimal lag, a 2100k triaxial LCD screen, and a joystick with 8 directions for easy navigation. It also features a status LCD for quick access to important settings.

In addition to its impressive features, the Lumix S1 is also built to last. It is splash, dust, and freeze resistant when fully sealed, and its magnesium alloy body and heat dispersing design make it durable and reliable in any environment. It also has a double memory card slot for XQD and SD cards, and can be powered via USB-PD.

Experience the industry’s highest level of performance with the Panasonic Lumix S1. With its advanced features and exceptional image quality, this full-frame mirrorless camera is perfect for professional photographers and videographers alike.

INCLUDED IN BOX
1x Lumix S1 Body
1x Body Cap
1x Hot Shoe Cover
1x Eye Cup
1x Flash Synchro Socket Cap
1x Cover for the Battery Grip Connector
1x Shoulder Strap
1x Battery Pack
1x Battery Charger
1x AC Adaptor
1x AC Mains Lead
1x USB Connection Cable (C-C)
1x USB Connection Cable (A-C)
1x Cable Holder
1x 2 year Warranty
About The Panasonic Lumix S1 Body Only
PLEASE NOTE: New firmware update to be released on 13th July 2021 at 2am BST please click HERE

S1 Firmware Version 2.1

1. New functions and options to be available with the Upgrade Software Key DMW-SFU2.

*Users who already have DMW-SFU2 do not need to purchase extra DMW-SFU2. There is no need of upgrading the camera with DMW-SFU2 if upgrading with DMW-SFU2 was once done before.

-RAW video data output over HDMI to Blackmagic Video Assist 12G HDR

[5.9K] / [4K] / [Anamorphic (4:3) 3.5K] 12-bit RAW video data can be output over HDMI to Blackmagic Video Assist 12G HDR, to be recorded as Blackmagic RAW

*All functions may not be available depending on the situation.

*DaVinci Resolve or DaVinci Resolve Studio is required to play back the Blackmagic RAW data. DaVinci Resolve Studio is required to edit the Blackmagic RAW data.

2. Other added functions

– [L.ClassicNeo] and [L.Monochrome S] have been added in [Photo Style].

Panasonic LUMIX S1 – Full-Frame Without Compromise:

It is the industry’s highest level performance for creative vision offering high speed and high precision AF, Dual I.S. enabling handheld shots for dark or distant scenes that would previously have required additional equipment, high precision and high speed shutter, large and high resolution EVF, double memory card slot for XQD and SD Cards, and a 3-Axis Rugged Tiltable LCD emphasising ease of use and supporting professional photography and videography.

The 24.2-megapixel-CMOS is the heart of LUMIX S1. Equipped with outstanding image stabilisation and powered by a new Venus Engine, the camera performs up to the highest standards in photography as well as offering advanced video recording with well-retained highlight and shadow details. To capture the decisive moment, the photographer frames the image using the world’s highest resolution electronic viewfinder with unrivalled clarity via a 5.76-million-dot OLED display.

High Resolution, High Sensitivity:

The LUMIX S1 full frame mirrorless camera uses a 24.2-million-pixel CMOS sensor (35.6 x 23.8 mm) that provides a wide dynamic range and excellent signal to noise ratios at high ISO settings. Efficient pixel design, combined with the high-powered Venus Engine processor, allows standard ISO settings to reach ISO 51.200.

When extra resolution is needed, a High Resolution Mode can be used to create images with a staggering 96 million pixels. The mode combines information recorded in eight exposures that are taken as the Body I.S. system makes tiny off-set adjustments to the sensor position. The result is a 12.000 x 8.000 pixel RAW-file bursting with information. A feature of the High Resolution Mode is the option to supress motion blur.

Dual I.S. 2 for Incredible Shake Compensation:

The 5-axis Body I.S. (Image Stabiliser) system compensates for the effects of camera shake to make shutter speeds up to 5.5-stop slower than usual safe to use. Combined with the 2-axis O.I.S. (Optical Image Stabiliser) in the LUMIX S Series lenses, this Dual I.S. 2 system increases the level of compensation to 6-stop, and works to eliminate the effects of a wide variety of camera movement types in both still and video photography. Making use of sophisticated technology, vibration measurements are taken not only from a gyrosensor but also using information from the CMOS itself and from an accelerometer sensor. To help photographers remove sources of camera shaking, an I.S. Status Scope has been added that displays a graphic interpretation of vibration.

High-Speed Precision Focusing:

Combining contrast detection and Panasonic’s unique DFD technology with ultra-fast processing creates a focusing system that provides both speed and precision. To achieve extremely fast and accurate focusing, the Venus Engine, CMOS sensor and new LUMIX S lenses communicate at up to 480 fps allowing the system to react in 0.08 seconds. The autofocus works with as little light as remarkable -6 EV.

Focus acquisition and tracking is enhanced with Advanced Artificial Intelligence Technology that detects humans, cats, dogs and birds. Identifying the subject helps the system anticipate movement patterns and allows the autofocus to keep tracking the subject even when its back is turned. Face, eye and pupil detection ensure that portraits are focused correctly.

For fast moving situations the LUMIX S1 is capable of shooting at a rate of 9 fps in AFS or 6 fps with continuous focusing. The 6K Photo mode allows bursts of 18-million-pixel JPEG images at 30 fps, while 4K Photo offers sequences at 30 or 60 fps with 8-megapixel resolution.

High Resolution Viewfinder and High Quality Displays:

The world’s highest resolution electronic viewfinder provides photographers with unrivalled clarity via a 5.76-million-dot OLED display. The Real View Finder offers refresh rates of up to 120 fps and a virtually non-existent lag of just 0.005 seconds for smooth and realistic tracking of motion while panning with moving subjects. The display resolution, matched with a 10.000:1 contrast ratio, ensures a very clear and detailed view. The finder magnification can be adjusted from 0.78x to 0.74x or 0.7x for the comfort of the photographer.

The camera’s 3.2 inch touchscreen features 2.1-million-dot resolution and is mounted on a triaxial tilt rear monitor that allows it to flip out for low or high angled viewing in both portrait and landscape orientation. Night Mode, Live View Boost and illuminated buttons help those working in dark conditions and the camera’s top plate offers largest-in-class back-lit status LCD*1 to keep the photographer informed of important shooting settings at a glance.

Professional Video Features:

The LUMIX S1 offers filmmakers exceptional video quality and a wide range of tools to take full creative control of their footage. 4K-video is offered at 60/50p, while full pixel readout is achieved at 30p for exceptionally clean and detailed images. With the full width of the sensor being used, the focal length of lenses is retained and the creative possibilities of extreme shallow depth of field are available. The camera offers a variety of gamma curves, including industry standards such as Cinelike D/V and Like709. To shorten post-processing work, a new flat mode with less contrast and saturation for versatile use is offered. The new Hybrid Log Gamma (HLG) profile allows recording in an even wider dynamic range with rich colours (Like2100) to mimic the abilities of the human eye.

LUMIX S1 allows video recording up to 4K 60/50p 4:2:0 in 8 Bit directly to SD- or XQD-card. 4:2:2 colour sampling can be put out through HDMI. Panasonic will provide a software key to unlock the option to record 4K 60/50p 4:2:2 10 Bit via HDMI-output and 30p/25p/24p in 4:2:2. 10 Bit internally within 2019. This upgrade will also bring V Log with industry leading dynamic range to the LUMIX S1. While time-limitations apply to 4K/60p and High-speed-footage, 4K/30p and Full HD can be recorded without a time limit. High Speed Video allows 2x slow motion at 60fps in 4K, and up to 6x slow motion in Full HD with frame rates of up to 180fps.

Line-input is supported by a 3.5 mm microphone socket while audio can be monitored using the 3.5 mm headphone port. Advanced audio quality can be achieved using the DMW-XLR1 microphone adapter in the hot shoe with professional microphones and XLR input sources.

Designed to Meet Professional Expectations:

Developed for professional photographers, the LUMIX S1 has been built to withstand heavy use with magnesium alloy die-cast front and rear panels and sealing at every joint, dial and button. The camera is resistant to dust, splashes and operates at temperatures as low as -10°C. The shutter unit is designed to endure 400,000 actuations. It allows mechanically driven exposure times as short as 1/8000 sec to ensure the capture of fast moving subjects even using open aperture settings of fast lenses in the bright sunshine. The external flash can be synchronised with the industry’s fastest shutter speed of 1/320 second..

The control buttons and dials are located based on an ergonomic study to enable the user to concentrate on shooting. The adoption of an 8-directional joystick and refined UI (User Interface) also supports quick operation during shooting. A lock lever prevents unintentional operation and the user can choose which functions to lock. Photographers can also protect their work by having the camera automatically add their personal details and copyright information to Exif data as pictures are recorded. Double memory card slots are provided for SD (UHS-II) and XQD media, and compatibility with CFexpress is due in the near future.

Creative Control Made Easy:

For the individual look, in-camera controls provide the photographer with great flexibility in the way the JPEGs are recorded. Each photo style can be adjusted and new ones can be created and saved. A Flat option produces JPEGs with flat contrast and saturation as a flexible starting point for post-processing. New photo styles include HLG Photo Modes (Hybrid Log Gamma) for vibrant high dynamic range pictures that retain extreme highlight detail suitable for display on the latest Panasonic HLG-compliant 4KTV via HDMI cable connection or other HLG-compliant devices. Images taken with the HLG Modes can be saved as HSP files in stunning 8K resolution, as well as in JPEG and RAW formats.

When shooting portraits the new AWBw white balance setting creates an attractive moderate red tint, and a new Highlight Weighted Light Metering Mode prioritises the retention of detail in the brightest areas of the picture. New panoramic aspect ratios add extra creative possibilities, with 65:24 Film Panorama and 2:1 wide frame formats offering exciting dimensions at the shooting stage.

Connectivity and Remote Shooting:

Remote Shooting via LUMIX Tether
Bluetooth 4.2
Wi-Fi 5GHz/ 2.4GHz
The LUMIX S1 is compatible with LUMIX Tether software that allows remote control of the camera over USB from a PC, as well as live view streaming and direct transfer of pictures to a PC as they are recorded.

LUMIX Sync is a new smartphone app for iOS/Android devices that enables remote control of the camera and photo transfer from the camera to the phone/tablet.

Compatibility with Bluetooth 4.2 enables a constant connection with a smartphone or tablet with minimum power consumption, as well as allowing camera settings to be shared between multiple LUMIX S1 bodies. Wi-Fi 5GHz (IEEE802.11ac) in addition to 2.4GHz (IEEE802.11b/g/n) provides a secure and faster connection to smartphones/tablets for remote control and image/video transfer.

L-Mount:

The L-Mount was developed by Leica Camera to provide customers with a future-proof, flexible, robust and precise bayonet that will meet even the most demanding photographic requirements. After its initial launch in 2014 in the Leica T, the L-Mount has been continuously developed by Leica Camera and its partners, resulting in improved and quasi-new L-Mount technology.

For the widest possible variety of products, the diameter of the L-mount was put at a new dimenison of 51.6 millimeters, making it suitable not only for full-frame cameras but also for APS-C sensors. The small footprint of only 20 millimeters allows for a small distance between optics and sensor, making lenses much more compact – particularly useful for wide angle development. To withstand even the heaviest loads and to guarantee maximum safety for customers over many years of intensive use, camera bayonets become wear resistant Stainless steel and with four flange segments, which prevents tilting and ensures a particularly firm and flat fit of the lens. The standardised L-Mount contact strip ensures smooth communication between the electronic components in the lens and the camera, including the possibility of firmware updates for lenses, in order to react to technical developments and thus ensure full performance in the future. Currently, the Leica SL system in full format and the APS system with camera models Leica CL, TL2 and TLde use the lens mount. All the optics of the different systems can be operated without restrictions and without adapters on all cameras – here is already one of the many advantages that customers have through the unified bayonet.

Designed to incorporate an entire array of Panasonic technology refined over a century in the consumer electronics business and ten years developing Mirrorless cameras, the new S1 model will retain essential user-friendliness and robustness as tools for photography or videography by professionals.

The L-Mount was developed by Leica Camera to provide customers with a future-proof, flexible, robust and precise bayonet that will meet even the most demanding photographic requirements. After its initial launch in 2014 in the Leica T, the L-Mount has been continuously developed by Leica Camera and its partners, resulting in improved and quasi-new L-Mount technology.

For the widest possible variety of products, the diameter of the L-mount was dimensioned at 51.6 millimeters, making it suitable not only for full-frame cameras but also for APS-C sensors. The small footprint of only 20 millimeters allows for a small distance between optics and sensor, making lenses much more compact – particularly useful for wide angle development. To withstand even the heaviest loads and to guarantee maximum safety for customers over many years of intensive use, camera bayonets become wear resistant Stainless steel and with four flange segments, which prevents tilting and ensures a particularly firm and flat fit of the lens. The standardized L-Mount contact strip ensures smooth communication between the electronic components in the lens and the camera, including the possibility of firmware updates for lenses, in order to react to technical developments and thus ensure full performance in the future.

Currently, the Leica SL system in full format and the APS system with camera models Leica CL, TL2 and TLde use the lens mount. All the optics of the different systems can be operated without restrictions and without adapters on all cameras – here is already one of the many advantages that customers have through the unified bayonet.In the near future, both the Leica CameraAG, as well as Panasonic and Sigma announce other products using the same standard.

Type Digital Single Lens Mirrorless camera
Recording media XQD Memory Card, SD Memory Card / SDHC Memory Card* / SDXC Memory Card*, CFexpress Card (CFexpress Ver2.0 Type B) ******
*Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
Lens mount L-Mount
IMAGE SENSOR
Type 35mm full- frame (35.6mm x 23.8mm) CMOS sensor
Camera effective pixels / Total pixels 24.20 megapixels / 25.28 megapixels
Aspect ratio / Colour filter 3:2 / Primary colour filter
Dust reduction system Supersonic wave filter
LATITUDE 14+ stops (V-Log)*****
STILL IMAGE
Recording file format
Still image JPEG (DCF, Exif 2.31), RAW, HLG Photo (CTA-2072)
6K PHOTO** / 4K PHOTO** 6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch))
4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
Extracted still images: JPEG (DCF, Exif 2.31)
Aspect ratio 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1
File size (Pixels)
When using full-frame lenses 3:26000×4000(L) / 4272×2848(M) / 3024×2016(S) / 12000×8000(XL)* *High Resolution Mode.
RAW file.
5184×3456(6K PHOTO) / 3504×2336(4K PHOTO) / 5984×4000(HLG PHOTO, Full-Res.) / 3232×2160(HLG PHOTO, 4K-Res.)
4:35328×4000(L) / 3792×2848(M) / 2688×2016(S) / 10656×8000(XL)* *High Resolution Mode. RAW file.
4992×3744(6K PHOTO) / 3328×2496(4K PHOTO) / 5312×3984(HLG PHOTO, Full-Res.) / 2880×2160(HLG PHOTO, 4K-Res.)
16:96000×3368(L) / 4272×2400(M) / 3024×1704(S) / 12000×6736(XL)* *High Resolution Mode. RAW file.
3840×2160(4K PHOTO) / 5888×3312(HLG PHOTO, Full-Res.) / 3840×2160(HLG PHOTO, 4K-Res.)
1:14000×4000(L) / 2848×2848(M) / 2016×2016(S) / 8000×8000(XL)* *High Resolution Mode. RAW file.
2880×2880(4K PHOTO) / 4000×4000(HLG PHOTO, Full-Res.) / 2144×2144(HLG PHOTO, 4K-Res.)
65:246000×2208(L)
2:16000×3000(L)
When using APS-C lenses 3:23984×2656(L) / 2880×1920(M) / 2064×1376(S)
4:33536×2656(L) / 2560×1920(M) / 1840×1376(S)
16:93984×2240(L) / 2880×1624(M) / 1920×1080(S)
1:12656×2656(L) / 1920×1920(M) / 1376×1376(S)
Image quality RAW / RAW+Fine / RAW+Standard / Fine / Standard
Colour space sRGB, AdobeRGB
MOTION PICTURE
Recording file format MOV: H.264/MPEG-4 AVC (Audio format: LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*))***** *When attaching DMW-XLR1 (sold separately).
MP4: H.264/MPEG-4 AVC (Audio format: LPCM (2ch 48kHz/16-bit), AAC (2ch)), MP4 HEVC: H.265/HEVC (Audio format: AAC (2ch))
AVCHD Progressive (Audio format: Dolby Audio (2ch)), AVCHD (Audio format: Dolby Audio (2ch))
MOV**/*****
High-res audio is selectable only when using the DMW-XLR1 (sold separately).
[4K] 3840×2160
[FHD] 1920×1080
MP4** [4K] 3840×2160
[FHD] 1920×1080
MP4 HEVC** [4K] 3840×2160
AVCHD Progressive**
AVCHD** [FHD] 1920×1080
MP4**
High speed video
*When Creative Video Mode is selected.
[4K] 3840×2160
[FHD] 1920×1080
Continuous recordable time (Motion picture)**
Approx. 150 min (rear monitor), 140 min (LVF) in [AVCHD/FHD/60p] *When using S-R24105 and SD Memory Card.
Approx. 160 min (rear monitor), 150 min (LVF) in [AVCHD/FHD/60p] *When using S-R2060 and SD Memory Card.
Actual recordable time (Motion picture)**
Approx. 75 min (rear monitor), 70 min (LVF) in [AVCHD/FHD/60p] *When using S-R24105 and SD Memory Card.
Approx. 80 min (rear monitor), 75 min (LVF) in [AVCHD/FHD/60p] *When using S-R2060 and SD Memory Card.
VIEWFINDER
Type OLED Live View Finder
Pixels Approx. 5,760k dots
Field of view / Magnification Approx. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 3:2
Eye point / Diopter adjustment Approx. 21 mm at infinity; -1.0 m-1 / -4.0 – +2.0 (dpt)
Eye sensor Yes
Display speed 120fps / 60fps
Display time lag Approx. 0.005sec
REAR MONITOR
Type TFT LCD monitor with static touch control
Monitor size Triaxial tilt, 3.2-inch (8.0cm), 3:2 aspect
Pixels Approx. 2,100k dots
Field of view Approx. 100%
STATUS LCD
FOCUS Yes
Type Contrast AF system
DFD technology Yes
Focus mode AFS (Single) / AFC (Continuous) / MF
AF mode Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Vertical/Horizontal) / Zone (Square) / Zone (Oval) / 1-Area+* / 1-Area* / Pinpoint / Custom 1, 2, 3
(Full area touch is available) (Scalable AF frame size and flexible AF position) *Human/Animal Detection AF can be set ON or OFF.********
AF detective range EV -6 – 18 (F1.4, ISO100 equivalent, AFS)
AF custom setting AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
AF assist lamp Yes
AF lock Set the Fn button in custom menu to AF lock
Post Focus / Focus Stacking Yes / Yes
Others AF-ON, Shutter AF, Half Press Release, Focus/Shutter Priority, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF-Point Scope Setting, AF+MF, MF Guide, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter, Focus Switching for Vert/Hor, Focus Ring Lock, Show/Hide AF Mode
EXPOSURE CONTROL
Light metering system 1,728-zone multi-pattern sensing system
Light metering mode Multiple / Center Weighted / Spot / Highlight Weighted
Metering range EV0-18 (F2.0 lens, ISO100 equivalent)
Exposure mode Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure
ISO sensitivity (Standard output sensitivity) Auto / 50* / 100 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200 / 102400* / 204800* (Changeable to 1/3 EV step) *Extended ISO
Exposure compensation 1/3 EV step ±5EV (±3EV for motion picture)
AE lock Set the Fn button in custom menu to AE lock
IMAGE Stabilisation SYSTEM Image sensor shift type (5-axis)
6.0-stop* * Firmware must be updated to version 1.2 or later. Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=50mm when S-X50 is used.]
Dual I.S. (Dual I.S. 2 compatible)
6.5-stop* * Firmware must be updated to version 1.2 or later. Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=105mm, when S-R24105 is used.] Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm, when S-R70200 is used.]
7.0-stop* * Firmware must be updated to version 1.3 or later. Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm, when S-E70200 is used.]
WHITE BALANCE
White balance AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Colour temperature setting 1, 2, 3, 4
White balance adjustment Blue/Amber bias, Magenta/Green bias
Colour temperature setting 2500-10000K in 100K
SHUTTER
Type Focal-plane shutter
Shutter speed Still image: Bulb (Max. 30 minutes), 1/8,000 – 60
Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 – 60
Electronic shutter: Bulb (Max. 60 sec), 1/8,000 – 60
Motion picture: 1/16,000 – 1/25
Shutter life Approx. 400,000 images
Self timer 10sec, 3 images / 2sec / 10sec
Remote control Remote control by DMW-RS2 (sold separately)
Silent mode / Shutter type Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)
BRACKET
AE bracket 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
Aperture bracket 3, 5 or all positions in 1 EV step
Focus bracket 1 to 999 images, focus steps can be set in 10 levels
White balance bracket 3 images in blue/amber axis or in magenta/green axis, colour temperature setting
BURST SHOOTING
Burst speed
Mechanical shutter /
Electronic front curtain shutter AFS/MF: H: 9 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
AFC: H: 6 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
Electronic shutter AFS/MF: H: 9 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
AFC: H: 5 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
Number of recordable images
When using CFexpress Card****** RAW: More than 999 images
RAW+JPEG: More than 75 images
JPEG: More than 999 images
*Using a Panasonic Corporation CFexpress Type B 256GB (RP-CFEX256) Memory Card. Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.
RAW: More than 450 images
RAW+JPEG: More than 75 images
JPEG: More than 999 images
*Using a SanDisk Corporation CFexpress Type B Extreme PRO 256GB (SDCFE-256G) Memory Card. Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.
When using XQD memory card RAW: More than 90 images
RAW+JPEG: More than 70 images
JPEG: More than 999 images
*Using a Sony Corporation XQD G Series Memory Card. Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.
6K PHOTO** / 4K PHOTO**
Burst speed 6K PHOTO: 30 frames/sec
4K PHOTO: 60 frames/sec, 30 frames/sec
Exif information Yes (Each JPEG image cropped out of the 6K/4K burst file complies with EXIF.)
FLASH
Flash type TTL External Flash (sold separately)
Flash mode Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red- eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
Flash synchronisation 1st Curtain Sync, 2nd Curtain Sync.
Flash output adjustment 1/3EV step ±3EV
Synchronisation speed Less than 1/320 second *The guide number decreases at 1/320 second. Only when set to M mode or S mode.
Wireless control Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
Flash sync socket Yes
EXTRA TELE CONVERSION
PHOTO STYLE 2.0x (EX S), 1.4x (EX M) *Only for still image recording.
Photo Style Standard / Vivid / Natural / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / Cinelike D / Cinelike V / Like709 / V-Log***** / Standard (HLG) / Monochrome (HLG) / Like2100 / My Photo Style 1-10
Picture adjustment Contrast / Highlight / Shadow / Saturation / Colour Tone / Hue / Filter Effect / Grain Effect / Sharpness / Noise Reduction /
ISO / WB
*Adjustable settings vary depending on the Photo Style mode.
FILTER Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Colour / Sunshine*
*For photos only.
MOTION PICTURE FUNCTION
Luminance level 8-bit: 0-255 / 16-235***** / 16-255
10-bit*****: 0?1023 / 64?940 / 64?1023
Wave form monitor Yes*****
LUT display***** LUT View Assist (Monitor)***** / LUT View Assist (HDMI)*****
SS/Gain operation******** Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
FUNCTION BUTTON
Rec Exposure Comp. / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / HLG Photo / High Resolution Mode / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Filter Effect / One Push AE / Touch AE / Exposure Mode / AF Mode/MF / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift****** / AF-ON: Far Shift****** / AF-Point Scope / Focus Area Set / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode / 1 Shot 6K/4K PHOTO / Bracketing / Silent Mode / Image Stabiliser / Shutter Type / Ex. Tele Conv. / Flicker Decrease (Photo) / Post-Focus / Motion Pic. Rec Format / Motion Pic. Rec Quality / Sound Rec Level Disp. / Sound Rec Level Adj. / Mic. Directivity Adjust / Image Stabiliser / E-Stabilisation (Video) / Boost I.S. (Video) / Q.MENU / Rec / Playback Switch / Video Record / LVF/Monitor Switch / LVF Magnification / Dial Operation Switch / Preview / Preview Aperture Effect******* / Constant Preview / Level Gauge / Histogram / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Style / Photo/Video Preview / Zebra Pattern / LUT View Assist (Monitor)***** / LUT View Assist (HDMI)***** / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM***** / Focus Ring Control/ Zoom Control / Destination Card Slot / Wi-Fi / No Setting / Off (Disable Press and Hold)******* / Restore to Default
Play Magnify from AF Point / HLG View Assist(Monitor) / RAW Processing / 6K/4K PHOTO Bulk Saving / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Night Mode / Card Slot Change / Wi-Fi / Send Image (Smartphone) / HLG View Assist (HDMI) / LUT View Assist (HDMI)***** / HLG View Assist (HDMI)***** / 6K/4K Photo Play / No Setting / Off (Disable Press and Hold)******* / Restore to Default
Fn LEVER AF Mode / Photo Style / Picture Quality / Long Exposure NR / Focus Peaking / Bracketing / Silent Mode / Image Stabiliser / Shutter Type / 6K/4K PHOTO (Pre-Burst) / Focus Ring Lock / Touch Screen / Touch Pad AF / Auto Review (Photo) / Live View Boost / Night Mode / Sheer Overlay / Front/Rear/Control Dial Lock / No Setting / Restore to Default
LEVEL GAUGE Yes
OSD LANGUAGE Please refer to OSD Sheet
PRINT PictBridge compatible
INTERFACE
USB SuperSpeed USB 3.1 Gen1 Type-C
HDMI***
Monitor-through MP4: 4:2:2 8bit (Except for [4K/60p]/[4K/50p]) / 4:2:0 8bit
MOV: 4:2:2 10bit***** (When [4K/60p]/[4K/50p] mode is selected in [Rec Quality], it is not possible to record motion picture or still picture on the memory card in the camera unit.)
Playback HDMI TypeA / VIERA Link
Auto / 4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p
Audio: Stereo
Audio video output No
Remote input 2.5mm
External microphone / external audio device input 3.5mm for external microphone / external audio device
MIC (Plug-in Power) / MIC / LINE is selectable.
Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately).
Headphone output 3.5mm
Microphone Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).
Speaker Monaural
Card slot Slot 1: XQD Memory Card, CFexpress Card (CFexpress Ver2.0 Type B)*******
Slot 2: SD Memory Card, SDHC Memory Card*, SDXC Memory Card*
*Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC
Memory Cards.
WIRELESS
Wi-Fi 2.4GHz (STA/AP) (IEEE802.11b/g/n)
5GHz (STA) (IEEE 802.11a/n/ac) *5GHz Wi-Fi is not available in some countries.
Please refer to Wi-Fi Sheet
Bluetooth Bluetooth® v4.2 (Bluetooth Low Energy (BLE))
Dust and Splash Resistant Yes.
*Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.
POWER
Battery Li-ion Battery Pack (7.4V, 3050mAh, 23Wh) (bundled)
USB power supply, USB power charging
Battery life (CIPA standard)
When using CFexpress Card Approx. 380 images (rear monitor), 360 images (LVF), 1,100 images (Power Save LVF mode*) with S-R24105
Approx. 400 images (rear monitor), 380 images (LVF), 1,150 images (Power Save LVF mode*) with S-R2060
*Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
When using XQD memory card Approx. 380 images (rear monitor), 360 images (LVF), 1,100 images (Power Save LVF mode*) with S-R24105
Approx. 400 images (rear monitor), 380 images (LVF), 1,150 images (Power Save LVF mode*) with S-R2060
*Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
When using SD memory card Approx. 400 images (rear monitor), 380 images (LVF), 1,150 images (Power Save LVF mode*) with S-R24105
Approx. 420 images (rear monitor), 400 images (LVF), 1,200 images (Power Save LVF mode*) with S-R2060
*Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
Battery grip DMW-BGS1 (sold separately)
DIMENSIONS / WEIGHT
Dimensions (W x H x D) Approx. 148.9 x 110.0 x 96.7 mm / 5.86 x 4.33 x 3.81 inch (excluding protrusions)
Weight Approx. 1,021g / 2.25 lb (XQD Memory Card x 1, Battery, Body)
Approx. 1,017g / 2.24 lb (SD Memory Card x 1, Battery, Body)
Approx. 899g / 1.98 lb (Body only)
OPERATING ENVIRONMENT
Operating temperature**** -10oC to 40oC (14oF to 104oF)
Operating humidity 10%RH to 80?RH
STANDARD ACCESSORIES
Software
Recording LUMIX Tether
This software is used to control a Panasonic digital camera from a PC. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)
Playback / Editing The software to edit and playback images on computer is not bundled with this camera. To do this, PHOTOfunSTUDIO 10.1PE is available for download at Panasonic website using computer connected to the Internet.
https://panasonic.jp/support/global/cs/soft/download/d_pfs1001pe.html(For Windows)
The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory’s website using computer connected to the Internet.
http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
Standard accessories DC-S1 Kit
Body Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, AC Mains Lead, USB Connection Cable (C-C), USB Connection Cable (A-C), Cable Holder
DC-S1M Kit / DC-S1K Kit
Body Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, AC Mains Lead, USB Connection Cable (C-C), USB Connection Cable (A-C), Cable Holder, Lens Cap, Lens Hood, Lens Rear
Cap
The DC-S1 Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.
Notes ** About motion picture recording / 6K PHOTO/4K PHOTO recording
– 6K PHOTO is a high speed burst shooting function that cuts a still image out of a 4:3 or 3:2 video footage with approx. 18-megapixel (approx. 6000 x 3000 effective pixel count) that the 6K image manages.
– Use an SD memory card with SD Speed Class with Class 4 or higher when recording motion pictures in [AVCHD].
– Use an XQD or SD memory card with SD Speed Class with Class 4 or higher when recording motion pictures in [MP4(under 28Mbps)].
– Use an XQD or SD memory card with SD Speed Class with UHS-I / UHS-II UHS Speed Class 3 (U3) when recording motion pictures with [MP4] in [4K] [High Speed Video], [MOV] or [6K PHOTO/4K PHOTO].
(SD speed class is the speed standard regarding continuous writing.)
– Recording stops when the continuous recording time exceeds 10 minutes with [MP4] in [6K PHOTO].
– Recording stops when the continuous recording time exceeds 15 minutes with [MP4] in [High Speed Video] [4K PHOTO].
– Recording stops when the continuous recording time exceeds 29 minutes and 59 seconds with [MP4] in [4K/60p] [4K/50p].
– MP4 motion pictures with [MP4] in [4K]:
– When using an XQD memory card of 32 GB or less, or an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
– When using an XQD memory card over 32 GB, or an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.
– MP4 motion pictures with [MP4] in [FHD]:
– You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately.
– When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.
– XQD is a registered trademark of Sony Corporation.
*** For [4K/60p] [4K/50p] video output, use an HDMI2.0 cable that has the HDMI logo on it, and that is described as4K compatible.
**** The camera may stop recording when used in lower or higher than recommended operating temperature: -10 to 40 degrees.
***** Firmware must be updated to version 1.2 or later. Upgrade Software Key (DMW-SFU2) is required.
****** Firmware must be updated to version 1.2 or later.
******* Firmware must be updated to version 1.3 or later.
******** Firmware must be updated to version 1.6.
The Top Level Image Quality in Full-frame Mirrorless Cameras:
24.2MP (ISO100-51200)
6 Stop 5 Axis Dual IS
Precise 1/8000s400k Shutter
96MP High Res Model

Video Function For Professionals:
4k 60p / 50p
Optional 422 10Bit Internal Rec / HDMI Out
FHD 180fps
HDR Video

Fast, Accurate AF Together with Recognition Technology by AI:
0.08Sec
-6EV Lowlight AF
-3EV Low Contrast AF
Deep Learning Technology
AFS 9fps / AFC 6fps

Intuitive Interfaces for Instant Shooting:
5760k Real View Finder (0.005sec lag)
2100k Triaxial LCD
Status LCD
Joystick with 8 Directions

Durability / Reliability:
Splash/Dust / Freeze Resistant (when 100% Sealed)
Magnesium Alloy Body
Heat Dispersing Design
XQD / SD Double Slot
USB=PD Power Supply
