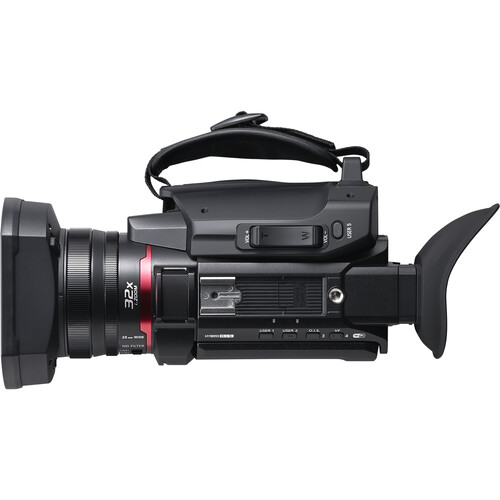

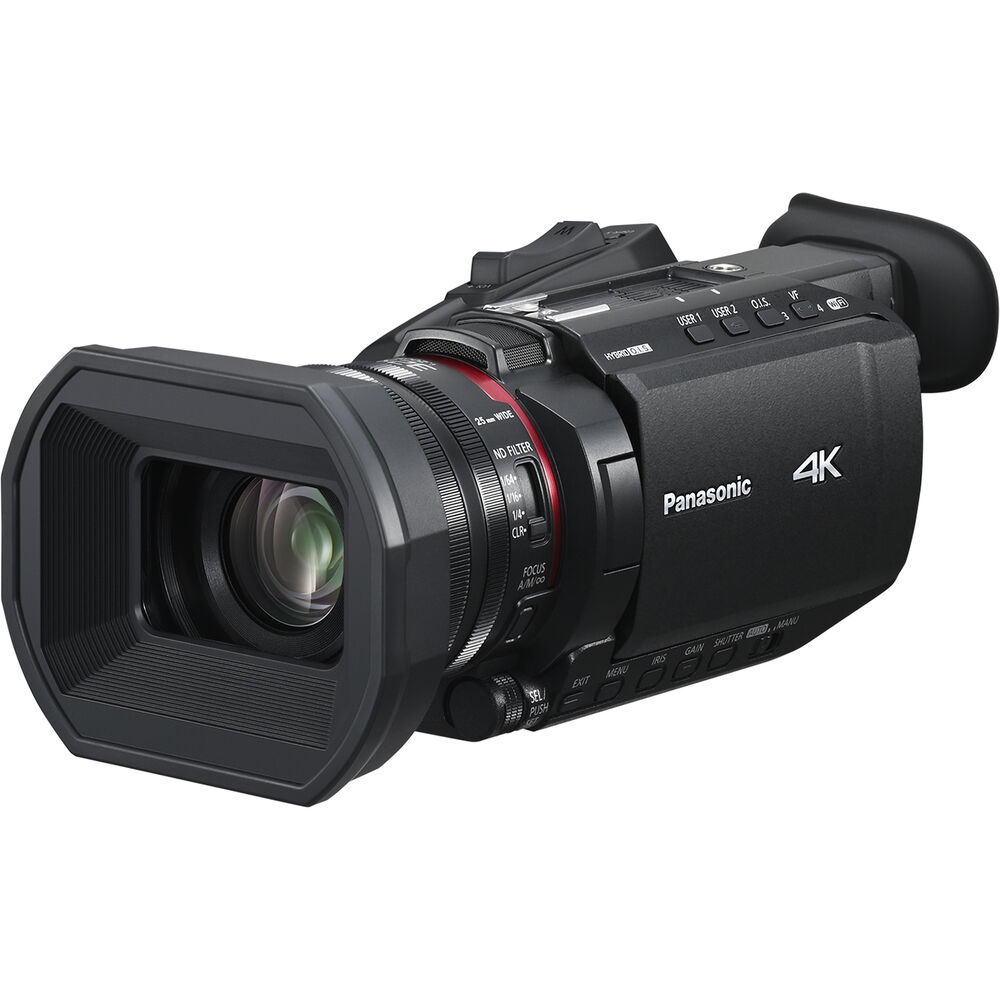

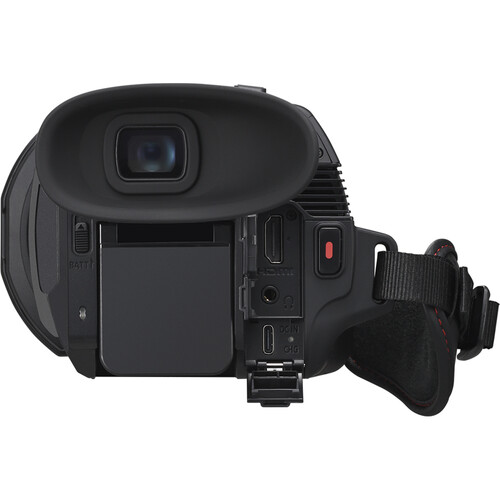

Panasonic HC-X1600E 4K Camcorder

Overview
Compact and lightweight – 4K 60p Camcorders with maximum mobility. Best recording quality – 4K 30p 4:2:2 10Bit/ 4K 60p 4:2:0 10Bit/ FHD 120p slow motion. High-performance lens – 25mm wide, F1.8-4 and 24x optical zoom. Perfect image controls– 1,77dots OLED viewfinder and 3.5-inch LCD monitor 2.76dots. Professional operation – ND filter/ 2 SD card slots/ WiFi/ Full HD Live Streaming. Pro Features – Waveform, Vectorscope, Zebra Pattern, Chroma Level and more.

Semi-professional 4K camcorder – compact and lightweight with 60p recording, 25mm wide-angle lens with 24x optical zoom and large OLED viewfinder. As a very compact 4K 60p camcorder, the X1600 offers the mobility and portability to meet a wide range of demands and requirements. It records in 4K at 60fps and Full HD even at up to 120fps for perfect slow motion. The universal lens offers a 24x optical zoom with an initial focal length of 25mm. In addition to the three-stage ND filter, it also offers two adjustment rings for quick manual operation of focus, zoom or iris. The highest quality standards for the image are met by recording with 4:2:2 10-bit color depth at 4K 30p. With the integrated WiFi, it can also stream the recordings live in HD to the internet.

Included in box
1x HC-X1600E 4K Camcorder
1x Li-ion battery (5.900mAh)
1x Eye Cup
1x Lens hood

About the Panasonic HC-X1600E 4K Camcorder
Semi-professional 4K camcorder – compact and lightweight with 60p recording, 25mmwide-angle lens with 24x optical zoom and large OLED viewfinder.

As a very compact 4K 60p camcorder, the X1600 offers the mobility and portability to meeta wide range of demands and requirements. It records in 4K at 60fps and Full HD even at upto 120fps for perfect slow motion. The universal lens offers a 24x optical zoom with aninitial focal length of 25mm. In addition to the three-stage ND filter, it also offers twoadjustment rings for quick manual operation of focus, zoom or iris.

The highest quality standards for the image are met by recording with 4:2:2 10-bit colordepth at 4K 30p. With the integrated WiFi, it can also stream the recordings live in HD tothe internet.

SENSOR
Sensor 1/2.5-inch MOS sensor
Effective pixels 8,29 megapixel
LENS
Lens Panasonic lens; F1.8-F4.0; 62mm filter diameter
Zoom 24x optical / max. 48x i.Zoom (UHD 32x) / max. 10x Digital Zoom
Focal length 25-600mm (35mm)
CAMERA
Minimum illumination 1,5 lx (F1.8, Super Gain +, 1/30 Sec.)
Focus Auto / Manual
ND filter Clear, 1/4, 1/16, 1/64
IR filter ON/OFF control function
White balance Auto / ATW LOCK / 3200K / 5600K / VAR (2000K—15000K) / Ach Fixed / Bch Fixed
Iris Auto / Manual
Image Stabilizer Ball O.I.S., 5-Axis HYBRID O.I.S. (UHD/FHD
Professional Assist Functions Waveform / Vector Scope / Flash Band Correction / Level Gauge / Zebra Pattern / Luminance Level
Professional Image Adjustment 8-Mode Gamma / Scene Files / Soft Skin / Master Detail / Color Correction / Knee point /
Chroma Level / Chroma Phase /Color Temperature / Master Pedestal
Shutter speed
59.94 Hz 60i/60p: 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000,
1/3000, 1/4000, 1/8000
30p: 1/30, 1/50, 1/60, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000,
1/3000, 1/4000, 1/8000
24p: 1/24, 1/48, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750,
1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000
50.00 Hz 50i/50p: 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750,
1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000
25p: 1/25, 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000,
1/1500, 1/2000, 1/3000, 1/4000, 1/8000
Slow shutter speed
59.94 Hz 60i/60p: 1/8, 1/15, 1/30
30p: 1/8, 1/15
30p: 1/6, 1/12
50.00 Hz 50i/50p: 1/6, 1/12, 1/25
25p: 1/6, 1/12
Slow motion
59.94 Hz FHD 120fps: (Speed: 1/2 bei 60p, 1/4 bei 30p, 1/5 bei 24p)
50.00 Hz FHD 100fps: (Speed: 1/2 bei 50p, 1/4 bei 25p)
IR (Infrared) Shooting yes
WiFi
Standard IEEE 802.11b/g/n
Frequency 2.4GHz/5GHz band
Memory Double Card Slot SDHC/SDXC
2-Slot Function Relay recording, simultaneous recording, background recording (only FHD MOV/MP4)
Video codec MOV/MP4: H.264/MPEG-4 AVC High Profile, H.265/MPEG-H HEVC Main10 Profile,
AVCHD: H.264/MPEG-4 AVC High Profile
Audio codec MOV: LPCM (48kHz/24bit 2ch), MP4: AAC (48kHz/16bit 2ch), AVCHD: Dolby Audio (48kHz/16bit 2ch)
System frequency 59.94Hz / 50.00Hz
Recording / Playback
MOV (HEVC) [4:2:0 10Bit] UHD 3840×2160 59.94p(50.00p, max. 200Mbps (VBR)
MOV [4:2:0 8Bit] UHD 3840×2160 59.94p/50.00p 420 LongGOP 150M: max 150Mbps (VBR)
[4:2:2 10Bit] UHD 3840×2160 29.97p/25.00p/23.98p 422 LongGOP 150M: max. 150Mbps (VBR)
FHD 1920×1080 59.94p/50.00p ALL-I 200M: max. 200Mbps (VBR)
MP4 (HEVC) [4:2:0 10Bit] UHD 3840×2160 59.94p/50.00p HEVC LongGOP 100M: max. 100Mbps (VBR)
MP4 [4:2:0 8Bit] UHD 3840×2160 29.97p/25.00p/23.98p 420 LongGOP 72M: max. 72Mbps (VBR)
FHD 1920×1080 59.94p/50.00p/23.98p/59.94i*/50.00i* 420 LongGOP 50M: max. 50Mbps (VBR)
*after firmware update
AVCHD [4:2:0 8bit] PS 1920×1080 59.94p/50.00p: max. 25Mbps (VBR)
LIVE STREAMING
Format H.264, FHD 1920×1080 60p, 24Mbps, AAC-LC, 48 kHz/16 bit, 2ch
Streaming method Unicast, Multicast, RTSP/RTP/RTMP/RTMPS
GENERAL
Power Supply 7.28V (Battery); 9.0V (DC IN) / Recording: 12.3W, Charging: 15.5W
Size ( W x H x D) Approx. 129 x 93 x 267 mm , approx. 0,85 kg (without lens hood, battery, SD card), Shooting: approx. 1,2 kg
LCD monitor 8.8 cm (3.5-inch) Wide LCDMonitor (2.760.000 dots)
Viewfinder 1,0 cm (0.39-inch), 1.770.000 dots
Manual ring Focus / Zoom or Iris
Accessory shoe yes
HDMI Type A
Built-in microphone Stereo microphone
Microphone jack 3,5mm stereo / XLR 2x optional with handle VW-HU1
Headphone jack 3.5 mm stereo mini jack x 1
Speaker 15 mm diameter
Remote function (optional) 2.5mm super mini jack x 1 (ZOOM S/S) / HCROP App
USB Typ-C USB 2.0
Standard accessories Li-Ionen battery (5.900mAh), eye cap, lens hood

Compact and lightweight – 4K 60p Camcorders with maximum mobility
Best recording quality – 4K 30p 4:2:2 10Bit/ 4K 60p 4:2:0 10Bit/ FHD 120p slow motion
High-performance lens – 25mm wide, F1.8-4 and 24x optical zoom
Perfect image controls– 1,77dots OLED viewfinder and 3.5-inch LCD monitor 2.76dots
Professional operation – ND filter/ 2 SD card slots/ WiFi/ Full HD Live Streaming
Pro Features – Waveform, Vectorscope, Zebra Pattern, Chroma Level and more
