Panasonic DMW-XLR1E

Overview
The DMW-XLR1 is a powerful tool for professional video production, designed to enable high-quality stereo surround sound recording. It is compatible with hi-res sound and can record at 96kHz/24bit. The device features physical switches and dials for easy setup and checking, and is powered by a DC power supply from the cameras shoe connector.

The Panasonic XLR Microphone Adapter is specifically designed for the LUMIX GH5 and GH5S cameras. It allows for high-grade stereo surround sound recording with an attached XLR microphone, making it perfect for professional video production. The adapter also offers an easy-to-use design with physical switches and dials, and the convenience of DC power supply via a shoe connector.

Summary
Frequency Response: 20 Hz – 20kHz, +0/-1 dB (Fs = 48 kHz)/ 20 Hz – 40kHz, +0/-1 dB (Fs = 96 kHz)
Gain Switch: +20, 0, -20 dB

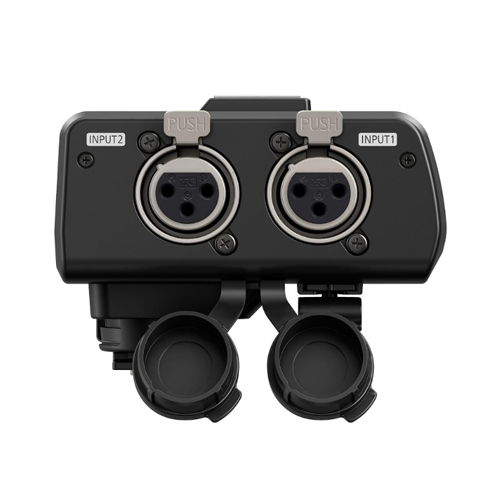

Input Terminals: Input 1, Input 2/ XLR 3-pin (female)
Low Cut Switch: 160 Hz, 16 Hz, Off (cutoff frequency)
Standard Input Level: 0 dBu/ -40 dBu (0 dBu = 0.775 Vrms)
Standard Recording Level: -12 dBFS (on standard input)

Included in box
1x DMW-XLR1E Microphone adapter

About the Panasonic DMW-XLR1E
The DMW-XLR1 enables high-grade stereo surround sound recording with the attached XLR microphone (2-channel) for professional video production. It is well suited to lip-sync recording, and 96kHz/24bit hi-res sound recording is also possible. It features an easy-to-use design, physical switches and dials for easy setup and checking and DC power supplied via a shoe connector.

The Panasonic XLR Microphone Adapter for the LUMIX GH5 and GH5S enables high-grade stereo surround sound recording with the attached XLR microphone (2-channel) for professional video production. It is well suited to lip-sync recording and 96kHz/24bit hi-res sound recording is also possible. It features an easy-to-use design, physical switches and dials for easy setup and checking and DC power supplied via a shoe connector.

Input Terminals: Input 1, Input 2/ XLR 3-pin (female)
Standard Input Level: 0 dBu/ -40 dBu (0 dBu = 0.775 Vrms)
Standard Recording Level: -12 dBFS (on standard input)
Frequency Response: 20 Hz – 20kHz, +0/-1 dB (Fs = 48 kHz)/ 20 Hz – 40kHz, +0/-1 dB (Fs = 96 kHz)
Gain Switch: +20, 0, -20 dB
Low Cut Switch: 160 Hz, 16 Hz, Off (cutoff frequency)
Dimensions (W x H x D): Approx. 64.4 x 60.9 x 81.8 mm / 2.535 x 2.397 x 3.220 inch (excluding the projecting parts)
Weight: Approx. 173 g / 0.381 lb
Operating Temperature: 0 – 40 °C / 32 – 104 °F
Operating Humidity: 10 – 80 %RH

Physical switches and dials
Compatible with hi-res sound
DC power supply from camera
