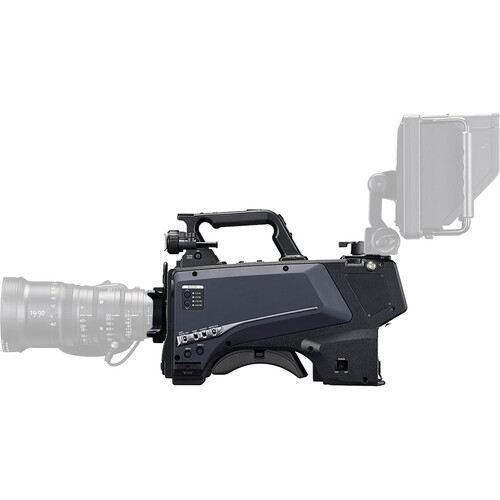

Panasonic AK-PLV100 4K PL-Mount Studio Camera

Overview
The Panasonic AK-PLV100 (AKPLV100) 4K PL-Mount Studio Camera is equipped with a 5.7K Super 35mm sensor and PL lens mount, providing a shallow-depth look for live cinematic video. It offers the flexibility to switch between cinematic 24p/30p or broadcast 60p system frame rates, as well as compatibility with Panasonics 2/3-inch studio-camera system equipment. The camera also features a digital extender for 2x image magnification, remote switching of motorized ND filter, and focus assist for fast and accurate focusing. It also offers fine adjustment of saturation and hue using 12-axis colour correction and linear matrix, resulting in beautiful, natural-looking skin.

The AK-PLV100GJ 4K studio camera is set to be released in March 2023 and is designed to enhance production teams ability to create exciting and engaging content. It features a Super 35mm 5.7K MOS sensor and PL mount, allowing for various expressions and bringing the directors vision to life. The camera also supports IP-based live production without the need for a CCU, thanks to its SMPTE ST 2110 compatibility. It can output 12G-SDI signals directly from the camera head, making it easy to integrate into existing systems. The camera head is also fully compatible with accessories for Panasonics 2/3-inch studio-camera line-up, making it a versatile choice for live cinematic video production.

Summary
Lens Mount: PL Mount
Weight: 2-5kg
Included in box
1x Panasonic (AK-PLV100) 4K PL-Mount Studio Camera

Panasonic AK-PLV100 (AKPLV100) 4K PL-Mount Studio Camera for live cinematic video with shallow depth of field

The AK-PLV100GJ 4K studio camera, designed to help production teams make their content more exciting and engaging.

Large Format Sensor and PL Mount for Various Expression

With a Super 35mm 5.7K MOS sensor and PL mount, inherited from the VariCam camera, Panasonic is bringing its pioneering experience of cine live technology to its studio camera line-up – enabling powerfully expressive video with a shallow depth of field to bring it closer to the director’s intention.

Simple IP-based live production without CCU

To support production studios moving towards more connected, IP-based workflows, the camera features SMPTE ST 2110 compatibility. This enables more streamlined connection to the KAIROS IT/IP platform (released in May 2020), which gives professionals unlimited control to deliver rich content to multiple screens and streams.

SMPTE ST 2110 input/output will be possible directly from the AK-PLV100GJ camera head without connecting to a CCU*, enabling IP-based live production with just the camera, doing away with the need for complicated systems. It’s also possible to output 12G-SDI signals directly from the camera head, allowing for flexible system construction and wide-ranging operations.

Camera head can be switched anytime

The camera head is fully compatible with the accessories for Panasonic’s 2/3-inch studio-camera line-up. By simply replacing the existing camera head with the AK-PLV100GJ, cinematic video can be created with the existing CCU (AK-UCU600 or AK-HCU250).

Power Supply DC 12 V (when using an external power supply)
DC 190 V (when AK-HCU250PSJ/HCU250ESJ is connected)
AC 240 V (when AK-UCU600PSJ/ UCU600ESJ is connected)
Operating Temperature -10 °C to 45 °C (14 °F to 113 °F)
(Preheating required under a temperature 0°C (32 °F) or below)
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Operating Humidity 85% or less (relative humidity)
Weight Approx. 4.2 kg (9.26 lbs.) (body only, excluding the accessories)
Dimensions (W x H x D) Body only 151 mm x 267 mm x 389 mm (5-31/32 inches x 10-17/32 inches x
15-11/32 inches)
(excluding protrusions)
Pickup Device S35mm 17.25 million pixels MOS Sensor
Optical Filter ND: Clear, 1/4, 1/16, 1/64

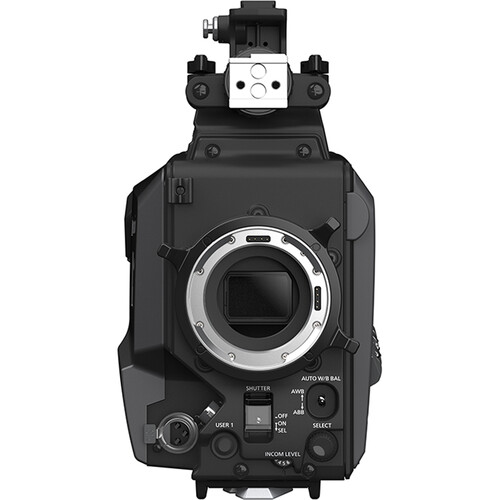

Lens Mount 35mm PL Mount
S/N 62 dB or above
Horizontal Resolution 4K: 2000 TV lines (center)
System Format 3840×2160/59.94p/50p/29.97p/25p/23.98p
1920×1080/59.94p/50p/29.97p/25p/23.98p

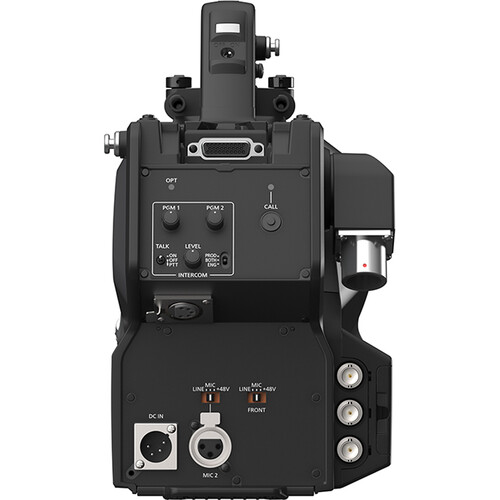

Terminal BNCx1
12G/6G/3G/1.5G-SDI:0.8 V[p-p], 75 Ω
Terminal BNCx1
3G/1.5G-SDI:0.8 V[p-p], 75 Ω
Terminal BNCx1
Terminal XLR x 1, 3-pin (female type)[LINE]/[MIC]/[+48V] switchable[LINE]: 0 dBu[MIC]: -60
dBu, -40 dBu, or -20 dBu menu can be selected
Terminal (front) XLR x 1, 3-pin (female type)[LINE]/[MIC]/[+48V] switchable[LINE]: 0 dBu[MIC]: -60
dBu, -40 dBu, or -20 dBu menu can be selected
Terminal XLR x 1, 5-pin, female type
Terminal Optical composite connector x 1
Terminal 12-pin x 1
Terminal 20-pin x 1
Terminal (rear) 29-pin x 1
Terminal XLR x 1, 4-pin, DC 12 V
Terminal RJ-45×1

5.7K Super 35mm sensor and PL Lens mount for a shallow-depth look
Switchable fram rate between cinematic 24p/30p or broadcas 60p system
SMPTE ST2110* video output directly from its camera head
Compatibility with Panasonic’s 2/3-inch studio-camera system equipment
Capture frame rate is switchable to Cinematic 24p/30p on 60p system, so can easily switch between a 24p/30p look and a standard broadcast 60p look.
Digital extender with signal-processing circuitry for 2x image magnification
Remote switching of motorized ND filter
Focus assist (Focus in Red/MAG/Focus Square) for fast, accurate focusing
Fine adjustment of saturation and hue separately using 12-axis colour correction and linear matrix
Beautiful, natural-looking skin thanks to wrinkle and tone correction
Shockless gain smooths out images during gain changes
