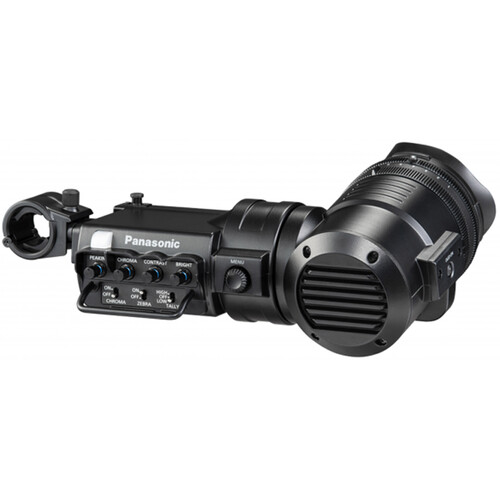

Panasonic AJ-CVF70GJ Viewfinder

Overview
The AJ-CVF70 is a top-of-the-line Full-HD OLED colour viewfinder, boasting a 1.78 cms OLED panel that delivers high quality FHD (1080P) resolution. It also features dials for diopter compensation and image size, allowing for a more customizable viewing experience. The CVF70 has a higher contrast ratio and a wide colour gamut, providing vivid and accurate colours. Its fast response time ensures smooth and seamless image viewing.

Designed for professional use, the CVF70 has several convenient features such as automatic image resize when taking off eye for High Eyepoint, and automatic shut-off for OLED screen protection (max. 7 min). Its robust body and familiar layout of dials and switches make it easy to use. Additionally, it supports studio camera use by allowing the addition of a Yellow Tally in the ocular. With a large-diameter 38mm eyepiece, the AJ-CVF70 ensures comfortable and immersive viewing experience for extended periods of time. It is compatible with most current and previous models of system camera and ENG shoulder-mount cameras that feature a Panasonic multi-pin viewfinder connector on the camera body.

Summary
Resolution: Full HD
Power Connection: Built In

About the Panasonic AJ-CVF70GJ Viewfinder
The AJ-CVF70 is a Full-HD OLED colour viewfinder, capable of achieving a high contrast ratio and a wide colour gamut.The CVF70 is compatible with most of the current and previous models of system camera and ENG shoulder-mount cameras that feature a Panasonic multi-pin viewfinder connector on the camera body.

Power Supply DC 12 V (supplied by the camera)
Power Consumption 7.0 W
Display panel 0.7-type OLED color monitor (approx. 6,220,000 dots)
Image System 1080/50i, 1080/59.94i (switched automatically)
External adjustment controls PEAKING, CHROMA, CONTRAST, BRIGHT DIOPTER RING,
ZOOM RING
Switches ZEBRA (ON, OFF), CHROMA (ON, OFF), TALLY (HIGH, OFF, LOW),
OLED ON, EYE PROXIMITY SENSOR
Display lamps Front Tally-LED, Back Tally-LED
Indicators GREEN TALLY, RED TALLY/REC, YELLOW TALLY/!, BATT
Ambient operating temperature 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Ambient operating humidity 10 % to 85 % (no condensation)
Storage temperature -20 ℃ to 60 ℃ (-4℉ to 140 ℉)
External dimensions (WxHxD) 267mm x 201mm x 88mm
Weight Approx. 1kg

High quality FHD (1080P) resolution with a 1.78 cms OLED panel
Dials for diopter compensation and image size
Higher contrast ratio
A wide colour gamut and fast response
Automatic image resize when taking off eye for High Eyepoint (switchable)
Automatic shut-off for OLED screen protection (max. 7 min)
Robust body and same layout of dial and switches as conventional EVF
Supports studio camera use: adding Yellow Tally in ocular
Large-diameter 38mm eyepiece
