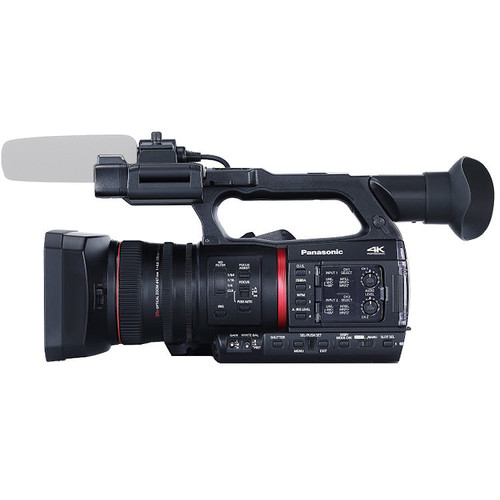

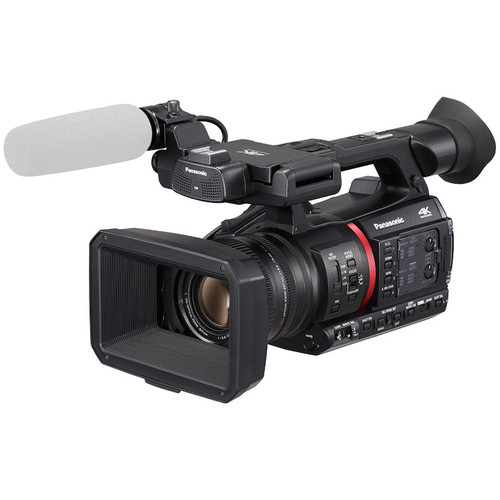

Panasonic AG-CX350EJ 4K HDR Handheld Camera

Overview
Panasonic is proud to hold the largest market share for aspherical lenses and their AG-CX350 camcorder showcases their cutting-edge optical technology. With a wide-angle of 24.5mm and an optical 20x zoom, this camcorder allows for distortion-free wide-angle shots without the need for a conversion lens. The i.Zoom feature also provides seamless zooming up to 32x in HD or 24x in UHD without any loss of resolution. Additionally, the camcorder has a high-sensitivity 1.0-type MOS sensor and a built-in 5-axis hybrid image stabilizer for steady footage.

The AG-CX350 also boasts HDR-compliant HLG (Hybrid Log-Gamma) for a wider dynamic range, as well as intelligent auto focus and focus assist features. The manual three rings for zoom, focus, and iris control provide professionals with quick and tactile control. The camcorder also has the capability for cabled or wireless remote control, and can record high-quality 10-bit videos in various formats, including UHD/60p with the new HEVC codec. With 10-bit variable frame rate recording and no cropping, this camcorder is a versatile and powerful tool for any videographer.

Summary
Max Aperture: f/2.8 – 4.5
Lens Mount: Integrated Zoom Lens
Recording Formats: AVCHD
Internal ND: Yes
Audio Inputs: 2 x XLR
Shutter: Rolling (Electronic)
Focal length (35mm Equivalent): 24.5-490mm
Lens Zoom: 20x Optical Zoom
Media Type: SD
Resolution and Frame Rate: 4k 60p
Sensor: 1/2.5-type (inch) MOS Sensor
Video Outputs: 1x HDMI
Weight: 0-2kg
Wi-Fi: Yes
Included in box
1x Panasonic AG-CX350EJ
1x Battery (AG-VBR59)
1x Battery charger (AG-BRD50)
1x AC adaptor (SAE0011AJ)
1x AC cable
1x Microphone holder kit
1x Shoulder strap
1x Eye cup
1x Lens hood (attached to camera)
1x Grip belt (attached to camera)
1x Operating instructions

About the Panasonic AG-CX350EJ 4K HDR Handheld Camera
Panasonic developed the new CX Series of handheld camcorders, spearheaded by the AG-CX350, to fuse video, on-air broadcasting, and communication for the next generation. The AG-CX350 features 4K/UHD resolution, 10-bit depth, HDR-compatible image quality, and a host of recording formats for the ultimate creativity in a compact, lightweight body with low power consumption. It is also equipped with an RTMP/RTSP function for live streaming and NDI | HX-ready IP connectivity, to serve as a live camera, and clearly expands the usability of the handheld camcorder beyond conventional news gathering and recording applications to meet a wide range of professional needs.

The AG-CX350’s lens is the widest-angle in the industry at 24.5mm, allowing the capture of wide-angle images with minimal distortion, whilst the optical zoom of 20x covers up to 490mm telephoto in all modes. The i.Zoom functionality enables seamless zooming of up to 32x in HD or 24x in UHD with no degradation in zoom, whilst the CX350 also comes with a digital 2x, 5x and 10x zoom. The AG-CX350 features HLG (Hybrid Log-Gamma) support for HDR capture, and can be selected from eight in-camera modes (HD, SD, FILMLIKE 1, FILMLIKE 2, FILMLIKE 3, FILM-REC, VIDEO-REC, HLG).

The newly-developed 1-type MOS sensor offers a high-quality image with shallow depth of field and high sensitivity of F12 at 60Hz and F13 at Hz at 2000 TV lines. It supports multiformats, including UHD, HD and SD without cropping in all modes.

The CX350 can be used to support live coverage of concerts and sports events, as well as for live streaming of breaking news with support of streaming services from Facebook and YouTube. The CX350 is also the first camera recorder that support NDI|HX, which allows for video transmission and camera control to be made via an IP connection, without having to use an external recorder.

Power DC 7.28 V (when the battery is used), DC 12 V (when the AC adaptor is used)
Power Consumption 17 W (when the LCD monitor is used), 11.5 W (1080i / 422ALL-I 100M recording, when the LCD, monitor is used, no external device connection)
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity 10 % to 80 % (no condensation)
Weight Body: approx. 1.9 kg (4.19 lb) (body only, excluding lens hood, battery, and accessories), Shooting: approx. 2.3 kg (5.07 lb),(including lens hood, battery, and microphone holder)
Dimensions 180 mm (W) x 173 mm (H) x 311 mm (D), (7-1/8 inches x 6- 13/16 inches x 12-1/4 inches), (excluding protrusion and eye cup)
Pickup Device 1.0-type (effective size) MOS solid state image sensor
Effective Pixels 15,030,000 pixel
Lens Optical image stabiliser lens, optical 20x motorised zoom
F value: F2.8 to F4.5
Focal length: f=8.8 mm to 176 mm
35 mm equivalent: 24.5 mm to 490 mm
Filter Diameter: 67 mm
ND Filter: Clear, 1/4, 1/16, 1/64
IR Filter: Incorporates the ON/OFF control function
Shortest Shooting Distance (M.O.D.):
Approx. 10 cm (W), 1.0 m (T) from the front lens
Gain Setting L/M/H selector switch, -3 dB to 18 dB (Adjustable in 1 dB steps), 24dB, 30 dB, 36 dB switched, (when assigning [S. GAIN] to the USER button)
Color Temperature Setting ATW, ATW LOCK, A ch, B ch, preset 3200 K/preset 5600 K/VAR (2000 K to 15000 K)
Shutter Speed When [SYSTEM MODE] = 59.94 Hz
?59.94i/59.94p mode:
1/60 sec. (shutter off), 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec.,
1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.
?29.97p mode:
1/30 sec., 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec.,
1/500 sec., 1/1000 sec., 1/2000 sec.,1/4000 sec., 1/8000 sec., 1/10000 sec.
?23.98p mode:
1/24 sec., 1/48 sec., 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250
sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.
When [SYSTEM MODE] = 50.00 Hz
?50i/50p mode:
1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec.,
1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.
?25p mode:
1/25 sec., 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec.,
1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.
Shutter Speed(Slow Shutter) When [SYSTEM MODE] = 59.94 Hz
? 59.94i/59.94p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/15 sec., 1/30 sec.
?29.97p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/15 sec.
?23.98p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec.
When [SYSTEM MODE] = 50.00 Hz
?50i/50p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec., 1/25 sec.
?25p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec.
Shutter Speed(Synchro Scan) When [SYSTEM MODE] = 59.94 Hz
? 59.94i/59.94p mode: 1/60.0 sec. to 1/7200 sec.
?29.97p mode: 1/30.0 sec. to 1/7200 sec.
?23.98p mode: 1/24.0 sec. to 1/7200 sec.
When [SYSTEM MODE] = 50.00 Hz
?50i/50p mode: 1/50.0 sec. to 1/7200 sec.
?25p mode: 1/25.0 sec. to 1/7200 sec.
Shutter Open Angle 3.0 deg to 180.0 deg to 360.0 deg (in 0.5 deg steps)
VFR Recording Frame Rate When [SYSTEM MODE] = 59.94 Hz
1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 24, 25, 26, 27, 28, 30, 32, 34, 36, 40, 44, 48,54, 60 (fps)
When [SYSTEM MODE] = 50.00 Hz
1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 23, 24, 25, 26, 27, 28, 30, 32, 34, 37, 42, 45,48, 50 (fps)
Super Slow Recording When [SYSTEM MODE] = 59.94 Hz
1920 x 1080 (FHD): shooting frame rate 120 fps
When [SYSTEM MODE] = 50.00 Hz
1920 x 1080 (FHD): shooting frame rate 100 fps
Sensitivity When [HIGH SENS.] mode, F12 (2000 lx, 3200 K, 89.9 % reflect, 2160/59.94p, 1080/59.94i), F13 (2000 lx, 3200 K, 89.9 % reflect, 2160/50p, 1080/50i)
Horizontal Resolution 2000 TV or higher (UHD: center), 1000 TV or higher (FHD: center)
i.Zoom ×32 (FHD), ×24 (UHD)
Digital Zoom ×2/×5/×10
Lens Hood Hood with lens cover
Recording Media SDHC memory card (4 GB to 32 GB),SDXC memory card (32 GB to 128 GB),UHS-I/UHS-II UHS Speed Class3 supported, ideo Speed Class V90 supported microP2 card (A series, B series), Please see back cover for the “Available Memory Card” table.
Recording Slot microP2/SDXC UHS-II card slot x 2
Recording Pixels 3840 × 2160 (UHD), 1920 × 1080 (FHD), 1280 × 720 (HD), 720 × 480(SD), 720 × 576 (SD)
System Frequency 59.94 Hz/50.00 Hz
Recording File Format MOV (AVC), MOV (HEVC), AVCHD
Recording Format Please see page 4 for the “Recording Format” table.
Recording Time Please see back cover for the “Recording Time” table.
2 Slot Functions Relay Rec, Simultaneous Rec, Background Rec
Special Recording Functions Pre Rec, Interval Rec, Time Stamp
Quantisation MOV: 4:2:2 10 bit/4:2:0 8 bit/4:2:0 10 bit (HEVC) AVCHD: 4:2:0 8 bit
Digital Video / Video Compression Format H.264/MPEG-4 AVC High Profile, H.265/MPEG-H HEVC Main10 Profile
Recording Audio Signal MOV: 48 kHz/24 bit, 2 ch, Linear PCM, AVCHD: 48 kHz/16 bit, 2 ch, Dolby Audio™
Headroom 12 dB/18 dB/20 dB switchable (menu)
Live Streaming / Video Compression Format H.264/MPEG-4 AVC Main Profile, High Profile
Audio Compression Format AAC-LC
Network Protocol RTSP/RTP/RTMP
Video Output / SDI OUT BNC x 1, SDI REC REMOTE supported
HD: 0.8 V [p-p], 75 ? SD: 0.8 V [p-p], 75 ?, Output format (4:2:2 10 bit): ?1920 × 1080: 59.94p, 50p, 59.94i, 50i, 29.97Psf, 25Psf, 23.98PsF
? 1280 × 720: 59.94p, 50p
?720 × 480: 59.94i
?720 ×
576: 50i
VIDEO OUT 3.5 mm diameter mini jack, composite 1.0 V [p-p], 75 ?
Built-in Microphone Stereo microphone
Input 1/2 XLR (3-pin) x 2 (INPUT1, INPUT2) Input high impedance, LINE/MIC/MIC+48V (switchable SW) MIC: -40 dBu/-50 dBu/-60 dBu (switchable menu) LINE: +4 dBu/0 dBu (switchable menu)
Audio Input/Output / SDI OUT Linear PCM 2 ch
Audio Input/Output / HDMI OUT Linear PCM 2 ch
Headphone 3.5 mm diameter stereo mini jack x 1
AV OUT 3.5 mm diameter stereo mini jack x 1, Output level: 600 ?, 316 mV
Speaker 20 mm diameter, round x 1
TC In/Out BNC x 1, Used as the input and output terminals (switchable menu) Input: 1.0 V to 4.0 V [p-p] 10 K? Output: 2.0 V ± 0.5 V [p-p] low impedance 2.5 mm diameter super mini jack
Remote 2.5 mm diameter super mini jack
LAN RJ-45: 1000BASE-T/100BASE-TX/10BASE-T
USB 2.0 HOST Type-A, 4-pin (5 V, 0.5 A) for Wireless Module (option)
USB 3.0 DEVICE USB 3.1 GEN1 Type-C, USB Mass storage function No USB bus power function
DC In 12V DC 12 V EIAJ Type 4
LCD Monitor 3.5 type TFTLCD color monitor (3:2), approx. 1,620,000 dots, Touch panel video display (16: 9) area: Approx. 1,370,000 dots
Viewfinder 0.39 type OLED (organic EL display), approx. 2,360,000 dots, video display (16: 9) area: approx. 1,770,000 dots
Included Accessories Battery (AG-VBR59), Battery charger (AG-BRD50), AC adaptor, AC cable, Microphone holder kit, Shoulder strap, Eye cup, Lens hood*, Grip belt* and Operating instructions (Items marked by an asterisk (*) come already attached to the camera)

Wide-Angle 24.5mm*1 Optical 20x Zoom, Plus i.Zoom

Panasonic boasts the world’s largest market share in the aspherical lens segment. Its cutting-edge optical technology was maximised in the development of the integrated lens used in the AG-CX350. This lens has the industry’s widest angle of 24.5mm*1 on the wide end and allows recording of wide-angle images with minimal distortion, without the use of a conversion lens. The optical 20x zoom covers up to 490mm telephoto in all modes. Furthermore, the i.Zoom enables seamless zooming of up to 32x in HD or up to 24x in UHD from the telephoto end with no degradation in resolution. The AG-CX350 also comes with digital 2x/ 5x/ 10x zoom.*2

*1: In 35mm equivalent. The AG-CX350’s wide 24.5mm angle is the widest in the industry for UHD/FHD (16:9). In the segment of camcorders with integrated lens, the Panasonic AG-UX180 achieved the industry’s widest angle of 24mm in UHD/24p (17:9). For UHD/FHD (16:9), 25.4mm is the widest angle in the industry. (Both as of January 2019, according to a Panasonic survey)

*2: When using the digital zoom, picture quality degrades as the magnification rate increases.

New High-Definition, High-Sensitivity 1.0-type 15M MOS Sensor

The 1.0-type MOS (approximately 15,030,000 pixels) offers an outstanding depth of field and excellent balance between image quality and sensitivity. It supports multi-formats, such as UHD (3840 x 2160), FHD, HD and SD, and provides images without cropping in all modes. This MOS sensor also boasts high sensitivity of F12 (60 Hz) /F13 (50 Hz) (in both UHD and FHD in High Sensitivity mode).

Built-in 5-Axis Hybrid Image Stabiliser

The AG-CX350 has a built-in hybrid image stabiliser that combines optical and electronic camera shake compensation functions. It corrects camera shake in five axial directions in all modes* including UHD to provide powerful camera shake compensation power in low-angle shooting, high-angle shooting and all other unstable conditions. There are three modes to choose from: NORMAL (standard), STABLE (effective for fixed-frame shooting) and PAN/TILT (effective in panning and tilting).

*Excluding Super Slow and VFR modes.

HDR-Compliant HLG (Hybrid Log-Gamma)

The AG-CX350 features HLG (Hybrid Log-Gamma)* to support HDR (High Dynamic Range). This achieves a wide dynamic range on HDR-compatible TV monitors. The gamma mode can be selected from eight modes (HD, SD, FILMLIKE 1, FILMLIKE 2, FILMLIKE 3, FILM-REC, VIDEO-REC, HLG).

* The HLG specification was developed jointly by Japanese broadcaster NHK and the BBC in the UK. It is defined in ARIB STD-B67 and ITU Rec. 2100.

Intelligent AF and Focus Assist

The AG-CX350’s auto focus system is Intelligent AF, which is equipped with a micro drive focus unit to achieve high focusing speed, excellent tracking performance and superb stability. The AG-CX350 is also equipped with Expand and Peaking (simultaneous display possible), Manual Focus Assist, LCD Touch Focus (switchable to Auto Iris or brightness display) and One-Push AF Focus Assist.

Manual Three Rings

The AG-CX350 comes with Manual Three Rings for zoom, focus and iris control. They deliver quick response and provide tactile feel that satisfies professionals. The zoom lever located at the upper section of the handle has a multi-step variable zoom function, allowing smooth zooming from ultra-low speed when shooting from low angle shooting and when a tripod is used.

Cabled/Wireless Remote Control Capability

The remote terminal (2.5-mm super mini jack) enables the control of the focus, zoom and iris using a remote controller (third-party product). It also supports wireless remote control using a tablet or smartphone (iOS, Android OS). (See page 5 for details.)

New HEVC Codec for High-Image-Quality 10-bit UHD/60p Recording at Low Bit Rate

The AG-CX350 is capable of recording in various formats at different compression rates (see the table below). It can record UHD/60p videos in high-image-quality 10-bit on an SD memory card. It also features a new, high-efficiency HEVC codec (LongGOP, 10-bit, 4:2:0, MOV) . When a PC with 7th Generation Intel Core i7 processor is used, the hardware acceleration enables native decoding and playback. Free software, such as VLC Media Player or QuickTime Player, provides smooth playback on a notebook PC or MacBook with Intel Core i7 processor.*

* Playback may lack smoothness depending on the PC environment, such as storage and memory devices.

10-bit Variable Frame Rate (VFR) without Cropping

In UHD, variable frame rate (VFR) recording at 1 fps to 60 fps is possible. In FHD, super-slow can be realised at a maximum of 120 fps. Both provide high-quality 10-bit, full-frame pictures with no image area cropping even at high frame rates.

MOV/AVCHD/P2 MXF* File Formats Supported

The AG-CX350 records MOV files that are highly compatible and easy to use. This file format is the same as that used on Panasonic’s compact cinema camera, the AU-EVA1, and supports file names with up to 20 characters, allowing recorded video clips to be easily managed. The AG-CX350 also supports conventional AVCHD recording, including the AVCHD 8 Mb/s mode, used widely as the format in college and professional football coaching analysis. And it will support the MXF P2 file format for broadcasting in the future,* enabling AVC-Intra or AVC-LongG recording.

* Future support by a firmware version upgrade for recording onto microP2 cards.

Freeze Frame (Still Image Capture)

When playing back video clips on the AG-CX350, any desired frame can be captured as a still image (JPEG) and recorded onto an SD memory card. Video playback, frame advance (+/-), and still-image captures can all be done intuitively by touch panel operation.

Double Memory Card Slots Improve Recording Reliability

Two SD memory card slots capable of using SDXC/SDHC/microP2 cards*1 enable unlimited*2 relay recording by simply changing SD memory cards. Recording reliability is further improved with simultaneous recording and background recording. And the AG-CX350 is equipped with Pre Rec, Interval Rec and Time Stamp recording functions.

*1 For memory card usage conditions, see the “Recording Media” chart on the rear page.

*2 If the Relay recording time reaches 10 hours, shooting will temporarily stop, and then automatically restart a few seconds later. If it is recorded in MOV format, the file will be split every 3 hours and recorded.

RTMP/RTSP-Compatible HD Streaming

HD streaming is possible while images are being acquired. Both RTSP and RTMP streaming methods are compatible. And Facebook, YouTube, and other streaming services are supported. The AG-CX350 can be used for live coverage of concerts and sports events as well as for live streaming of breaking news.

* P2 Network Setting Software is required for the use of the RTMP function. See the section, “Connectivity-verified live video services,” for the live video streaming services that have been confirmed to be compatible.

Easy IP Connection: Preinstalled NDI | HX Support

The AG-CX350 is the industry’s first camcorder to support NDI | HX.* Equipped with NDI | HX mode, it allows video transmission and camera control via IP connection, without using an external converter. When connected to a system configured with the AV-HLC100 Live Production Center and HN/UN series PTZ integrated cameras, the AG-CX350 realises end-to-end live video production of live events as well as web distribution.

* NDI | HX, a technology of NewTek, Inc.

* 4K image output not supported in NDI | HX mode.

* Industry’s first camcorder to support NDI | HX. As of January 2019 (according to a Panasonic survey). To use this function, an activation keycode from NewTek is required. Keycodes can be purchased from the following website: http://new.tk/ndi_panasonic

Wireless Control from a Tablet or Smartphone

The AG-CX350 can be controlled remotely and wirelessly using a tablet/smartphone app*1 (downloadable for free from the App Store or Google Play). In addition to zoom, i.Zoom and focus lens control, the app enables remote control of various other functions, including camera setting, picture quality adjustment, REC start/stop and menu setting. What’s more, the app can be used to select the camera to control from up to eight cameras.*2

*1: iPad: iOS 9 or later are supported. Android devices: Android 5.0 or later are supported. Wireless module (sold separately; AJ-WM50 or recommended third-party Wi-Fi dongle) is required.

*2: The app does not support simultaneous/synchronous control of multiple cameras. Camera switching takes several seconds.

Parallel Output of SDI and HDMI

SDI and HDMI can be output in parallel. Output of UHD video via HDMI and output of HD video in high-image-quality 10-bit, 4:2:2 via SDI enable a variety of uses. In HLG shooting, either HDR or SDR can be selected for each of the SDI, HDMI and LCD video outputs.

TC Synchro Multi-Camera Recording Supported

The TC IN/OUT terminal (BNC) allows synchronisation of the time code in multi-camera shooting. The camera number (A to Z) can be added* to the name of the recording folder to facilitate editing.

* Only when the MOV codec is used for recording. Setting must be made in each camera.

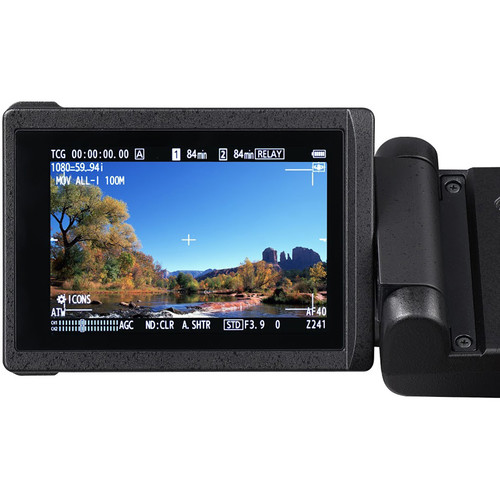

Simultaneous Display on High-Brightness, High-Definition LCD and High-Resolution OLED EVF

The AG-CX350 features a new 3.2-type high-definition LCD monitor (approximately 1,620,000 dots). This LCD monitor uses the RGBW (red, green, blue, white) pixel structure to provide high visibility even in bright sunlight. The 3:2 aspect ratio enables the display of timecode and camera status without superimposing on the image. The touch panel function allows convenient touch focus and menu setting. The viewfinder is a highresolution colour OLED (approximately 2,360,000 dots, with an image display area of approximately 1,770,000 dots) that offers superb colour reproduction. Since the AG-CX350 newly supports simultaneous LCD and EVF outputs, the LCD monitor can display the captured image at all times even when you look away from the EVF.

Broadcast-Grade Picture Quality Adjustment Functions

16-Axis Independent colour Correction: Provides an independent effect to each of the 16 phases of video images. It enables colour matching of multiple cameras under the same lighting conditions as well as creative image rendering.
Master Detail: Adjusts the overall degree of contour enhancement.
Skin Detail: Makes skin colours appear soft and beautiful.
Scene Files: Six preset files are provided. You can change any of the settings as desired.
Other Picture Settings: Matrix tables, V detail, detail coring, chroma level, chroma phase, colour temperature, master pedestal and knee.
24-bit PCM Supporting High-Resolution Audio>

The use of the built-in stereo microphone or XLR input (switchable 48-V phantom power supply/MIC/LINE) allows 2-channel audio recording. In MOV mode, 24-bit linear PCM recording delivers higher sound quality. Future firmware update will enable 4-channel recording.*1 Other audio features include manual volumes, OSD level meter, 1 kHz test tone output*2 and headphone output (3.5 mm-diameter stereo mini jack).

*1: When MOV is selected as the main recording format, the AG-CX350 enables 4-channel recording using the built-in microphone (2 channels) and XLR (2 channels). In AVCHD mode, only 2-channel recording is possible.

*2: This output is produced when the colour bar is displayed. When the 50 Hz system frequency is selected, the output is 997 Hz.

Low Power Consuming, Large-Capacity Battery, Quick Charge

The AG-CX350 boasts low power consumption of 11.5 W (in factory setting, with no devices connected to the terminals), which is the industry’s lowest in the UHD/HD 10-bit recording camcorder segment. The maximum power consumption is only 17 W (HEVC recording, LCD turned ON, devices connected to the terminals).*1 With the supplied battery pack (5900 mAh), the AG-CX350 operates continuously for about 3 hours and 20 minutes. This large-capacity battery pack supports quick charges.*2

*1: As of January 2019. According to a Panasonic survey.

*2 Quick charge is possible only when the AG-BRD50 battery charger is used.
