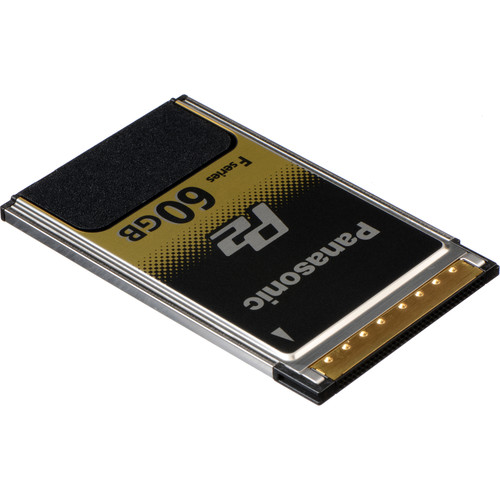

Panasonic 60GB F-Series P2 Card

Overview
The Panasonic P2 card is a durable and reliable memory card specifically designed for broadcast and professional video production. It can withstand impacts up to 1,500 G and vibrations up to 15 G, making it suitable for use in harsh conditions. It can also operate in temperatures ranging from -20C to 60C and can be stored in temperatures as low as -40C and as high as 80C. These rugged specifications make the P2 card ideal for newsgathering on the go, as it eliminates the need for a transport mechanism and reduces the risk of mechanical damage that can occur with traditional videotapes. The P2 card also features a flash memory error correction system, similar to a RAID system, which greatly enhances its data retention reliability. It is also designed to comply with the PC card standard and can be easily mounted into the PC card slot of a laptop for data transfer.

When used with a P2 Drive, such as the AJ-PCD30 or AJ-PCD35, the P2 card can transfer recording data at speeds of up to 1.2 Gbps. It also supports writing speeds up to AVC-Intra Class 200 in the AVC-ULTRA family, a high-quality video compression codec specifically designed for professional use. The P2 card F series does not support all formats supported by AVC-Intra 200, but it does offer a card replacement interval of approximately five years when the entire data is rewritten once a day. The P2 card also features a rugged connector that has passed a mount and unmount test of 30,000 repetitions, proving its durability and reliability compared to ordinary PC cards. Overall, the Panasonic P2 card is a versatile and robust option for professional video production needs.

Summary
Capacity: 60GB
Card Type: P2
Included in box
1x Panasonic 60GB F-Series P2 Card

About the Panasonic 60GB F-Series P2 Card
The Panasonic P2 card is a memory card for broadcast and professional video production use.

It withstands impacts up to 1,500 G and vibrations up to 15 G, operates in temperaturesfrom -20C to 60C and can be stored in temperatures from -40C to 80C.

The rugged specifications of the P2 (Professional Plug-in) card ensure reliable recordingsunder harsh conditions and enhance newsgathering mobility. The solid-state memory requires no transport mechanism and it eliminates the possibility of mechanical damagethat can occur with videotape. Additionally it can be used for repeated recording and formatting over long periods.*2

The P2 card contains a flash memory error correction system,*3 which is equivalent to aRAID system which greatly strengthens the data retention reliability. The P2 card complies with the PC card standard (Card Bus Type-II), it can mount directly into the PC card slot ofa laptop PC to read or write data.*4 Its connector cleared the mount and unmount test at 30,000 repetitions confirming it is far more rugged than an ordinary PC card.

When used with a P2 Drive, (AJ-PCD30 or AJ-PCD35) the recording data on the F series cards can betransferred at speeds of up to 1.2 Gbps.*5

As well as the currently available codecs with the existing P2 devices the new F Seriescards support writing speeds up to AVC-Intra Class 200 in the AVC-ULTRA family*1.=

*1: H.264 based video compression codec for broadcasting and video production professional use. It achieves high picture quality formastering due to 10 bit 4:2:2 sampling. Its video recording rate is approx. 200 Mbps (at 1080/59.94i, 1080/50i). P2 card F series don’t supportall formats supported by AVC-Intra 200.*2: The card replacement interval is about five years when entire (100%) data of E series or F series P2 card is rewritten once a day.*3: It has been adopted from the P2 card E Series (released in 2009).*4: A PC must be installed P2 card driver.*5: When using AJ-PCD35 or AJ-PCD30 with E Series or F Series P2 cards. However, 1.2 Gbps is the maximum transfer speed and theactual transfer speed is subject to be changed depending on system configuration such as bus , OS, software and network.

Capacity 60GB
