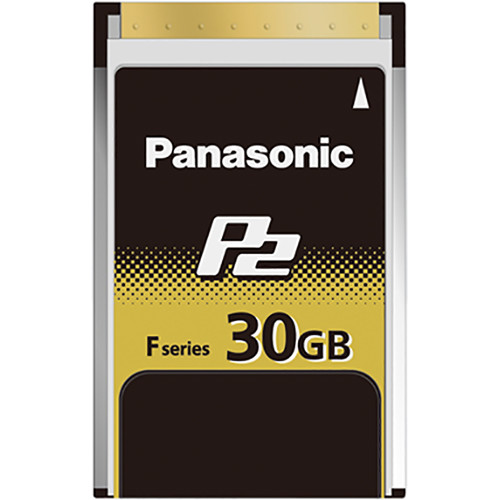

Panasonic 30GB F-Series P2 Card

Overview
The Panasonic P2 card is a durable memory card specifically designed for use in broadcast and professional video production. It can withstand impacts up to 1,500 G and vibrations up to 15 G, and can operate in temperatures ranging from -20C to 60C and be stored in temperatures from -40C to 80C. These rugged specifications make it a reliable choice for recording in harsh conditions and provide enhanced mobility for newsgathering.

The P2 cards solid-state memory eliminates the need for a transport mechanism, reducing the risk of mechanical damage that can occur with traditional videotapes. It also features a flash memory error correction system, similar to a RAID system, which greatly improves data retention reliability. The card is compliant with the PC card standard and can be directly mounted into a laptops PC card slot for data transfer. When used with a P2 Drive, the recording data on the F series cards can be transferred at speeds of up to 1.2 Gbps. The new F series cards also support writing speeds up to AVC-Intra Class 200, a high-quality video compression codec for professional use.

Summary
Capacity: 30GB
Card Type: P2
Included in box
1x Panasonic 30GB F-Series P2 Card

About the Panasonic 30GB F-Series P2 Card
The Panasonic P2 card is a memory card for broadcast and professional video production use.

It withstands impacts up to 1,500 G and vibrations up to 15 G, operates in temperaturesfrom -20C to 60C and can be stored in temperatures from -40C to 80C.

The rugged specifications of the P2 (Professional Plug-in) card ensure reliable recordingsunder harsh conditions and enhance newsgathering mobility. The solid-state memory requires no transport mechanism and it eliminates the possibility of mechanical damagethat can occur with videotape. Additionally it can be used for repeated recording and formatting over long periods.*2

The P2 card contains a flash memory error correction system,*3 which is equivalent to aRAID system which greatly strengthens the data retention reliability. The P2 card complies with the PC card standard (Card Bus Type-II), it can mount directly into the PC card slot ofa laptop PC to read or write data.*4 Its connector cleared the mount and unmount test at 30,000 repetitions confirming it is far more rugged than an ordinary PC card.

When used with a P2 Drive, (AJ-PCD30 or AJ-PCD35) the recording data on the F series cards can betransferred at speeds of up to 1.2 Gbps.*5

As well as the currently available codecs with the existing P2 devices the new F Seriescards support writing speeds up to AVC-Intra Class 200 in the AVC-ULTRA family*1.

*1: H.264 based video compression codec for broadcasting and video production professional use. It achieves high picture quality formastering due to 10 bit 4:2:2 sampling. Its video recording rate is approx. 200 Mbps (at 1080/59.94i, 1080/50i). P2 card F series don’t support all formats supported by AVC-Intra 200.*2: The card replacement interval is about five years when entire (100%) data of E series or F series P2 card is rewritten once a day.*3: It has been adopted from the P2 card E Series (released in 2009).*4: A PC must be installed P2 card driver.*5: When using AJ-PCD35 or AJ-PCD30 with E Series or F Series P2 cards. However, 1.2 Gbps is the maximum transfer speed and theactual transfer speed is subject to be changed depending on system configuration such as bus , OS, software and network.

Capacity 30GB
