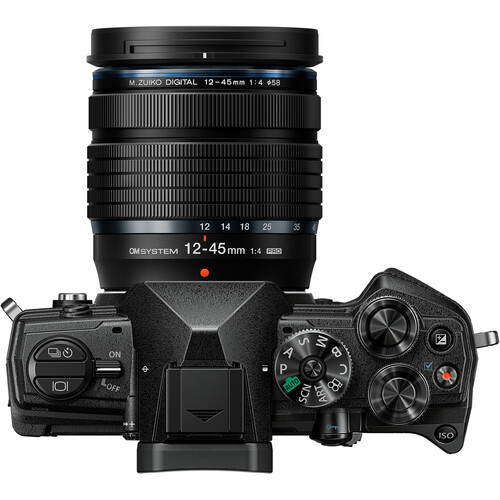

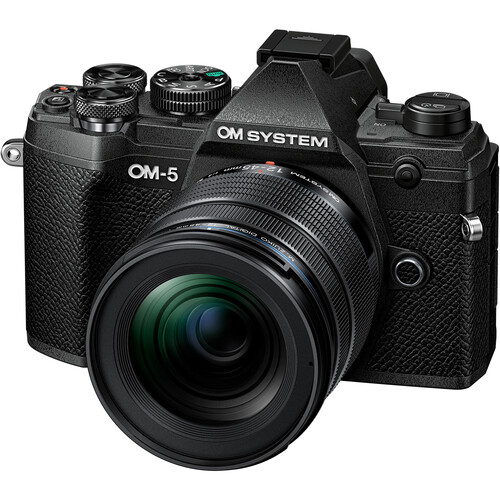

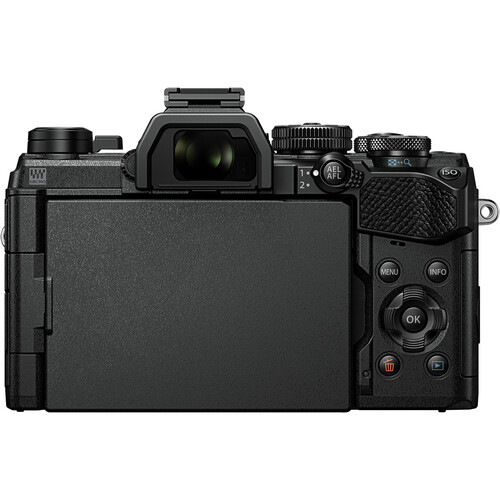

OM SYSTEM OM-5 12-45mm Kit – Black

Overview
The OM-5 Camera is designed to capture and tell your story. It recognizes that every journey is unique and filled with small moments that make it special. While reaching the mountain top may be the ultimate goal, the real adventure happens along the way. The OM-5 encourages you to embrace the sidesteps, missed chances, and mishaps because those moments are what make your journey worth it. It is like your favorite pair of boots that lead you to new trails, a trusty bag that always has what you need, or a friend that helps you see the world in a different way. With its compact size and durable design, the OM-5 is ready to join you on any adventure.

The OM-5 comes with the M.ZUIKO ED 12-45mm F4.0 PRO lens, the world’s smallest and lightest medium range zoom lens with a fixed aperture value. It is part of the OM-D line, known for being the most portable camera system in the world. The lens is weathersealed, making it perfect for capturing stories in any condition. Its high-performance capabilities, including fast apertures and edge-to-edge sharpness, make it suitable for a variety of photography styles. Whether you are capturing landscapes, cityscapes, or portraits, the OM-5 and its accompanying lens are ready to join you on your next adventure.

Summary
Native ISO: ISO 100
Lens Mount: MFT
Battery Mount / Type: Olympus OM
Media Type: SD
Photo Resolution: 20.4 megapixels
Sensor: 4/3 Live MOS
Weight: 0-2kg
Included in box
1x OM-5 Camera
1x M.Zuiko Digital 12-45mm PRO Lens
1x BLS-50 Battery
1x Eyecup
1x USB-AC Adapter
1x USB Connection Cable
1x Shoulder Strap
1x Manual
1x Warranty

About the OM SYSTEM OM-5 12-45mm Kit – Black
OM-5 Camera

TELL YOUR STORY.

Every journey is a story waiting to be told.A thousand little moments hidden between a beginning and an end.

Sure, everyone likes the mountain top. But the real story happens on the way.Embrace the sidesteps, missed chances and mishaps because adventure lives in those moments. The story makes the journey worth it.

LIKE YOUR FAVOURITE PAIR OF BOOTS

The OM-5 is not here to be flashy, steal the show, be in the way of your experience or even try to be the sole reason for your adventure. It is rather like your favourite pair of boots that lead you onto trails unknown; that bag that always has what you need, or that friend that helps you see the world in a beautifully different way.

INVISIBLE

So compact you barely notice it. A streamlined classic design that disappears in your bag but feels just right to hold

DURABLE

Noticebly tough. The OM-5 will tackle anything your advanture can throw at it. There’s no bad weather for storytelling.

DISCOVER

See nature in a new way through computational photography-an ever-expanding photographic journey of discovery.

STORIES

When even pictures cannot do a story justice, turn it into a spectacular movie worthy of the journey you made.

M.ZUIKO ED 12-45mm F4.0 PRO AT A GLANCE

Our new M.Zuiko Digital ED 12-45mm F4.0 PRO is the world’s smallest, lightest medium range zoom lens with a fixed aperture value*. It fits right in with our OM-D line — known as the world’s most portable camera system. Like OM-D cameras, the lens is weathersealed so you can work in adverse conditions without protective gear. Achieve high-resolution edge-to-edge sharpness at all focal lengths and high-speed focusing that works with our blazing-fast autofocus system. It goes anywhere and shoots a little of everything from landscapes and cityscapes to portrait shots.

HIGH PERFORMANCE

M.Zuiko PRO lenses are built for the highest level of performance, incorporating fast apertures and weathersealed construction.

Small. Light. Perfect

It’s under 3 inches long and weighs a hair over half a pound. It owns the title of world’s smallest, lightest medium range zoom lens with a fixed aperture range.

Weathersealed

Rain happens. Gear gets splashed on. Wind kicks up a dust storm. This lens is ready for all of it. And more. A smart nine seal system effectively keeps rain, water, dust and dirt out.

Close-Up Capable

A must have lens if you’re into macro photography. Enjoy a maximum shooting magnification of 0.5x (35mm equivalent) across the entire zoom range.

Type
Lens mount Micro Four Thirds
Image Sensor
Type 4/3in Live MOS sensor
Effective pixels 20.4 Megapixels
Full resolution 21.8 Megapixels
Aspect ratio & area 4:3 / 17.3 x 13.0mm
Filter array Primary colour filter (RGB)
Engine
Type TruePic IX
Filter
Dust reduction filter Supersonic Wave Filter
Type OLED Electronic Viewfinder
Pixel number 2.360K dots
Magnification Max. 1.37x with a 50mm lens set to infinity
at -1 dioptre (depending on selected viewfinder style)
Angle of view Approx. 100%
Style 3 styles selectable
Correction of color temperature +/- 7 levels
Diopter adjustment Equipped -4.0 – +2.0 diopters / built-in type
Eye point 27mm at -1 dioptre from eyepiece lens
S-OVF Expands the Live View dynamic range
Note *Available in the EVF when in P, A, S and M modes
Art filter, WB and exposure are not reflected in EVF.
Displayed information AF confirmation mark, AF frame (super impose)
AF lock, Aperture value, Auto bracket, Battery check, Exposure compensation indicator
Exposure compensation value indicator, Exposure level indicator, Exposure mode
Flash, FP flash, Highlight & Shadow, Histogram, IS activating mode, Level Gauge
Live Pre-view function, Metering mode, Number of storable sequential pictures, Shutter speed, White balance
Monitor
Monitor type Vari-angle LCD – Touch Panel
Resolution 1037K dots
Monitor size 7.6cm / 3.0” (3:2)
Brightness adjustment +/- 7 levels
Colour balance +/- 7 levels Vivid (default) / Natural
Touch Control functions AF area enlargement, AF area selection, Art Filter, Enlargement
Enlargement playback, Frame forward/backward, Live Guide, Scene Modes, Shooting mode
Shutter release, Super Control Panel, Wi-Fi connection
Level Gauge
Detection 2-axis
Display Rear display and viewfinder
Live View
Field of view Approx. 100%
Dynamic range expansion When in HDR1 or HDR2
Magnification levels 3 / 5 / 7 / 10 / 14x
Display modes Comparison, Grid (4 types), Grid, Histogram
Level Gauge, Magnified View, Standard information, Off
Displayed information AE lock, AF confirmation mark, Aperture, Auto bracket, Battery check, Custom
Exposure compensation value, Face detection, Face / Eye detection mode, Flash intensity, Flash mode
Flash status, Super FP, Focal length, Focus peaking, Highlight & Shadow, Histogram, AF frame display
Shooting information, Touch Panel Condition, IS activating mode, ISO, Level Gauge, Metering mode
Focus mode, Record mode, Sequential shooting mode, Shooting mode, Shutter speed, Spot metering area
Number of storable pictures, White Balance, Wi-Fi, Live ND
Super Control Panel
Displayed information AEL notification, AE bracketing, AF frame, Aperture value, Battery indicator
Colour saturation compensation value, Colour space, Contrast compensation value, Drive mode, Exposure compensation indicator
Exposure level view, Exposure mode, Face detection, Flash compensation value, Flash mode, Focus mode
Gradation, Histogram, Internal temperature warning, ISO, Metering mode, Noise reduction, Number of storable frames
Record mode, Sharpness compensation value, Shutter speed, White balance, White balance compensation value
Image Stabiliser
Type Sensor shift
Modes Five-dimensional, vertical or horizontal activation, automatic
Lens IS priority Available
Live View stabilisation Available
Effective Compensation Range Up to 7.5 EV steps Sync IS
Up to 6.5 EV steps
Note Based on CIPA measurement conditions
Focusing System
Method TTL phase difference detection system, contrast detection system
(when non high-speed contrast AF compatible lens is used, it works as MF assist)
Predictive AF Available
Face Detection extension Eye Detect AF: Off, Left side priority, Near side priority, Right side priority
Manual focus Available, with enlarged focusing area, focus peaking and focus indicator
Focus areas 121 points * /
121 points contrast AF
All target, single target (normal / small), group target (5-area / 9-area / 25-area)
custom target 1-4 (AF area and its increment steps selectable)
Note * All cross type
AF illuminator Equipped
AF lock Available, Locked by first position of shutter release button in single AF mode
AE/AF lock button (customised)
AF tracking Available, Available in continuous AF mode
Compatible with: All Micro Four Thirds AF lenses
Number of images 3 – 999 shots
Step size 10 levels
Modes Continuous AF*, AF* Tracking, Preset MF**, Stacking, Manual focus, Single AF*, Starry Sky AF
Note * incl. manual override
** Distance setting values are rough estimates and only AF lenses can be used.
Back light effect On / Off
Color selection White, black, red, yellow
Intensity High / Normal / Low
Technology 8 shots are taken at different focus points and automatically composited together into a single image
Compatible Lenses 100-400mm F5.0-6.3 IS, 12-100mm F4 IS PRO, 12-40mm F2.8 PRO, 12-40mm F2.8 PRO II
12-45mm F4 PRO, 150-400mm F4.5 TC1.25x IS PRO, 300mm F4 PRO, 30mm F3.5 Macro, 40-150mm F2.8 PRO 40-150mm F4.0 PRO
60mm F2.8 Macro, 7-14mm F2.8 PRO, 8-25mm F4 PRO, 8mm F1.8 Fisheye PRO
Compatible Converter 1.4x Teleconverter MC-14, 2x Teleconverter MC-20
Note Angle of view becomes slightly smaller
Exposure System
Modes Aperture priority, Manual, Programme automatic
Shutter priority, Bulb, Custom shooting, HDR, Movie, Time
Exposure compensation +/- 5 EV ( 1, 1/2, 1/3 steps )
Note: Monitor and EVF displays only up to ±3 EV.
Exposure bracketing 2 / 3 / 5 frames ( +/- 1/3, 2/3, 1 EV steps )
7 frames ( +/- 1/3, 1/2, 2/3 EV steps )
ISO bracketing 3 frames ( 1/3, 1/2, 1 EV steps )
HDR bracketing 3 / 5 frames ( +/- 2 / 3 EV steps )
7 frames ( +/- 2 EV steps )
AE lock Available
Enhancement function Shadow Adjustment Technology
Flicker Scan: Available for M, S and silent mode (can be confirmed in Live View)
My Mode 3 settings storable
Multi-Exposure
Max. number of frames 2 frames (shooting)
Max. number (editing) 3 frames (editing)
Auto gain control Available
Frame assistance Live View
Light Metering
Method TTL open aperture light metering
Zones 324 zones Multi-pattern Sensing System
Detection range -2 – 20 EV (17mm f2.8, ISO 100)
Modes Centre weighted metering, ESP light metering, Highlight, Shadow, Spot metering
Art Filter
Modes Bleach Bypass, Cross Process, Diorama, Dramatic Tone
Gentle Sepia, Grainy Film, Instant Film, Key Line, Light Tone
Pale & Light Colour, Partial Colour*, Pin Hole, Pop Art, Soft Focus
Vintage, Water colour
Variation / Effect Available
Note * 18 colours selectable
Sensitivity
Auto (customisable, default ISO LOW – 6400)
Manual ISO LOW – 25600 in 1/3 or 1 EV ISO steps
Shutter
Shutter type Computerised focal-plane shutter
Self timer 2s / 12s / Custom
Shutter Speeds
Shutter speed range 1/8000 – 60s (in 1/3, 1/2, 1 EV steps)
Bulb mode Up to 30 minutes (selectable longest time in the menu, default: 8 minutes)
Shutter type Electronic shutter
Shutter speed 1/8000 – 60s
Start delay 0, 1/8, 1/4, 1/2, 1, 2, 4, 8, 15. 30s
Resolution JPEG: 10368×7776 / 8160 x 6120 / 5760 x 4320 RAW: 10368 x 7776
Equivalent to 80M / 50M / 25M pixel sensor
(8 shots combined into a single JPEG using sensor shift)
Available in P/A/S/M mode
Note You need to install OM Workspace to develop on a PC.
Shutter type Electronic shutter
Shutter speed 1/8000 – 60s
Resolution JPEG: 8160 x 6120 / 5760 x 4320 RAW: 8160 x 6120
Equivalent to 50M / 25M pixel sensor (8 shots combined into a single JPEG using sensor shift)
Available in P/A/S/M mode
Flash can not be used
Shutter type Electronic first curtain shutter
Shutter speed 1/320* – 60s
Start delay 1/8, 1/4, 1/2, 1, 2, 4, 8, 15, 30s
Note * For speeds over 1/320 sec., mechanical shutter will automatically be selected.
Shutter type Electronic shutter
Shutter speed 1/32000 – 60s
Start delay 0, 1/8, 1/4, 1/2, 1, 2, 4, 8, 15. 30s
Stills 1/7634 – 1/50s
Movies 1/250 – 1/30s *
Note * Frame rates greater 30fps are limited to their reciprocal value
White Balance
AUTO WB system Advanced detection system with Live MOS sensor
Auto Flash adjustment Off / Auto WB / Flash
Keep warm color On / Off
White balance bracketing 3 frames / +/- 2, 4, 6 mired steps
Custom WB 1 setting can be registered at Kelvin temperature (2000K – 14000K)
Manual White balance (One-Touch) Available
One-touch white balance 4 custom settings can be registered
Preset values Flash, Flourescent 1, Overcast, Shade, Sunlight, Tungsten, Underwater
Sequence Shooting
Speed (H) Approx. 10fps
Max. number of frames: RAW 149 / JPG (LF): Up to card capacity
Speed (L) 6fps
Max. number of frames: RAW / JPG (LF): Up to card capacity
Pre-shutter Frames 0 – 14 frames (recorded by half release prior to full release)
Speed (H) Approx. 30fps
Speed (L) Approx. 10fps
Speed (H) Approx. 30fps
Max. number of frames: RAW 18 / JPG (LF): 20
Speed (L) Approx. 10fps
Max. number of frames: RAW 138 / JPG (LF): Up to card capacity
Conditions Memory card: KIOXIA KSDXU-A064G
When using the M.Zuiko Digital ED 12-40mm F2.8 Pro
Maximum sequential shooting speed may be affected by several factors
including lens used, brightness, aperture, shutter speed, and ISO setting.
The actual shooting speed may become slower than set by a few frames per second. When using ISO Bracketing
performance will be affected at ISO 2000 or above.
Frame count limiter 1- 99 frames / Off (unlimited frames) (incl. pre-shutter frames)
Interval shooting Interval: 1s – 24h
Max. number of frames: 999
Image Processing
Art Filter bracketing Available
Color space sRGB / AdobeRGB
Fisheye compensation Available when M.Zuiko Digital ED 8mm Fisheye PRO
is attached Angle of view adjustable in 3 levels Compensation automatically ON
when using Underwater Modes, available (can be confirmed in Live View)
Gradation 4 levels (auto, high key, normal, low key)
Black & White filter Yellow, Orange, Red, Green
Black & White toning Sepia, Blue, Purple or Green in Black & White mode
Contrast 5 levels
Engine TruePic IX
Saturation 5 levels
Sharpness + Contrast 5 levels
Tele converter effect 2x
External Flash Control
Modes 2nd curtain and slow synchronisation, Auto, Fill-in for exclusive flash
Manual, Red-eye reduction, Slow synchronisation
Type TTL AUTO, AUTO, MANUAL, FP TTL AUTO, FP MANUAL
X-sync speed 1/250s / 1/8000s (Super FP Mode)
Intensity +/- 3 EV ( 1/3, 1/2, 1 EV steps )
Compatible external flash FL-14, FL-20, FL-36R, FL-50R, FL-300R, FL-600R, FL-700WR, FL-900R, STF-8
Note Note: Some functions are only available if they are supported by the external flash.
Wireless Flash Control
Available when used together with cameras compatible with the Olympus wireless RC flash system.
Control method Triggered and controlled (Olympus Wireless RC Flash system)
Group setting 4 groups
Compatible external flash FL-36R, FL-50R, FL-300R, FL-600R, FL-700WR, FL-900R
Radio wireless control Available
Number of channels 4 channels
Recording Formats
JPEG Applied
RAW 12bit
RAW & JPEG Applied parallel recording
Aspect ratio 4:3 / 3:2 / 16:9 / 6:6 / 3:4
Still Image Recording
DCF Applied
EXIF 2.3
RAW Applied
Image Size
RAW 5184 x 3888 compressed
Large 5184 x 3888 Fine (compression: 1/4)
Movie Recording System
Recording format MOV(MPEG-4AVC/H.264)
Picture mode Flat, OM-Log400
Time code Rec run / Free run
Drop frame / Non-drop frame
ALL-I: ~ 202 Mbps
FullHD IPB (SF: ~52Mbps, F: ~30Mbps)
HD IPB (SF: ~26Mbps, F: ~14Mbps, N: ~10Mbps)
Exposure Modes Aperture priority, Manual, Programme automatic, Shutter priority
Image Stabilisation Mode Applied Sensor shift
M-IS1 (Image sensor shift and electronic image stabilizer with multi motion IS)
M-IS2 (Image sensor shift with multi motion IS)
Note * Frame rate may drop when using certain art filter
4K Movie quality 4096 x 2160 (C4K) / 24p / IPB (approx. 237 Mbps)
3840 x 2160 (4K) / 30p, 25p, 24p / IPB (approx. 102 Mbps)
HD Movie quality Full HD 1920 x 1080 (16:9) / 30p, 25p
24p / ALL-I (A-I), IPB (SF, F, N) (MOV)
Full HD 1920 x 1080 (16:9) / 60p, 50p / IPB (SF, F, N) (MOV)
HD 1280 x 720 (16:9) / 60p, 50p, 30p, 25p, 24p / ALL-I (A-I), IPB (SF, F, N) (MOV)
Note Class 10 or higher SD card is recommended for movie shooting
UHS-II or UHS-I U3 card is recommended for ALL-I shooting
Max. file size 4GB (AVCHD)
Maximum Recording Time Up to card capacity
Movie Specialties
Art Filter Bleach Bypass, Cross Process, Diorama, Dramatic Tone
Gentle Sepia, Grainy Film, Key Line, Light Tone, Pale & Light Colour
Partial Colour*, Pin Hole, Pop Art, Soft Focus, Vintage
Note * 18 colours selectable
Note Frame rate limited to 30fps or lower
Fast motion Available
Flicker Scan Available in M mode (can be confirmed in Live View)
Monitor mode Video signal and info display is processed
Note While recording, footage is simultaneously displayed on
the HDMI monitor and on the camera, but the info display
is shown only on either one of the two.
While playing movies, footage is simultaneously displayed
on the HDMI monitor (normal size) and on the camera (normal size or enlarged).
Record mode Only video signal is processed
Note Movie quality is set to YCbCr 4:2:2 (8 bit),
frame rate follows movie setting (24p, 30p and 60p settings are not recommended.)
and sound will be recorded.
High-Speed Recording 1920×1080 (MOV) / 120fps
Time lapse 4k, 1080p, 720p (AVI Motion JPEG®)
Slow motion Available
Sound Recording System
Recording format High quality sound recording
(Stereo linear PCM/24-bit, Sampling frequency 96kHz)
Stereo PCM/16bit, 48kHz, Wave Format Base
Speaker Built-in mono speaker
Image footage 30s
Functions Slate Tone / Synchronised Audio Rec-Movie Rec
Devices Compatible with: LS-100, LS-P4, LS-P5
Internal microphone Built-in stereo microphones
Microphone functions Audio Dubbing, Recording Volume, Volume limiter
Wind Noise Reduction
View Images
Modes Calendar, Index, Movie, Single, Zoom
Shooting information Off / On
Highlight/Shadow point warning Available
Histogram in playback mode Available
Auto rotation Available
Erase / Protect / Copy Function
Erase modes Single, All, Selected
Image protect mode Single frame, Selected frames, All Frames
Release protect (Single/All selected)
Customisation Options
Programmable button Equipped
Fn Button Equipped
My Mode 4 settings storable (Can be set to mode dial.)
Factory reset Full / Basic
Menu languages in camera croatian, Czech, Danish, Dutch
English, Estonian, Finnish, French, German, Greek, Hungarian, Italian
Latvian, Lithuanian, Norwegian, Polish, Portuguese, Russian, Serbian
Slovenian, Turkish, Ukrainian, Spanish, Swedish
Interface
Hot shoe Equipped
Communication method Bluetooth® Low Energy Ver.4.2
HDMI Applied Micro connector (Type D) *
Microphone jack 3.5 ø mm mini-jack (plug-in power on/off)
USB 2.0 High Speed Applied
Wireless connectivity Bluetooth®, Wi-Fi
Media SD Memory Card (SDHC, SDXC, UHS-I, UHS-II compatible)
Class 10 or higher SD card is recommended for movie shooting UHS-II
or UHS-I U3 card is recommended for 4K, C4K, ALL-I shooting.
SAR 0.36W/kg
Note SAR quantifies the maximum level of exposure
of the user to electromagnetic waves, when using the device close to the head.
SAR shall not exceed 2W/kg in accordance with regulations of France.
Note “HDMI”, the HDMI logo and “High-Definition Multimedia Interface”
are trademarks or registered trademarks of HDMI Licensing LLC.
The Bluetooth® word mark and logos are registered trademarks owned
by the Bluetooth SIG, Inc. and any use of such marks by OLYMPUS CORPORATION
is under license.
Wi-Fi is a registered trademark of the Wi-Fi Alliance.
Wi-Fi Functions
Easy Connection QR code setting
Wireless Shooting P/A/S/M exposure modes, Live Composite, Bulb mode
Live View, Movie recording, Power off, Rec View, Self timer, Short movie
Touch AF & Shutter, Zoom
Power Supply
Image shooting 310 shots (using Toshiba SDHC UHS-I Card Exceria with IS on
with no flashes attached , based on CIPA test standards)
Movie recording 60min (standard JEITA conditions) 110min
(when zoom and other operational functions are not used)
Battery BLS-50 Lithium-Ion Battery (included)
Sleep mode 1, 3, 5, 10 min. and off selectable.
USB charging Built-in battery can be charged with USB (when camera power is off)
Dimensions / Weight
Width 125.3mm
Depth 49.7mm
Height 85.2mm
Weight 414g (including battery and memory card)
Weight (body only) 366g (body only)
Environment
Humidity 30 – 90% operation humidity / 10 – 90% storage humidity
Temperature -10 – 40°C Operating temperature / -20 – 60°C storage temperature
Exterior
Available Colours Black, Silver
