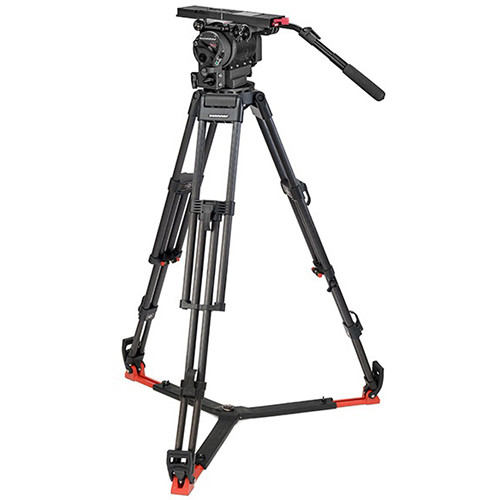

OConnor 2560/60L Bowl Tripod with Floor Spreader

Overview
The 2560 Head and 60L Carbon Fibre Tripod System 150mm with floor Spreader is a versatile tripod support system designed for digital cinematography. It includes the 2560 Fluid head, 60L tripod assembly, 150mm bowl, Spreader and Feet. The 2560 Fluid head is highly adaptable and can be used with a variety of cameras, from lightweight digital cinema cameras to studio configurations. It has a long history of being used in Hollywood movies and TV dramas since the 1990s. The 60L tripod assembly, with its lightweight carbon fibre construction, offers a solid and stable support option for the 2560 Fluid head. It can carry payloads of up to 209 lbs and has a maximum height of 60.6 inches. The tripod also features a quick clamping system and a pre-set mid-level spreader for easy and secure deployment. It is a popular choice among professional cinematographers who require a flexible shooting package for larger cameras.

The OConnor 60L carbon fibre tripod is a lightweight and speedy setup option for the 2560 Fluid head. It weighs just 9 lbs and can be folded down to a compact size of 29.9 inches. Despite its lightweight design, it is able to support heavy film camera configurations. The tripod also comes with removable rubber feet that expose spikes for optimal traction on different surfaces. It is available with either a Mitchell top or a 150mm bowl, making it a versatile choice for professional cinematographers. With its combination of new-age materials and precision engineering, the OConnor 60L tripod is a reliable and efficient support system for the 2560 Fluid head.

Summary
Tripod Head Type: Fluid Head
Max Payload: 30-40kg
Leg Section: 3 Section
Spreader Type: Ground
Head Fitting: 150mm
Material: Carbon Fibre
Included in box
1x Ultimate 2560 Fluid Head
1x Euro Style Quick Release
1x Pan handle
1x Pan handle extension
1x Mitchell base & tiedown
1x 150mm Ball base & tiedown
1x 60L Bowl tripod assembly, Mitchell
1x Floor Spreader
1x Set of 3 Rubber feet
1x Floor Spreader

About the OConnor 2560/60L Bowl Tripod with Floor Spreader
The 2560 Head and 60L Carbon Fibre Tripod System 150mm with floor Spreader is a tripod support system consisting of the 2560 Fluid head, 60L tripod assembly, 150mm bowl, Spreader and Feet.

2560 Fluid head

Perfectly suited to the adaptable, a la carte configurations of accessorised digital cinematography. Cameras such as the Alexa in portable configuration or any lightweight digital cinema camera (from Sony, Canon, ARRI, AJA, JVC, Panasonic, Vision Research, RED) in ‘maxed out’ studio configuration. OConnor Ultimate heads have been used on almost every Hollywood movie feature and episodic TV Drama since the early 1990’s and OConnor heads in general have been heavily utilised in the industry since 1949.

60L Tripod Assembly, 150mm bowl

The new OConnor 60L carbon fibre tripod offers a superior lightweight support option for the OConnor Ultimate 2560 and 2575D fluid heads. The tripod combines the benefits of new-age materials with precision engineering to provide a support system that is lighter weight with fast setup features, yet solid enough to carry large film camera configurations. The 60L weighs just 9 lbs (4.1 kg) and has a double extension design that is safe and stable carrying payloads of up to 209 lbs (95 kg), even at its maximum height of 60.6″ (154 cm). Despite its generous height range it folds down to a mere 29.9″ (76 cm). The smart quick clamping system includes visible tripod clamp lockdown and this is coupled with a pre-set mid-level spreader to ensure secure, easy deployment in every situation. Removable rubber feet expose spikes for optimal traction and payload safety on a variety of surfaces. OConnor’s 60L is a lighter weight, speedy setup tripod with a Mitchell top or 150 mm bowl, making it the ideal choice for professional cinematographers who require a flexible shooting package for larger cameras.

2560 Head
Capacity @ 4 in. (102 mm) 83 lbs. (37.7 kg)
@ 6 in. (152 mm) 65 lbs. (29.5 kg)
@ 8 in. (203 mm) 53 lbs. (24.1 kg)
Tilt +/- 90 degrees tilt
Height 8 in. (20.3 cm)
Width 11.3 in. (28.7 cm)
Depth 7.5 in. (19.1 cm)
Weight 16.2 lb. (7.3 kg)
60L Mitchell Tripod
Type 2-Stage Tripod
Material Carbon Fiber
Capacity 209 lbs. (95 kg)
Weight 9 lbs (4.1 kg) tripod only
Maximum Height 60.6 in. (154 cm)
Minimum Height 22.8 in. (58 cm)
Top Casting 150mm bowl
Collapsed Length 29.9 in. (76 cm)
