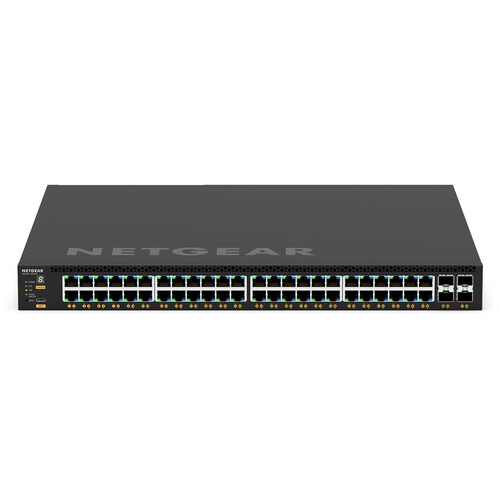

Netgear M4350-48G4XF Managed Switch

Overview
Netgear M4350-48G4XF Managed Switch Introducing the NETGEAR AV and IT M4350 Switches, engineered and certified for audio/video over IP with dedicated service and support. The M4350 brings all the simplicity from the M4250 AV Line packed in more Enterprise-class hardware with redundant power supplies and larger fabrics with 25G and 100G uplinks. The revolutionary NETGEAR AV user interface and Engage™ Controller contain pre-configured profiles for all major audio, video, and lighting protocols.

NETGEAR Listens To And Supports The Pro AV Community. IGMP Plus™ means AV-over-IP multicasting will work out of the box and not flood your network. Auto-LAG and Auto-Trunk automatically configure the uplinks between multiple switches. The Engage™ Controller manages all M4250, M4300, and M4350 switches for your AV installations. NETGEAR Pro AV Design team to help with system design and implementation to ensure the project will work. AVB, Dante, Q-SYS, AES67, NVX, AMX, NDI 4, NDI 5, ZeeVee, Aurora Multimedia, Kramer, Atlona, LibAV, Visionary, SDVoE, and many others! SMPTE ST 2110 supported on select models, always with the same simplicity from the AV UI.

Included in box
1x M4350-48G4XF (GSM4352)
1x Power cord(s)
1x Console USB Type-C cable
1x Rack-mounting standard bracket set
1x Set of longer brackets for recessed mounting
4x Rubber footpads for tabletop installation
1x Installation guide

About the Netgear M4350-48G4XF Managed Switch
Introducing the NETGEAR AV and IT M4350 Switches, engineered and certified for audio/video over IP with dedicated service and support. The M4350 brings all the simplicity from the M4250 AV Line packed in more Enterprise-class hardware with redundant power supplies and larger fabrics with 25G and 100G uplinks. The revolutionary NETGEAR AV user interface and Engage™ Controller contain pre-configured profiles for all major audio, video, and lighting protocols.

NETGEAR Listens To And Supports The Pro AV Community

IGMP Plus™ means AV-over-IP multicasting will work out of the box and not flood your network

Auto-LAG and Auto-Trunk automatically configure the uplinks between multiple switches

The Engage™ Controller manages all M4250, M4300, and M4350 switches for your AV installations

NETGEAR Pro AV Design team to help with system design and implementation to ensure the project will work

AVB, Dante, Q-SYS, AES67, NVX, AMX, NDI 4, NDI 5, ZeeVee, Aurora Multimedia, Kramer, Atlona, LibAV, Visionary, SDVoE, and many others!

SMPTE ST 2110 supported on select models, always with the same simplicity from the AV UI

Enterprise-Class Hardware

From 1G to 2.5G, to 10G, to 25G, to 100G always within 40cm (15.7in) depth

Controlled thermal and acoustics (intelligent fans configurable in Quiet Mode to minimize noise, or Cool Mode to minimize heat)

Other IT Use Cases

Edge to core stackable platform, from 1 Gigabit to 100 Gigabit for midsize organizations

Non-stop forwarding (NSF) provides advanced High Availability (HA) with hitless failover across the stack

Engineered and Certified for AV over IP

Industry Standard Management

Industry standard command line interface (CLI), main NETGEAR IT web interface (GUI)

SNMP, sFlow and RSPAN – the entire feature set is available without license

Industry Leading Manufacturer Warranty

NETGEAR M4350 series is covered under NETGEAR ProSAFE Limited Lifetime Hardware Warranty

90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement

Model Name M4350-48G4XF
Form Factor Full Width
1U Rack Mount
Dimensions 440×43.2x400mm
Switching Fabric 176 Gbps
1000 BASE-T RJ45 Ports 48 ports PoE+
10M, 100M, 1G
PoE 236W (base) up to 1,440W
10GBASE-X SFP+ Ports 4 ports
1G, 10G
PSU 1 x Fixed
550W (C14)
On/Off switch
Modular PSU Bays 2 slots
Fans Fixed
Front-to-back
Management
Ethernet Out-of-band 1G port (Back)
Console USB-C (Front)
Storage 2 x USB-A (Back)

48 Gigabit PoE+ ports with 4 10GBASE-X SFP+ uplinks.
550W internal power supply providing 236W of PoE budget.
2 slots for modular power supplies (1+1 redundancy and/or EPS share).
Any APS350W, APS600Wv2, APS920W, or APS2000W can be used.
The PoE budget can reach 1,440W, the redundant PoE budget can also reach 1,440W.
Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover.
Layer 3 feature set includes static, policy-based, and dynamic routing.
NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations.
NETGEAR ProSAFE® Limited Lifetime Hardware Warranty.
Lifetime Next Business Day Hardware Replacement.
Dimensions: 440x400x43.2 mm
Weight: 7.19Kg (15.85 lb)
