Ncam MK2 Hardware – Core Components

OVERVIEW
Please Note: An Ncam Reality Software license is required for use, see here for more information
The Ncam Mk2 Camera Bar, Connection Box and Server’s modular design and compact footprint offers the ultimate in flexibility and robustness as well as allowing for a host of mounting options.
Mk2 Camera Bar
A small, rugged device, which connects to the Mk2 Ncam Server, consisting of various optical and inertial sensors.
INCLUDED IN BOX
1x Ncam Mk2 Camera Bar
1x Ncam Mk2 IR attachment
1x 1m Neutrik USB-C camera bar to server cable
1x Ncam Mk2 Server or Connection Box external power supply
1x Set of 2 Calibration charts

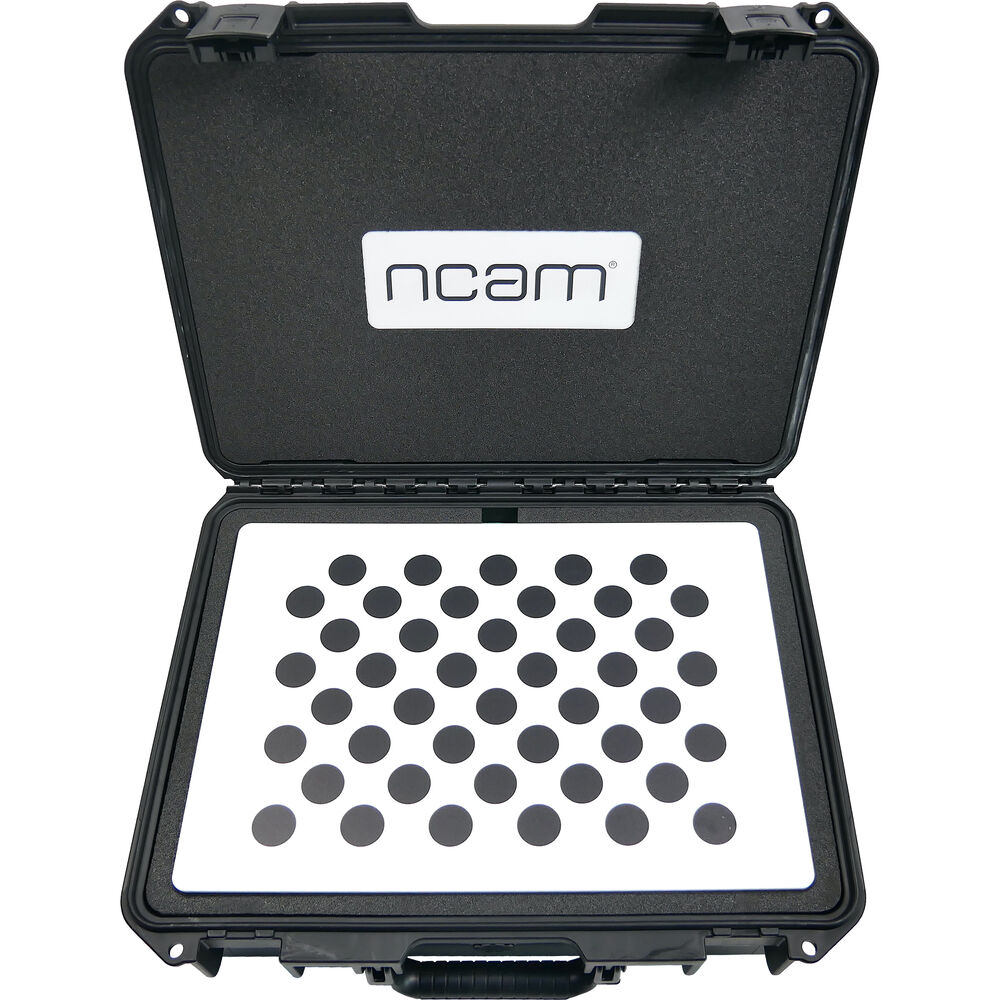

1x Pelican case with laser cut foam insert
1x Pack of Filters (2x IR & 3x ND)

About The Ncam MK2 Hardware – Core Components
Please Note: An Ncam Reality Software license is required for use, see here for more information

The Ncam Mk2 Camera Bar, Connection Box and Server’s modular design and compact footprint offers the ultimate in flexibility and robustness as well as allowing for a host of mounting options.

Mk2 Camera Bar

A small, rugged device, which connects to the Mk2 Ncam Server, consisting of various optical and inertial sensors.

CAMERA BAR:
Configuration Multiple optical and inertial sensors consisting of a pair of stereo cameras,
an RGB camera and an IR projector, plus IMU device; 1 bar per camera
Mounting Position – 3 mounting points: 1x ⅜” -16 UNC & 2x ¼”-20 UNC threads
Power From Mk2 Server
Operation Supplied USB-C to Ncam Mk2 Server
