Overview

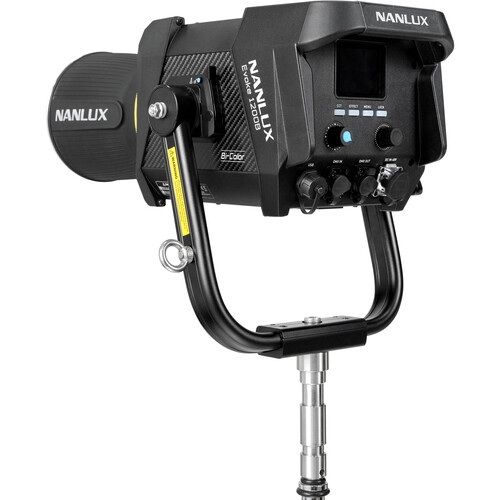

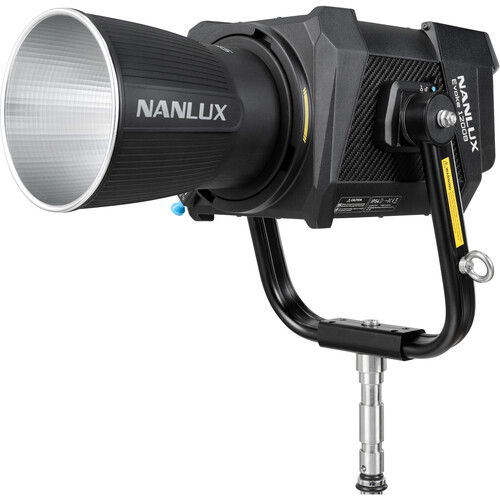

Nanlux has been continuously working on developing a new and improved version of their EVOKE spotlight. Finally, the EVOKE 1200B, a bi-colour spotlight, has been officially launched. This new addition is expected to revolutionize the way large productions are lit, providing cinematographers and gaffers with a powerful tool to achieve precision lighting on professional TV and film sets. The EVOKE 1200B is designed to be used anywhere and everywhere, making it a versatile and essential addition to any production set.
The EVOKE 1200B is equipped with an IP54 rating, ensuring its durability and ability to withstand harsh weather conditions such as rain, snow, and dust. Its user-friendly interface, displayed on a 2.8-inch screen, allows for easy and precise control. Additionally, the EVOKE 1200B offers limitless connecting options, allowing for seamless integration into various on-set workflows. With both wired and wireless DMX control options, cinematographers and gaffers can confidently achieve their desired lighting effects, bringing their creative ideas to life.

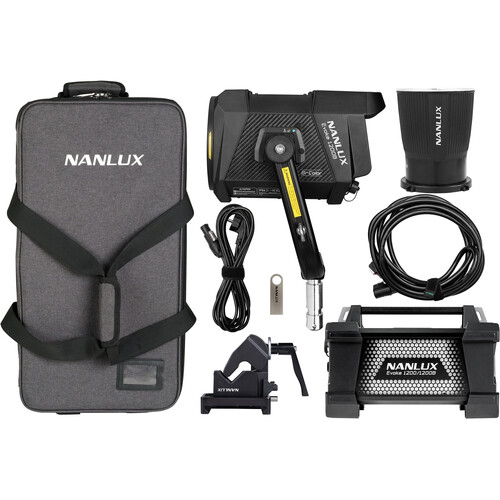

Included in box
1 x Evoke 1200B
1 x Yoke
1 x Power Adapter
1 x RF-NLM-45 Reflector
1 x DC Connection Cable 7.5M
1 x AC Power Cable 6M
1 x AS-CP-QR-EV Quick Release Clamp
1 x USB Flash Drive
1 x User Manual
1 x DMX Reference Guide
1 x CC-ST-EV1200-B Trolley Case
About the NANLUX Evoke 1200B Trolley Case Kit
Ever since, Nanlux have been exploring the possibility for an EVOKE evolution. Now the EVOKE 1200B, a Whole new Bi-colour spotlight, Is officially launched!
Evoke 1200B is expected to change the game for large productions that demand precision lighting on subtlety, offering cinematographers & gaffers a new weapon in their arsenal to get the job done on professional TV & film sets.
Anywhere? Everywhere!
The Evoke 1200B’s whole-fixture is IP54 rated in a hermetically sealed structure to withstand inclement weather or extreme conditions, no matter if it is rain, snow or dust.
0.1% increments Fine-tuning for Precise Adjustment

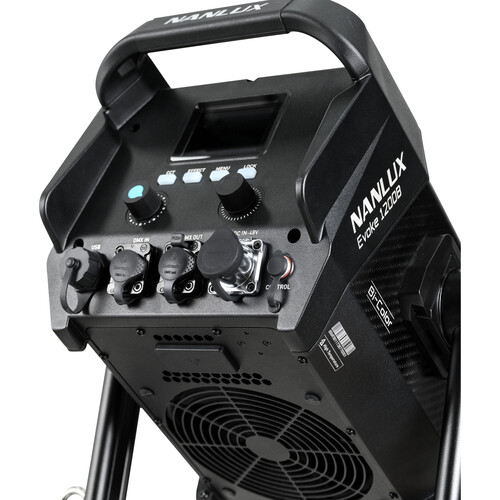

With a simplified and intuitive menu interface visualized on a 2.8-inch display, the Evoke 1200B is easy to control in all aspects, and familiar to existing NANLUX and NANLITE fixtures.
Limitless Connecting Options
Permits comprehensive wired/wireless controlling solutions to seamlessly integrate into various on-set workflows. Wired and wireless DMX control in particular makes precise and digital lighting control on set a sure thing–can be connected to DMX console via 5-pin cable or controlled wirelessly through the built-in Lumen Radio Timo Two module. Both reliability and flexibility are on the table for you to bring creative ideas to life.
LED total power 1200W
Input voltage/current DC48V/25A Max
AC100-240V 50-60Hz
Beam Angle 120°
LED Type WW
CCT 2700K-6500K
CRI/TLCI Average 96/Average 97
Weight 7.75 kg/17.09lb (Only Fixture)
Yoke: 1.84kg / 4.06lb
Power Supply: 10.5kg / 23.15lb
Dimension 330×241×210 mm/13×9.48×8.26″
Dimming 0-100%, 0.1% increment
IP rating IP54
Control On-board Control, Bluetooth, 2.4G, DMX, RDM, LumenRadio, Wire Control
