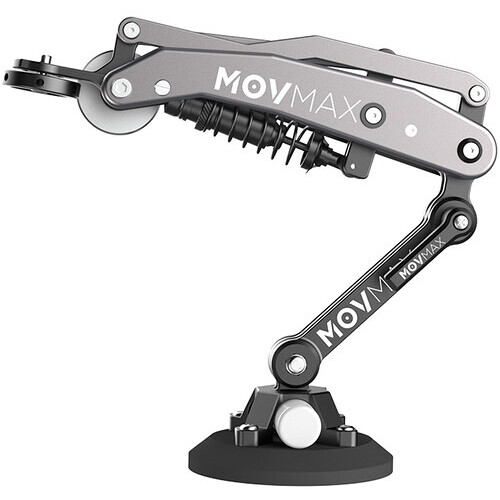

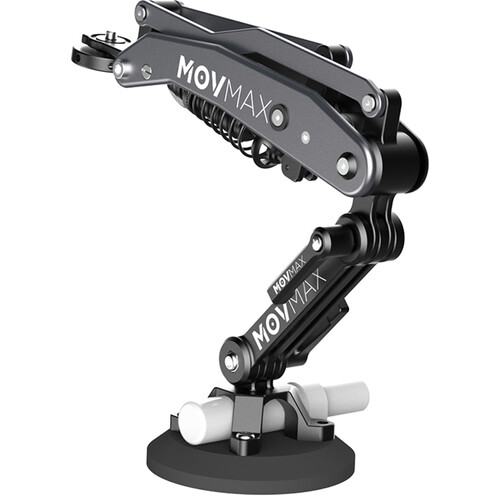

MOVMAX Blade Arm

Overview
Hydraulic Adjustable Damping
Hydraulic damping ensures stable linear movement, and the spring can be fine-tuned using a threaded knob
N2 Arm Technology
The arm turning point works simultaneously with the pull rod to absorb large vibrations in the vertical direction.
Clutch Cross Shaft Structure
Compared with traditional ball joints, the stability is increased by more that 10 times and the load-bearing capacity is greatly improved.
Steel Adjustable Counterweight
150 – 500g Payload
Equipped with two steel counterweight modules of 100g and 50g, the arm’s load capacity ranges from 150g to 500g. The counterweights can be added or removed depending on the assembly methods required by different equipment
Counterweight Installation
Pocket 3 + handle with ¼”-20 thread
100g+50g counterweight block
Pocket 3 + battery handle
100g counterweight block

7 Inch Bracket
Arm position adjustable using handle screws, offering unlimited mounting angles.
¼ Screw Connector
Universal &…

Included in box
1 x Blade Arm
1 x 1/4 Screw Connector
2 x Counterweight Block

About the MOVMAX Blade Arm
Hydraulic Adjustable Damping

Hydraulic damping ensures stable linear movement, and the spring can be fine-tuned using a threaded knob

N2 Arm Technology

The arm turning point works simultaneously with the pull rod to absorb large vibrations in the vertical direction.

Clutch Cross Shaft Structure

Compared with traditional ball joints, the stability is increased by more that 10 times and the load-bearing capacity is greatly improved.

Steel Adjustable Counterweight

150 – 500g Payload

Equipped with two steel counterweight modules of 100g and 50g, the arm’s load capacity ranges from 150g to 500g. The counterweights can be added or removed depending on the assembly methods required by different equipment

Counterweight Installation

Pocket 3 + handle with ¼”-20 thread
100g+50g counterweight block
Pocket 3 + battery handle
100g counterweight block

7 Inch Bracket

Arm position adjustable using handle screws, offering unlimited mounting angles.

¼ Screw Connector

Universal ¼-inch locking screw, compatible with the connection and fixation of various shooting equipment.

IMT Suction Cup

Utilizing industry-leading vacuum air pump technology, the suction cup features a large absorption area and strong adsorption capability, functioning effectively within a temperature range of -40°C to 80°C.

Installation Methods and Effective Display

Front High-position Mounting

The camera faces forward to capture the rear view and chase scene of the two cars, and it faces backward to shoot the front windshield and close-up of the driver.

Rear Low-position Mounting

The camera faces backward to capture the rear car’s front-end posture and the chase scene involving the two cars.

Side Door low-position Mounting

The camera faces outward to capture the side profile of the two vehicles in parallel. It can also face forward or backward to shoot close-ups of the wheels and the shock absorbers.

Side Door High-position Mounting

Close-up view of the driver’s face with the camera positioned inward.

Front/Rear/Side Low-position Mounting

The camera follows the filmed car to capture images of the two cars meeting, at an intersection, or paralleling each other.

Optional Accessories

Hoop Connector

Lowering the centre of gravity helps prevent the Pocket 3 base from shaking the camera body, which can create a jelly effect due to insufficient stabilization.

Weight (KG) 1.6
Size (MM) 285 x 160 x 130
Bearing（KG) 0.5
Material Aluminium Alloy

Pocket Storage
N2 Arm Technology
Flexible Installation
Strong Absorption
