Movcam 306-0212

Overview
The distribution box, designed to fit between a V-Mount battery and a V-mount camera, offers multiple power output options for other devices. These include two 3-pin Lemo 12V outputs, one 4-pin Lemo 8.5V output, one 5V Lemo output, two P-Taps at 12V, and one 5V USB output. This allows for convenient and efficient powering of various devices while on set or in the field.

In addition to the various output options, the distribution box also features a DC 4-pin XLR input for alternative power from an external 12V source. This provides flexibility and backup options for powering devices, ensuring that production can continue smoothly without any power interruptions. With its compact design and versatile output options, this distribution box is a valuable tool for any filmmaker or videographer.

Summary
Battery Mount: V Mount

Included in box
1x Battery Distribution Box

About the Movcam 306-0212
Fitting between a V-Mount battery and your camera’s V-mount, this distribution box provides power outputs for other devices. The additional outpus are:

Two 3-pin Lemo 12V (un-regulated)
One 4-pin Lemo 8.5V
One 5V Lemo (4-pin)
Two P-Taps at 12V
One 5V USB output

For alternative power, there is a DC 4-pin XLR input for an external 12V source.

Female Attachment V-Mount
Male Attachment V-Mount
Outputs Two 3-pin Lemo 12V (un-regulated)
One 4-pin Lemo 8.5V
One 5V Lemo (4-pin)
Two P-Taps at 12V
One 5V USB output
Optional Power In DC 4-pin XLR (12V)

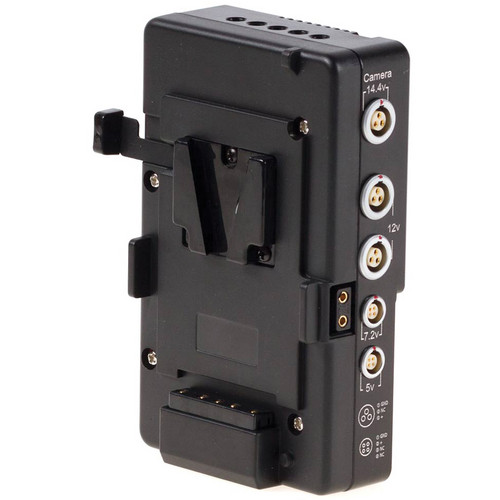

Lemo, P-Tap, XLR and USB Outputs
XLR Input option
