Key Features
Trigger Camera and/or Flash
Lightning, Laser, & Sound Trigger Modes
Smartphone App / Bluetooth Compatible
Time Lapse Function
HDR Function
External Port
Adjustable Sensitivity
Color LCD Screen
Rechargeable Li-Ion Battery
Includes Canon 3-Pin and PC Sync Cables

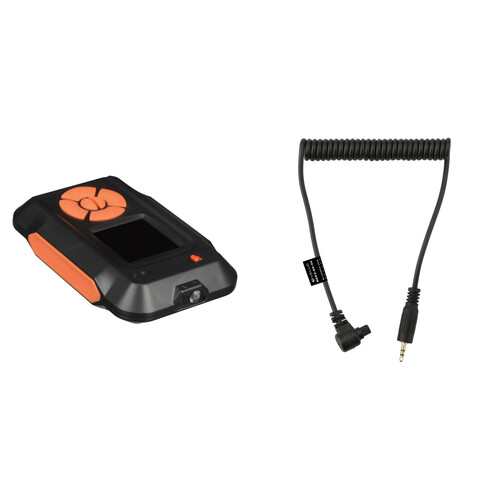

Miops MIOPS-C1 Overview
consists of the MIOPS Camera Trigger and a shutter release cable for Canon 3-pin cameras. It is a versatile way to capture images using lightning, sound, or laser to trigger your camera or flash. It features six different modes of operation with adjustable sensitivity depending on your given shooting situation.
In addition to the lightning, sound, and laser, Timelapse and HDR modes enable additional creative output, and an external port can connect to various sensors to trigger your camera based on variables such as temperature, pressure, or humidity. An app for either iOS or Android allows you to control the MIOPS from your smart phone using Bluetooth connectivity. When not using a smartphone, all functions can be controlled by a color LCD screen on the unit. The trigger also comes with a PC sync cable for connecting a flash.
Miops Camera Trigger
The MIOPS Camera Trigger is a versatile way to capture images using lightning, sound, or laser to trigger your camera or flash. It features six different modes of operation with adjustable sensitivity depending on your given shooting situation.
In addition to the lightning, sound, laser, timelapse, and HDR modes enable additional creative output. An external port can connect to various sensors to trigger your camera based on variables such as temperature, pressure, or humidity. An app for either iOS or Android allows you to control the MIOPS from your smartphone using Bluetooth connectivity. When not using a smartphone, all functions can be controlled by a color LCD screen on the unit.
Lightning Mode
A built-in light sensor detects changes in light and triggers your camera’s shutter in just a few nanoseconds. You can capture only bright lightning strikes, or the smallest strikes, simply by adjusting the sensitivity. This mode can also be used to capture fireworks, or other events where you need to capture images based on changes in light.
Laser Mode
The MIOPS has a built-in sensor to detect when a laser beam is broken, thereby triggering your camera’s shutter. This is useful for detecting subjects such as water drops, animals, or intruders when conducting surveillance.
Sound Mode
MIOPS’s built-in microphone can detect sound, triggering your camera or flash to capture things like breaking glass, or a popping balloon. You can adjust the delay of the trigger as well as the sensitivity of amount of sound needed to trigger the shutter.
Timelapse Mode
This mode lets you specify the interval time anywhere between one second and one hour, as well as how many photos to take. The LCD screen will turn off to save energy, allowing you to take a timelapse photo for days, or even months if you use an external power source.
HDR Mode
Even if your camera doesn’t have a bracketing feature, MIOPS allows you to set a center exposure, as well as the over and under exposures needed in order to make an HDR image.

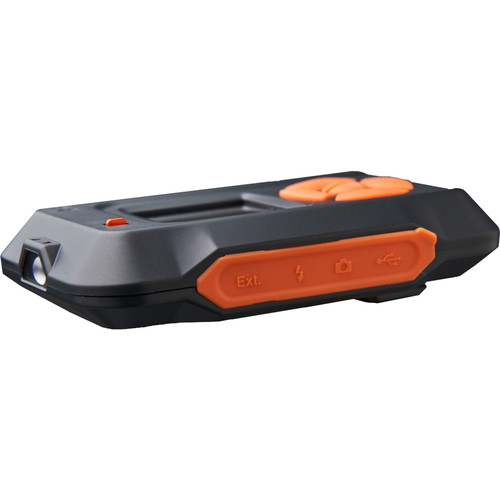

External Port
A port on the MIOPS can accept any external trigger that has an output signal between 0V and 3V, such as a temperature, pressure, or humidity sensor.
Combining Sensors
You can combine sensors with MIOPS’s Scenario feature by creating a custom scenarios with up to five different steps. For example, you can set the MIOPS to start taking timelapse photos only after it detects lightning.
Triggering Your Camera and Flash
MIOPS has two dedicated outputs, one for a flash, and another for a camera. They are electrically isolated from each other, reducing risk of a short circuit. The MIOPS trigger can be used with multiple cameras (not simultaneously) by simply changing the camera connection cable.
Mini-USB Port
The mini-USB port allows you to charge your Li-ion battery, as well as update the MIOPS’s firmware.
Compatibility
MIOPS can be used with any cameras which have a remote shutter trigger port or an IR port, and any and flash units with a PC sync jack.

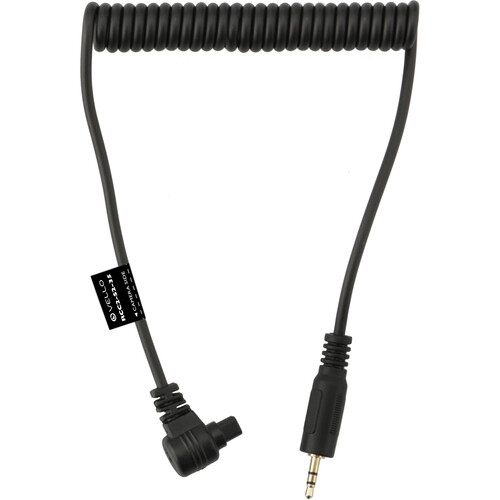

Vello 2.5mm Remote Shutter Release Cable II for Cameras with Canon 3-Pin Connectors
This Vello 2.5mm Remote Shutter Release Cable is a coiled cable for connecting a Vello remote shutter release receiver or other remote receiver with a 2.5mm jack to select Canon cameras.
Compatibility
Canon EOS: R3, R5 C, R5, 1D X Mark III, 1D X Mark II, 1D X, 1D C, 1Ds Mark III, 1Ds Mark II, 1Ds, 1D Mark IV, 1D Mark III, 1D Mark II N, 1D Mark II, 1D, 5DS R, 5DS, 5D Mark IV, 5D Mark III, 5D Mark II, 5D, 50D, 40D, 30D, 20D, 10D, 6D Mark II, 6D, 7D Mark II, 7D, EOS R5
Miops Camera Trigger
Connectivity
Bluetooth 4.0
Two 2.5 mm jacks
Mini-USB
Battery
Rechargeable Li-ion
Packaging Info
Package Weight
0.52 lb
Box Dimensions (LxWxH)
5.4 x 4.6 x 2.15″
Designed for use with:
DSLR Cameras
Canon EOS 1D X
Canon EOS 1D X Mark II
Canon EOS 1D X Mark III
Canon EOS 5D Mark III
Canon EOS 5D Mark IV
Canon EOS 5D Mark IV Canon Log
Canon EOS 5DS
Canon EOS 5DS R
Canon EOS 6D
Canon EOS 6D Mark II
Canon EOS 7D
Canon EOS 7D Mark II
Mirrorless Cameras
Canon EOS R1
Canon EOS R3
Canon EOS R5
Canon EOS R5 Mark II
In the Box
Miops Camera Trigger
Miops PC Sync Cable For Flash Units
BL-C5 Rechargeable Li-Ion Battery
USB Cable
Limited 2-Year Manufacturer Warranty
Vello 2.5mm Remote Shutter Release Cable II for Cameras with Canon 3-Pin Connectors
Limited 1-Year Manufacturer Warranty
