Miller CX14 Combo Live 30

OVERVIEW

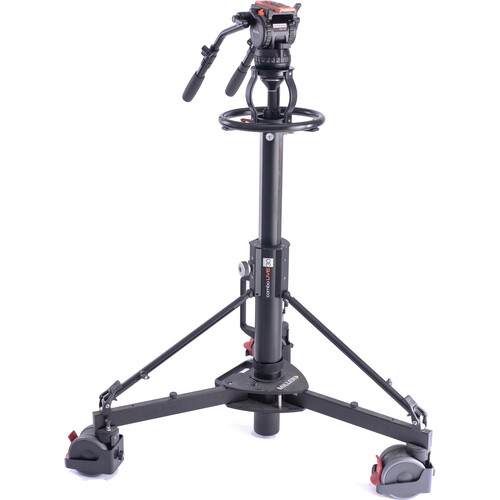

The Miller 3800 (MIL-3800) System CX14 Combo Live 30 Pedestal is a versatile and lightweight solution for professional videographers. It features a fluid head with a wide payload range of 0kg to 14kg (0lbs to 30.9lbs), making it suitable for a variety of camera setups. The pedestal comes with two telescopic pan handles (696), a clamp nut, and a camera plate (1205).

One of the standout features of the Miller 3800 is its 5 selectable positions of fluid pan and tilt drag, plus a 0 position. This allows for precise and smooth movements while filming. The pedestal also boasts a 16 position CB Plus™ counterbalance system, providing stability and balance for your camera.

The Miller 3800 has a wide height range of 972mm (38.2”) to 1537mm (60.5”), making it suitable for a variety of shooting situations. Its in-shot column has a 450mm (17.7”) stroke, which can be adjusted with the air adjustable column system for quick payload balancing.

Designed for the creative professional, the Miller 3800 is capable of balancing a range of cameras, from broadcast to DSLR. Its independent dolly wheel axle brake system eliminates wheel tyre indents, while the multiple wheel positions allow for linear or radius dolly tracking. The 125mm (4.9”) dual ball bearing wheels provide quick swivel-turn action.

The Miller 3800 also features a sturdy construction for maximum stability, and a centre hub locking column with adjustable spider arm supports. The steering wheel has a diameter of 294mm (11.6”), and the dolly tracking width is 970mm (38.2”), ensuring smooth and effortless movement while filming.

INCLUDED IN BOX
1x CX14 fluid head (1097)
2x Pan handle – telescopic with clamp (696)
1x Combo Live 30 pedestal (3220)

About The Miller CX14 Combo Live 30
The 3800 CX14 Combo Live 30 pedestal offers light weight portability employing an air adjustable column system that delivers perfect camera balance with a height range of 972mm (38.2″) up to 1537mm (60.5″) with precise, smooth, low noise in-shot 450mm (17.7″) elevation stroke for payloads 0-14kg (0-30.9lbs).

5 + 0 selectable pan-tilt fluid drag positions make CX14 is designed for the creative professionals needing a stable, higher capacity solution, it is capable of balancing from a broadcast down to a DSLR camera.

Dual ball bearing wheels individually fitted with axial brakes deliver even and smooth effortless movement, featuring multiple wheel locking positions for linear or radius dolly tracking.

With its sturdy construction it delivers maximum stability with reliable and simple to use features.

Payload Range 0-14.0kg (0-30.9lbs)
Weight 22.5kg (49.6lbs)
Height Range 960-1525mm (37.8-60.0”)
Mounting Base Ø100mm (3.9″) ball levelling
Column In-Shot Stroke 450mm (17.7″)
Steering Wheel Diameter Ø294mm (11.6″)
Tracking Width 970mm (38.2″)
Wheel Diameter Ø125mm (4.9″)
Components 1097 CX14 fluid head
696 2 x Pan handle – telescopic with clamp
3220 Combo Live 30 pedestal

5 selectable positions of fluid pan and tilt drag + 0.
16 position CB Plus™ counterbalance system.
Wide payload range 0-14.0kg (0-30.9lbs).
Wide height range 972mm (38.2”) up to 1537mm (60.5”).
Precise, smooth and low noise In-shot column with 450mm (17.7”) stroke.
Air adjustable column system for quick payload balancing.
Independent dolly wheel axle brake system eliminates wheel tyre indents.
Multiple wheel positions for linear or radius dolly tracking.
125mm (4.9”) dual ball bearing wheels for quick swivel-turn action.
Centre hub locking column with adjustable spider arm supports.
Steering wheel diameter 294mm (11.6”).
Dolly tracking width 970mm (38.2”).
