Miller 3736 CompassX 8 System

OVERVIEW

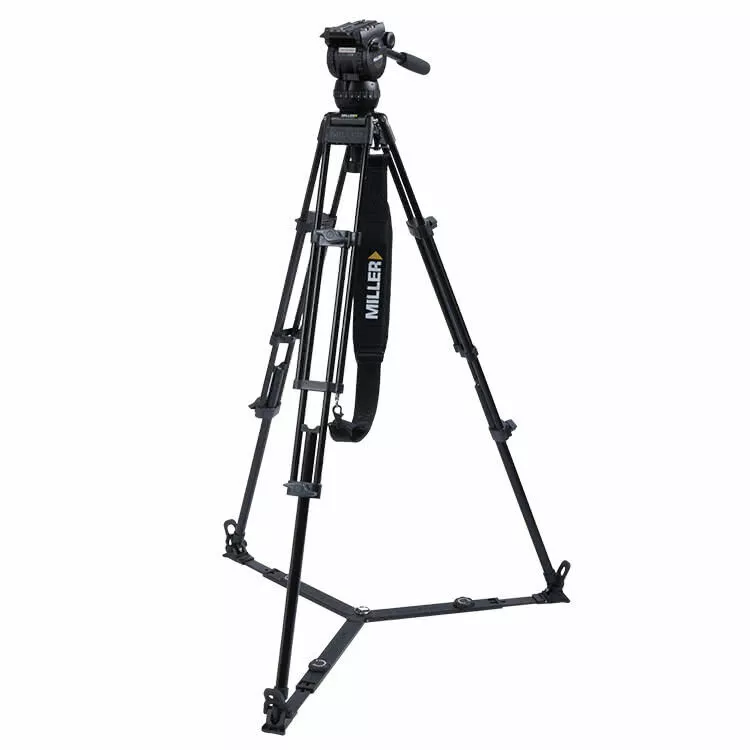

The 3736 Compassx 8 (CX8) Toggle 2-stage (alloy) tripod system combines CX8 fluid head with cost-effective yet solid 420G Toggle tripod with ground spreader. An ideal tripod system for cinematic and documentary, where the payload and centre of gravity changes frequently due to lens or accessories swapping.

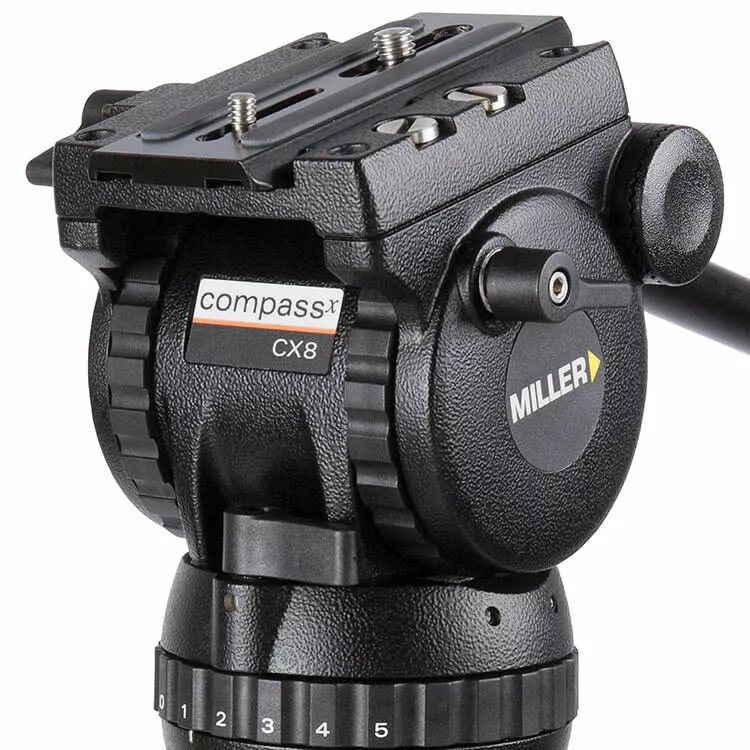

CX8 is the premium head in the 75mm ball levelling CompassX series. Designed for camera rigs from 0kg to 12kg, with CB plus 16 balance positions and 5 levels of fluid drag, it sets the standard in professional compact camera supports.
The CX8 is matched with the 2-stage Toggle (alloy) tripod and on ground spreader to yield a large height range 570-1740mm (22.4-68.5″), offer positive toggle leg locks and the stability of a ground spreader.
SUMMARY
Tripod Head Type: Fluid Head
Max Payload: 12kg
Max Height Group: 65-70 inch
Min Height Group: 20-30 inch
Leg Section: 3 Section
Spreader Type: Ground
Head Fitting: 75mm
Material: Aluminium
Type: Video
INCLUDED IN BOX
1x 1093 CX10 fluid head
1x 420G Toggle 75 2-stage tripod (alloy)
1x 411 On ground spreader
1x 679 Pan handle – fixed with clamp
1x 554 Shoulder strap (padded)
1x 3514 Softcase 2-stage

About The Miller 3736 CompassX 8 System
The 3736 Compassx 8 (CX8) Toggle 2-stage (alloy) tripod system combines CX8 fluid head with cost-effective yet solid 420G Toggle tripod with ground spreader. An ideal tripod system for cinematic and documentary, where the payload and centre of gravity changes frequently due to lens or accessories swapping.

CX8 is the premium head in the 75mm ball levelling CompassX series. Designed for camera rigs from 0kg to 12kg, with CB plus 16 balance positions and 5 levels of fluid drag, it sets the standard in professional compact camera supports.

The CX8 is matched with the 2-stage Toggle (alloy) tripod and on ground spreader to yield a large height range 570-1740mm (22.4-68.5″), offer positive toggle leg locks and the stability of a ground spreader.

Payload Range 0-12.0 kg (0-26.4lbs)
Weight 6.8kg (14.9lbs)
Height Range 570-1740mm (22.4-68.5″)
Transport Length 870mm (33.9″)
Counterbalance Positions 16 selectable positions (15+0)
Pan Tilt Drag 5 selectable fluid drag positions + 0
Pan Tilt Locks Positive lock calliper brake system
Tilt Range + 90°/ -75°
Pan Range 360°
Camera Platform Quick release, side load camera plate
Sliding Range 60mm (2.4″)
Mounting Base Ø75mm (2.9″) ball levelling
Height Above Bowl 167mm (6.6″)
Illuminated Controls Bubble level
Pan Handle Fixed length 390mm (15.4″)
Temperature Range -40° to +65°C (-40° to +149°F)
Leg Extension 2-stage
Lock Type Toggle
Leg Material Alloy
Components
1093 CX10 fluid head
420G Toggle 75 2-stage tripod (alloy)
411 On ground spreader
679 Pan handle – fixed with clamp
554 Shoulder strap (padded)
3514 Softcase 2-stage

Compact, uncompromised performance.
75mm ball levelling.
Perfect for payloads to 0-12kg (26.4bs).

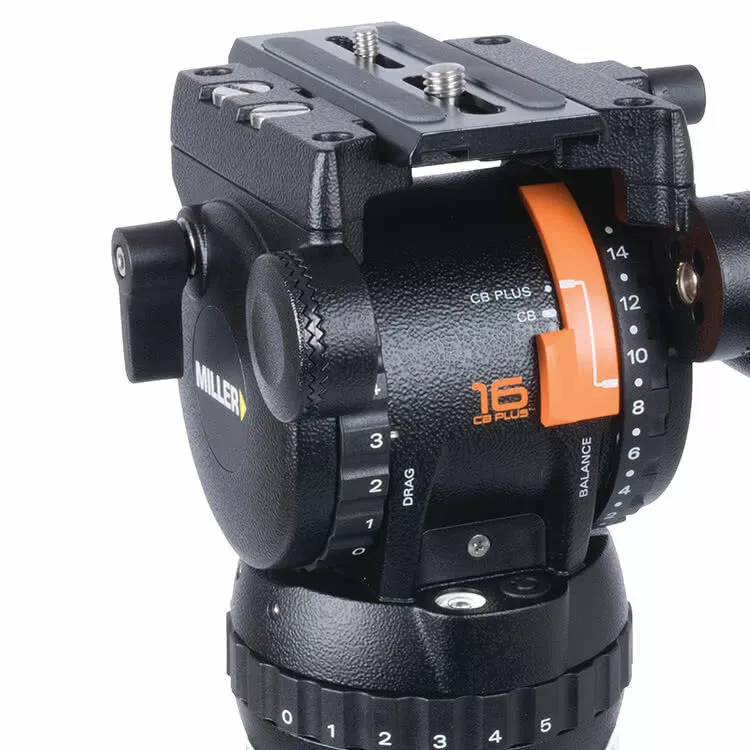

15+0 CB Plus selectable counterbalance positions.
Ergonomically located CB Plus switch.
5+0 selectable positions of fluid pan and tilt drag.
Positive selection radial ring controls.
2-stage fast toggle adjustment legs.
Durable black anodised alloy tubing.
Comes with on ground spreader.
Comes with 2-stage tripod bag.
3 year warranty.
