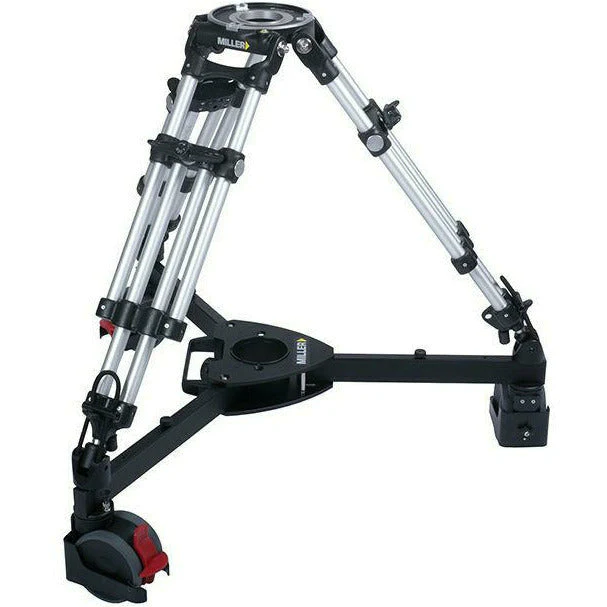

Miller 3354 Heavy Duty Studio Tripod

OVERVIEW
The 3354 HD Studio Tripod is designed specifically to support the Skyline 90 Fluid Head while on the 3225 HD Dolly, the tripod is Mitchell Base all alloy design which can support up to 140kg (309lbs). Castings are LM25 anodised, stove enamelled (black texture). Tripod legs are 1” HE30TF alloy, polished and anodised, with nylon wipers and nylon locking pads. Stainless steel spikes are located on the feet with rubber covers. Locking levers are anodised and stove enamelled (black texture). All steel parts are hardened where necessary, and chrome plated.

SUMMARY
Max Payload: 140kg
Max Height Group: 40-45 inch
Min Height Group: 20-30 inch
Leg Section: 3 Section
Head Fitting: Mitchell base
Leg Lock Type: Flip Lock
Material: Aluminium
Type: Cine
INCLUDED IN BOX
1x Miller 3354 Heavy Duty Studio Tripod

About The Miller 3354 Heavy Duty Studio Tripod
The 3354 HD Studio Tripod is designed specifically to support the Skyline 90 Fluid Head while on the 3225 HD Dolly, the tripod is Mitchell Base all alloy design which can support up to 140kg (309lbs). Castings are LM25 anodised, stove enamelled (black texture). Tripod legs are 1” HE30TF alloy, polished and anodised, with nylon wipers and nylon locking pads. Stainless steel spikes are located on the feet with rubber covers. Locking levers are anodised and stove enamelled (black texture). All steel parts are hardened where necessary, and chrome plated.Maximum Payload Capacity 140.0kg (308.7lbs)
Weight 8.4kg (18.5lbs)
Height Range 700 – 1100mm (27.6 – 43.3”)
Transport Length 680mm (26.8”)
Mounting Base Mitchell base
Leg Extension 1 stage
Lock Type Rotary lock
Leg Material Alloy
Mitchell base for flat mounting.
One stage alloy rotary lock leg extension for heavy duty clamping.
Heavy duty clear anodised alloy tubing.
Cast alloy brackets for rigid geometry.
Suited for HD Dolly and all Mitchell base heads.
3 year Manufacturer’s warranty.
