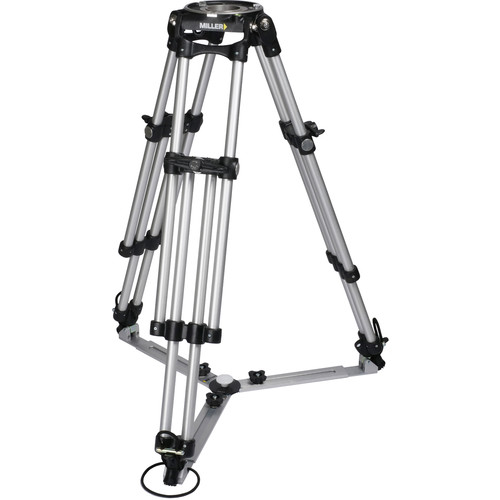

Miller 3350 Heavy Duty Tripod

OVERVIEW
The 3350 HD Tripod is designed specifically to support the Skyline 90 Fluid Head, the tripod is Mitchell Base all alloy design which can support up to 140kg (309lbs). Castings are LM25 anodised, stove enamelled (black texture). Tripod legs are 1” HE30TF alloy, polished and anodised, with nylon wipers and nylon locking pads.
Stainless steel spikes are located on the feet with rubber covers. Locking levers are anodized and stove enamelled (black texture). All steel parts are hardened where necessary, and chrome plated.
SUMMARY
Max Payload: 140kg
Max Height Group: 50-55 inch
Min Height Group: 20-30 inch
Leg Section: 3 Section
Head Fitting: Mitchell base
Leg Lock Type: Twist Lock
Material: Aluminium
Type: Cine
INCLUDED IN BOX
1x Miller Heavy Duty Tripod

About The Miller 3350 Heavy Duty Tripod
The 3350 HD Tripod is designed specifically to support the Skyline 90 Fluid Head, the tripod is Mitchell Base all alloy design which can support up to 140kg (309lbs). Castings are LM25 anodised, stove enamelled (black texture). Tripod legs are 1” HE30TF alloy, polished and anodised, with nylon wipers and nylon locking pads.

Stainless steel spikes are located on the feet with rubber covers. Locking levers are anodized and stove enamelled (black texture). All steel parts are hardened where necessary, and chrome plated.

Maximum Payload Capacity 140.0kg (308.7lbs)
Weight 9.0kg (19.8lbs)
Height Range 625 – 1310mm (24.6 – 51.6”) (with HD Integral spreader 3363 or Off Ground spreader 3360
Transport Length 830mm (32.7”)
Mounting Base Mitchell base
Leg Extension 1 stage
Lock Type Rotary lock
Leg Material Alloy

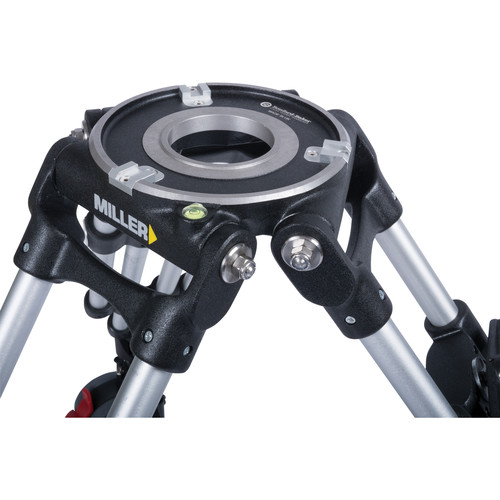

Mitchell base for flat mounting.
One stage alloy rotary lock leg extension for heavy duty clamping.
Heavy duty clear anodised alloy tubing.
Cast alloy brackets for rigid geometry.
Suited for HD ground spreader, HD integral spreader and all Mitchell base heads.
3 year manufacturer’s warranty.
