OVERVIEW

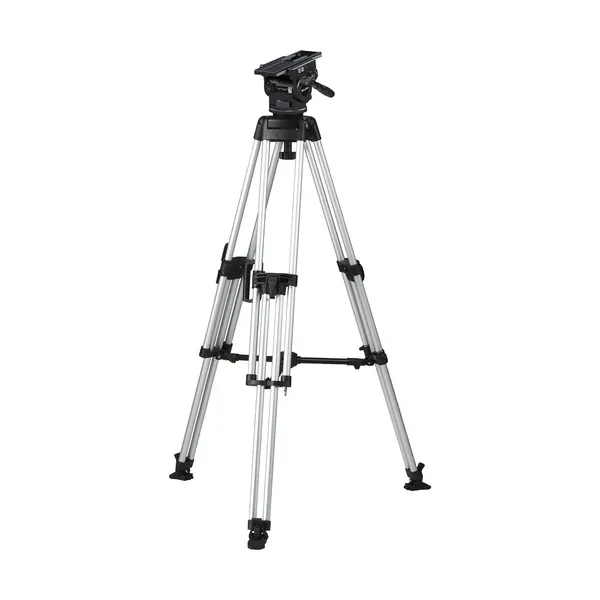

The Miller 3175 ArrowX 7 HD 1-Stage System is a top-of-the-line camera support system that includes the ArrowX 7 Fluid Head (1076), HD 1-Stage Alloy Tripod (931), Mid-Level Spreader (993), Pan Handle (696) and Feet (475). This system is perfect for documentary, lifestyle, and HD productions, and is especially well-suited for long-lens applications or Studio/EFP configurations. With a payload range of 6-25kg (13.2-55.1lbs), it offers a high load capacity for a wide range of cameras and accessories.
The ArrowX 7 Fluid Head is a powerful addition to the world-renowned Arrow series, providing professionals with the flexibility, speed, and accuracy they need to capture their creative vision. With a wide payload range, precision fluid drag, and Miller’s innovative 16 position CB PlusTM counterbalance system, this fluid head delivers exceptional performance and reliability, backed by Miller’s 62 years of experience.
The CB PlusTM counterbalance system is a game-changer in the world of camera support. It features eight larger counterbalance steps, allowing for quick and efficient setup, and a “one flick” switch for fine-tuning. This innovative design sets Miller apart from the competition, providing repeatable, accurate, and rapid counterbalancing for any shooting situation.
The 475 detachable rubber feet provide stable support for your camera on any surface. Designed with Miller’s unique design, these feet will always lay flat on the surface, eliminating the need to bend down and adjust them. The 475 rubber feet come in a set of three and are compatible with the 993 Mid Level Spreader, making them a versatile and essential accessory for any tripod.
The Mid Level Spreader is designed for use with the Sprinter II and HD Tripods, offering continuous variable adjustment between maximum and minimum height settings. This feature makes setup and pull-down quick and easy, keeping the tripod legs at an equal distance from each other for added stability.
The Heavy Duty Single Stage 100mm Alloy Tripod is built to withstand extreme climates and heavy loads. With adjustable flip locks for quick setup and maintenance, this tripod offers optimal payload security for EFP and studio camera configurations. It is a solid and reliable support system for any shooting situation.
Finally, the Pan Handle is a telescopic handle with a black handle carrier, providing comfortable and precise control over the fluid head. With all these features and accessories, the Miller 3175 ArrowX 7 HD 1-Stage System is the ultimate camera support system for professionals who demand the best in performance and reliability.
SUMMARY
Tripod Head Type: Fluid Head
Max Payload: 25kg
Max Height Group: 65-70 inch
Min Height Group: 35+inch
Leg Section: 2 Section
Spreader Type: Mid-Level
Head Fitting: 100mm
Material: Aluminium
Type: Video
INCLUDED IN BOX
ARROWx 7 FLUID HEAD
Tripod Rubber Feet
Mid Level Spreader for Sprinter II and HD Tripods
Pan handle – telescopic with black handle carrier
Heavy Duty Single Stage 100mm Alloy Tripod
About The Miller 3175 ArrowX 7 HD System
System ArrowX 7 HD 1-stage (alloy) combines the 100mm ball levelling ArrowX 7 fluid head with extremely stable HD tripod. The system provides higher load capacity to suit documentary, lifestyle, HD productions and is particularly suited to long-lens applications or Studio/EFP configurations. Payloads range 6-25kg 13.2-55.1lbs.
ARROWx 7 FLUID HEAD
Following in the tradition and reputation of the world-renowned Arrow series, the all-new Arrowx 7 sets new dimensions in professional camera support augmenting the power of expression of creative professionals.
Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB PlusTM counterbalance system, Arrowx 7 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand from Miller’s 62 years of experience.
6-25kg (13.2-55.1lbs) payload range and 7 + 0 selectable pan-tilt fluid drag positions make Arrowx 7 ideal for EFP, Studio and Field OB enabling it to be used with a wide range of cameras, lenses and accessories and offering.
CB PlusTM is an innovative sequential counterbalance design, taking traditional counterbalancing a step forward ahead of the rest, resulting in repeatable, accurate and rapid setup. CB PlusTM features eight larger counterbalance steps, allowing the user to get to their required counterbalance position quickly and efficiently. The CB Plus “one flick” switch conveniently located at the front of the head, adds a half step between each of the eight larger steps enabling counterbalance fine-tuning when required.
Tripod Rubber Feet
The 475 detachable rubber feet provide stable support for your camera on any surface. No matter what position before setup, with Miller’s unique design the feet will always place flat upon the surface on your location. No more bending down to position feet curled inside the tripod. The 475 rubber feet are supplied as a set of three and suit all tripods sold with the 993 Mid Level Spreader.
Mid Level Spreader for Sprinter II and HD Tripods
The mid-level spreader design offers continuous variable adjustment between maximum and minimum height settings and assist the tripod in rapid setup and pull down by keeping the tripod legs at an equal or preset distance relative to each other.
Heavy Duty Single Stage 100mm Alloy Tripod
The HD tripod range features adjustable flip locks for quick setup and easy maintenance. The 931 tripod is built with the strength and torsional rigidity to take the full EFP workload in extreme climates, this solid single stage 100mm alloy support offers optimum payload security when supporting EFP and studio camera configurations.
Pan Handle
Telescopic pan handle with black handle carrier.
Payload Range 6-25kg (13.2-55.1lbs)
Weight 10.4kg (23.1lbs)
Height Range 947-1737mm (37.3-68.4″)
Transport Length 1092mm (43”)
Counterbalance Positions 16 selectable positions
Pan Tilt Drag 7 selectable fluid drag positions + 0
Pan Tilt Locks Positive lock calliper brake system
Tilt Range +90° / -75°
Pan Range 360°
Camera Platform Quick release camera plate (Euro)
Sliding Range 120mm (4.7″)
Mounting Base Ø100mm (3.9″) ball levelling
Height Above Bowl 162mm (6.4″)
Illuminated Controls Bubble level, pan-tilt drag controls
Pan Handle Telescopic 390-590mm (15.4-23.2″)
Temperature Range -40° to +65°C (-40° to +150°F)
Leg Extension 1-stage
Lock Type Flip lock
Leg Material Alloy
