Miller 3155 ArrowX 7 System

OVERVIEW
Introducing the Miller 3155 ArrowX 7 Sprinter II 1-Stage System, a top-of-the-line camera support system designed for professional use. This system includes the ArrowX 7 Fluid Head (1076), Sprinter II 1-Stage Alloy Tripod (1589G), Ground Spreader (470), Pan Handle (696), and Softcase (870). With its impressive features and capabilities, it is the perfect choice for documentary, lifestyle, and HD productions, as well as long-lens applications and Studio/EFP configurations.

The ArrowX 7 Fluid Head is the latest addition to the renowned Arrow series, known for its exceptional performance and reliability. It offers a wide payload range and precision fluid drag, allowing for smooth and precise movements. The head also features Miller’s innovative 16 position CB PlusTM counterbalance system, ensuring quick and accurate setup. With a payload range of 6-25kg (13.2-55.1lbs) and 7 + 0 selectable pan-tilt fluid drag positions, the ArrowX 7 is suitable for a variety of cameras, lenses, and accessories.

The CB PlusTM counterbalance system takes traditional counterbalancing to the next level with its innovative sequential design. It features eight larger counterbalance steps, allowing for quick and efficient adjustment. The “one flick” switch, located at the front of the head, adds a half step between each of the eight larger steps for fine-tuning when needed.

The Sprinter II Ground Spreader (470) is optimized for use on flat surfaces and attaches directly to the spiked feet of the tripod. Its telescoping spreader arms make for rapid setup and pull down, keeping the tripod legs at an equal or preset distance. This feature is especially useful for on-location shoots.

Transporting your tripod system is made easy with the Arrow Softcase. This padded case has carry straps for comfortable transportation and a patented head-end cradle to protect the fluid head during transport. Made from weatherproof cordura and heavy-duty zippers, the softcase is durable and reliable. With a weight of only 3.5kg (7.7 lbs) and a transport length of 1080mm (42.5″), it is the perfect protection for your tripod system.

The Sprinter II Single-Stage Alloy Tripod with Ground Spreader is a versatile and durable tripod designed for professional use. It features Miller Sprint-Locks, side-action leg locks that have been updated for a more ergonomic feel. The single-stage control allows for quick and easy adjustments, making it the ideal choice for any shooting situation. The telescopic pan handle with a black handle carrier adds to the overall ease of use and functionality of the tripod.

SUMMARY
Tripod Head Type: Fluid Head
Max Payload: 25kg
Max Height Group: 60-65 inch
Min Height Group: 30-35 inch
Leg Section: 2 Section
Spreader Type: Ground
Head Fitting: 100mm
Material: Aluminium
Type: Video
INCLUDED IN BOX
1 x ARROWx 7 FLUID HEAD
1 x Sprinter ll Ground Spreader
1 x Arrow Softcase
1 x Pan handle – telescopic with black handle carrier
1 x Sprinter II Single-Stage Alloy Tripod – Ground spreader

About The Miller 3155 ArrowX 7 System
System ArrowX 7 Sprinter II 1-stage (alloy) combines the 100mm ball levelling ArrowX 7 fluid head with speedy and rugged Sprinter II Alloy tripod. The system provides higher load capacity to suit documentary, lifestyle, HD productions and is particularly suited to long-lens applications or Studio/EFP configurations. Payloads range 6-25kg 13.2-55.1lbs.

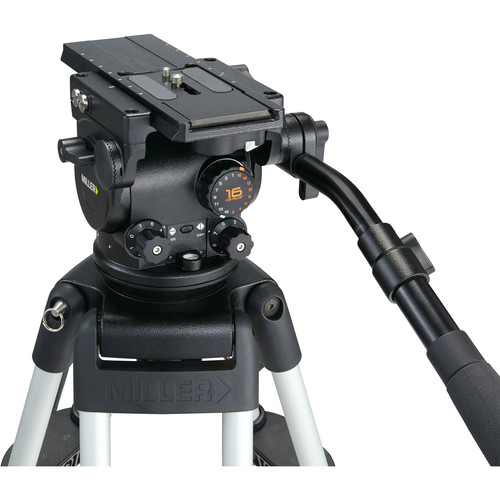

ARROWx 7 FLUID HEAD
Following in the tradition and reputation of the world-renowned Arrow series, the all-new Arrowx 7 sets new dimensions in professional camera support augmenting the power of expression of creative professionals.

Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB PlusTM counterbalance system, Arrowx 7 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand from Miller’s 62 years of experience.
6-25kg (13.2-55.1lbs) payload range and 7 + 0 selectable pan-tilt fluid drag positions make Arrowx 7 ideal for EFP, Studio and Field OB enabling it to be used with a wide range of cameras, lenses and accessories and offering.

CB PlusTM is an innovative sequential counterbalance design, taking traditional counterbalancing a step forward ahead of the rest, resulting in repeatable, accurate and rapid setup. CB PlusTM features eight larger counterbalance steps, allowing the user to get to their required counterbalance position quickly and efficiently. The CB Plus “one flick” switch conveniently located at the front of the head, adds a half step between each of the eight larger steps enabling counterbalance fine-tuning when required.

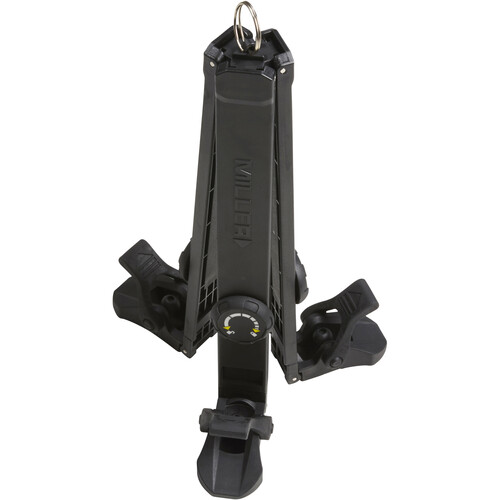

Sprinter ll Ground Spreader
The 470 Ground spreader attached directly to the spiked feet at the bottom of the Sprinter II tripods. Optimised for use on flat surfaces the telescoping spreader arms allow for rapid set-up and pull down by keeping the tripod legs at an equal or preset distance.

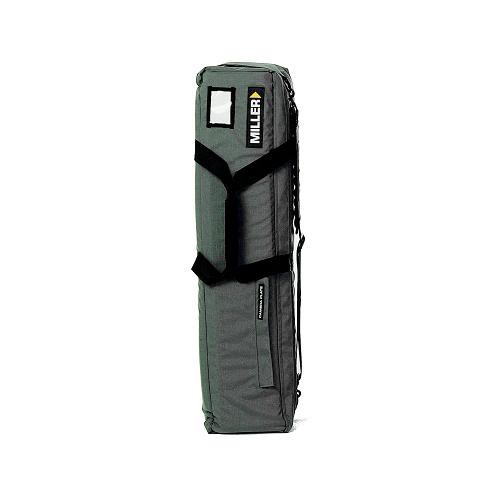

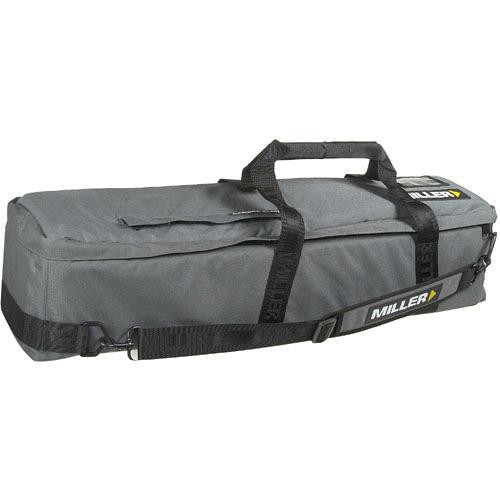

Arrow Softcase
The Arrow Softcase for Single Stage tripods has padded carry straps for comfortable carrying with patented head-end cradle to protect the fluid head during transport. The Softcase is made from weatherproof cordura with heavy duty zippers on bag and all pockets. Weighing only 3.5kg (7.7 lbs) and a transport length of 1080mm (42.5″) this softcase is great protection for your tripod system.

Sprinter II Single-Stage Alloy Tripod – Ground spreader
The new Sprinter II ENG tripod range features Miller Sprint-Locks, side-action leg locks. Miller’s designers have updated the streamline design of the levers to bring you a more ergonomic feel to the lever-lock action. Single Stage Sprinters feature a singular Sprint-Lock side-action lever for single stage control.

Pan Handle
Telescopic pan handle with black handle carrier.

Payload Range 6-25kg (13.2-55.1lbs)
Weight 7.8kg (17.3lbs)
Height Range 797-1587mm (31.4-62.5″)
Transport Length 1002mm (39.4”)
Counterbalance Positions 16 selectable positions
Pan Tilt Drag 7 selectable fluid drag positions + 0
Pan Tilt Locks Positive lock calliper brake system
Tilt Range +90° / -75°
Pan Range 360°
Camera Platform Quick release camera plate (Euro)
Sliding Range 120mm (4.7″)
Mounting Base Ø100mm (3.9″) ball levelling
Height Above Bowl 162mm (6.4″)
Illuminated Controls Bubble level, pan-tilt drag controls
Pan Handle Telescopic 390-590mm (15.4-23.2″)
Temperature Range -40° to +65°C (-40° to +150°F)
Leg Extension 1-stage
Lock Type HS single actionI1601
Leg Material Alloy
