Miller 3024 ArrowX 1 Sprinter II System

OVERVIEW
The Miller 3024 ArrowX 1 Sprinter II 1 Stage Alloy Tripod System is a compact, lightweight and versatile product that is perfect for professional use. This system includes the ArrowX 1 Fluid Head, 2-stage Sprinter II Alloy Tripod and Mid-level Spreader (p/n MIL-3024) to provide a high level of stability and flexibility for various payloads.

With 5 selectable positions of fluid pan and tilt drag + 0, the ArrowX 1 offers precision and control for smooth camera movements. It also features a 16 position CB Plus counterbalance system, allowing for quick and accurate adjustments to balance different payloads up to 0-16.0kg (0-35.3lbs).

The integrated 100mm bowl and high speed independent 2-stage dual leg locks make this system suitable for a wide range of cameras, lenses and accessories. It also comes with a mid-level spreader and rubber feet for added stability on all terrains. Plus, the durable black anodised alloy tubing ensures longevity and reliability.

For added convenience, the ArrowX 1 system comes with a 2-stage tripod bag for easy transport and storage. And with a 3 year manufacturer’s warranty, you can trust in the quality and performance of this product.

Designed for speed of setup, high level of stability and flexibility of payloads, the Miller 3024 ArrowX 1 Sprinter II 1 Stage Alloy Tripod System is the perfect choice for professionals in the field. So whether you’re working on news gathering, documentaries or any other type of production, this system has got you covered.

SUMMARY
Tripod Head Type: Fluid Head
Max Payload: 16kg
Max Height Group: 65-70 inch
Min Height Group: 20-30 inch
Spreader Type: Mid-Level
Head Fitting: 100mm
Leg Lock Type: Flip Lock
Material: Aluminium
Type:
Cine
Video
INCLUDED IN BOX
1x 1070 Arrowx 1 fluid head
1x 1580 Sprinter II 2-stage tripod (alloy)
1x 993 Mid-level spreader
1x 475 Rubber feet (set of 3)
1x 696 Pan handle – telescopic with clamp

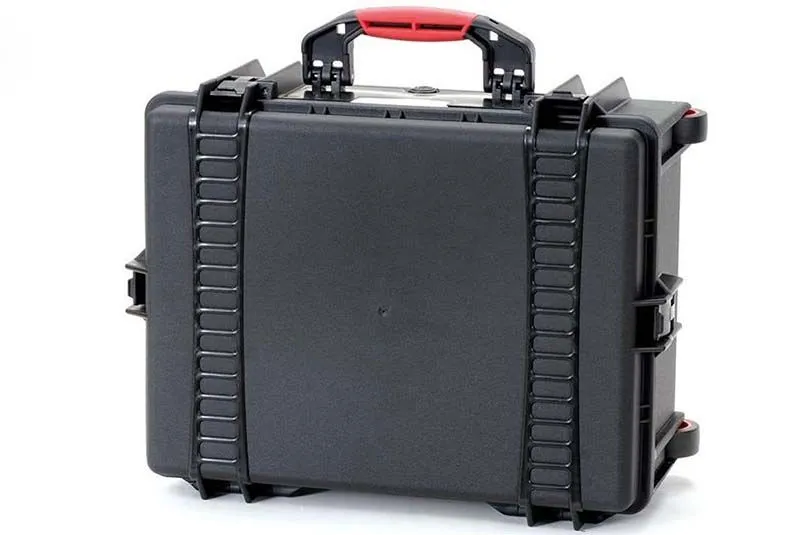

1x 3502 Arrowx soft case 2-stage

About The Miller 3024 ArrowX 1 Sprinter II System
The 3024 Alloy, Sprinter II, 2-stage Arrowx 1 system, fitted with mid-level spreader is designed for speed of setup, high level of stability and flexibility of payloads, The mid-level spreader makes this system suitable for all terrains.

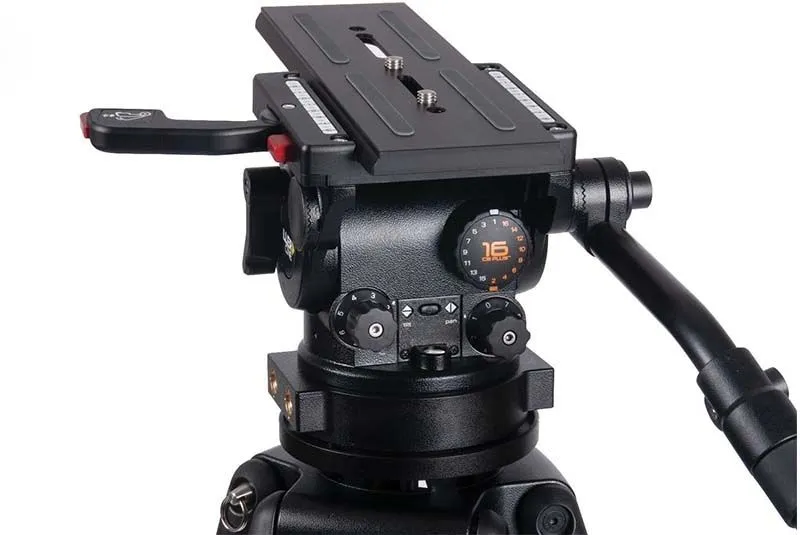

Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB Plus™ counterbalance system, Arrowx 1 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.

0-16.0kg (0-35.3lbs) payload range and 5 + 0 selectable pan-tilt fluid drag positions make Arrowx 1 ideal for news gathering and documentaries, enabling it to be used with a wide range of cameras, lenses and accessories.

The Arrowx 1 is matched with the 2 stage Sprinter II (alloy) tripod and mid-level spreader to give incredible speed of set up, hugely variable tripod footprint, large height range and the versatility to set up on all terrain.

Payload Range 0-16.0kg (0-35.3lbs)
Weight 8.3kg (18.3lbs)
Height Range 602-1692mm (23.7-66.6″)`
Transport Length 862mm 33.9”
Counterbalance Positions 16 selectable positions
Pan Tilt Drag 5 selectable fluid drag positions + 0
Pan Tilt Locks Positive lock calliper brake system
Tilt Range +90° / -75°
Pan Range 360°
Camera Platform Quick release camera plate (Euro)
Sliding Range 120mm (4.7”)
Mounting Base Ø100mm (3.9″) ball levelling
Height Above Bowl 162mm (6.4″)
Illuminated Controls Bubble level, pan-tilt drag controls
Pan Handle Telescopic 390-590mm (15.4-23.2″)
Temperature Range -40° to +65°C (-40° to +150°F)
Leg Extension 2-stage
Lock Type HS dual action
Leg Material Alloy
Compact, lightweight and versatile.
5 selectable positions of fluid pan and tilt drag + 0.
16 position CB Pluscounterbalance system.
Perfect for payloads to 0-16.0kg (0-35.3lbs).
Integrated 100mm bowl.
High speed independent 2-stage dual leg locks.
Durable black anodised alloy tubing.
Comes with mid-level spreader and rubber feet.
Comes with 2-stage tripod bag.
3 year manufacturer’s warranty.
