Miller 1514 DS20 Solo System

OVERVIEW
The Miller 1514 DS20 Solo DV Ultra-Lightweight Tripod System is the perfect support system for your camera, offering compact, lightweight, and dependable performance. Designed for extreme environments, it provides consistent fluid drag performance and has 2 selectable positions of counterbalance. This system is ideal for camera payloads ranging from 5-10kg (11-22lbs) and features an integrated 75mm bowl for added stability.

The Solo DV 2-Stage Carbon tripod is the perfect complement to the DS20 fluid head, providing lightweight and true fluid drag support for a wide range of camcorders. With its 1/4″ & pin or 1/4″ & 3/8″ screw mounts and sliding quick release mount, this tripod makes lens and battery changes quick and easy.

The DS20 Fluid Head (184) is the superior fluid head in the DV range, offering a choice of 1/4″ & 3/8″ screws or 1/4″ & pin for attaching MiniDV or tripod adaptor plates. It also has adjustable pan and tilt drags for flexible applications and a ‘flick-of-a-switch’ selectable counterbalance for tilting larger camcorders weighing between 5kg and 10kg.

The Solo DV 2 Stage 75mm carbon fibre tripod (1501) is designed for single operators, with a quick and secure set up to 63″ (161cm) and a compact 27″ (70cm) when packed down. It also has selectable leg angle locks for rapid stabilisation at any height and a 75mm diecast alloy bowl with a fluid head bubble level for easy levelling and durability in extreme field conditions.

The Pan Handle (680) is a fixed length pan handle that comes with a grey handle carrier to suit DS5, DS10, and DS20 Fluid Heads. It provides comfortable and precise control over your camera movements.

The Carry Straps (1520) are ergonomic and air-cell padded shoulder straps that can be fitted to all tripods and softcases in the Miller SOLO range. Made from weatherproof materials, they have anti-corrosive buckles and safety spring latches that can attach to all 75mm and 100mm SOLO tripods.

The Solo DV Softcase (1518) is a compact and comfortable carrying solution made from weatherproof cordura construction. It weighs only 0.65kg and has a transport length of 850mm, making it the perfect travelling companion for your Miller 1514 DS20 Solo DV Ultra-Lightweight Tripod System.

With a 3-year warranty, the Miller 1514 DS20 Solo DV Ultra-Lightweight Tripod System is a reliable and durable choice for all your camera support needs. Its lightweight carbon fibre legs, 2-stage rapid leg lock extension, and versatile features make it a must-have for any professional videographer or filmmaker.

SUMMARY
Tripod Head Type: Fluid Head
Max Payload: 10kg
Max Height Group: 65-70 inch
Min Height Group: 10-20 inch
Leg Section: 3 Section
Spreader Type: No Spreader
Head Fitting: 75mm
Material: Carbon Fibre
Type: Video
INCLUDED IN BOX
1x DS20 Fluid Head
1x Solo 75 2-stage tripod (carbon fibre)
1x Pan Handle – fixed with clamp
1x Solo Shoulder Strap (Aircell)
1x Solo 75 2-stage tripod bag

About The Miller 1514 DS20 Solo System
The SOLO DV 20 offers incredible price-performance and ultra-light carbon support for payloads up to 10kg.

Designed around the popular Miller DS20 with ‘flick-of-a-switch’ selectable counterbalance, SOLO DV 20 features a choice of 1/4″ & pin or 1/4″ & 3/8″ screw mounts with sliding quick release mount for lens and battery changes.=

The SOLO DV 2-Stage Carbon tripod compliments this lightweight, true fluid drag support for masive range of camcorders.

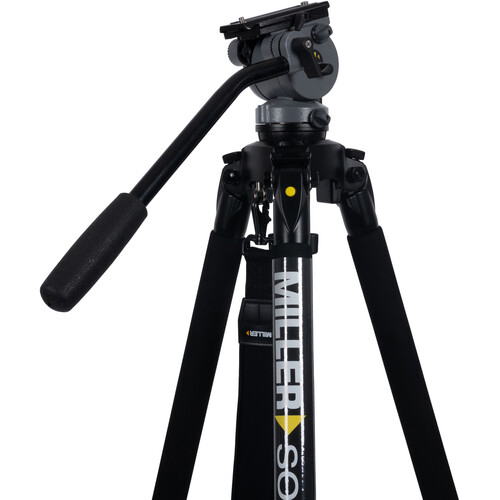

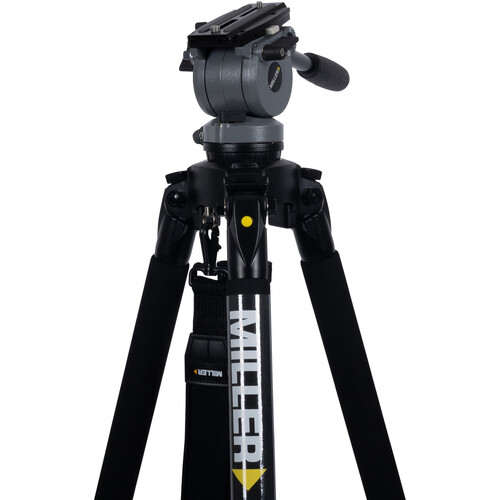

DS20 Fluid Head (184)

As the superior fluid head of the DV range, the DS20 fluid head offers two attachments choice: 1/4″ & 3/8″ screws or 1/4″ & pin, to attach MiniDV or tripod adaptor plates. Adjustable pan and tilt drags provide continuous friction for your flexible applications, while ‘flick-of-a-switch’ selectable counterbalance lets you tilt balance larger camcorders ranging from 5kg to 10kg.

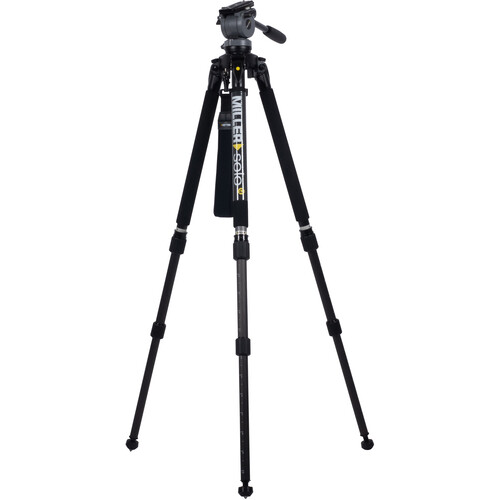

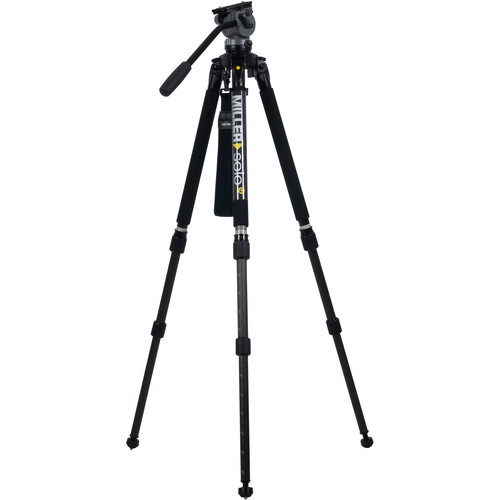

Solo DV 2 Stage 75mm carbon fibre tripod (1501)

The 2-Stage telescoping SOLO DV carbon fibre tripod is designed for the single operator: quickly and securely setting up to 63″ (161cm), packing down to a compact 27″ (70cm) for transport; and hitting a low 9″ (23cm). Selectable leg angle locks ensure rapid stabilisation at any height, while the 75mm diecast alloy bowl and fluid head bubble level offers quick levelling, optimum torsional rigidity and durability under extreme field conditions.

Pan Handle (680)

Fixed length pan handle supplied with grey handle carrier to suit DS5, DS10 and DS20 Fluid Heads.

Carry Straps (1520)

The ergonomic and air-cell padded 1520 SOLO Shoulder Strap can be fitted to all tripods and softcases in the Miller SOLO range. Made from weatherproof cordura and nylon materials, with anti-corrosive buckles and safety spring latches that can attach to all 75mm and 100mm SOLO tripods.

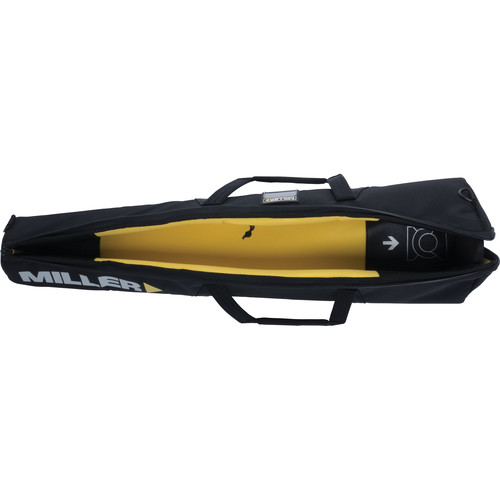

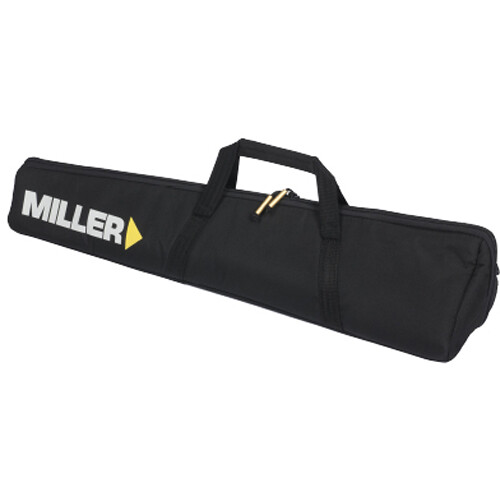

Solo DV Softcase (1518)

The Solo DV Softcase is a compact and comfortable carrying solution made from weatherproof cordura construction. Weighing only 0.65kg and a transport length of 850mm this softcase is the perfect travelling companion.

Material: Carbon Fibre
Construction: 2-Stage
Maximum Height: 1751 mm (68.9 in)
Minimum Height: 371 mm (14.6 in)
Mounting Standard:: 75mm ball levelling
Payload Capacity:: 10.00 kg (22 lbs)
Payload Range: 5 to 10 kg
Transport Length: 831 mm (32.7 in)
Weight: 4.5 kg (10.0 lbs)

Compact, lightweight, dependable.
Consistent fluid drag performance in extreme environments.
2 selectable positions of counterbalance.
Perfect for camera payloads to 5-10kg (11-22lbs).
Integrated 75mm bowl.
Lightweight carbon fibre legs.
2-stage rapid leg lock extension.
3 year warranty.
