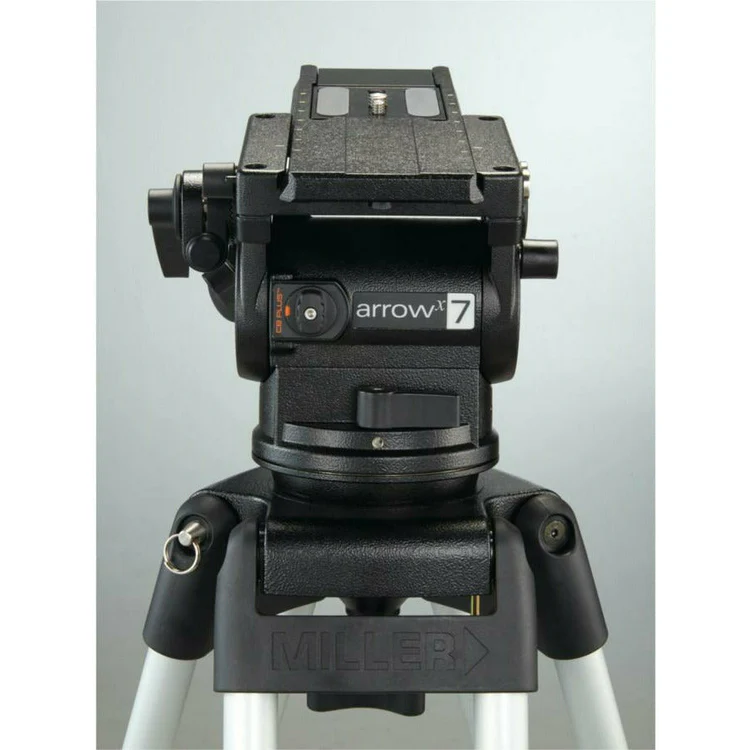

Miller 1076 ArrowX 7 Fluid Head

OVERVIEW
The Miller 1076 ArrowX 7 Fluid Head is a compact, lightweight and versatile camera support system. With 7 selectable fluid pan and tilt drag positions, including +0, it offers precise control for smooth camera movements.

The 16 position CB PlusTM counterbalance system is a standout feature of the ArrowX 7. It allows for a wide payload range of 6-25kg (13.2-55.1lbs) and offers repeatable, accurate and rapid setup. The CB PlusTM switch, conveniently located at the front of the head, allows for quick and efficient counterbalance adjustments.

Designed for professionals, the ArrowX 7 has all controls in one location for fast and easy use. The illuminated bubble level and pan-tilt drag controls make it easy to achieve the perfect shot. The precise floating pan-tilt calliper locks ensure bounce-free performance.

The ArrowX 7 also offers versatility with its quick release, 120mm sliding camera platform with a euro camera plate. It can also be mounted on a flat base with the removable ball level stud or adapted to a Mitchell base. Side mounting points for viewfinders and accessories make it perfect for EFP, studio, and field OB use.

Built to withstand rugged outdoor shooting conditions, the ArrowX 7 is a reliable and robust choice for professionals. With the option of a second pan handle mount and a wide range of compatible cameras, lenses, and accessories, it is the perfect choice for creative expression and professional results.

SUMMARY
Tripod Head Type: Fluid Head
Max Payload: 25kg
Type: Video

About The Miller 1076 ArrowX 7 Fluid Head
Following in the tradition and reputation of the world-renowned Arrow series, the all-new Arrowx 7 sets new dimensions in professional camera support augmenting the power of expression of creative professionals.

Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB PlusTM counterbalance system, Arrowx 7 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand from Miller’s 62 years of experience.

6-25kg (13.2-55.1lbs) payload range and 7 + 0 selectable pan-tilt fluid drag positions make Arrowx 7 ideal for EFP, Studio and Field OB enabling it to be used with a wide range of cameras, lenses and accessories and offering.

CB PlusTM is an innovative sequential counterbalance design, taking traditional counterbalancing a step forward ahead of the rest, resulting in repeatable, accurate and rapid setup. CB PlusTM features eight larger counterbalance steps, allowing the user to get to their required counterbalance position quickly and efficiently. The CB Plus “one flick” switch conveniently located at the front of the head, adds a half step between each of the eight larger steps enabling counterbalance fine-tuning when required.

Sliding Range: 120mm (4.7”)
Weight: 3.40 kg (7.5 lbs)
Pan Drag: 7 selectable fluid drag positions + 0
Pan Lock: Positive lock calliper brake system
Temperature Range: -40° to +65°C (-40° to +149°F)
Illumination: Bubble level, pan-tilt drag controls
Payload Range: 6-25kg
Mounting: 100mm (3.9”) ball levelling with 3 x M5 holes for flat base mounting
Pan Range: 360 °
Counter balance System: 16 selectable positions
Height Above Bowl: 162 mm (6.4 in)

Compact, lightweight and versatile.
7 selectable of fluid pan and tilt drag
positions +0.
16 position CB PlusTM counterbalance system.
Wide payload range 6-25kg (13.2-55.1lbs).
Fluid drag system with smooth start and soft stop technology & balanced diagonal transitions.
Controls “all in one location” design for fast easy and practical use.
Illuminated bubble level and pan-tilt drag controls.
Precise floating pan-tilt calliper locks ensure bounce free on-off performance.
Quick release, 120mm sliding camera platform with camera plate (euro).
Removable ball level stud for flat base mounting (Sliders) with 3/8” screw hole.
Mitchell base adaptable.
Robust construction for rugged outdoor shooting conditions.
Optional second pan handle mount.
Side mounting points for viewfinders and accessories.
