Midas DL8 Stage Box

Overview
8 award-winning Midas PRO microphone preamplifiers with switchable 48 V phantom power, 8 electronically balanced low impedance line level outputs, and powered via AES50 PoE from compatible Midas hubs or internal switched mode power supply. The ULTRANET distribution hub allows for powered connection of 2 personal monitoring mixers, digital audio and control connectivity for Turbosound speaker systems with ULTRANET networking capability, and dual AES50 SuperMAC ports for cascading additional stageboxes without the need for a merger or router.

The DL8 Stage Box provides 8 Midas PRO microphone preamplifiers, ULTRANET distribution hub for connecting to Behringer P16-M personal monitor mixers or Turbosound speaker systems, and dual AES50 SuperMAC ports for cascading additional StageBoxes. The Ultranet technology allows for seamless transmission of 16 channels of 24-bit audio over standard CAT5 cable up to 75m length, providing a powerful digital eco-system with highest reliability and flexibility. The DL8 digital stage box is a durable and professional-grade solution for signal distribution in live performance and studio recording applications, offering remote controllable mic preamps, AES50 connectivity, and a comprehensive warranty program.

About the Midas DL8 Stage Box
DL8

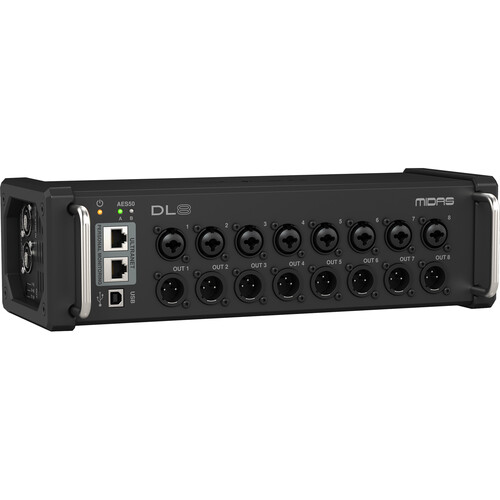

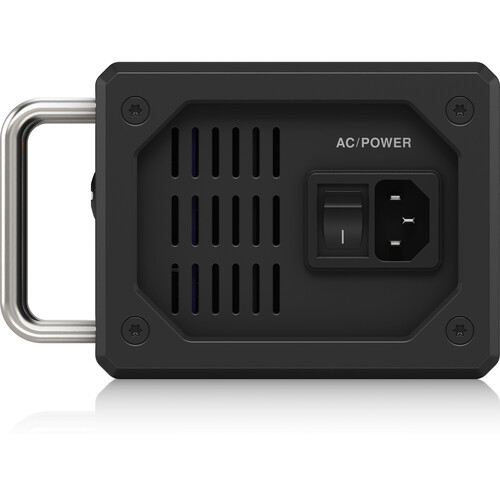

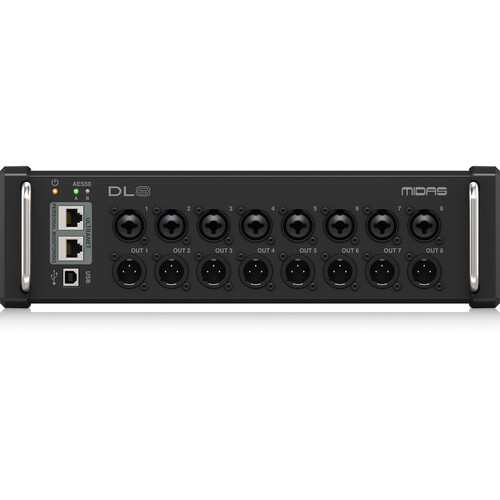

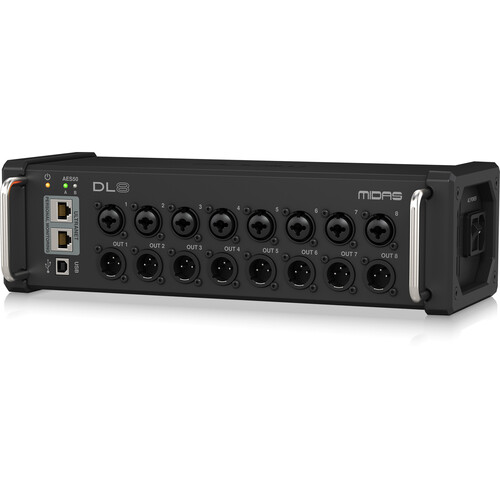

The DL8 Stage Box provides 8 of our award-winning Midas PRO microphone preamplifiers with switchable +48 V phantom power; 8 electronically balanced low impedance line level; integrated ULTRANET distribution hub for connecting to Behringer P16-M personal monitor mixers or Turbosound speaker systems; plus dual AES50 SuperMAC ports for cascading additional StageBoxes.

ULTRANET – Seamless Integration

Engineers at Midas, Klark Teknik, Turbosound and Behringer have come together to create a rock-solid, easy to deploy, lowest-latency, long-distance, multi-channel audio transmission interface. The Ultranet technology has meanwhile proven to seamlessly transmit 16 channels of 24-bit audio over standard CAT5 cable up to 75m length, in hundreds of thousands of applications world-wide — connecting mixers, I/O boxes, powered loudspeakers and personal monitoring systems. Ultranet effectuates a powerful digital eco-system that combines highest reliability, with unparalleled ease of use and flexibility.

Dual AES50 Ports for Massive Connectivity

Connecting over a single shielded (STP) CAT5 cable, up to three DL8s can be daisy-chained to deliver 48 channels in and 48 out to the stage. Klark Teknik’s AES50 simultaneously provides high channel counts, extremely low and deterministic latencies, accurate phase-aligned networked clock distribution, error detection, network redundancy, with simple deployment and ease of use to meet the needs of the live performance industry. This unique combination also benefits both live and studio recording applications, as well as post-production, broadcasting and audio routing infrastructure.

Unparalleled Performance

The DL8 digital stage box is the ideal 8 x 8 signal distribution solution thanks to our legendary remote controllable mic preamps, Klark Teknik’s AES50 connectivity and a wealth of other professional-grade features. Built tough enough to withstand the rigors of the road, the DL8 only takes up two rack spaces and connects to FOH with a single, inexpensive CAT5 cable. Now you can have the missing link between the stage and FOH at a fraction of the cost of competing systems – and we back it up with a comprehensive warranty program.

Visit your local authorised dealer or get yours online today – and find out what the Midas DL8 Stage Box can do for your next performance or studio session.

Processing
A/D-D/A conversion 24-bit @ 44.1 / 48 kHz, 114 dB dynamic range (A-weighted)
Networked I/O latency (stagebox in > console processing* > stagebox out) 1.1 ms
Connectors
Programmable mic preamps, designed by Midas, balanced XLR/TRS combo 8
Line outputs, balanced XLR 8
ULTRANET outputs, RJ45 (power supplied for Behringer P16-M personal mixers) 2

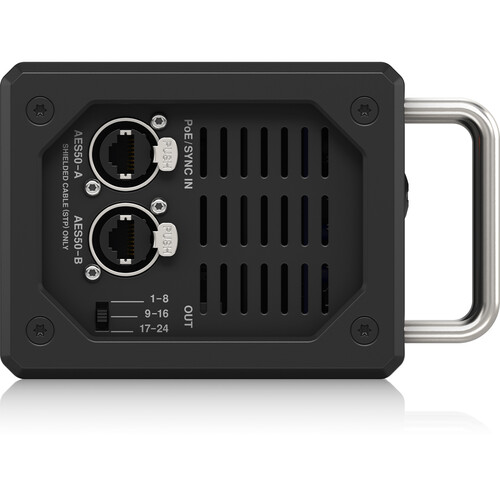

AES50 port, SuperMAC networking, Industry standard RJ-45 2
USB port for system updates, type B 1
Mic Input Characteristics (Midas PRO)
Mic input impedance XLR jack, unbal. / bal. 5 kΩ / 10 kΩ
THD + noise, 20 dB gain, 0 dBu out < 0.006%, unweighted Phantom power, switchable per input +48 V Equivalent input noise level, XLR (input shorted) -125 dBu, unweighted CMRR, XLR, @ 20 dB gain (typical) >75 dB
Input/Output Characteristics
Frequency response @ 48 kHz sample rate 10 Hz – 22 kHz, 0 dB to -1 dB
Dynamic range, analog mic in to analog out (typical) 106 dB, 22 Hz to 22 kHz, unweighted
A/D dynamic range, mic preamp to converter (typical) 109 dB, 22 Hz to 22 kHz, unweighted
D/A dynamic range, converter and output 108 dB, 22 Hz to 22 kHz, unweighted
Crosstalk rejection @ 1 kHz, adjacent channels 100 dB
Non clip maximuminput level, XLR +23 dBu
Line input impedance TRS jack, unbal. / bal. 5 kΩ / 10 kΩ
Non clip maximum input level, TRS +23 dBu
Output Characteristics
Output impedance, XLR, unbal. / bal. 50 Ω / 100 Ω
Output level, XLR, nom. / max. +21 dBu
Residual noise level, XLR -88 dBu, 22 Hz to 22 kHz, unweighted
Digital In/Out
AES50 SuperMAC networking @ 48 or 44.1 kHz, 24-bit PCM 2 x 48 Channels, bidirectional
AES50 SuperMAC cable length, CAT5 shielded** < 80 m recommended ULTRANET networking @ 48 or 44.1 kHz, 22-bit PCM 2 ULTRANET cable length, CAT5 shielded < 75 m ULTRANET phantom power for P16-M personal mixers 2 powered outputs NOTES * Incl. all channel and bus processing, excl. insert effects and line delays ** Klark Teknik NCAT5E-50M recommended 8 award-winning Midas PRO microphone preamplifiers with switchable 48 V phantom power 8 electronically balanced low impedance line level outputs Powered via AES50 PoE from compatible Midas hubs, or from internal switched mode power supply ULTRANET distribution hub for powered connection of 2 personal monitoring mixers Digital audio and control connectivity for Turbosound speaker systems with ULTRANET networking capability Dual AES50 SuperMAC ports for cascading additional stageboxes—no merger or router required Rack ears and protection bumpers included for installed and on-stage applications Remote operation via shielded CAT5e cable up to 330 ft / 100 m length Features industry standard RJ-45 AES50 network ports Rugged chassis for durability in portable applications Auto-ranging universal switch-mode power supply
