MID49 Upper Cage For Canon C70

Overview
PLEASE NOTE: Images are for display purposes only. Canon C70 Camera NOT INCLUDED. Please refer to the included items list for details.

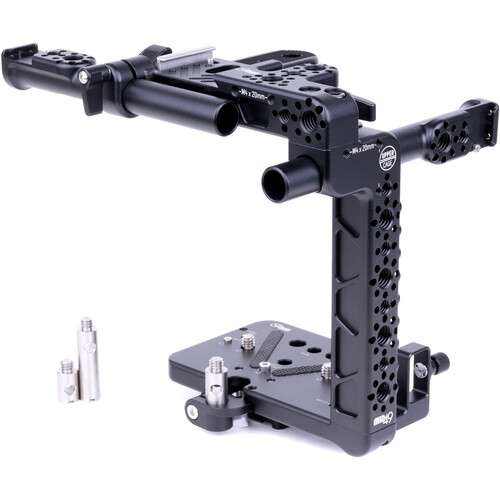

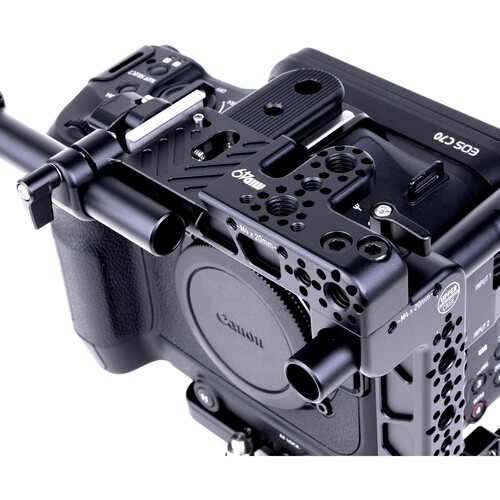

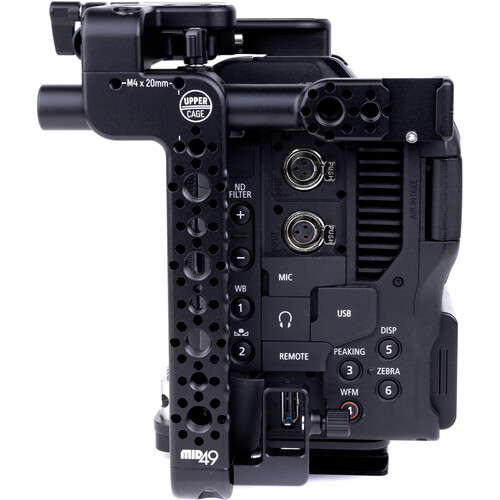

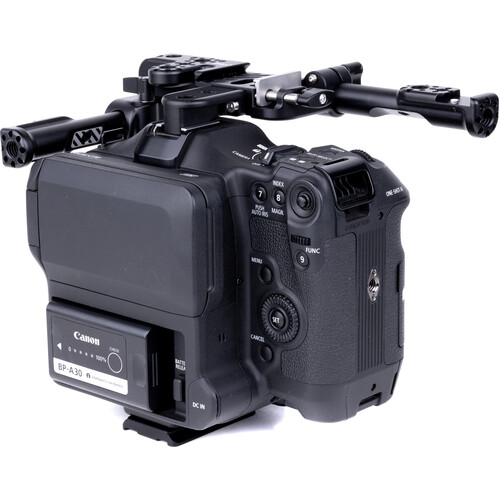

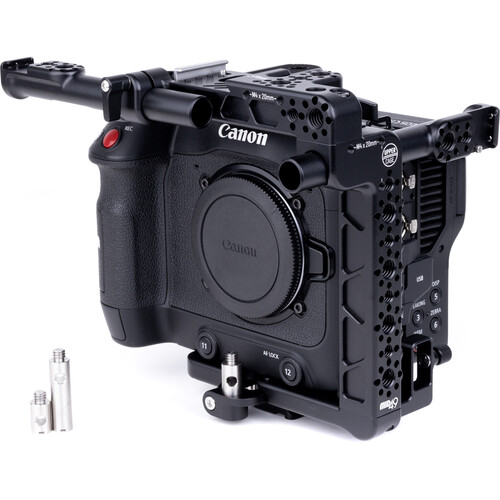

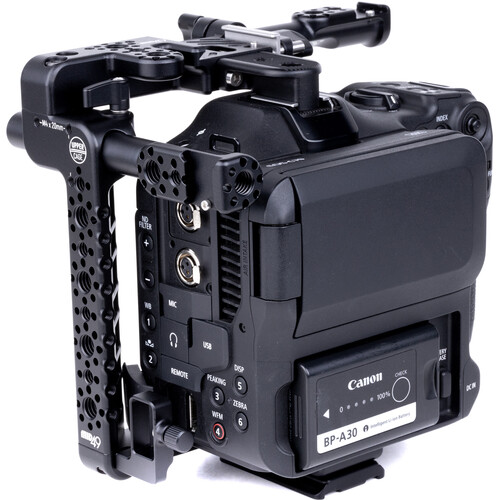

MID49 Upper Cage For Canon C70 is a form-fitting cage with various threaded holes and accessory pins for attaching additional equipment. It includes 15mm accessory rods, a shoe mount, and a special recess for the Audio Breakout AB-4. The cage also features an HDMI protector to secure cables and mounts for third-party lens adapters.

The cage is compatible with ARCA Swiss dovetail accessories such as the ARCA Top Handle or ARCA Top Plate, which are sold separately. Additionally, the Lower ARCA Swiss dovetail can be attached to the Baseline 15mm Baseplate for correct rod placement.

About the MID49 Upper Cage For Canon C70
PLEASE NOTE: Images are for display purposes only. Canon C70 Camera NOT INCLUDED. Please refer to the included items list for details.

Upper Cage for Canon C70 is a form-fitting cage with 1/4-20, 3/8-16 with ARRI accessory pins, and M4x20mm ARRI-spaced threaded holes in several places.

Included 15mm accessory rods provide threaded holes, a shoe mount, and special recess for the Audio Breakout AB-4 (Canon C70) which is available as an add-on, and converts the camera’s two mini XLRs to standard, full-size XLRs.

HDMI protector clamps cables securely, and front lens support mount attaches to 3rd party lens adapters like Metabones, etc.

Top ARCA Swiss dovetail slot accepts products like the ARCA Top Handle or ARCA Top Plate which are sold separately.

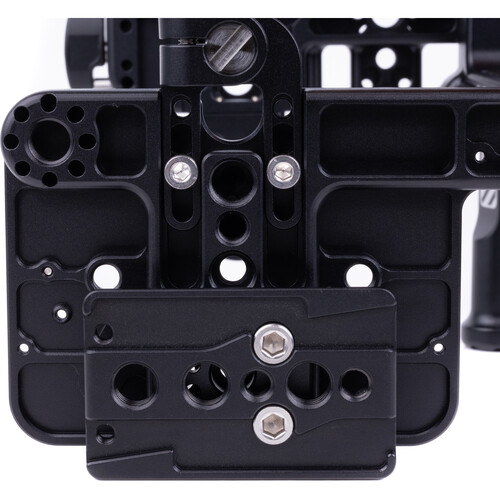

Lower ARCA Swiss dovetail attaches to the Baseline 15mm Baseplate to provide rods at the correct lens height and is also available separately.

Please find the installation video guide here.

Product Weight 15.5oz (438g)
Product Dimensions (WxLxH) 5.2 x 7.2 x 6.4n (438 x 132x 162mm)
