MID49 Mid Kit For Canon C70

Overview

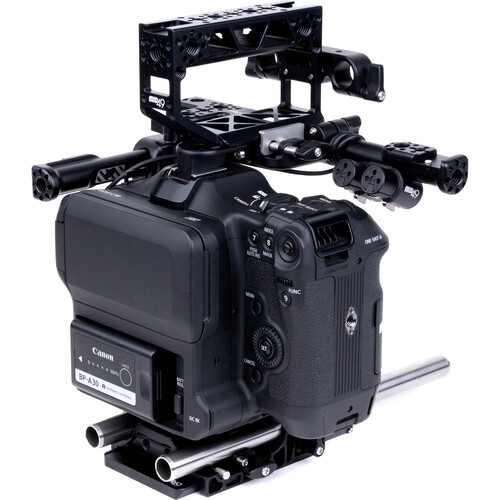

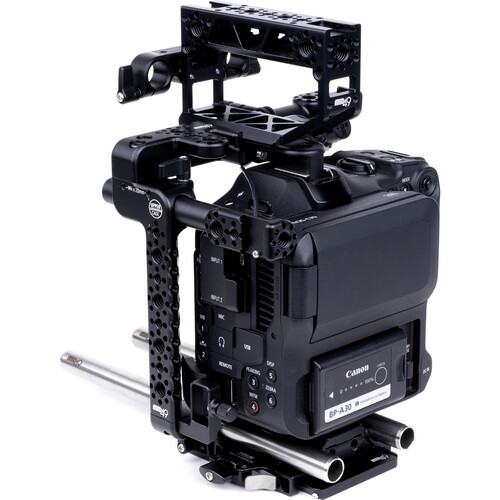

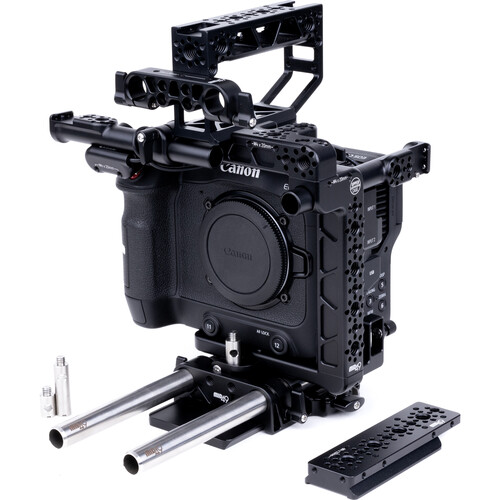

PLEASE NOTE: Images are for display purposes only. Canon C70 Camera NOT INCLUDED. Please refer to the included items list for details.

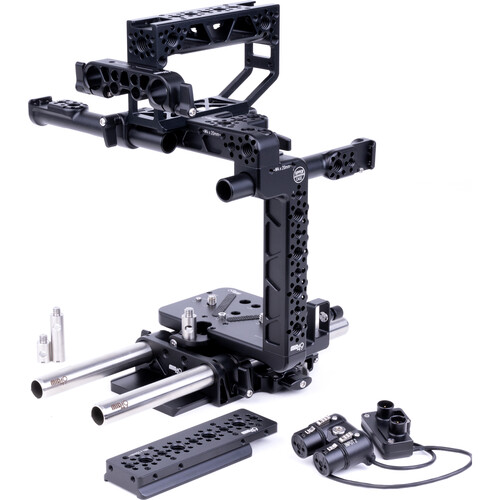

Mid Kit for Canon C70 is an accessory kit that includes an Upper Cage with various threaded holes, shoe mounts, and rod clamps. It also comes with ARCA Swiss dovetail slot, 15mm accessory rods, Lower ARCA Swiss dovetail, ARCA Top Handle, ARCA Top Plate, Rod Bracket, and Audio Breakout AB-4 for adapting mini XLRs to full-size XLRs.

The kit also includes Baseline 15mm LW (Core) baseplate, Baseline ARRI Dovetail, and 2x 15mm stainless steel rods. The installation video guide is available for reference, making it easier to set up and use the kit with Canon C70 and third-party lens adapters like Metabones.

Included in box
1 x Upper Cage for Canon C70
1 x Baseline 15mm LW (Core)
1 x Baseline ARRI Dovetail
1 x ARCA Top Handle
1 x ARCA Top Plate (114mm)
1 x Rod Bracket (15mm LW)
1 x Audio Breakout AB-4 (Canon C70)
2 x 15mm 9 inch stainless steel rods

About the MID49 Mid Kit For Canon C70
PLEASE NOTE: Images are for display purposes only. Canon C70 Camera NOT INCLUDED. Please refer to the included items list for details.

Mid Kit for Canon C70 is an accessory kit that includes:

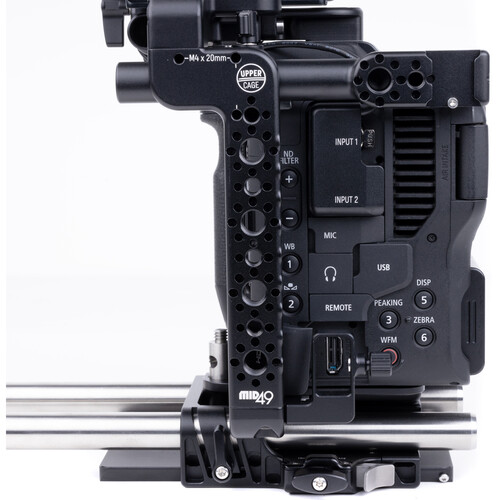

Upper Cage for Canon C70
Form fitting cage with 1/4-20, 3/8-16, and M4x20mm threaded holes in several places along with shoe mounts and 15mm rod clamps. ARCA Swiss dovetail slot on top accepts included ARCA Top Handle and Top Plate. Two included 15mm accessory rods provide additional mounting for included AB-4 XLR adapter. Lower ARCA Swiss dovetail attaches to included baseplate and lens support adapter attaches to 3rd party lens adapters like Metabones, etc. Please find the installation video guide here.

Baseline 15mm LW (Core)
Quick-release 15mm LW baseplate with ARCA Swiss camera dovetail interface on top and ARRI standard dovetail interface on the bottom.

Baseline ARRI Dovetail
Baseline ARRI Dovetail is the lower ARRI mounting plate that interfaces with the Baseline Core.

ARCA Top Handle
Sliding camera handle that has 1/4-20, 3/8-16 with ARRI locating pins, and M4x20mm threaded holes plus two hot shoe mounts.

ARCA Top Plate (114mm)
Sliding top plate that has 1/4-20, 3/8-16 with ARRI locating pins, and M4x20mm threaded holes. 114mm dovetail length.

Rod Bracket (15mm LW)
Attaches to the Top Handle or Top Plate to provide 15mm LW rod support.

Audio Breakout AB-4 (Canon C70)
Adapts the camera’s two mini XLRs to standard, full-size XLRs.

2x 15mm 9 inch stainless steel rods are included in the Mid Kit.

Product Weight 42.0oz (1192g)
Product Dimensions (WxLxH) 9.0 x 7.2 x 10.26in (228 x 183 x 261mm)
