MID49 Audio Breakout AB-4

Overview

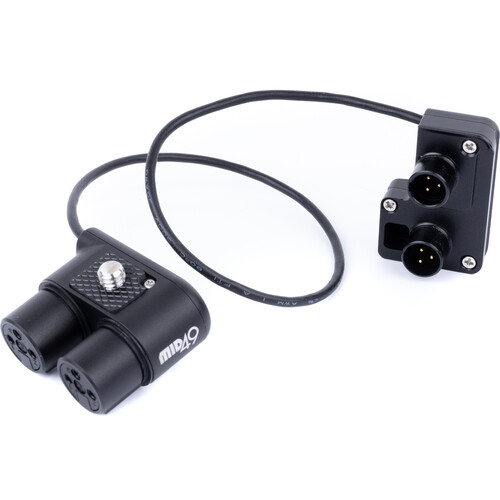

MID49 Audio Breakout AB-4 is a passive adapter designed for Canon C80 and C70 cameras. It converts the cameras two mini XLRs to two standard, full-size XLRs. The adapter attaches to the camera body or side plates using a captive 1/4-20 screw and rubber pad. Additionally, it has two M4 threaded holes in 20mm ARRI spacing for adding a Breakout Box Side Mounting Bracket (sold separately) for more secure attachment using a 3/8-16 screw with ARRI locating pins. The cable length is 12 inches (30.5cm) with a custom low profile right angle mini XLR connector.

Included in box
1 x MID49 Audio Breakout AB-4

About the MID49 Audio Breakout AB-4
Audio Breakout AB-4 (Canon C80, C70) is a passive adapter that converts the camera’s two mini XLRs to two standard, full-size XLRs.

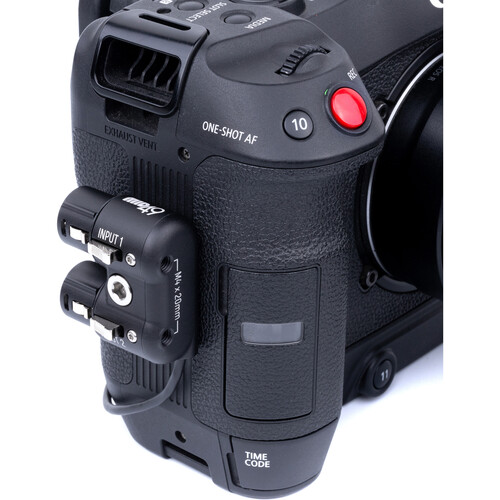

Attaches by a captive 1/4-20 screw and rubber pad to the camera body or side plates.

Two M4 threaded holes in 20mm ARRI spacing are available to add Breakout Box Side Mounting Bracket (ARRI 3/8-16) (sold separately), which allows AB-4 to attach using a 3/8-16 screw with ARRI locating pins.

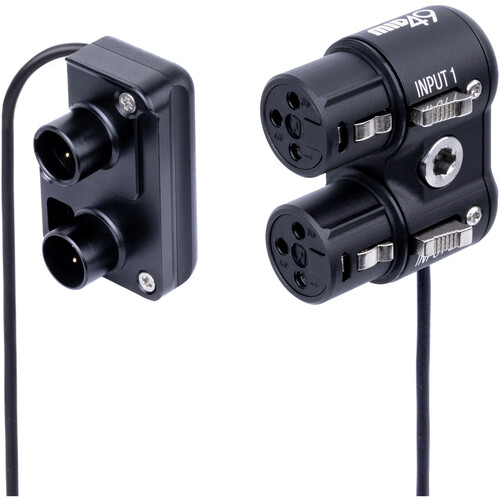

12 inch (30.5cm) cable length with custom low profile right angle mini XLR connector.

Product Weight 2.00oz (56g)
Product Dimensions (WxLxH) 1.36 x 14.25 x 1.09in (35 x 362 x 28mm)
