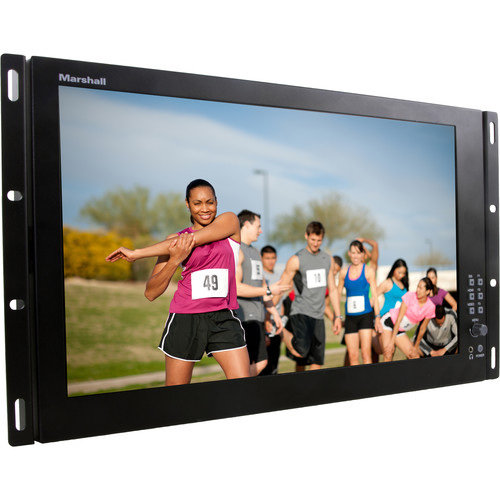

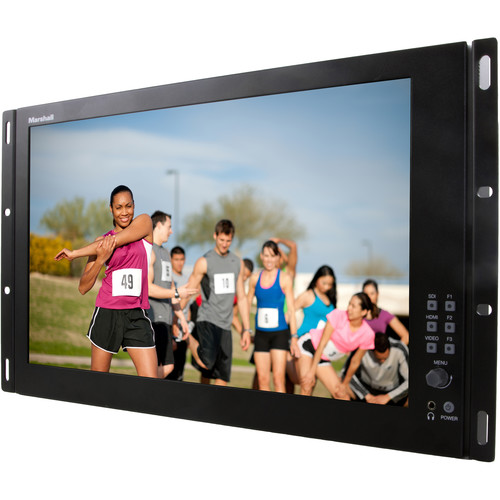

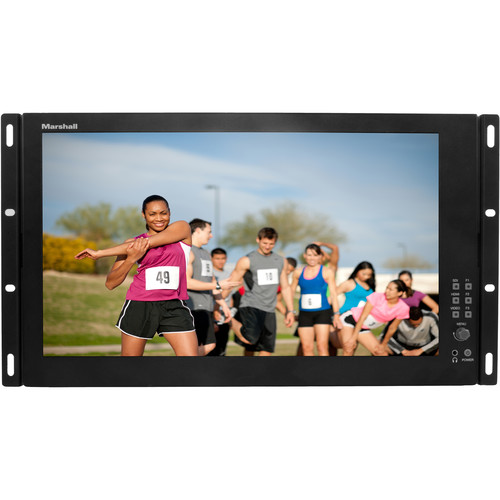

Marshall V-LCD173HR 17.3inch LCD Rack Mount Monitor

£1,192.13 Ex VAT

V-LCD173HR

Overview
The Marshall V-LCD173HR is a 17.3-inch production monitor that is compliant with the Rec 709 standard. It features LED tally lights and offers HDMI/HDSDI inputs and outputs with the ability to convert between the two. The monitor also has a variety of broadcast and production adjustment settings, including markers, brightness, contrast, aspect ratio, peaking, false color, exposure, and histogram. It can be mounted on a rack or desktop and has BNC connectors, a headphone jack, and the ability to monitor two audio channels.

With a native resolution of 1920×1080, the Marshall V-LCD173HR is a professional and versatile option for any production setting. Its convenient features and affordable price make it a great value for professionals in the industry. Additionally, the monitor has the capability to flip images and comes with rack ears or VESA mount options for added flexibility.

Summary
Screen Size: 17 Inch
Resolution: 1920 x 1080
Inputs: CVBS
Outputs: SDI
Recording: No
Included in box
1x Marshall Electronics V-LCD173HR LCD 17.3inch Rack Mount Monitor

About the Marshall V-LCD173HR 17.3inch LCD Rack Mount Monitor
The Marshall V-LCD173HR 17.3-inch native resolution (1920×1080) production monitor comes with a range of professional adjustment settings and convenient HDMI/HDSDI inputs and outputs. The Marshall V-LCD173HR comes with built-in histogram, peaking, false colour, exposure, adjustable safety markers, and more, and can monitor up to two audio channels as well.

The V-LCD173HR offers unprecedented value for the price and has a versatile 6RU frame that can be rack mounted or used on a desktop. The V-LCD173HR can also convert between HDMI and SDI signals.

Panel
Number of Panels 1
Panel Size 17” Diagonal
Resolution 1920 x RGB x 1080
Aspect Ratio 16:09
Active Area 381.888 x 214.812 mm
Type LCD Panel
Brightness 350 cd/m²
Contrast 700:1
Colour Gamut YUV, RGB
Viewing Angles (CR>=10) 178°
Backlight type LED
Adjustable Backlight Yes
Features
Video Formats 1080p/1080i/720p/625i/525i
Colour Temperature D65, D55 and D93
H/V Delay Yes
Under scan Yes
Tally Yes
False Colour Yes
Peaking Filter No
Pixel to Pixel Yes
Number 1
Re-clocked/Re-Shaped YES
Video Input Connectors
CVBS Yes
SD-SDI Yes
HD-SDI Yes
3GSDI Yes
HDMI Yes
Video Output Connectors
SD-SDI Yes
HD-SDI Yes
3G-SDI Yes
HDMI Yes
Control Inputs
Tally / GPI Tally
Mechanical
Controls on front Panel Yes
User-Defined Function Buttons Yes
RotoMenu™ Control No
Pivot Angle Yes
Power
Voltage 12 VDC
Consumption 3.5 AMP@ 12VDC (32W Max)
Power Switch Yes
Connector 4-Pin XLR
Compliance
Compliance CE approved FCC
Environmental
Operating Temperature (C°) 32°F to 104°F
Storage Temperature (C°) -4°F to120°F
Rack Unit dimensions 17.15”W x 10.45”H x 2.00” D
Weight (Main Body) 8.75 lbs
Vesa Mount Pattern 100+ 75mm

Rec 709 compliant
LED Tally lights
HDMI/HDSDI inputs and outputs with conversion ability
Range of broadcast and production adjustment settings including markers, brightness, contrast, aspect ratio, peaking, false color, exposure, histogram, and more
Rack ears or VESA mount options
BNC connectors
Two-channel audio monitoring
Image flip ability
Headphone jack

Brand

Marshall Electronics
