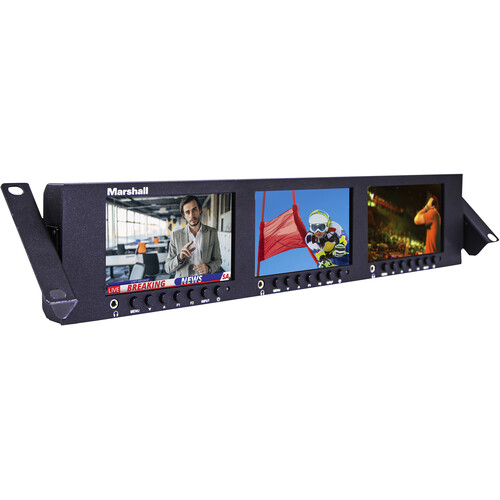

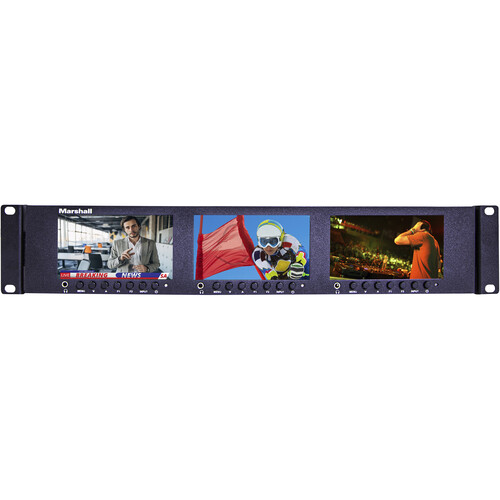

Marshall ML-503 Triple Rackmountable Monitor

Overview
The Marshall ML-503 triple 5″ Screens LCD Display offers great value with its three screens, high-quality picture, and affordable price. Its wide aspect ratio of 5-inch diagonal by 3 makes it a perfect fit for flypacks, control rooms, and news vans. The front panel controls provide easy access to all functions, while the three color on-screen tally lights (Red, Green, Yellow) give instant feedback to the operator. With multiple inputs, including 3GSDI, HDMI, and loop-through connections, this display offers flexibility in system designs. It also features safe area and center markers, two user short-cut function buttons, and a tilting mount for optimum viewing and back panel access. Plus, the headphone jack allows for monitoring of embedded stereo audio, and firmware updates can be easily done via the USB port and thumb drive.

The Marshall ML-503 is not your average LCD display. Its triple full HD screens provide excellent color rendition and stability, while the adjustable back light compensates for different viewing environments. The on-screen 3 color tallies are easily visible and provide quick process control feedback. The display also has great off-axis performance, allowing for flexible positioning in any physical location. With standard power and tally connections, as well as a user-friendly menu structure, the ML-503 is a top choice for various video system applications. Choose the Marshall ML-503 for a feature-packed, affordable solution that will meet all your display needs.

Summary
Screen Size: 5 Inch
Resolution: 1920 x 1080
Aspect Ratio: 16:9
Inputs: 3G-SDI
Outputs:
HDMI
SDI

About the Marshall ML-503 Triple Rackmountable Monitor
The Marshall ML-503 triple 5″ Screens LCD Display is a feature-packed, economical solution perfect for fly-packs, control rooms, routing rooms and countless other video system applications. Looping video inputs set this product apart from similar-looking products. With the ML-503, you are not limited to the single SDI connector you may find on competitor models. Standard power and tally connections as well as a logical menu structure make this display an easy choice for flexible system designs.

Triple Full HD Screens

Three High-Definition screens with excellent color rendition and stability. Adjustable back light compensates for different viewing environments.

On-Screen 3 Colour Tallies

Easily visible border tallies provide instantaneous process control feedback to the operator

Great Off-Axis Performance

Excellent angle of viewing allows the user to position the rack in any number of physical locations.

Number of Panels 3
Panel Size Dual 5-inch Diagonal, 2RU high
Resolution (Pixels) 1920 x 1080
Aspect Ratio 16:9
Viewing Angle 170° / 170° (H/V)
Brightness (in cd/m2) 460
Contrast Ratio 1100:1
Compatible Input Formats
SDI / HDSI / 3G SDI: 1080p 50/59.94/60
1080p 29.97/25/24/23.98
1080PsF 24/23.98
1080i/ 50/59.94/60
720p 50/59.94/60
576i 50, 480i 59.94
HDMI: 1080p 50/59.94/60
1080p 29.97/25/24/23.98
1080i 50/59.94/60
720p 50/59.94
576i 50, 480i 59.94
Video Inputs 3GSDI with non-reclocking loop-through & HDMI with loop-through (Per Panel)
Audio Outputs De-Embedded from SDI, HDMI X3
Power Input 12 Volts DC less than 1.5 Amp typical
Dual Type: 5.5mm coaxial and 3-pin XLR
Dimensions 19″ W x 3.5″ H x 1.2″ D
482.6mm W x 88.9mm H x 30.48mm D
Weight 5.2 lbs (2.32 Kg)
Rack Ears Included, Adjustable Tilt

Three screens, great picture, great price
Wide aspect, 5-inch diagonal x 3
Perfect for flypacks, control rooms, news vans
Front panel controls give access to all functions
Three color on-screen tally lights (Red, Green, Yellow)
Multiple inputs, all with loop-through connections: 3GSDI (HDSDI, SDI), HDMI
Safe area and center markers
Two user short-cut function buttons

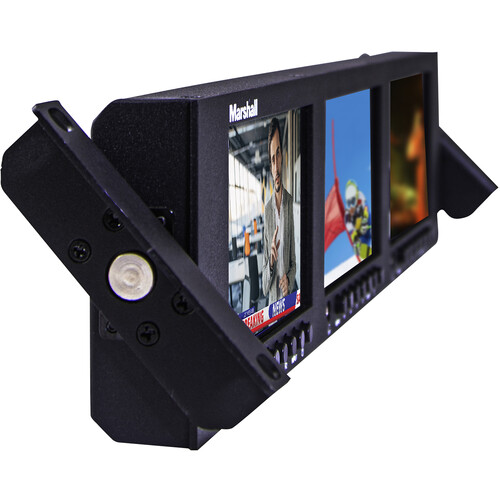

Tilting mount. Adjust for optimum viewing and back panel access
Headphone jack to monitor embedded stereo audio
Firmware update via USB port and thumb drive
