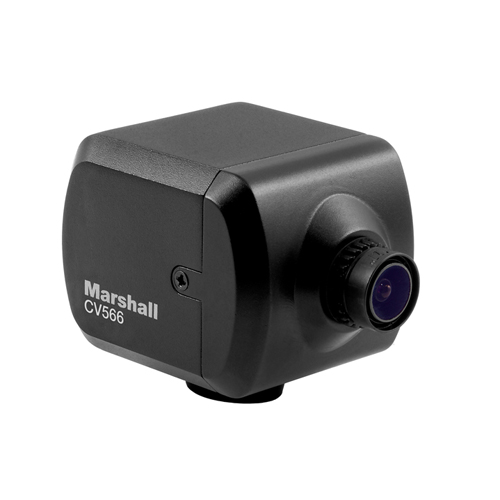

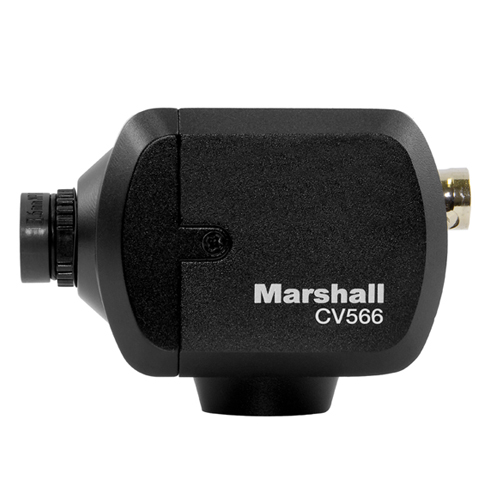

Marshall CV566 Mini Broadcast Camera

Overview
The Marshall Micro CV566 Genlock Camera is a high-performance camera with a durable body and interchangeable lens mount. It offers simultaneous outputs in 3GSDI and HDMI with a Tri-Level Genlock Sync for seamless switching. It supports full-HD resolutions and a wide range of framerates, and can be remotely adjusted and controlled. It also has a micro-USB port for firmware upgrades and a locking Hirose cable for various connections.

Built around a next generation Sony sensor, the CV566 delivers exceptional video performance in a micro-size body. It offers a variety of HD resolutions and framerates, making it suitable for a range of applications. With its durable design and broadcast performance, this camera provides reliable and high-quality footage at an affordable price.

Summary
Resolution and Frame Rate: 1920×1080
Weight: 0-2kg
Included in box
CV566 camera with 3.6mm lens (interchangeable)
Camera Breakout Cable (Power/RS485/Audio)
12V Power Supply

About the Marshall CV566 Mini Broadcast Camera
The Marshall Micro CV566 Genlock Camera is built around a next generation Sony 1/2.8″ solid-state sensor with 2.2 Megapixels and Tri-Level (Genlock) Sync feature. CV566 delivers exceptional video performance from a micro-size body through 3GSDI & HDMI with true-colour even in low-light (0.01Lux). Choose HD resolutions up to 1920x1080p (progressive), 1280x720p (progressive) & 1920x1080i (interlaced) with a wide selection of framerates including 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60fps serving a variety of applications.

Sony 1/2.8″ (6.46mm) CMOS Solid-Sate Image Sensors

The next generation Sony Exmor sensors provide clear HD images with true color even in low-light (0.01Lux) and ability to switch to night mode (0.005Lux) where IR light wavelengths can be captured.

Genlock Tri-Level Sync Feature

Tri-level sync runs at higher frequency which allows multiple cameras to be plugged into HD workflows already in sync (genlock) with much less latency when switched and more seamless transitions.

Durable, Flexible, Powerful, Performance

The durable CV500-series cameras are chiseled from one block of aluminium alloy with rear panel protection, which enable them to be used in rough environments and continue to produce clean reliable signals.

Broadcast Performance

Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter.

Full-HD Resolutions 1920x1080p, 1280x720p and 1920x1080i
Framerates Supported 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps

2.2 Megapixel (1/2.8″) 16:9 HD
Durable Body with interchangeable M12 lens mount (sold with 3.6mm)
3GSDI (SMPTE 292M & 424M) + HDMI simultaneous outputs
Tri-Level Genlock Sync for faster more seamless switching via 3GSDI
Full-HD Resolutions: 1920x1080p, 1280x720p and 1920x1080i
Framerates Supported: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
Remote adjust & match via Camera Control Software, CV-RCP-V2 (CCU) or 3rd party sources
Micro-USB port for firmware upgrades in the field (downloadable from website)
Locking Hirose Cable: Genlock (I/O), RS485 control, Audio (stereo) and 12V Power
Includes 12v power supply, can operate 12V+/-10% with a 6 watt draw
