Manfrotto 504X Twin Fast with FREE XPRO Monopod

Overview
504X Fluid Video Head is a compact and light head with a maximum payload of up to 12 kg. It features 4 steps CBS, independent brakes on TILT and PAN axes, and a bubble level for smooth and reliable footage every time.

The Alu Fast Twin Tripod features a FAST Lever Lock for robust support, a 100mm half ball with a 75mm half ball adapter, and spiked feet with rubber overshoes for a firm grip. The XPRO Monopod is a compact video monopod with a FLUIDTECH base for smooth movement in all directions and versatile screws for video heads and cameras.

Summary
Tripod Head Type: Fluid Head
Max Payload: 10-15kg
Leg Section: 2 Section
Spreader Type: Mid-Level
Head Fitting: 75mm
Material: Aluminium
Included in box
1x 504X Video Head
1x Levelling ball
1x 645 Fast Twin Alu Tripod
1x Middle spreader
1x Bag
1x FREE XPRO Video Monopod

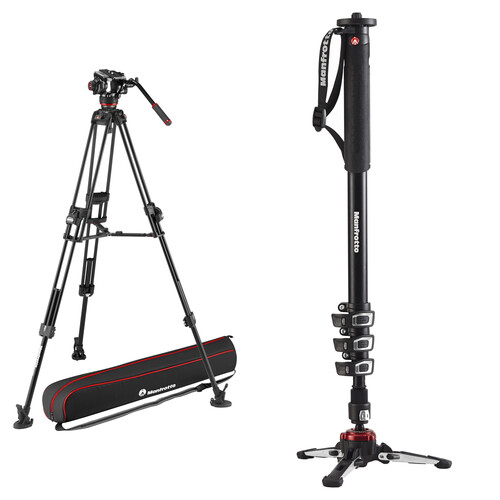

About the Manfrotto 504X Twin Fast with FREE XPRO Monopod
Bundle consist of a Manfrotto 504X kit with Twin Alu Fast Tripod and aXPRO Fluid Video Monopod!

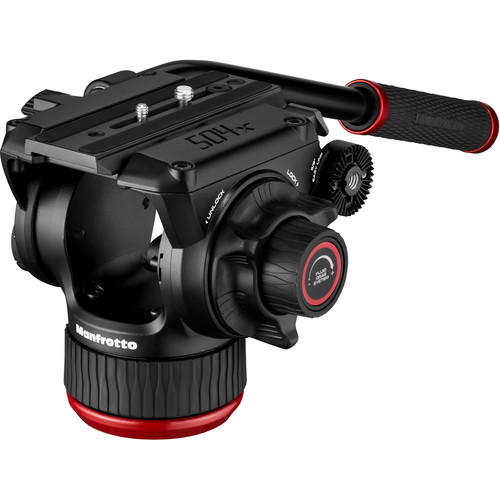

504X Fluid Head

Capturing smooth reliable footage every time is essential for any filmmaker, the new Manfrotto 504X head will give you unrivalled stability and smoothness time after time. 504X fluid video head is the evolution of the successful 504HD. This is the more compact and lighter version that finally comes with flat base, developed to satisfy videographers’ needs.

New eye catching design with flat base

Perfect balance of design and performance for optimum balance of strength and size. The flat base ensures versatility.

4 steps CBS and fluidity on both PAN & TILT powered by new fluid technology

4 steps counterbalance system up to 6,5 kg/14,3 lb at 55 mm/2,2 in C.O.G ensures quick set up and optimal performance. Extremely smooth movements are guaranteed by the fluidity function on PAN & TILT.

Great payload

The head has a maximum payload up to 12 kg / 26,5 lb.

Size and portability

More compact and lighter the never with feature an alluminum design ensuring it will last you a life time.

New easy link connectors

Comes with Manfrotto anti rotation technology and ARRI pin. The pan bar attachments on both left and right sides of the head give maximum flexibility. On the left side a cap, that cover 3/8” easy link connector, to avoid cutting during the use.

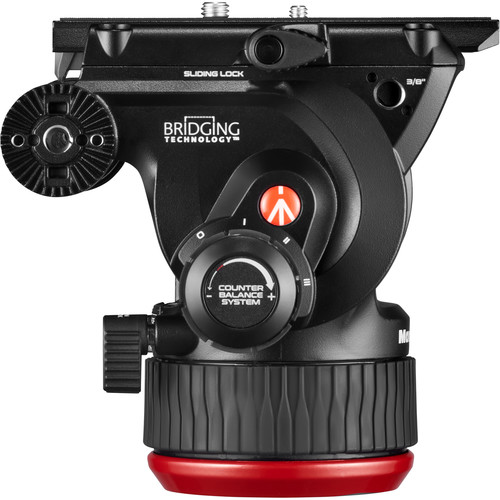

4 steps CBS

The head offers unrivalled stability and allows smooth shooting thanks to 4-steps counterbalance System up to 6,5 kg/14,3 lbat 55 mm/2,2 in C.O.G. STEP 0: off STEP 1: 2,2 kg / 4,8 lb STEP 2: 4,4 kg / 9,7 lb STEP 3: 6,5 kg / 14,3 lb

Flat base

to have more options for shooting on sliders, jibs or other accessories.

Sliding quick release plate

Sliding plate attachment side-lock mechanism allows safe, quick and easy camera attachment, keeping video equipment stability and balance.

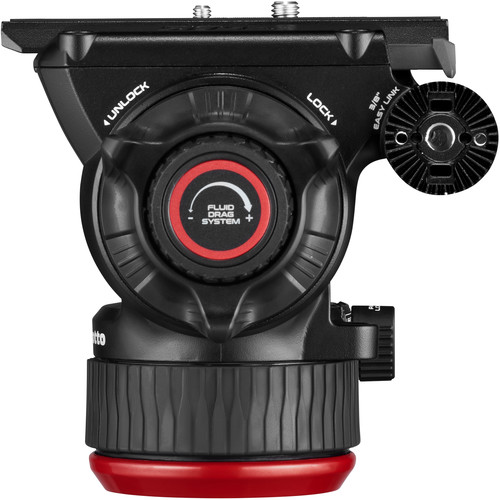

New fluid technology

The variable continuous fluid drag system is powered by a new fluid technology, which sets a new level of performance in the Manfrotto range, boosting the smoothest and judder-free pan and tilt movements.

Brakes

Independent brakes on TILT and PAN axes. The 504X increases the capability of keeping the heavy equipment safe, stable and in position.

Bubble level

The back bubble level lets you level the heads even in low light conditions.

Alu Fast Twin Tripod

The 645 FTT Fast Twin Alu Tripod features a double tubing and Ultra L-Lock lever technology for the most robust support ever. It also features a middle spreader lock – however, the 3-angle selectors make the use of a spreader a matter of optional preference.

This range was developed with the primary objective of making video shooting easier by reducing set up times and maintenance. The synchronized closure mechanisms between the upper and lower locks, enable videographers to control the entire leg with a single lock and get to work in record time. The new tripod provides maximum versatility, supporting the use of a broad choice of heads, and ensuring the utmost rigidity while also being extremely lightweight.

Moreover, it is compatible with the 2 in 1 ground and middle telescopic spreader (which is sold as an optional accessory) and it features a 3-angle selection mechanism for easy set up. It is equipped with spiked feet with rubber overshoes for a firm grip and adaptability to the most diverse shooting locations.

XPRO Monopod

The new XPRO Monopod Aluminium 4-section is a new professional full fluid video monopod made to satisfy videographers who need a highly portable, high-performance solution they can easily carry when they are travelling . The MVMXPROA4 it is the most compact Manfrotto aluminium video monopod in the new range to mount the full fluid base (MVMXPROBASE) with the latest FLUIDTECH technology. Manfrotto’s FLUIDTECH video base enables the ultimate shooting smoothness on pan, tilt and swivel for an expanded range of perspectives . The three retractable feet make it extremely portable when folded and allow the monopod to be easily carried everywher.

Despite its high portability, MVMXPROA5 features best-in-class technical capability developed for professional users who want to create amazing video footage. The new D-shaped aluminium tubes greatly improve anti-rotation resistance throughout the monopod, following the videographer’s rapid rotation movements. Combined with the Quick Power Lock (QPL) which strongly locks the lever onto the monopod tube’s flat side, this eliminates unwanted jerky movements.

Thanks to the newly designed leg warmer which provides exceptional grip and the dual 1/4” – 3/8” camera fixing screw, this new generation of monopods is handier, faster and more versatile out in the field.

504X Twin
Weight 6.2 kg
Safety Payload 12 kg
Counterbalance System Variable Steps
Counterbalance Weight 2.2, 4.4, 6.5 kg
Maximum Height 173 cm
Min Height 43.5 cm
Base Diameter 75 mm
Bubble Spirit Level (No.) 1
Center of gravity 55 mm
Carrying Bag Included yes
Center Column no centre column
Closed Length 89.5 cm
Colour Black
Top Attachment 1/4″ screw, 3/8″ screw
Ball Flat Flat
Powered by (batteries) Lithium
Easy Link Yes (with antirotation)
Front Tilt -70° / +90°
Head Type Video/Fluid Head
Leg Type Twin
Leg Angles 20°, 50°, 70°
Leg Lock Type Flip Lock
Material Aluminium
Maximum Working Temperature 60 °C
Minimum Working Temperature -30 °C
Pan Bar Included Yes
Pan Drag continuously adjustable from 0 to max level
Panoramic Rotation 360 °
Plate Type 504PLONGR-1
Quick Release Yes
Spreader mid level – variable arm length
Tilt Drag continuously adjustable from 0 to max level
XPRO Monopod
Weight 1.2 kg
Maximum Height 192 cm
Closed Length 68 cm
Leg Sections 4
Safety Payload 18 kg
Material Aluminium
Upper Disc Diameter 60 mm
Colour Black
Min Height 68 cm
Easy Link No
Fluid Base Yes
Top Attachment 1/4″ screw, 3/8″ screw
Front Tilt -19° +19°
Head Type Video/Fluid Head
Leg Type Single
Leg Lock Type Flip Lock
Legs Tube Diameter 19, 22.5, 26, 30 mm
Maximum Working Temperature 60 °C
Minimum Working Temperature -20 °C
Pan Bar Included No
Panoramic Rotation 360 °
Plate Type fixed – with 1/4-20″ and 3/8″ screws
Quick Release No
Tilt Drag NONE

504X Fluid Video Head

Compact and light
New eye catching design with flat base
4 steps CBS and fluidity on both PAN & TILT
Maximum payload up to 12 kg / 26,5 lb.
Manfrotto anti rotation technology and ARRI pin.
4 steps CBS
Sliding plate attachment side-lock mechanism
Independent brakes on TILT and PAN axes.
Bubble level

Alu Fast Twin Tripod

FAST Lever Lock: for the most robust support ever
100mm half ball with a 75mm half ball adapter
Features a 3-angle selection mechanism for easy set up
Equipped with spiked feet with rubber overshoes for a firm grip
2 in 1 spreader boosts tripod stability (Item sold separately)

XPRO Monopod

Compact video monopod dedicated to travellers
FLUIDTECH base for smooth movement in all directions
Quick power lock reliably secures & ensures super-fast set up
Newly designed rubber leg warmer for fast & secure movement
Versatile 3/8’’ and 1/4” screws for video heads and cameras
