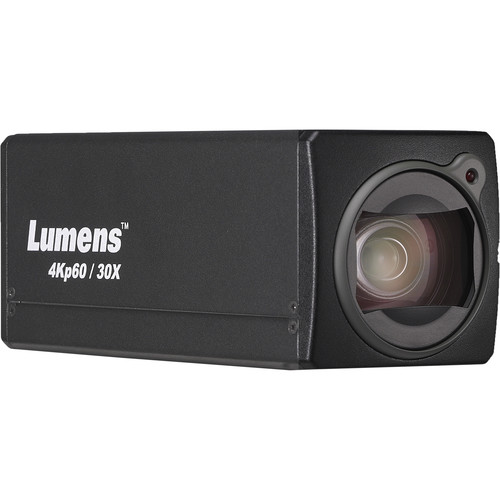

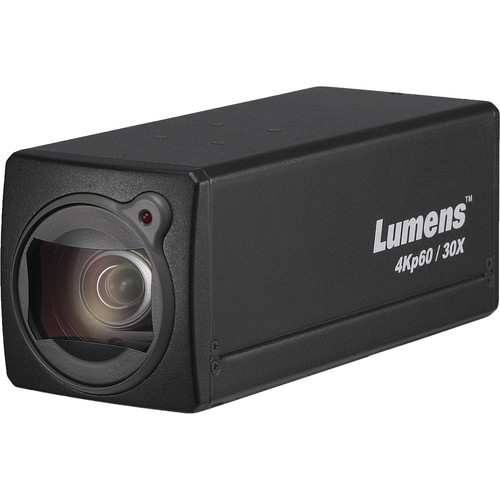

Lumens VC-BC701PB Box Camera

Overview
The Lumens VC-BC701P is a powerful 4K(3840×2160) 60fps and 30x optical zoom block camera. It boasts HDMI 2.0 and Ethernet output, making it compact and versatile for a wide range of applications including house of worship, education, sports production, broadcast television, and live streaming. With support for triple stream and PoE, this camera is a cost-effective and easy to install solution.

The VC-BC701P offers stunning UHD 4K image quality thanks to its professional 1/2.5 inch image sensor. This sensor provides high colour reproduction and crystal-clear images, making it perfect for a variety of professional audio-visual applications. Additionally, the camera features multiple interfaces such as Ethernet and HDMI for seamless image outputs, and supports PoE for convenient and hassle-free installation.

Summary
Focal Length: 4.6-135mm
Max Aperture: f/3.4
Audio Inputs: 1 x 3.5mm Mic Input
Lens Zoom: 30x Optical Zoom
Resolution and Frame Rate: 4K
Sensor: CMOS
Video Outputs: 1x HDMI
Weight: 0-2kg
Included in box
1x Lumens VC-BC701PB Box Camera

About the Lumens VC-BC701PB Box Camera
Lumens VC-BC701P is a 4K(3840×2160) 60fps and 30x optical zoom High Definition block camera. The VC-BC701P contains HDMI 2.0 and Ethernet output in a compact design and support triple stream and PoE, which is ideal for house of worship, education, sports production, broadcast television, news/weather-casts, corporate video, courtroom capture, live streaming, and a variety of ProAV applications

UHD 4K HIGH IMAGE QUALITY
The VC-BC701P is equipped with a professional 1/2.5 inch image sensor with UHD 4K output resolution. The sensor provides high colour reproduction, high-definition signals, and crystal-clear image quality.

MULTIPLE SIGNAL INTERFACE
The VC-BC701P has multiple interfaces like Ethernet and HDMI for image outputs.

SUPPORTS POE FOR EASY INSTALLATION
Power supplied through the PoE (Power over Ethernet) without additional power supply and cables that bring cost-effective and simple installation.

Sensor 1/2.5″ 8MP CMOS
Video Format Resultion : 4K/1080p/720p
Frame Rate : 59.94/50/29.97/25
Video Output (HD) Interface HDMI 2.0,Ethernet
Optical Zoom 30x
Horizontal Viewing Angle 68°
Aperture F1.6 ~ F3.4
Focal Length 4.6mm ~ 135mm
Shutter Speed 1/1 ~ 1/10,000 sec
Minimum Object Distance 1.5m (Wide/Tele)
Video S/N Ratio > 50dB
Minimum Illumination 0.1 lux (F1.6, 50IRE, 30fps)
Focus System Auto, Manual
Gain Control Auto, manual
White Balance Auto, manual
Exposure Control Auto, manual
WDR Yes
3D NR Yes
Image Flip Yes
Preset Positions 256
Multiple Video Stream H.265 4K 59.94fps
H.264 1080p 59.94fps
H.264 640×360 29.97fps
Audio Compression Format G.711 / AAC
Camera Control Interface RS-232 / Ethernet
Camera Control Protocol VISCA / PELCO D / ONVIF
Tally Light Yes
PoE PoE (IEEE802.3af)
Video Stream RTSP / RTMP / MPEG-TS
Video Compression H.265 / H.264

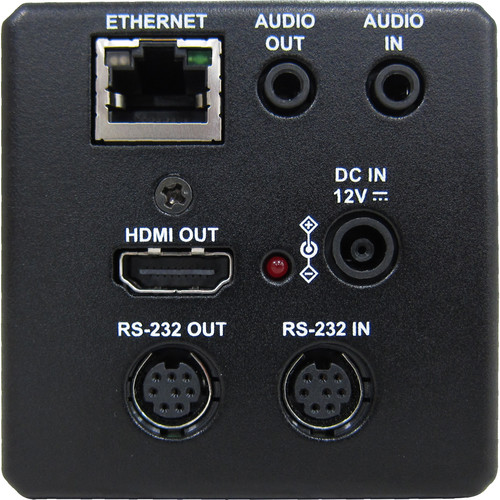

Audio in Line In/Mic In, Phone Jack 3.5mm x1
Audio Out Line Out, Phone Jack 3.5mm x1
Ethernet / HDMI
DC In 12V +/- 20%
Power Consumption Power On : 8.8W
Standby : 2.4W
Weight 1 kg
Dimension 170 x 67 x 67 mm

4K 60fps UHD
30x Optical Zoom, 68 degrees Horizontal Viewing Angle
HDMI and Ethernet video outputs
Triple stream video, support H.265 / H.264 format
Support RTSP / RTMP / MPEG-TS streaming protocol
Supports PoE (Power over Ethernet)
Support Line/MIC Audio Input
