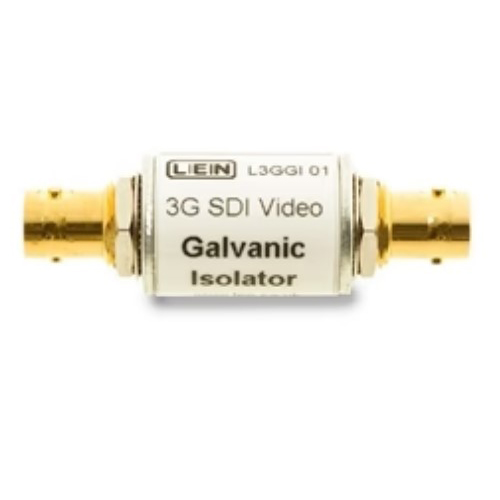

The L3GGI 01 is a galvanic signal and ground path isolator for use with 3G HD, SD & SDI video signals. They are built in cylindrical “barrel” style enclosures and fitted with a BNC connector at each end and isolate both the signal and ground paths.
Bandwith: 0.5MHz to 3.0GHz
DC Breakdown voltage: 100 volts minimum
Input and output impedance: 75 ohms
Return loss: >20dB
Dimensions: 30 x 20 (l x diameter) mm
Weight: 36g
