Kino-Flo Diva-Lite LED 20 DMX Kit

Overview
The Kino Flo Diva-Lite LED lights offer a wide range of features to enhance any studio production or on-location shoot. With dial-in colour temperature control between 2500K-9900K, green/magenta control, and over 100 well-known lighting gels, these lights provide vibrant and accurate colour selection. The full colour control through hue angle and saturation control allows for precise adjustments, while the special effect mode offers a variety of options such as fire, TV, police, and lightning simulations. With flicker-free and dead quiet operation, as well as DMX wireless capabilities, the Kino Flo Diva-Lite LED lights are a versatile and energy-efficient choice.

The recently released TrueMatch 3.0 firmware upgrade adds even more functionality to the Diva-Lite LED lights, including a gel mode with access to Kino Flo presets and a special effects mode with customizable options such as fire, TV, and paparazzi effects. The lights also have a white mode for clean white light, an RGB mode for individual red, green, and blue control, and a universal input for use with 100VAC-240VAC or 24VDC power sources. With its lightweight and easy-to-mount design, the Diva-Lite LED is the perfect choice for any lighting setup.

Summary
Type: Kit

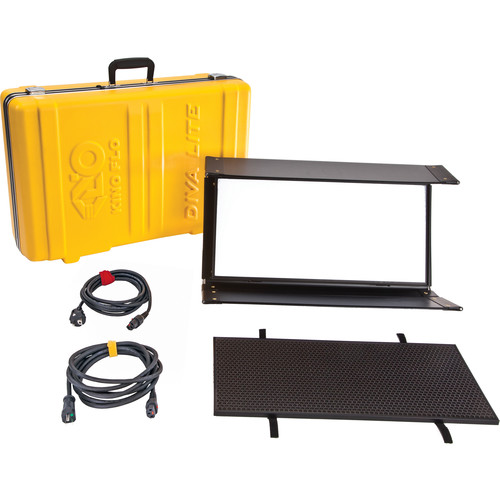

Included in box
1x Diva-Lite LED 20 Fixture (DIV-L20X)
1x Flight Case (KAS-DL20-C)

About the Kino-Flo Diva-Lite LED 20 DMX Kit
Please note: To download the latest firmware upgrade TrueMatch 3.0, please click here.

TrueMatch 3.0 transforms Kino Flo LED’s into Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse and Scroll effects simulators with the press of a button. Each special effects mode comes with a choice of FX types. Lightning, for example, has “Storm” and “Frankenstein”. The Storm effect is modelled on the rate and amplitude of thunderstorm strikes, and Frankenstein displays brighter, more cinematic light flashes. There is also rate control, and a cue feature using the power button.

Dive-Lite LED 20:

The Diva-Lite® LED’s blend Kino Flo’s popular fixture with its tunable LED family line. The Diva-Lite LED lights feature dial-in variable colour temperature control from 2500K to 9900K, full-range dimming, programmable presets and DMX wireless capability.

As with the Celeb and Select LED’s, the Diva-Lite LED’s soft white light doesn’t flicker or shift colour temperature when dimmed. Light levels are consistent throughout the Kelvin range. The Diva-Lite LED’s feature a Green/Magenta control to match the spectral curves of the most popular cameras and other light sources on set. With built-in DMX and Lumen Radio® receivers, the Diva-Lite LED’s can be controlled by DMX and/or DMX wireless. The Diva-Lite LED’s run on universal input from 100-240VAC or 24VDC with as little as 0.65A, 230VAC (Diva-Lite LED 30). With its versatility and unique features, the Diva-Lite LED is the perfect imaging tool for use in any studio production or on location.

The new firmware upgrade includes four Mode options, the White Mode, the Gel Mode, RGB Mode and the special effect Mode. Users who prefer to work with clean white light can use the “”white Mode””. Tjis Mode will give you access to Dimming, Kelvin and Green/Magenta control channels. Kelvin range is from 2700K tungsten to 6500K daylight. In the Gel Mode, the Kelvin range travels from 2500K tungsten to 9900K daylight, and Kino Flo has set up a fourth channel called Gel. The Gel channel includes Kino Flo presets such as blue & green screen, sodium vapour, mercury vapour and over 100 well-known lighting gels. In addition, there is also a fifth channel for Hue Angle control and a sixth channel for Saturation. These two channels behave like a traditional colour wheel, where you have white light in the center and the Hue angle determines the colour along a 360-degree range. Saturation determines how much colour is applied. The second colour Mode provides individual red, green and blue (RGB) control. The RGB Mode is a great way to work with apps with predetermined RGB presets or colour wheels.The newly introduced Special Effects Mode gives full access to Kino Flo designed effects like Fire, TV, Police, Paparazzi and many more. In addition you can fine tune these effects to your needs and safe them on the preset buttons.

Input Voltage VAC 240~100VAC 50/60Hz, 150W
Amperage VAC 0.65A
Input Voltage, VDC 18~36VDC, 150W
Amperage @ 24VDC 7.0A
Kelvin Range 2700~6500 K
Dimming Range 100%~1%
Dimensions 30 x 10.5 x 21” (76 x 27 x 53cm)
Weight 34.5 lb (16kg)

Dial-in colour temperature control between 2500K-9900K
Green/Magenta Control
Kino Flo Colour presets (such as Sodium Vapour, Blue and Green Screen and more.)
Over 100 well-known lighting gels
Vibrant Colour Selection (RGB+WW Colour Gamut)
Full colour control through Hue Angle and Saturation control
Special Effect Mode for Fire, TV, Police, Lightning, Paparazzi and more
Kelvin presets
Preset buttons can be used to store custom Kelvin and colour settings
Colour-correct with high colour rendering index (CRI 95)
No colour shift while dimming
Light levels do not change when selecting Kelvin settings
Flicker-free, dead quiet operation
Full range onboard and DMX dimming
DMX wireless link (Lumen Radio)
DMX Auto Terminate
Universal input 100VAC-240VAC or 24VDC
Energy efficient, draws 0.65A, 230VAC and 7A, 24VDC (Diva-Lite LED 30)
Fixture includes removable 90° Honeycomb Louver
Built-in Barndoors
Centre Mount
Mounts to stand, light enough to be hand-held
