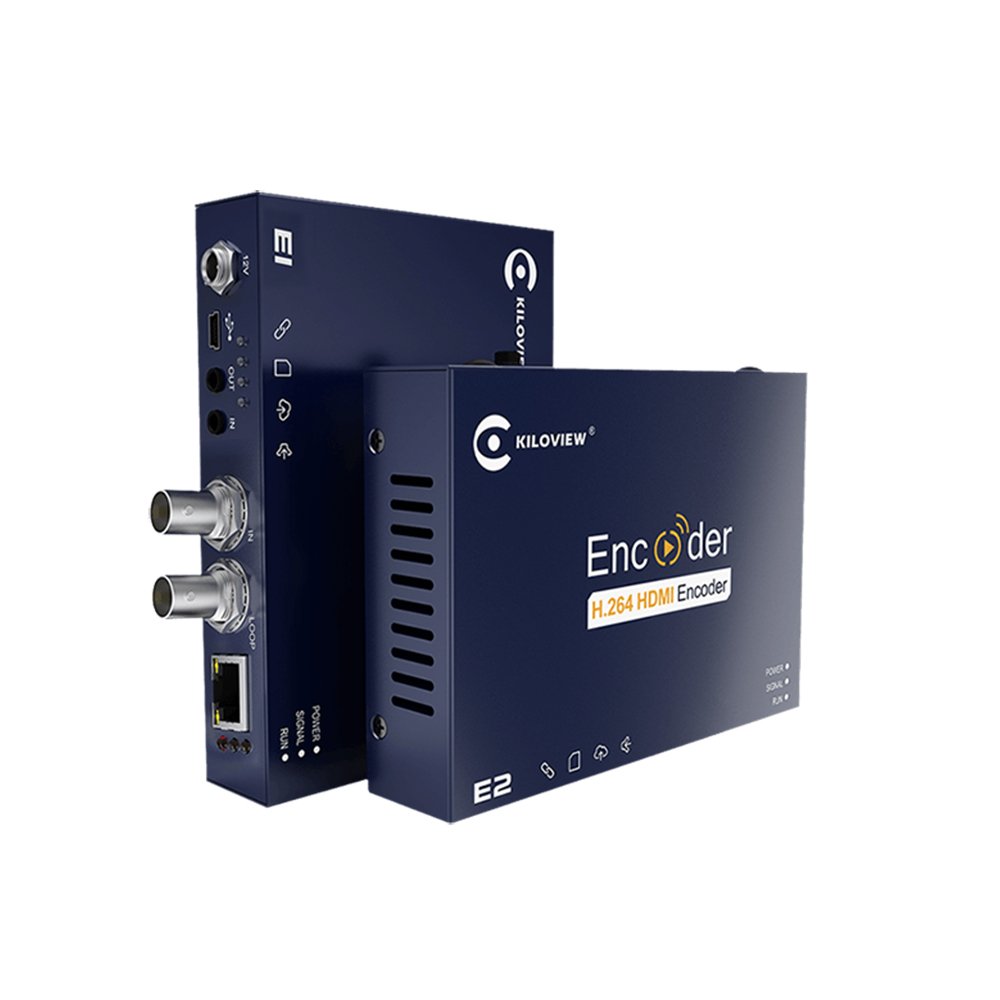

Kiloview E1 HD Video Encoder

OVERVIEW
Kiloview E1 H.264 live video encoder delivers H.264 SDI video to various platforms like live broadcasts, Youtube Live, Facebook and live broadcast audio and video encoding for Ustream, Livestream, Twitch, Meridix, Streamspot, Dacast, and more. Applications of the SDI encoder include hotel TV system, school teaching, live broadcasting, church streaming. E1 encoder has approved by CE, FCC, ISO, etc.
INCLUDED IN BOX
1x Kiloview E1 H.264 HD SDI to IP Wired Video Encoder

About The Kiloview E1 HD Video Encoder
Kiloview E1 H.264 live video encoder delivers H.264 SDI video to various platforms like live broadcasts, Youtube Live, Facebook and live broadcast audio and video encoding for Ustream, Livestream, Twitch, Meridix, Streamspot, Dacast, and more. Applications of the SDI encoder include hotel TV system, school teaching, live broadcasting, church streaming. E1 encoder has approved by CE, FCC, ISO, etc.

Model E1
Video input 1x BNC SDI
Video loopout 1x BNC SDI
Analog audio input 3.5mm
Analog audio output 3.5mm
USB interface 2x USB 2.0 Type-A; 1x USB 2.0 Mini-USB
Micro SD 1x Micro SD/TF Card storage interface
Video resolution Up to 1080P60Hz, details as follows:
1080p23.98/24/25/29.97/30Hz
1080p50/59.94/60Hz
1080i50/59.94/60Hz
720p23.98/24/25/29.97/30Hz
720p50/59.94/60Hz, 576i, 480i
720*480(NTSC)，720*576(PAL)
Network support RJ-45 Ethernet
Video encoding H.264 / AVC High / Main / Baseline profile (up to Level 5.3); Motion-JPEG
Audio encoding AAC / G.711
Encoding latency ≤67ms
Media transmission protocols RTMP/SRT/HLS/TS over UDP/RTSP and so on
Management App / Web
Power DC 12V 1A
Operating temperature -4°F to 160°F /-20℃ to 60℃
Dimensions 4.9*3.5*1.125″/125*89*28mm
Weight 380 g (13.4 oz.)

H.264 video encoding
Branded chip
Low bandwidth transmission
Full live platforms supported
SDI loop monitoring
Voice intercom
SDK Provided
Low cost
SRT supported

High bandwidth adaptability, makes it possible to transmit highdefinition, low-latency, non-padding image under low bit network.

With branded chips solution together with video dynamic noise reduction and image enhancement technology, it can realise good encodingimage under low bit transmission. Good video image can be achieved at 1Mbps@720p, 1.5Mbps@1080p network.
Advanced video buffering technology and FEC technology ensures video encoding delay ≤ 67ms andstable and smooth transmission.
Adjustable bit rate from 64kbit/s～40Mbit/s.
★Note: (≤67ms) refers to the delay of the encoder end, and the end-to-end delay also relates to network, decoding, etc.

Powerful streaming media service function, supports RTSP/RTMP/TS/Onvif and SRT protocols.

RTSP/ RTMP/ HLS/ TS/ Onvif and some other streaming media protocols supported for live broadcast on Facebook, YouTube, Ustream, Twitch, Wowza etc or security platform/ NVR system.
SRT supported to ensure secure and reliable transmission.
Dual stream output, the main code rate up to 1080p60Hz, and the sub-stream supports 720p 60Hz video encoding.
Portable size, image and characters overlay supported with functions of voice intercom, NAS storage, loop monitoring etc.

Portable and low power consumption makes it 24 hours continuous working available.
Capable with customised text and image overlay function, which can be at any position on the screen.
Audio embedding encoding supported, with voice intercom function (need to deploy voice.intercom software).
Supports NAS network storage.
With video real-time loop function, there is no delay and convenient for live monitoring.
Strong flexibility to support secondary development, customised service available

Open API programming, SDK provided for second development.
Customisation service available based on client’s needs.
