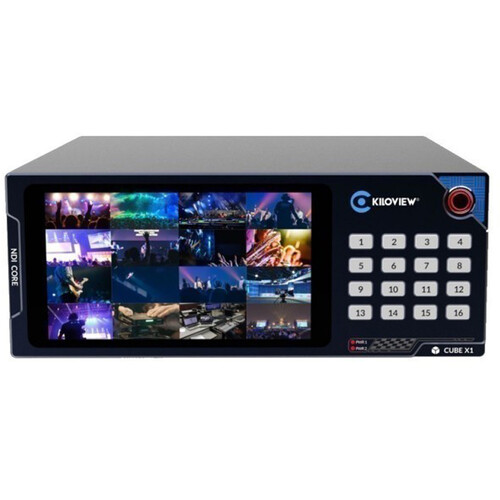

Kiloview CUBE X1 NDI Core

CUBE X1 NDI CORE is a lightweight version of the NDI CORE MAX.

The CUBE X1 is designed for unified scheduling, switching, distribution, and management of all NDI signals, supporting 16CH NDI inputs and 32CH NDI outputs. It can achieve seamless switching of all NDI sources and switch without lagging or black screen.

Additionally, it can realize non-multicast multiple distributions, multi-business grouping management, NDI signal rotation playback, etc. It is also compatible with NDI signals of any format or from any device, such as UHD/HD/NDI/NDI|HX and other NDI inputs for seamless docking.

Equipped with an LCD touch screen, the CUBE X1 allows users to monitor the network status, storage space, and CPU occupation in real time.

Non-Multicast Multiplex Distribution

Unlike a simple routing switching mechanism, Kiloview CUBE X1 supports access to all NDI data sources, thus achieving seamless NDI signal switching and unlimited distribution. When you need to use the same NDI video source in multiple targets, the system can create multiple NDI outputs as needed, or the same output can support multiple targets connected at the same time.

Seamless Switching, More Professional

Kiloview CUBE X1 can automatically discover and manually input NDI sources. It can realize 16 channels of NDI inputs, 32 channels of NDI outputs, copy distribution and switching, and switching with no lagging, blurry or black screen.

For your optional use, there are two switching panels: the crosspoint panel and the IO panel.

Up to 16 Channels of NDI Input and 32 Output

The device is the lightweight version of the NDI CORE MAX, equipped with dual 10GbE NICs, which can reach 16 channels of 1080p60 resolution NDI source inputs and 32 channels of 1080p60 resolution NDI source outputs simultaneously.

Compatible with NDI Signals of Any Formats/Devices

The CUBE X1 is compatible with any format, any number of NDI inputs of any resolution such as UHD/HD/NDI/NDI|HX, etc. and works seamlessly with NDI conference cameras, NDI mobile phones/computers, NDI codecs, NDI production systems, and other NDI hardware and software systems.

Visualized One-Button Operation

The CUBE X1 NDI CORE comes with an LCD touch screen and operation button design, the built-in 5.5-inch HD screen will display all the video operations.

Without an external display screen, the appropriate input/output source can be flexibly selected through a button or touch for monitoring, distribution, and switching without lagging, blurring, or a black screen.

Customizable Control Panel

With a customizable control panel, users can freely format different groups and independently set the group inputs and outputs to suit different scenarios.

Two switching panels, the IO panel, and the crosspoint panel are provided for preferred usage.

NDI Signal Round-Robin Playback

Users can separately set the program source, dynamically change the playback order, playback time, etc., and the playback supports NDI signal rotation.

It supports for different playback modes, such as looping and sequential play.

It is appropriate for a variety of scenarios, including conferences and Digital Signage.

Log & Permission Management, Secure Your Workflow

Featuring log and permission management options, the CUBE X1 guarantees the security of the whole process of video transmission, production, and management.

Assigning permission levels to different users, the CUBE X1 allows easy viewing of operation logs and log management at any time.

Stable and Reliable Hardware Server

Ethernet and SFP modules are more flexible.

Half of the 2U rackmount design is more professional.

Reinforcement design, better stability.

HDMI and USB port, convenient for operation.

Applications

Multiplex signal switching, studio, OB van, OB production company, EFP system, media broadcasting, schools and various enterprises and institutions, IP video signal management within campus network, signal scheduling, signal backup switching, etc.

• Multiplex Signal Switching
• TV Studio
• New Media Broadcast
• Signal Management/Scheduling
