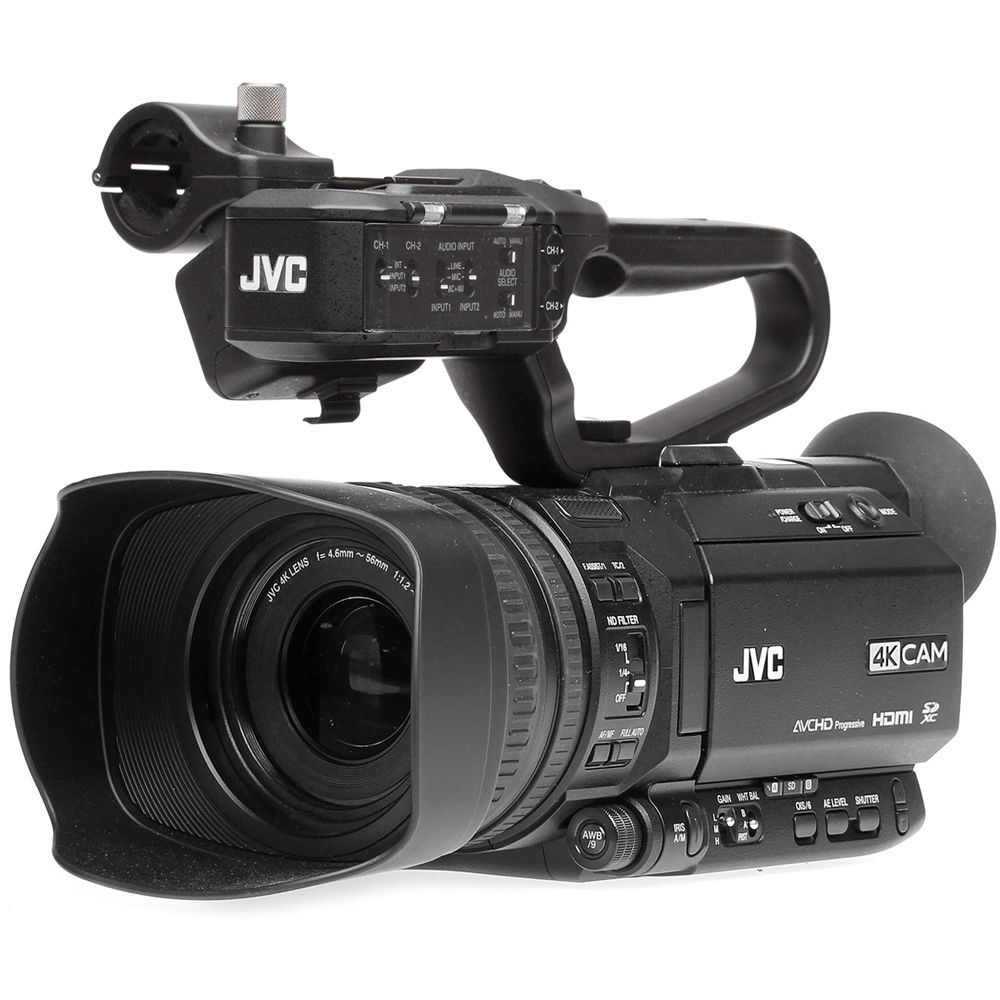

JVC GY-HM250E Professional 4K Camcorder

OVERVIEW
The JVC GY-HM250E Professional 4K Camcorder is a top-of-the-line video camera designed for professional use. With its 4K Ultra HD recording capabilities, this camcorder delivers high-quality footage that is perfect for any project.

Equipped with a single 1/2.3-inch CMOS image sensor and 12.4 million pixels, the GY-HM250E captures stunning images with exceptional clarity and detail. Its integrated 12x F1.2-3.5 zoom lens allows for versatile shooting, with a 35mm equivalent range of 29.5-354mm.

One of the standout features of this camcorder is its dynamic zoom in HD mode, which combines optical zoom and pixel mapping to create a seamless and lossless 24x zoom. This allows for smooth and fluid zooming without sacrificing image quality.

In addition to its impressive recording capabilities, the GY-HM250E also offers a range of broadcast features. These include customizable graphic overlays, the option for custom broadcaster logos, and the ability to display time, temperature, and pre-loaded logos. With wired remote control support, this camcorder is perfect for live broadcasting.

The GY-HM250E also offers multiple output options, including HD-SDI (3G) and HDMI outputs, with 4K output via HDMI only. It also has live 4K UHD output via HDMI, making it compatible with a range of streaming services such as USTREAM, Zixi, and Wowza Streaming Engine.

With its advanced streaming engine, the GY-HM250E allows for easy live streaming to popular platforms like Facebook Live and YouTube. It also has IP network remote control capabilities, making it easy to control and adjust settings remotely.

Designed for enhanced single-camera production, the GY-HM250E offers lower-third and full screen tilting solutions for recorded or streamed video output without the need for an external CG or production switcher. This makes it a convenient and cost-effective option for professional videographers.

The JVC GY-HM250E Professional 4K Camcorder is the perfect choice for anyone looking for a high-quality, versatile, and reliable video camera. With its advanced features, impressive recording capabilities, and professional design, it is sure to exceed your expectations.

SUMMARY
Max Aperture: f/1.2
Recording Formats: AVCHD
Internal ND: No
Audio Inputs: 2 x XLR
Shutter: Rolling (Electronic)
Focal length (35mm Equivalent): 29.6mm-355mm
Lens Zoom: 12x Optical Zoom
Media Type: SDHC/SDXC
Resolution and Frame Rate: 4K 30p
Sensor: CMOS
Video Outputs: 1x HDMI
Weight: 0-2kg
Wi-Fi: Yes
INCLUDED IN BOX
1x GY-HM250E Professional 4K Camcorder (With in-camera charging – optional separate charger can be purchased).
1x JVC SSL-JVC50 Battery
1x Handle Unit, with Professional Audio XLR Support
1x Instruction Manual

Description

PLEASE NOTE: Image for display purposes only.

JVC GY-HM250E (GYHM250E) Handheld 4KCAM Professional 4K Camcorder with live streaming to Facebook Live, Youtube and other CDNs/

The JVC GY-HM250E Handheld 4K Professional Camcorder offers integrated graphics and live streaming whilst being designed for enhanced single-camera production, it also offers lower-third and full screen tilting solutions for recorded or streamed video output without an external CG or production switcher. Lower-third graphic overlays are generated and controlled using a browser-equipped device, such as a tablet or smartphone. JVC also provides a software utility that lets customers upload logos or icons that are displayed in the lower-third of the recorded video. Full-screen graphics can be advanced manually or presented as a slideshow during extended breaks in the action with user-defined timing. Users can store up to 50 .JPG or .PNG graphics, such as team logos or channel icons, in the camera. Worship facilities, for example, can display scripture readings or lyrics, with the operator manually advancing graphics during the service. The GY-HM250E also features built-in streaming with Wi-Fi and 4G connectivity that provides live access to CDNs like Facebook Live and YouTube. The camera also works as part of JVC’s S.L.I.M. studio camera system – an affordable approach to multi-camera production that uses the RM-LP100 remote camera control as a CCU for JVC IP-capable cameras.

Other new features include 4:2:2 recording for 4K/30/25p and 4K/24p, as well as 4K/60/50p HDMI output. The new tele macro shooting mode on the GY-HM250E and GY-HM250SP provides better focus on close objects than previous models, while the new ZeroConfig function provides automatic, one-click configuration of the camera when it joins the same LAN as other cameras.

The new GY-HM250E replaces the current GY-HM200E model whilst retaining the professional features valued in the previous 4KCAM models, including a 1/2.3-inch BSI 4K CMOS imager and integrated 12x zoom lens with optical image stabiliser. The cameras record footage in a variety of file formats and frame rates (including up to 120fps slow motion) to economical Class 10 SDHC/SDXC memory cards. Users can record on two cards simultaneously for instant backup or use relay mode for extended recording time. Other features include dual XLR audio inputs, integrated handle with hot shoe, built-in microphone and dedicated shotgun mic mount, and viewfinder and LCD displays.

Specifications

Camera Front-End Specifications
Image Sensor (inch) 1/2,3 Inch CMOS
Number of Sensors 1
Mega Pixels 12,4
Gain in dB 0 to 36
Shutter speed 1/4 to 1/10000
White Balance modes FAW, AWA, 3200K, 5600K, Manual
Color Matrix adjustment Yes
Wide Dynamic Range Mode (WDR) Yes
User selected function buttons Yes, 13 (9 Buttons 4 Cross shaped)
User Customizes Menu Yes
Optical Specifications
Lens mount Internal
Optical Zoom X times 12
Dynamic Zoom x times 24
Lens F Number 1.2 to 3.5
Lens ratio from / to 4.67mm to 56.04mm
Lens ratio equivalent to 35mm 29.6mm to 355mm
Auto Focus Yes
Special Auto Focus Features Area Focus, Near/Far Modes, Face
Optical Image stabilization Yes
Filter Diameter in mm 62mm
Build in ND Filters 2 Filters: 1/4, 1/16
Recording Formats
Media SDHC/SDXC
Media Class 4K/70 Mbps,HD and below Class 10
4K/150Mbps UHS1-U3 (no UHS-2)
Recording slots 2
Encoder H.264
File Format MOV Yes
File Format AVCHD Yes
Video Codec MPEG4 AVC/H264 4K/HD Yes
Video Codec AVCHD Yes
Recording specials 4:2:2 HD Record (H.264,50Mbps)
Simultaneous recording on 2 cards Yes
Simultaneous recording in 2 modes Yes
Recording Resolution Formats
Resolution 3840 x 2160 Yes, 29,97p/25p/23.98p
Resolution 1920 x 1080 Yes, 60p/50p/30p/25p/24p/1080i60/i50
Resolution 1440 x 1080 Yes, 60i/50i
Resolution 1280 x720 Yes, 60p/50/30p/25p/24p
Resolution 720 x 576 Yes, 50i
Resolution 960 x 540 Yes, 30p/25p/24p
Resolution 480 x 270 Yes, 30p/25p/24p
High Speed Recording Yes
High Speed Recording Modes 1920×1080 QuickTime (MPEG-4, AVC/H.264) 120fps/100fps
Recording Data rate 1 150 Mbps (UHD)
Recording Data rate 2 70 Mbps (UHD)
Recording Data rate 3 8,17,24,28 Mbps (AVCHD)
Recording Data rate 4 35 Mbps (UHQ)
Recording Data rate 5 50 Mbps (XHQ/YUV422)
Recording Data rate 6 8 Mbps (SD)
Recording Data rate 7 9,8,5,3,1.2,0.8,0.3,0.2 (WEB)
SD Recording Yes
Interval Recording Yes
Pre Rec (retro) recording Yes, 5 sec. (4K) 5,10,15 sec. (HD/SD)
Clip Trimming Yes
Audio Channels 2
Audio Recording modes LPCM 2ch, 48 kHz/16 bit (4k/HD/SD MOV), AC3 2ch (AVCHD), μlow 2ch (Proxy)
IP Section of the Product
IP Main Connection USB A Host
IP Connection supports Ethernet, WIFI – and LTE USB Adapters
IP Features Live-Streaming Yes
IP Features Remote Yes, Via Web-Browser (no apps needed)
IP Features FTP Yes, Different protocols
IP Features Meta-Data Yes, Local and Remote editing and data exchange
Live-Streaming Bitrates 1920 x 1080 (59.94i/50i) Audio AAC 128 k 12/8/5/3 Mbps
1280 x 720 (59.94p/50p) Audio AAC 128 k 12/8/5/3 Mbps
1280 x 720 (29.97p/25p) Audio AAC 128 k 8/5/3/1.5 Mbps
720 x 480 (59.94i) 720 x 576 (50i) Audio AAC 128 k/64 k 8/5/3/1.5/0.8/0.3 Mbps
640 x 360 (29.97p/25p) Audio AAC 128 k/64k 3/1.5/0.8/0.3 Mbps
Live-Streaming Protocols RTMPS,RTMP, MPEG2-TS/UDP, MPEG2-TS/RTP, RTSP/RTP, ZIX,Facebook Live paring
Live-Streaming Single cast Yes
Live-Streaming Multicast Yes
Live-Streaming reconnect Yes
Live-Streaming and simultaneous REC Yes
Live-Streaming Pre-sets of destinations 4
FTP Protocol formats FTP / SFTP / FTPS
FTP upload during REC Yes
FTP servers presets 4
Meta-Data presets of servers 4
Note for all kind of USB Adapters The connection to a network will be made by the USB Host Port of the camcorder
(on the right back end side of the camcorder).
Please select the device which you are going to use
WIFI dongle / 3G/4G dongle or a CAT Network adapter.The Adapter you going to be use must be a registered Adapter
(see attached compatible list), cause all of these Adapter needs dedicate drivers, which to be implemented into the camcorder.
In the case for LTE adapters, there must be done a pre-set of these dongles in your local PC first!
Recommendation for WIFI USB Adapters (EU only) Please Note Sometimes the Manufacturers change the Revision of the Chip-sets,
but product name not changed, we can´t track such issues so may its possible that such a dongles even its mentioned here, may not work.
The Adapters below are work able in the 2,4 GHz and 5 GHz infrastructure.
WIFI Dongle 1 Sitecom WLA.1001
WIFI Dongle 2 EnGenius EUB1200AC /Realtek RTL8812AU
WIFI Dongle 3 ASUS USB1200AC /Realtek RTL8812AU
WIFI Dongle 4 D-LINK DWA-172 (revA1) /Realtek RTL8811AU
WIFI Dongle 5 EDIMAX EW-781UTC /Realtek RTL8811AU
WIFI Dongle 6 D-LINK DWA-171(revA1) /Realtek 8811AU
WIFI Dongle 7 TP-LINK Archer T4U /AC1200 Realtek8811AU not T4U V2.0 AC1300!!
WIFI Dongle 8 Wideland (over Amazon) ACWIFI DEWIFIC001A
Recommendation for Ethernet adapters
Ethernet Dongle 1 EDIMAX EU-4208
Ethernet Dongle 2 Sitecom LN-030 V2 not Sitecom LN-030 V3
Ethernet Dongle 3 Hamlet HNU2GTX
Ethernet Dongle 4 D-LINK DUB-E100 (rev C1)
Recommendation for 3G/4G (LTE) Adapters Dear Customer, for the most countries we have a recommendation of adapters,
please download our info sheet for LTE support, below you find a special recommendation, which should work in the most countries.
LTE Specials 1 Universal LTE dongle
Huawei E8372LTE Wingle
so far works with Telekom/O2/Vodafon , others not tested yet.
Special Features
Overlay for Broadcast-News Yes
Self Modify Templates via SDP Generator Yes, For News
Text support Yes
Logo support Yes
Watermark Yes, Free Position
Full Screen Graphics Yes, PNG or JPG Files Max 50 Images
LIVE Logo Yes, Self design
Overlay output selection Yes, REC
LIVE out
Stream
IN-OUT´s Connections
OUT HDSDI Yes, 3G HDSDI
OUT HDSDI Format max 1080/60p,50p 8 Bit 4:2:2 EE
OUT HDMI Yes
OUT HDMI Format max. 2160/30p,25p,24p 8 bit 4:2:2 EE
1080/60p,50p 8 bit 4:2:2 EE
OUT AV Yes, 3.5mm mini jack
OUT Audio Line Yes, 1 times 3.5mm mini jack
OUT Audio Headphone Yes, 1 times 3.5mm mini jack
IN Audio XLR MIC/LINE Yes, 2 times supports LINE and MIC Level with +48V
IN Audio AUX Yes, 1 times 3.5mm mini jack
Build in Microphones Yes, Stereo MIC
Wired remote IN Yes, serial LANC 2.5mm mini jack
USB HOST Yes
USB Data Exchange (Storage) Yes
EVF and LCD
Operation Panel Type LCD
Operation Panel Resolution 920K
Operation Panel Size diagonal in inch 3.5
Electronic Viewfinder (EVF) Type LCOS
Electronic Viewfinder (EVF) Resolution 1,56M
Electronic Viewfinder (EVF) Size diagonal in inch 0.24
Power and Enviroment Spec´s
Power AC Yes, DV12V(AC Adapter)
Power DC Yes, 12 Volt, Battery 7,4V
Battery types SSL-JVC50 / SSL-JVC75 IDX
Power consumption Approximate 7,9W with VF in 4K REC mode, default settings
Operation Temperature in Celsius degrees 0 to 40
Storage Temperature in Celsius degrees -20 to 50
Operation Humidity in % 30 to 80
Storage Humidity under % 85
Mechanical Informations
Weight in kg 1,6 include battery
Measurements (WxHxD) in mm W 149 x H 191 x D 307
Handle removable Yes
Include Package
Battery Yes, 1 SSL-JVC50
AC/DC adapter Yes
Handle unit Yes, with Professional Audio XLR support
Instructions Yes
General Editing Note
NOTE Simulated pictures.The values for weight and dimensions are approximate.E.&O.E.
Design and specifications subject to change without notice.
Read moreFeatures

4K Ultra HD recording (150 Mbps, 24/30p) to SDXC (UHS-I Speed class3) card
Single 1/2.3-inch CMOS image sensor with 12.4 million pixels (9.03 active)
High quality integrated 12x F1.2-3.5 zoom lens (35mm equivalent: 29.5-354mm)
Dynamic zoom in HD mode combines optical zoom and pixel mapping to create seamless and lossless 24x zoom
Broadcast features -Customizable graphic overlays (on/off switchable), Option for custom broadcaster logos, watermark, time and temperature, Selectable pre-loaded logos
Wired remote control supported
HD-SDI (3G) and HDMI outputs (4K output via HDMI only)
Live 4K UHD output via HDMI connector
Advanced JVC streaming engine compatible with USTREAM, Zixi and Wowza Streaming Engine
IP network remote control, remote viewing, metadata editing, FTP clips (requires appropriate network connection and adapter)
4:2:2 full HD recording at 50Mbps (24-60p)
120fps HD slow motion recording
Dual SDHC/SDXC slots enable dual, backup and continuous recording
9 user button assignable functions
2 position ND filter (1/4, 1/16)
0.24-inch colour viewfinder (1.56M pixel) with smart focus assist function
3.5-inch colour LCD display (920K pixel) with smart focus assist function
Built-in stereo microphone
External microphone and WIFI or LTE Dongle not included
Includes handle unit and SSL-JVC50 7.4V battery, AC Adapter
