IKAN VXF7-V2 7in Monitor Deluxe Kit

Overview
The Deluxe kit for the VXF7-V2 monitor includes a carrying case, battery, battery charger, hdmi to micro hdmi, hdmi to mini hdmi, and sdi cable. The monitor features a 1920 x 1200 IPS panel and has three tally indicator LEDs on the rear and front on-screen display. It also offers various features such as waveform, false color, peaking, zebra, pixel-to-pixel, zooming, clip guides, and audiometer. The monitor is fully made of aluminum for durability and supports Anamorphic de-squeeze in real-time. It also has 4K support via HDMI and 3G-SDI input with loop through. The VXF7-V2 is compatible with L Series type batteries.

The VXF7-V2 monitor is designed for professionals, with a sharp full HD panel and features that make it an ideal workhorse for any production environment. It also has tally lights and a tally connector for use in multi-camera productions. The monitor is ergonomically designed with easy-to-use buttons and four knobs for adjusting settings. It is also rugged and strong, with an aluminum body and anti-rotation locating pins for secure mounting. The VXF7-V2 is a reliable and professional tool for any production needs.

Summary
Screen Size: 7 Inch
Resolution: 1920 x 1200
Inputs:
3G-SDI
HDMI
Outputs:
3G-SDI
HDMI
Recording: No

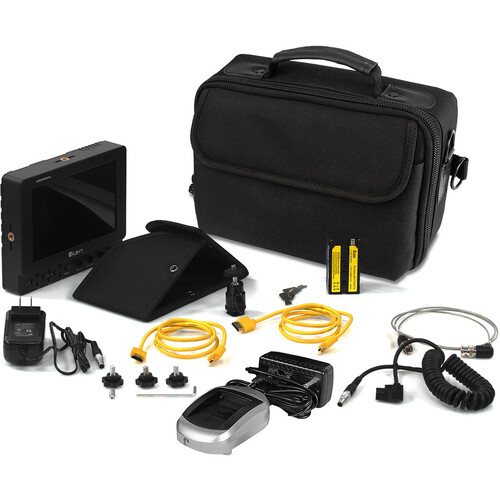

Included in box
1x VXF7-V2 Monitor
1x Sunhood
1x Power Adapter
1x D-Tap Cable
1x Shoe Mount
1x Hard Carrying Case
1x IBS-750 Battery
1x L Series Battery Charger
1x Slim 1.5 ft HDMI Cable (Mini to Standard)
1x Slim 1.5 ft HDMI Cable (Micro to Standard)
1x Slim 1.5 ft SDI Cable

About the IKAN VXF7-V2 7in Monitor Deluxe Kit
VXF7-V2

The VXF7-V2 features a beautifully sharp, full HD 1920 x 1200 IPS LCD panel. It comes with many features such as waveforms, peaking, false colour, zooming, pixel-to-pixel mapping and histogram levels. This type of quality ensures you will capture your desired shot on the first try and makes the VXF7 monitor the ideal workhorse for any production environment.

Tally Light Indicators

Incorporating a tally connector and three tally lights on the front and back, the monitor fits well into a switched multi-camera production. You can access the tally connector pin key by removing the interchangeable battery plate.

Made for Professionals

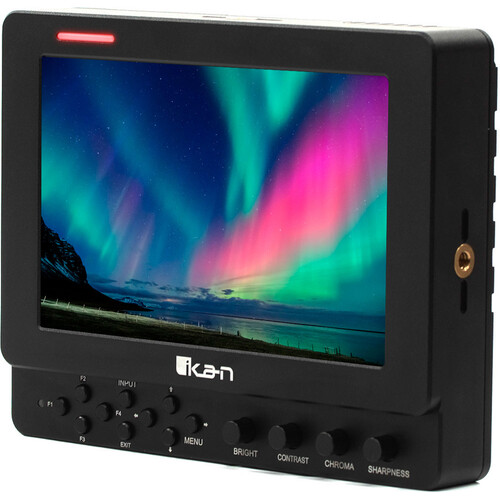

The VXF7-V2 is a professional tool designed for the working professional. The ergonomics and button layout provides ease of use in the field. Four knobs on the front make it easy to adjust settings such as brightness, contrast and colour. The front and back are equipped with tally lights. A locking power input is also included so you never have to worry about losing power with a loose connection.

Rugged & Strong

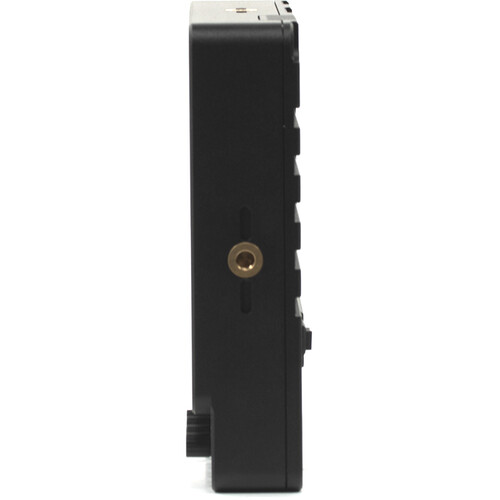

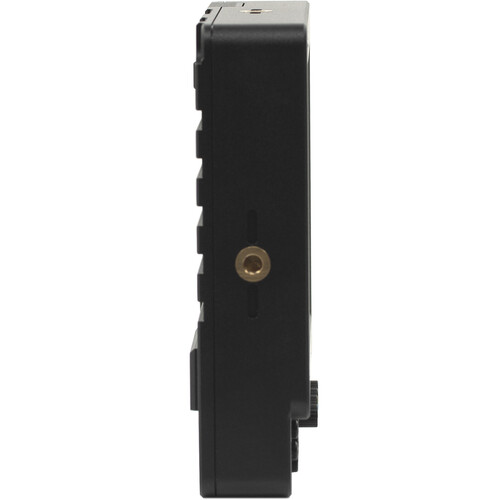

The VXF7-V2 updates the classic VXF7 with aluminium to increase durability. All four 1/4-20″ threads are also outfitted to work with anti rotation locating pins such as ARRI locating pins.

Aspect Ratio 16:10
Backlight LED
Brand Ikan
Brightness 450 cd/m2
Build Material Aluminium
Colour Depth 16.7 Million
Colour System PAL/NTSC/SECAM (Auto-Detected)
Contrast Ratio 800:1
Input Voltage DC 7V – 24V
Inputs 3G-SDI, HDMI, RJ45 (Tally)
Operating Temperature 0 deg C ~ 50 deg C (32 deg F ~122 deg F)
Outputs 3G-SDI, HDMI, 3.5mm Audio Port
Power Consumption 9W
Resolution 1920 x 1200
Screen Size 7 in.
Viewing Angle 178 degrees horizontal/178 degrees vertical
Product Weight (lbs) 1.5
Product Dimensions (in) 7.36 x 5.6 x 1.3 in.

Deluxe kit additionally includes carrying case, battery, battery charger, hdmi to micro hdmi, hdmi to mini hdmi, sdi cable
1920 x 1200 IPS panel
Three tally indicator LEDs on the rear and front on-screen display (green, red, yellow)
Waveform, false color, peaking, zebra, pixel-to-pixel, zooming, clip guides, audiometer
Fully aluminium for durability
Supports Anamorphic de-squeeze in real-time with a squeeze of 1.33x.
4K support via HDMI
3G-SDI Input with loop through
HDMI Input with loop through
Supports L Series type battery

Video Inputs
3G-SDI
HDMI
