IKAN Atlas 21.5in 3G-SDI/HDMI Monitor w/Case

Overview
The Ikan Atlas AX20-FK-V2 monitor is a high-quality field monitor with a 1920 x 1080 LCD display. It features a durable hard case with a mount for light and speaker stand, making it perfect for on-location use. The monitor also has a SD card slot for loading 3D LUTs and supports 4K Ultra HD via HDMI. One of the standout features of the Atlas AX20-FK-V2 is its extensive range of video inputs, including 2 x 3G-SDI, 1 x HDMI, 1 x AV, 1 x Audio L/R, 1 x Tally, and 1 x UMD/RS422. It also has a variety of useful tools for monitoring and adjusting your footage, such as waveform, RGB parade, vectorscope, and more. Overall, the AX20-FK-V2 is a versatile and practical choice for field use.

Summary
Screen Size: 21.5 Inch
Resolution: 1920 x 1080
Inputs:
3G-SDI
HDMI
Outputs:
3G-SDI
HDMI
Included in box
1x AX20-FK-V2 (Cased with 5/8″ Stud (Baby 16mm)) – 9.1KG
1x Power Cable

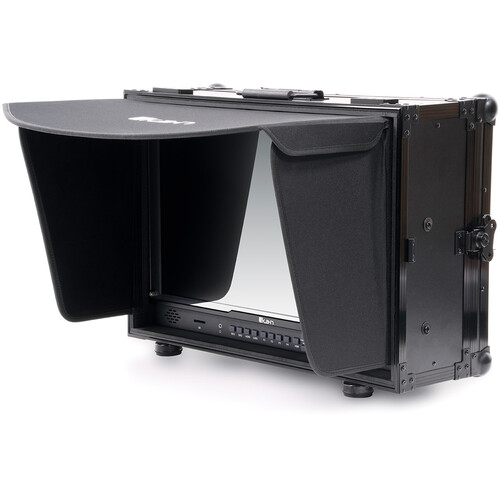

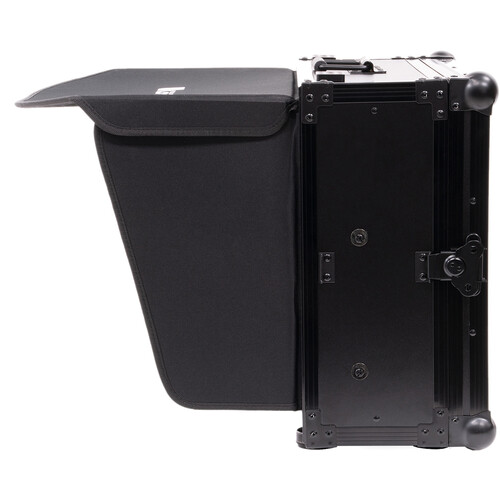

1x Sunhood
1x SD Card for LUTs

About the IKAN Atlas 21.5in 3G-SDI/HDMI Monitor w/Case
The Ikan Atlas AX20-FK-V2 monitor is designed to be the ultimate field monitor. The monitor incorporates many features that make it ideal for field use such as its durable hard case. The AX20-FK-V2 is full of many features designed specifically to make working in the field easier and more efficient. In addition, the Atlas AX20-FK-V2 supports HDR preview mode to help get the right shot for HDR acquisition.

BUILT FOR THE FIELD

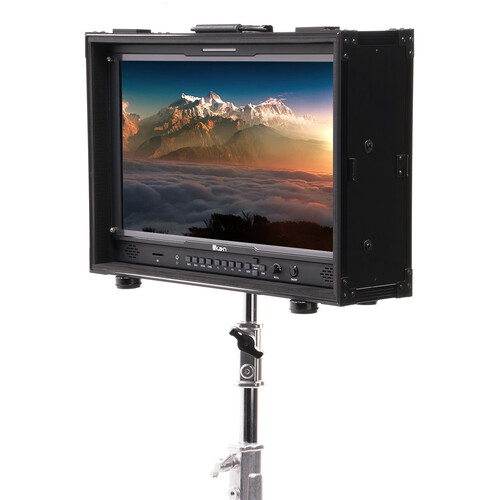

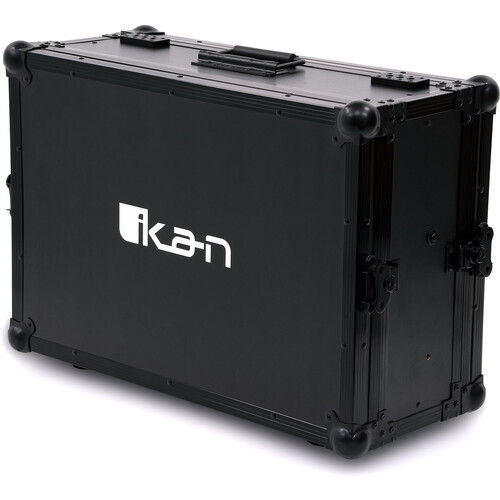

The Atlas AX20-FK-V2 monitor is designed with field usability in mind. The ultra-rugged case with built in light stand mount allows you to keep the monitor protected, easy to carry, and use on location. Additionally the monitor can also be mounted via the 100×100 VESA mount on the back of the monitor.

TALLY LIGHT INDICATORS

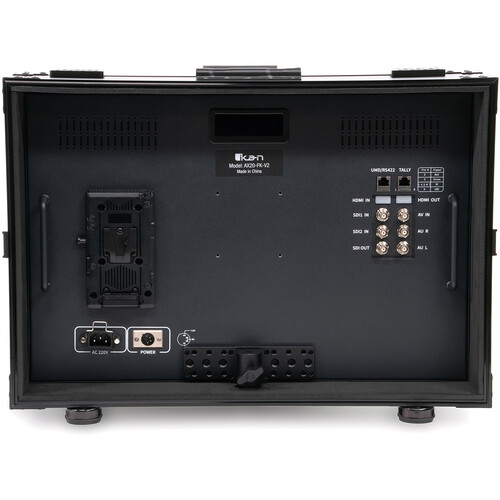

Incorporating a tally connector and three tally lights on the front, the monitor fits well into a switched multi-camera production. You can see the tally connector pin key on the back of the monitor.

INPUTS AND OUTPUTS

In keeping with the theme of flexibility, the AX20-FK-V2 also offers many inputs and outputs.

Two 3G-SDI Inputs and One Output
HDMI In and Out
Composite Video Input
RCA and XLR Audio Inputs
Tally Input

Product Weight (lbs) 20
Product Dimensions (in) 21 x 15 x 6
Supported Video Signal 3G-SDI
1920x1080p @ 50, 59.94, 60 Hz
HD-SDI:
1280x720p @ 50, 59.94, 60 Hz
1920x1080i @ 50, 59.94, 60 Hz
1920x1080psf @ 23.98, 24, 25, 29.97, 30 Hz
1920x1080p @ 23.97, 24, 25, 29.97, 30 Hz
SD-SDI:
720x480i @ 59.94, 60Hz
720x576i @ 50Hz
HDMI:
720x480i @ 60 Hz
720x576i @ 50 Hz
1280x720p @ 50, 59.94, 60 Hz
1920x1080i @ 50, 59.94, 60 Hz
1920x1080psf @ 24, 25, 29.97, 30 Hz
1920x1080p @ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Hz
3840x2160p @ 24, 25, 30 Hz
4096x2160p @ 24 Hz
Backlight LED
Battery Type V-Mount
Brightness 400 cd/m2
Build Material Aluminium
Contrast Ratio 1000:1
Input Voltage AC 110-240V, DC 12-24V
Inputs 2 x 3G-SDI, 1 x HDMI, 1 x AV, 1 x Audio L/R, 1 x Tally, 1 x UMD/RS422
Mounting Points VESA 100 x 100, Light Stand Adapter
Outputs 1 x 3G-SDI, 1 x HDMI178
Screen Size 21.5″
UPC Code 847983032822
Viewing Angle 178 Degree (H/V)

1920 x 1080 LCD display
Three colour tally indicator LED on the front and rear of the chassis (green, red, yellow)
SD card slot for loading 3D LUTs
Built-in hard case with a mount for light and speaker stand
4K Ultra HD support via HDMI
Waveform, RGB parade, vectorscope, histogram, peaking, false colour, pixel-to-pixel, clip guides, image flip, audiometer
HDMI/3G-SDI input and output
V-mount battery plate

Video Inputs

2 x 3G-SDI
1 x HDMI
1 x AV
1 x Audio L/R
1 x Tally
1 x UMD/RS422
