IK Multimedia iLoud Micro Monitor PRO – Pair

Overview
Ultra-compact format for tight spaces and travel, the iLoud Micro Monitor Pro offers a maximum peak SPL of 109 dB at 1 meter, providing clear and powerful sound. With a flat and transparent frequency response, it is ideal for critical listening, delivering physics-defying bass down to 50 Hz thanks to advanced DSP for perfect transient response and linear phase.

Built-in ARC self-calibration adjusts to any space, making it controllable with X-MONITOR software for custom tuning. Ideal as a secondary reference in large studios, the iLoud Micro Monitor Pro features tilting feet plus a threaded insert for precise positioning. With its portable design and powerful performance, it allows for studio-quality sound anywhere, offering transparent, true-to-life audio without hype or coloration.

Included in box

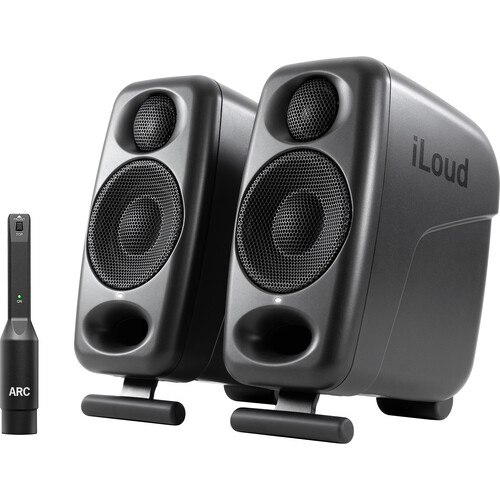

1x iLoud Micro Monitor Pro speaker
1x Power cord
1x USB-A to USB-C cable, 1.5 m (4.92 ft)
1x ARC Microphone
1x ARC Microphone Clamp

About the IK Multimedia iLoud Micro Monitor PRO – Pair
Sound that moves with you

iLoud Micro Monitor Pro makes critical mixing possible in the studio, at home or on the go. The evolution of the ubiquitous iLoud Micro Monitor is designed to provide reference presentation, transparency and impressive accuracy that can be placed anywhere or carried with you.

With the same ARC room calibration and control software as iLoud MTM MKII and flagship Precision models, Micro Monitor Pro allows you to experience uncolored, quality audio monitoring in any space, from acoustically treated rooms to spaces definitely not designed for audio work.

Smallest footprint, fits anywhere

Ultra-compact, the Micro Monitor Pro offers even the most demanding mix engineers and audiophiles the features they need to work or enjoy music anywhere without sacrifice. Beyond incredible sound, its retractable rubber feet and 3/8″ threaded insert allow Micro Monitor Pro to adapt to any size setup. Angle them on your desktop, mount them on mic stands, or use the optional iLoud wall/ceiling mounts to fit your space and needs precisely.

Portable and powerful

Micro Monitor Pro is palm-sized and weighs just 3 pounds. It packs a 50 W RMS class D high-efficiency amplifier and high-quality custom-made drivers. With a full-band maximum SPL of over 95 dB per speaker, it easily outperforms monitors twice its size. The exclusive 3″ high-performance long-throw woofer and the 1″ silk dome tweeter are engineered and manufactured under strict tolerances to make all units sound identical for precise and solid imaging.

The latest tech inside

Advanced DSP handles all Micro Monitor Pro’s core audio functions using audiophile-grade high-resolution algorithms for cross-over, filtering, time alignment, equalization, dynamic control and auto-calibration. A/D conversion is at today’s highest standards, maintaining a pristine and pure signal from the analog input to your ears. The results are a listening experience unmatched by any other speaker in its weight class.

Studio quality anywhere

You’ll enjoy transparent, true-to-life sound without hype or coloration from Micro Monitor Pro’s ultra-flat frequency range of 50 Hz to 20 kHz ± 2 dB (42 Hz to 22 kHz @ -10 dB). Bass frequencies are solid and firm with no booms or tails. Highs are transparent, defined and neutral. You’ll hear the audio precisely for what it is with less ear fatigue, even during long listening sessions. Linear phase and accurate transient response allow for quickly making the right mix decisions.

Built-in ARC correction

Compact studio monitors are used everywhere, from quality control rooms to mobile setups, but each space is different. iLoud Micro Monitor Pro features built-in ARC room correction to automatically balance its frequency response in any room or placement. With the ARC MEMS calibration microphone, you can calibrate each monitor in just 2 minutes, significantly improving the reliability of the monitoring setup and translation of your work. You can easily switch between the standard settings and the ARC calibration to hear the difference.

X-MONITOR integration

Inherited from IK’s flagship iLoud Precisions, iLoud Micro Monitor Pro offers full X-MONITOR integration. This exclusive, award-winning software gives you complete control over every speaker element beyond the rear controls for precise, custom tuning of the monitor response.

Type 2-Way bi-amped, digitally controlled compact studio monitor
LF driver 3″ composite cellulose fiber, custom-made mid-woofer
HF driver 1″ low-distortion silk-dome tweeter
Acoustic design DSP-tuned bass reflex
Number of amps per speaker 2
Amplifier type High-efficiency Class-D
Total power 50 W RMS
LF power 30 W RMS
HF power 20 W RMS
Crossover type Digital, Linear Phase
Crossover frequency 2.5 kHz
Frequency response 50 Hz to 20 kHz ± 2dB, 42 Hz to 22 kHz @ -10dB
Phase response System remains coherent within +/- 30° from 500 Hz to 20 kHz
Sensitivity (XLR) -10 dBu signal generates 90 dB SPL @ 1 m
Sensitivity (RCA) -22 dBu signal generates 90 dB SPL @ 1m
Continuous max SPL 94 dB (free field, one speaker, 1 m distance, ANSI-2034 weighted pink noise)
Peak SPL 107.3 dB (free field, one speaker, 1 m distance, ANSI-2034 weighted pink noise)
Peak SPL 109.3 dB (half space, one speaker, 1 m distance, ANSI-2034 weighted pink noise)

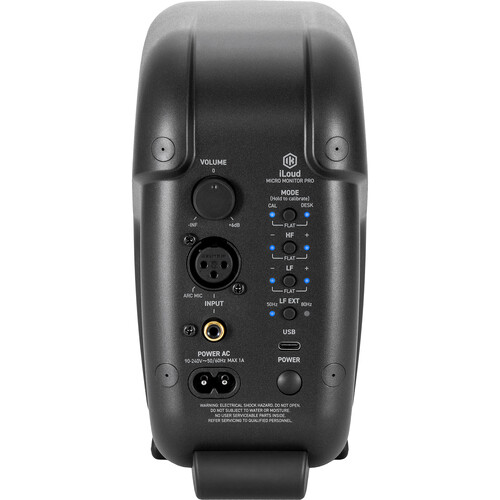

Placement setup Manual switches for LF Extension, LF trim, HF trim, Desk position
LF extension switch Sets -3 dB point of the frequency response at 50 or 80 Hz (LFE)
LF switch Low shelf, +2 dB or -3 dB from 100 Hz down
HF switch High shelf, +2 dB or -2 dB from 8 kHz up
Desk switch -3 dB at 250 Hz and +4 dB at 1.2 kHz
Calibration Fully automatic and built-in digital calibration
Full DSP control Yes
X-MONITOR macOS and Windows control software Yes
Total Latency (TOF) 3.00 ms
Connectors 1 x XLR balanced input, 1 x RCA unbalanced input, 1 x USB type-C, C8 power socket
Power requirement 90 to 240 V AC, auto-ranging, 50 or 60 Hz, 1 A max
Dimensions 106 mm (4.17″) x 206 mm (8.11″) x 158 mm (6.22″)

Ultra-compact format for tight spaces and travel
109 dB maximum peak SPL at 1 meter for clear, powerful sound
Flat and transparent frequency response for critical listening
iLoud physics-defying bass down to 50 Hz
Advanced DSP for perfect transient response and linear phase
Built-in ARC self-calibration adjusts to any space
Controllable with X-MONITOR software for custom tuning
Ideal as a secondary reference in large studios
Tilting feet plus threaded insert for precise positioning
